Description
SmallHD ULTRA 5 TX Overview

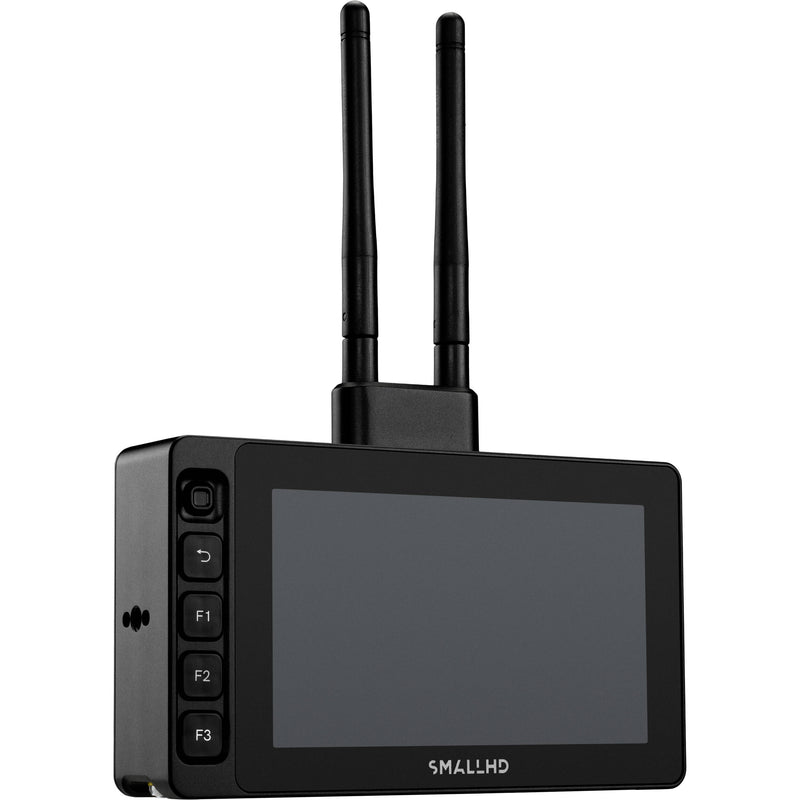

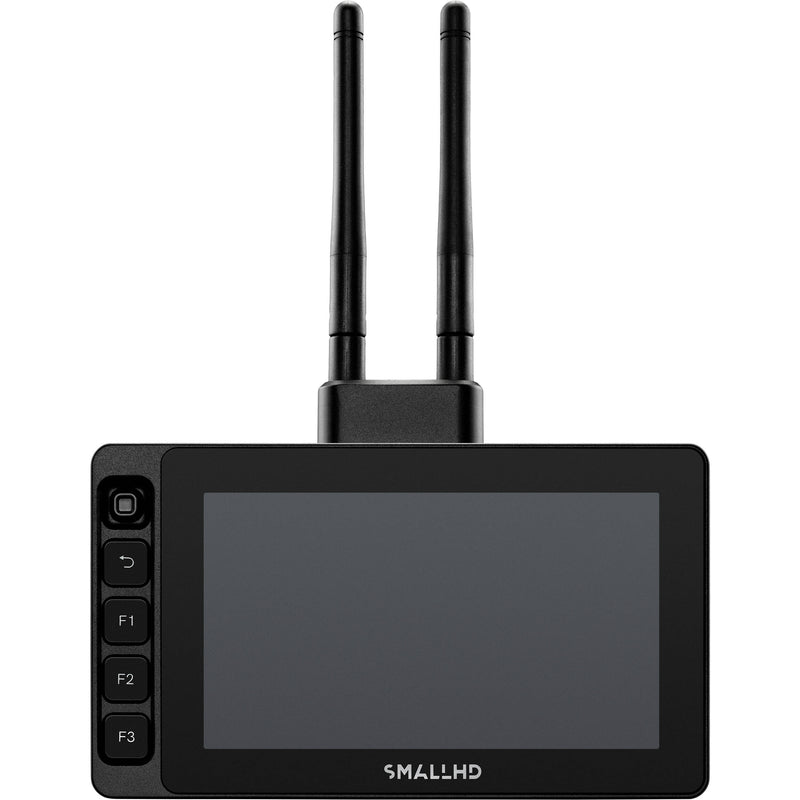

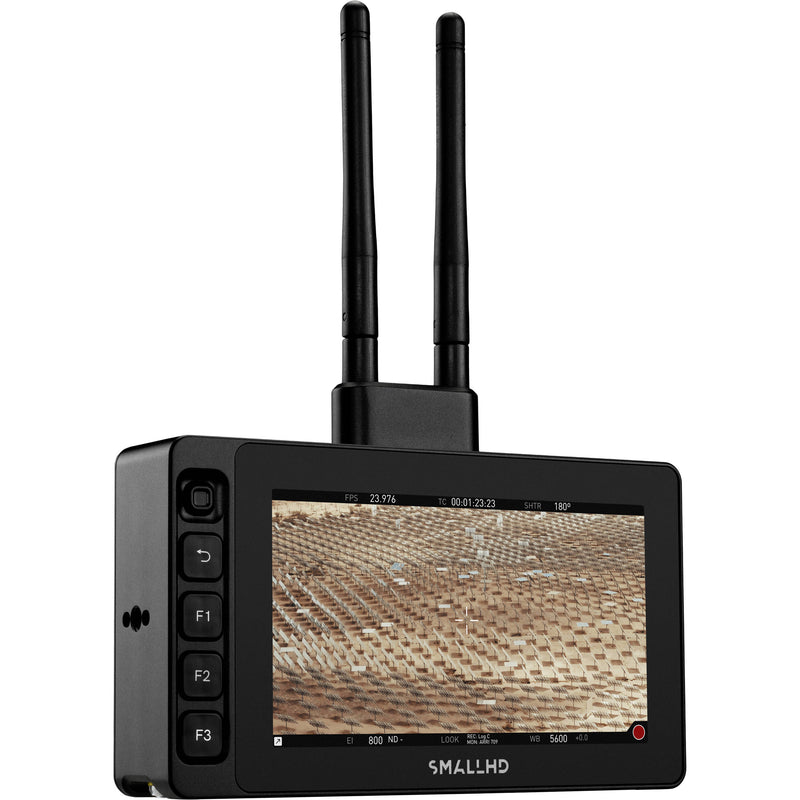

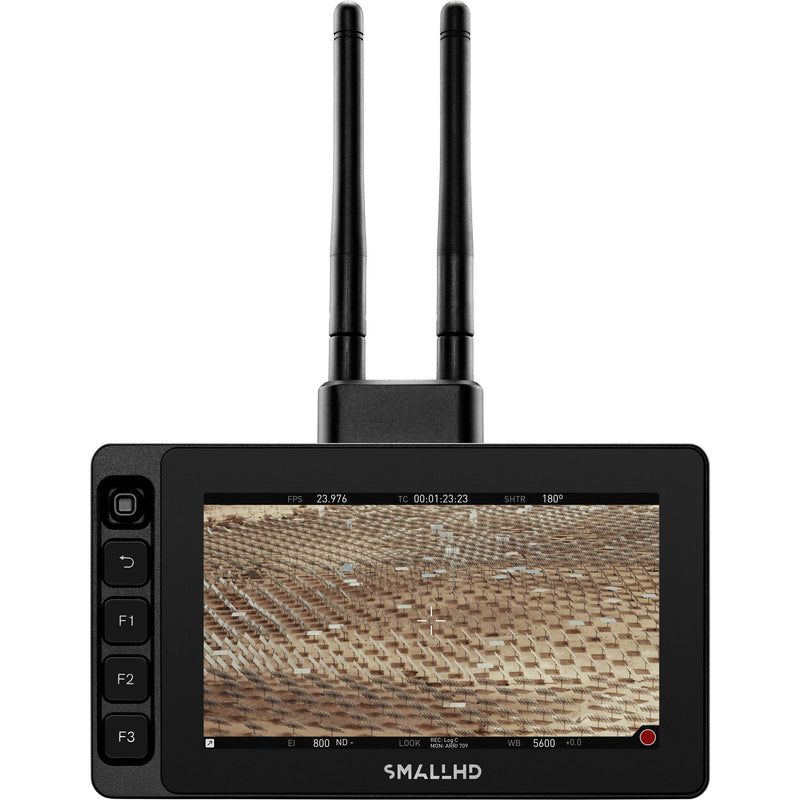

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and a Bolt 6 TX monitor module from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.

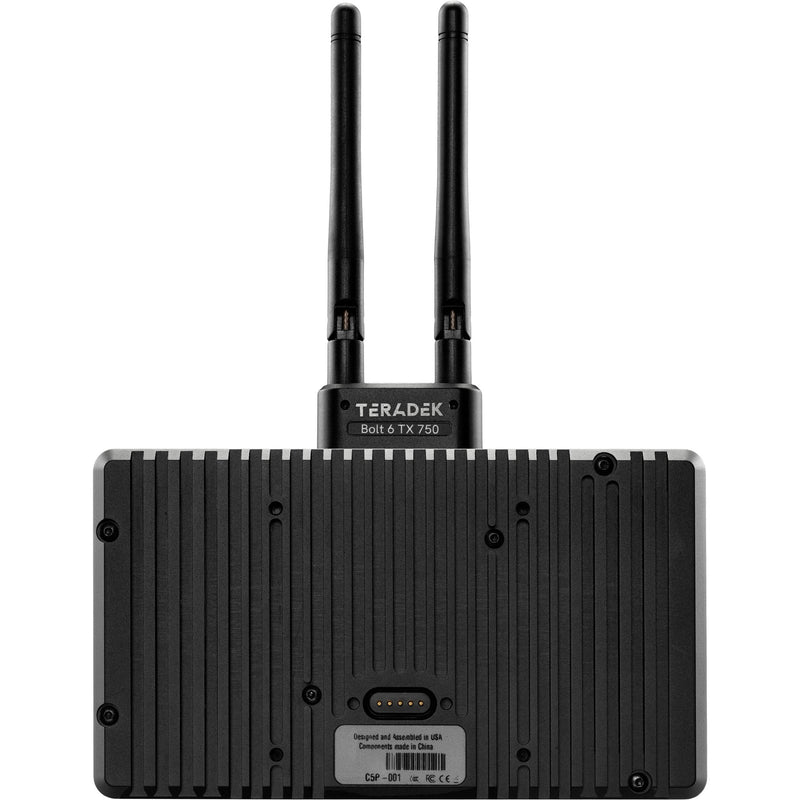

The monitor module installs onto the back of the monitor and provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.
Read more below about the items in this kit.
Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m² display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.
The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, and it features a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to eight channels
Wirelessly transmit up to 4K video and wirelessly control your cinema camera from a touchscreen monitor from up to 750' away with the Bolt 6 Monitor Module 750 TX from Teradek. The transmitter module mounts onto the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor and can wirelessly transmit up to 4K30 HDR video to any Bolt 4K receiver. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
You can wirelessly control supported cameras by connecting to an optional Bolt 4K RX monitor module on a similar monitor with optional camera control software. The I/O signal connection between the two units allow you to control the camera wirelessly right from the screen of the RX module monitor, or locally from the TX module monitor, with zero delay. The transmitter module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
The monitor inputs up to 4K30 video from the camera for a high-resolution preview, and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support. It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters. Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
It can be powered using the 2-pin DC power input or with a separately available battery plate. It runs on PageOS 5, the same software running on the monitors, for compatibility with the SmallHD monitors. The camera control option requires a specific camera control license to be purchased separately.
In the Box
- SmallHD ULTRA 5 Bright Touchscreen Monitor
- Teradek Bolt 6 Monitor Module 750 TX for Smart 7 Series Monitors
- 2 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
SmallHD ULTRA 5 Bright Touchscreen Monitor Specs
| Panel Type | LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 3000 cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 443 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x BNC (3G-SDI) Input 1 x HDMI Input |
| Embedded Audio | HDMI SDI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Other I/O | 1 x LEMO 5-Pin Output 1 x RJ45 Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | SDI (10-Bit 4:2:2) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 480i 576i HDMI (8/10/12-Bit) UHD 4K: 30 1080p: 60/59.94/50/30/25/24/23.98 1080PsF: 30/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/25/24/23.98 576p: 100/50 480p: 120/119.88/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| Battery Type | None |
| Mounting | 3 x 1/4"-20 Female |
| Certifications | CE, FCC, IC, RoHS *as per Manufacturer |
| Material of Construction | Aluminum |
| Package Weight | 1.985 lb |
| Box Dimensions (LxWxH) | 9.5 x 7 x 2.5" |
Teradek Bolt 6 Monitor Module 750 TX for Smart 7 Series Monitors Specs
| Antenna I/O | 2 x RP-SMA Female |
| Video I/O | 1 x HDMI 1.4b Input |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | None |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| DC Input Power | 6 to 18 VDC |
| Power Consumption | 7 W |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
| Weight | 7.3 oz / 206 g |
| Package Weight | 2.955 lb |
| Box Dimensions (LxWxH) | 16.5 x 8.4 x 3.6" |
