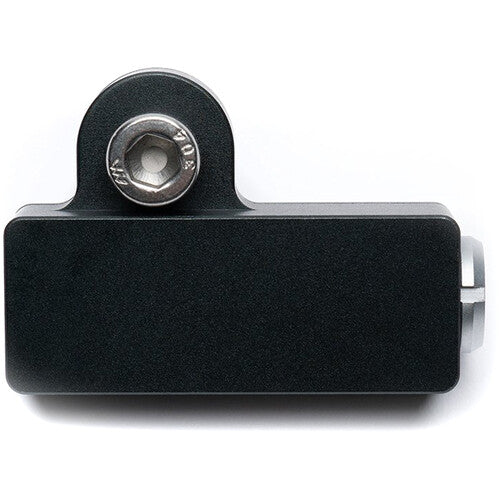

SmallHD Micro-USB to 5-Pin LEMO Adapter

Connect Teradek RT Controller to Monitor

1 x Micro-USB Male to 5-Pin LEMO Female

Passes Through 5V Power

1/4"-20 Mounting Thumbscrew

Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.

The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.

Compatibility SmallHD monitors running OS3
Teradek RT CTRL.1 and CTRL.3 lens controllers UPC: 811786030736

Connector 1	Micro-USB, Male
Connector 2	5-Pin LEMO, Female
Power	5 VDC
Mounting	1 x 1/4"-20 Thumbscrew

Package Weight	0.07 lb
Box Dimensions (LxWxH)	6.95 x 3.85 x 0.85"
