| ₹ 683845.0 includes GST and import duties. | |
| B2B customers can avail ₹ 104286.36 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
From Manufacturer

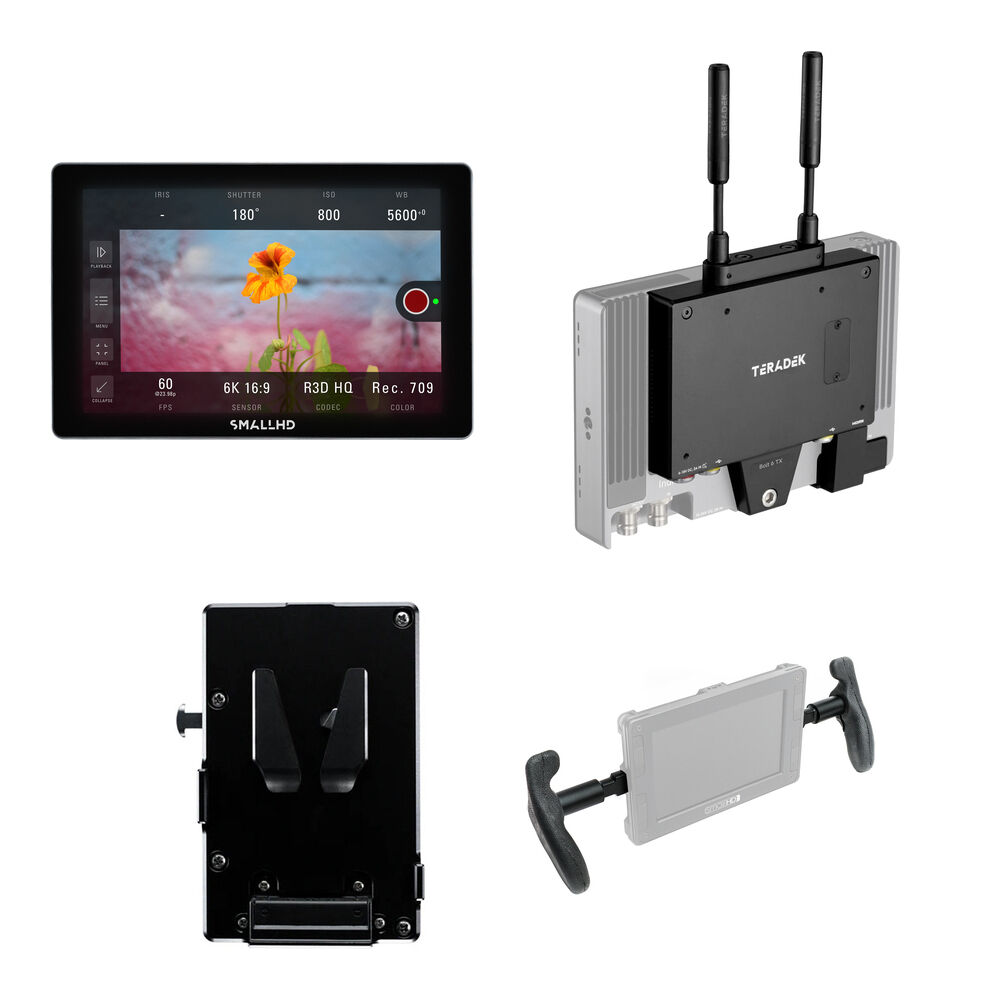

Provide local viewing plus transmission to separate Bolt receivers with the SmallHD INDIE 7 Touchscreen Monitor with Bolt 6 1500 Transmitter Handheld Kit from . This kit bundles the 7" INDIE 7 monitor with the Teradek Bolt 6 Monitor Module 1500 6 GHz transmitter, a V-mount pro battery plate, a neck strap, and two handles.

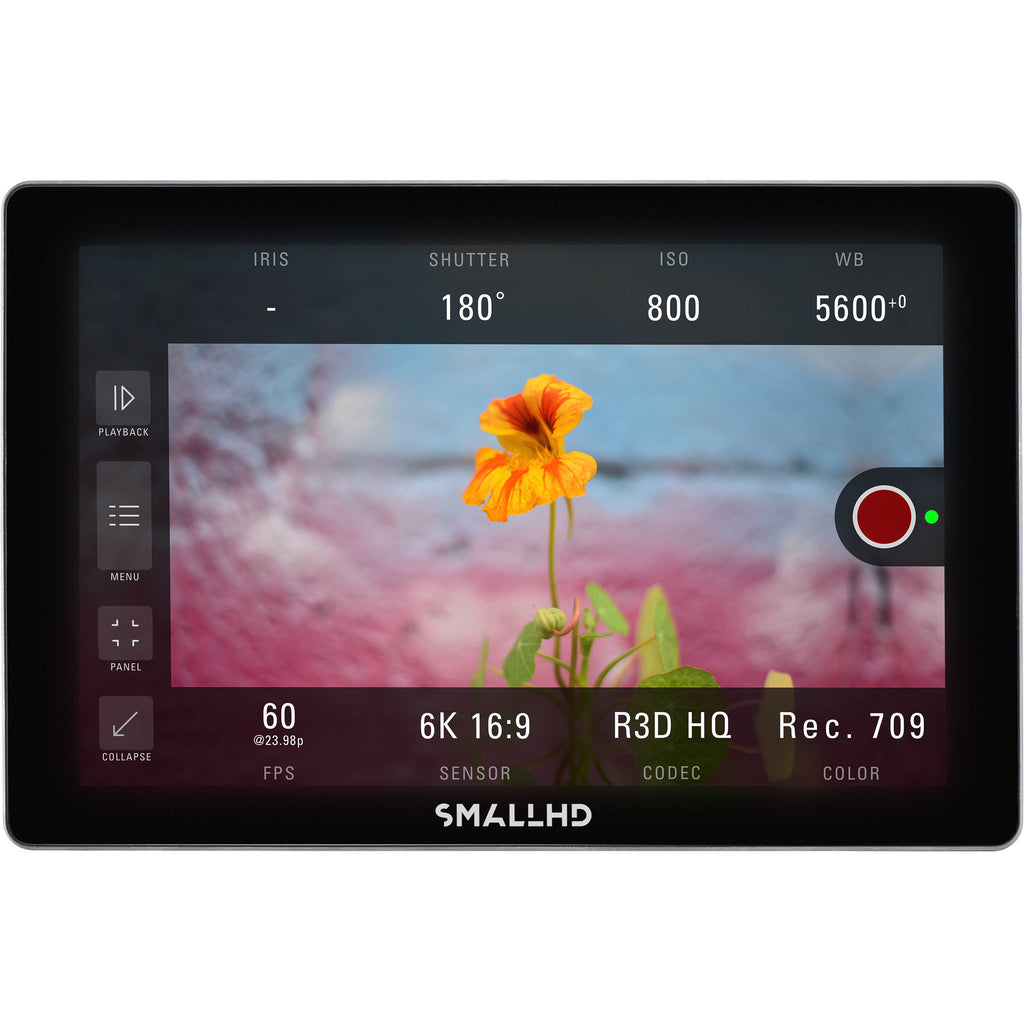

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m? brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.
The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels

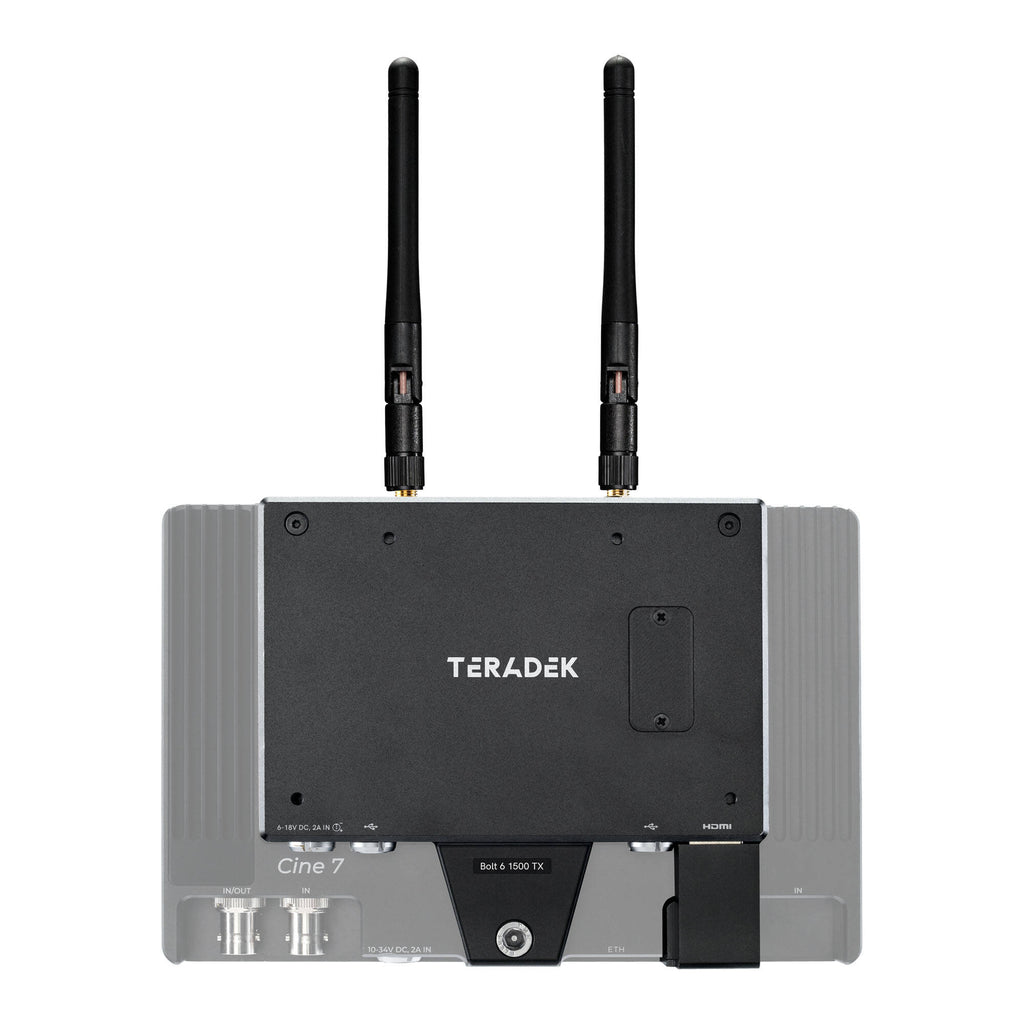

- The monitor inputs up to UHD 4K30 video from the camera for a high-resolution preview, and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support.
- It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters.
- Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
- Though this module can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
- Transmits video on the newly available 6 GHz wireless frequency band
- Transmit to up to six Bolt 4K or Bolt 6 series receivers
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Can coexist with Wi-Fi and 5 GHz cordless phones
- Cross-compatible with all Bolt 4K and 4K LT series receivers and the Bolt 4K RX monitor module
- Mounts on the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor
- Compatible with ARRI, RED KOMODO, and Sony VENICE cameras with separately available licenses

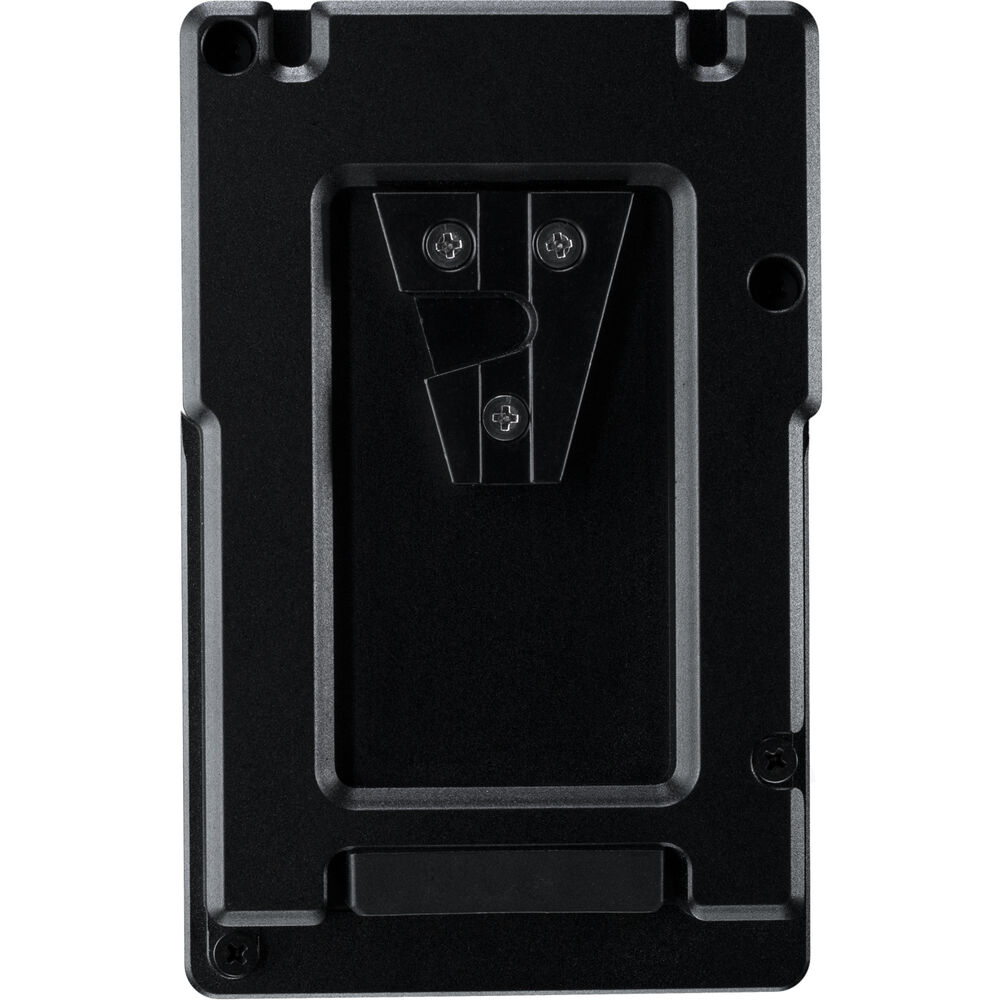

The Single-Battery Plate from Teradek enables you to power your Bolt 4K Transmitter or Receiver and the Bolt 4K LT Receiver using a long lasting V-mount battery. This female (battery-side) plate provides one 14.4V D-Tap accessory output and is compatible with the Bolt 4K Monitor Module 750 TX for SmallHD Smart 7 Monitors and the Bolt 4K Monitor Module 750 RX for SmallHD Smart 7 Monitors.

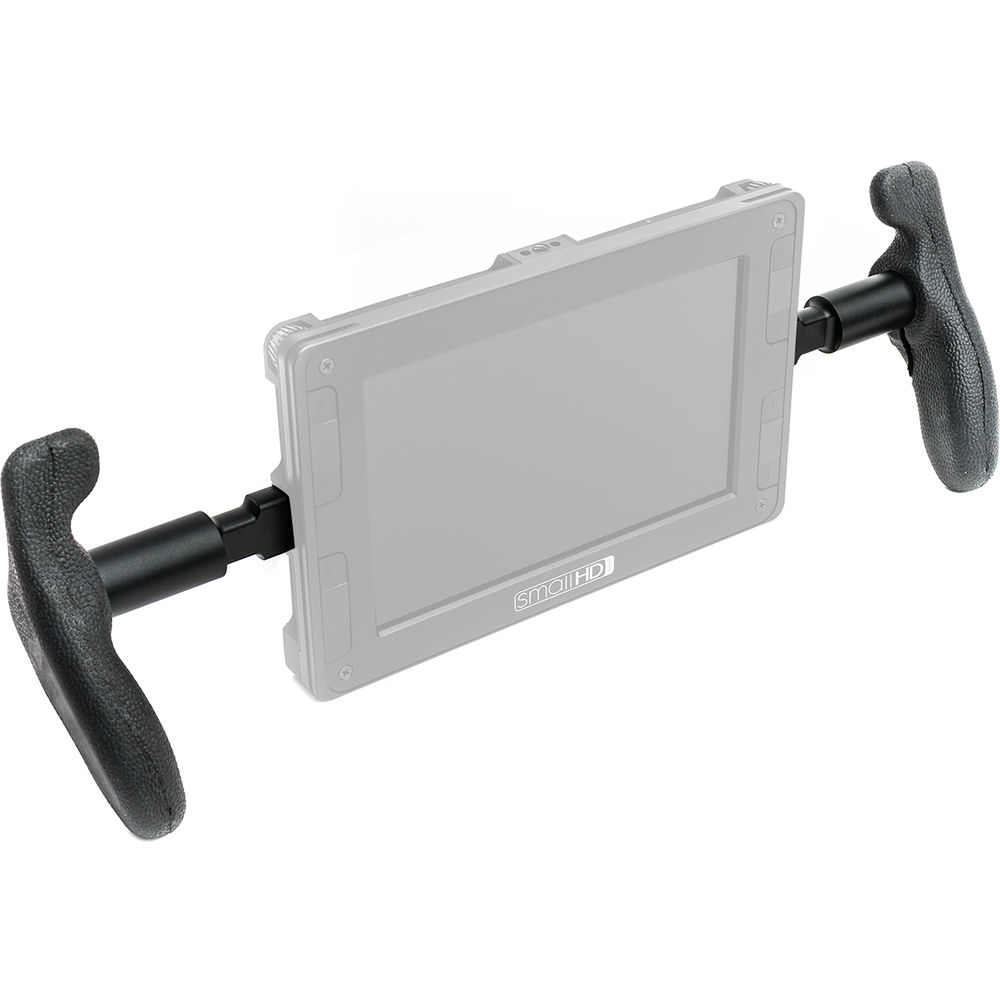

These Monitor Handles and Neck Strap from SmallHD give you a comfortable way of holding a compatible monitor. Easy to install, the lightweight black rubber handles attach securely to your monitor's side threaded holes using the included screws. The padded neoprene neck strap is adjustable and fastens onto the handles.
- SmallHD Smart 5 and 7 Series monitors with 1/4"-20 mounting threads
- SmallHD 503U and 703U Ultrabright monitors with separately available Ultrabright Mounting Cage
- Anti-slip rubber handles
- Woven nylon strap with neoprene padding
- Anti-spin handle connection
- Easy to install and hold
Items Included
- SmallHD INDIE 7 Touchscreen On-Camera Monitor
- Limited 1-Year Warranty
- Teradek Bolt 6 Monitor Module 1500 TX for Smart 7 Monitors
- 2 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
- Limited 1-Year Manufacturer Warranty
- Teradek Single-Battery Plate for Bolt (Female, V-Mount)
- Limited 1-Year Manufacturer Warranty
- SmallHD Monitor Handles and Neck Strap
- 2 x Mounting Screw
- Limited 1-Year Manufacturer Warranty
Not Included
-
BatteriesEssential
Additional Resources
Guides & Manuals
SmallHD INDIE 7 Touchscreen On-Camera Monitor
| Display Size |
7.02" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [LUT Upload Only]
|
| Video Format |
HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
| Battery |
2x L-Series Mount on Included, Interchangeable Plate
|
| Power Consumption |
17.3 W
|
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.02" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160?
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% Rec. 709
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, False Colo
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 670168.1 |
| 3-5 | ₹ 663329.65 |
| 5-10 | ₹ 649652.75 |
| 10+ | ₹ 635975.85 |
Bulk discount will be automatically applied during checkout based on quantity.
