Description
From Manufacturer

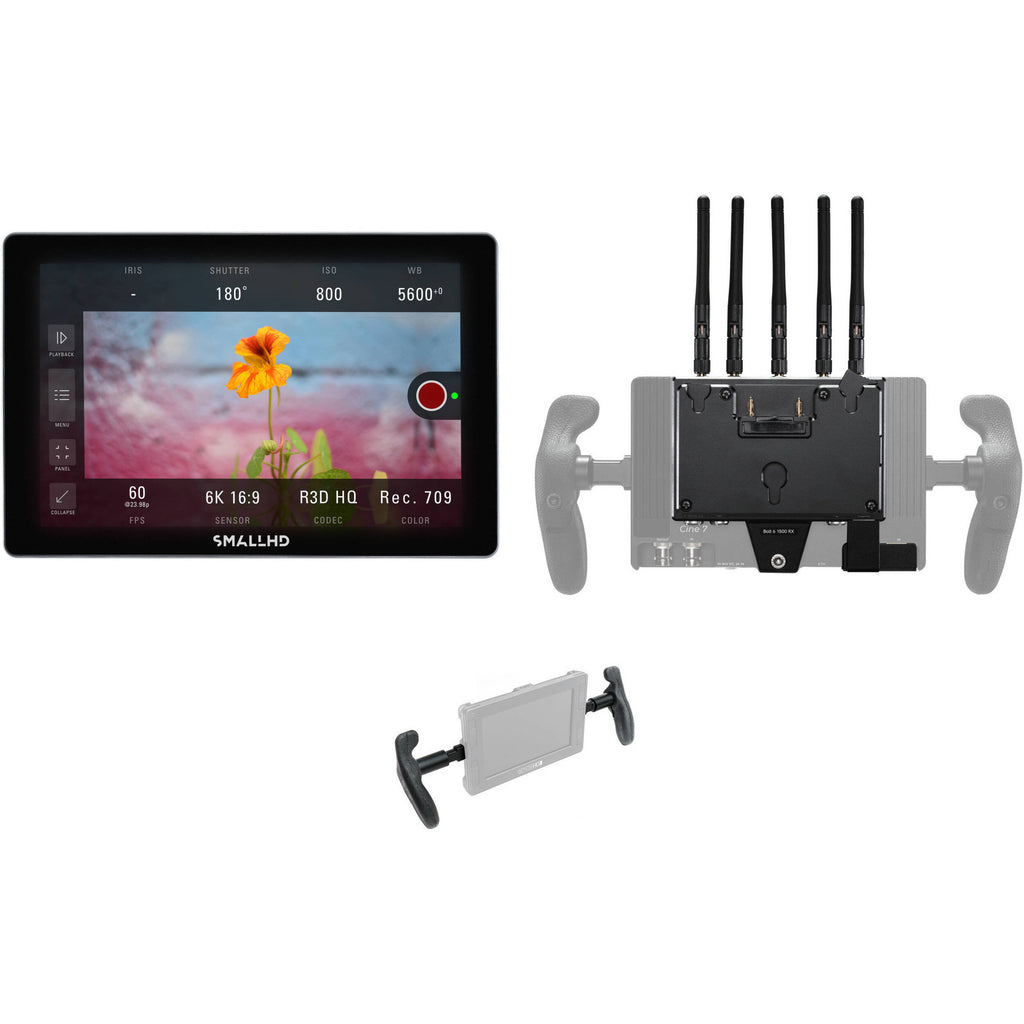

Add a wireless monitoring kit to your camera rig with this SmallHD INDIE 7 Monitor with Bolt 6 Monitor Module 1500 RX Kit put together by . The kit includes the 7" SmallHD INDIE 7 on-camera monitor, the Teradek Bolt 6 Monitor Module 1500 RX with a Gold mount battery plate, monitor side handles, and a neck strap.
The compact monitor features a 1920 x 1200 IPS touchscreen, 1000 cd/m? brightness, an L-series dual battery plate, and both HDMI and 3G-SDI inputs and outputs. The Bolt 6 monitor module 1500 RX allows you to receive a video signal from up to 1500' away, and it is powered using a separately available Gold mount battery. It is compatible with Bolt 6 and all Bolt 4K 5G transmitters as well.
Read more below about the items in this kit.

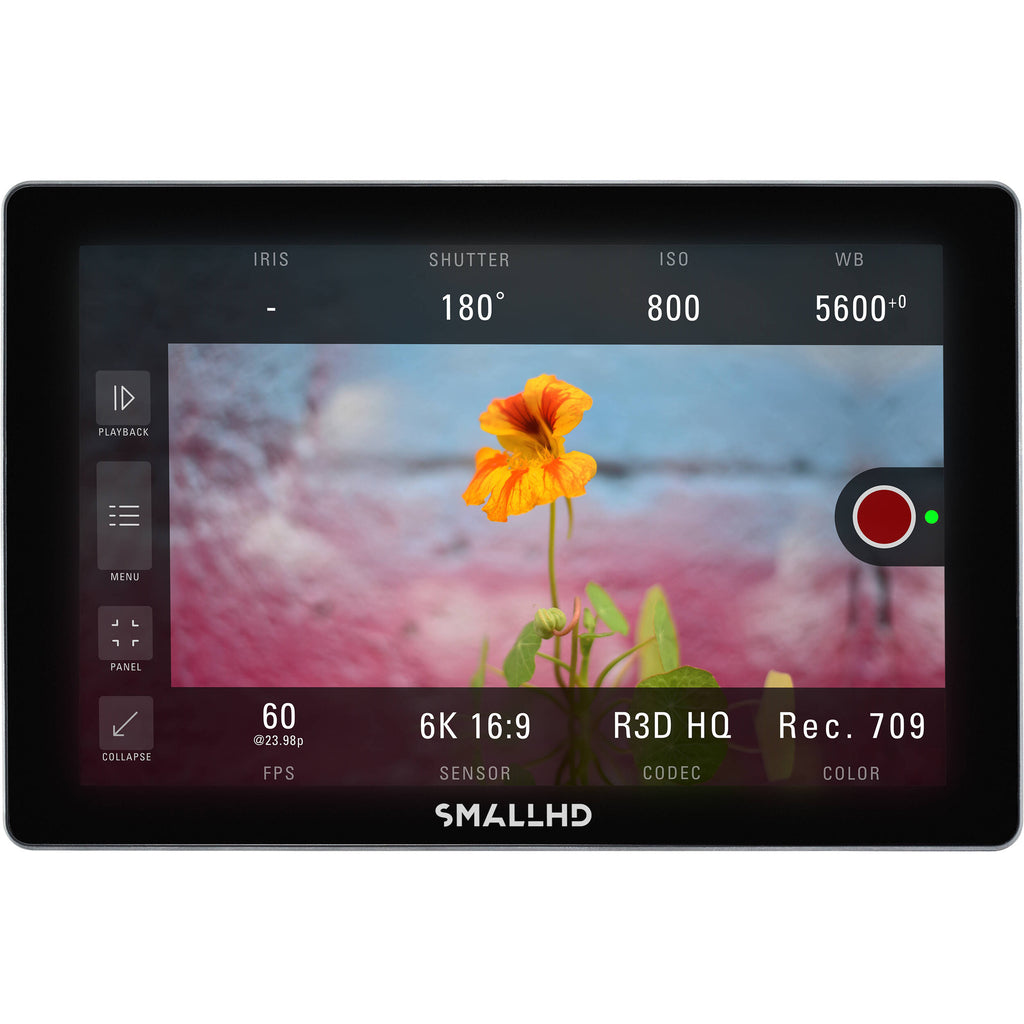

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m? brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.
The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.
Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels

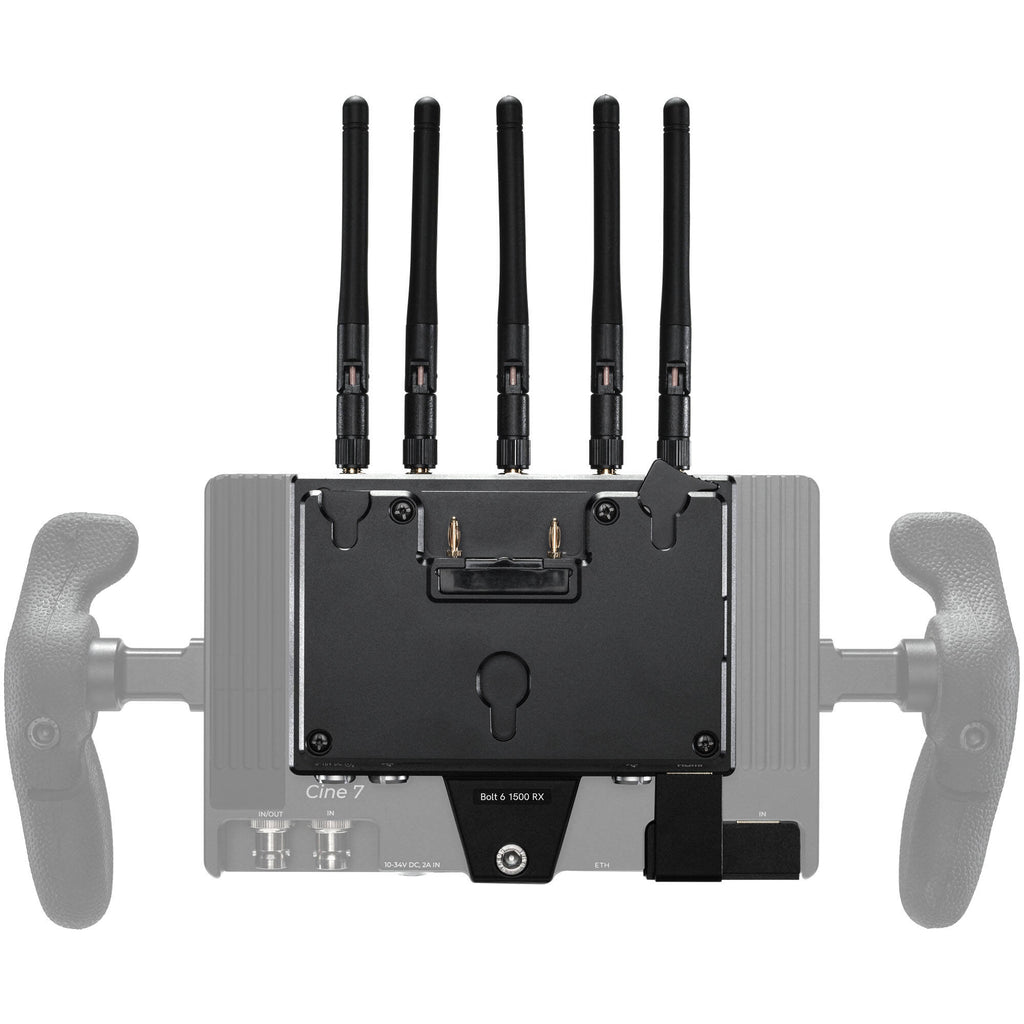

- Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to receive over the 6 GHz band.
- The module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
- This module includes a plate to power the receiver using a professional Gold mount battery
- Cross-compatible with all Bolt 4K and 4K LT 5G series transmitters
- Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
- Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI port
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Smaller and lighter chassis design than other Bolt receivers
- AES-256 encryption and RSA 1024 key pairing support
- Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration

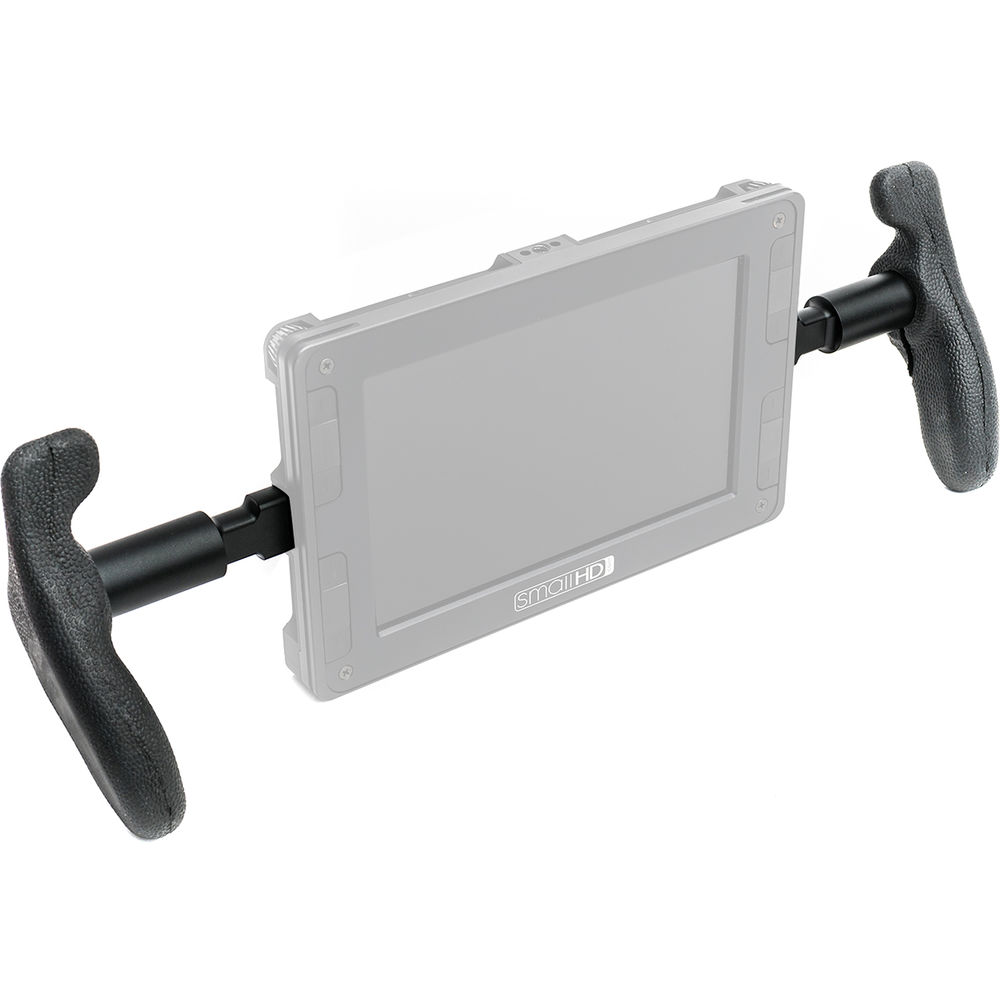

These Monitor Handles and Neck Strap from SmallHD give you a comfortable way of holding a compatible monitor. Easy to install, the lightweight black rubber handles attach securely to your monitor's side threaded holes using the included screws. The padded neoprene neck strap is adjustable and fastens onto the handles.
- SmallHD Smart 5 and 7 Series monitors with 1/4"-20 mounting threads
- SmallHD 503U and 703U Ultrabright monitors with separately available Ultrabright Mounting Cage
- Anti-slip rubber handles
- Woven nylon strap with neoprene padding
- Anti-spin handle connection
- Easy to install and hold
Items Included
- SmallHD INDIE 7 Touchscreen On-Camera Monitor
- Limited 1-Year Warranty
- Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series (Gold Mount)
- Gold Mount Battery Plate
- 5 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
- Limited 1-Year Manufacturer Warranty
- SmallHD Monitor Handles and Neck Strap
- 2 x Mounting Screw
- Limited 1-Year Manufacturer Warranty
Not Included
-
BatteriesEssential
Additional Resources
Guides & Manuals
SmallHD INDIE 7 Touchscreen On-Camera Monitor
| Display Size |
7.02" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [LUT Upload Only]
|
| Video Format |
HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50/25 480p: 60 576i: 50 480i: 59.94 |
| Battery |
2x L-Series Mount on Included, Interchangeable Plate
|
| Power Consumption |
17.3 W
|
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.02" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160?
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% Rec. 709
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (10 VDC) Input
|
| Other I/O |
1x Micro-USB 2.0 Input
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [LUT Upload Only]
|
