Description
Kit Contains:
From Manufacturer
Cine 7 Quick Look | 7-inch Professional Monitor with Camera Control for ARRI Cameras
6GHz Frequencies and Teradek Bolt 6 Explained
Teradek Bolt 6 Overview and Features

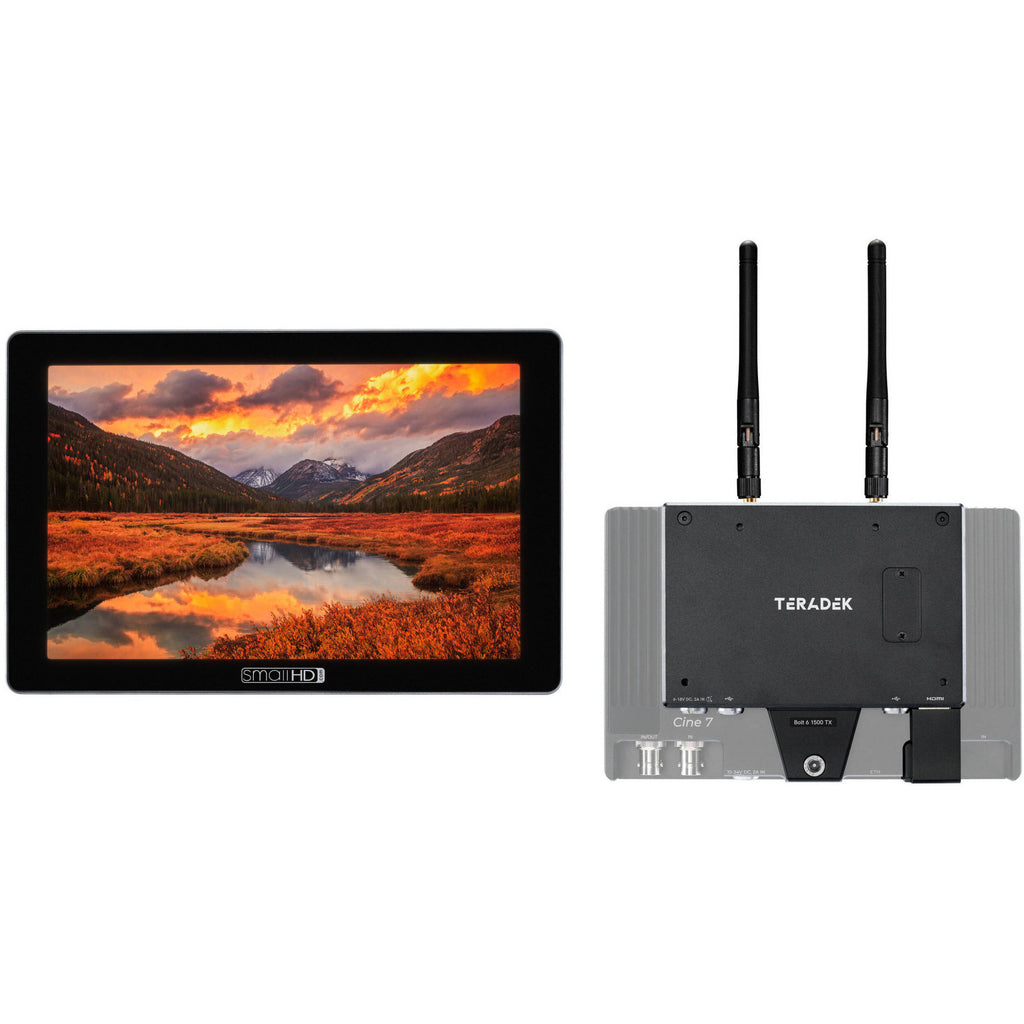

Add a wireless monitoring kit to your camera rig with this SmallHD Cine 7 Monitor with Bolt 6 Monitor Module 1500 TX Kit put together by . The kit includes the 7" SmallHD Cine 7 on-camera monitor and the Teradek Bolt 6 Monitor Module 1500 TX.
The compact monitor features a 1920 x 1200 IPS touchscreen, 1800 cd/m? brightness, and an L-series dual battery plate, and it has HDMI and 3G-SDI inputs and outputs. The Bolt 6 monitor module 1500 TX allows you to transmit the video signal to six additional receivers up to 1500' away. It is compatible with Bolt 6 and all Bolt 4K 5G receivers as well.
Read more below about the items in this kit.

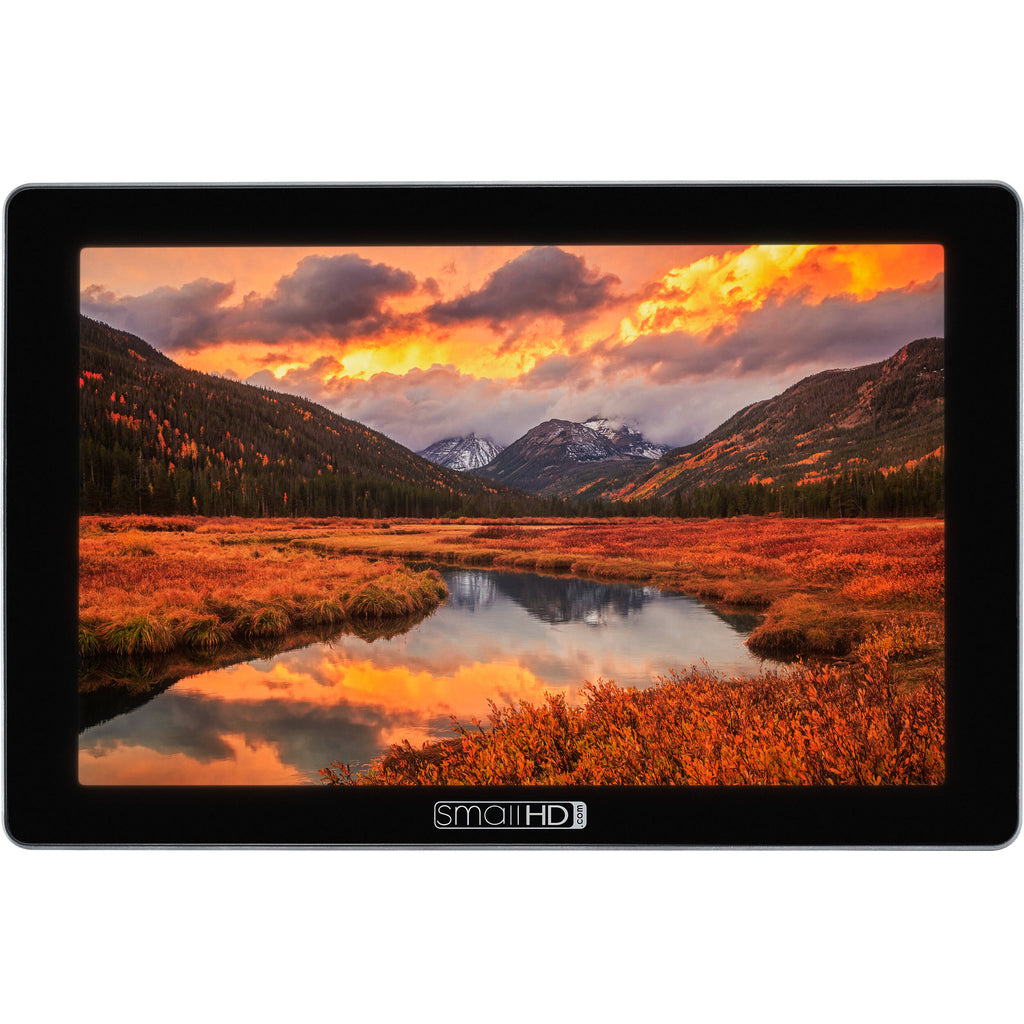

SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
Monitor your camera with the Cine 7 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The Cine 7 features a bright 1800 cd/m?, 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.
Key Features
Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m? brightness
Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs
HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
Uses SmallHD PageOS 4 to organize and save customized function and settings pages
The included dual L-series battery plate allows you to hot-swap batteries as necessary, and the plate itself is swappable for other battery plates
Four 1/4"-20 mounting points on top, left, right, and back
RED Control Features
Run/stop
Color controls
Exposure controls
Status
Color temperature
Video format
Playback
Shutter
Menu control
Software Features
Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Dual zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
RGB parade: Customizable
Histogram: Luma and RGB
Image capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Audio meters: HDMI and SDI up to 8 channels
UPC: 811786030842

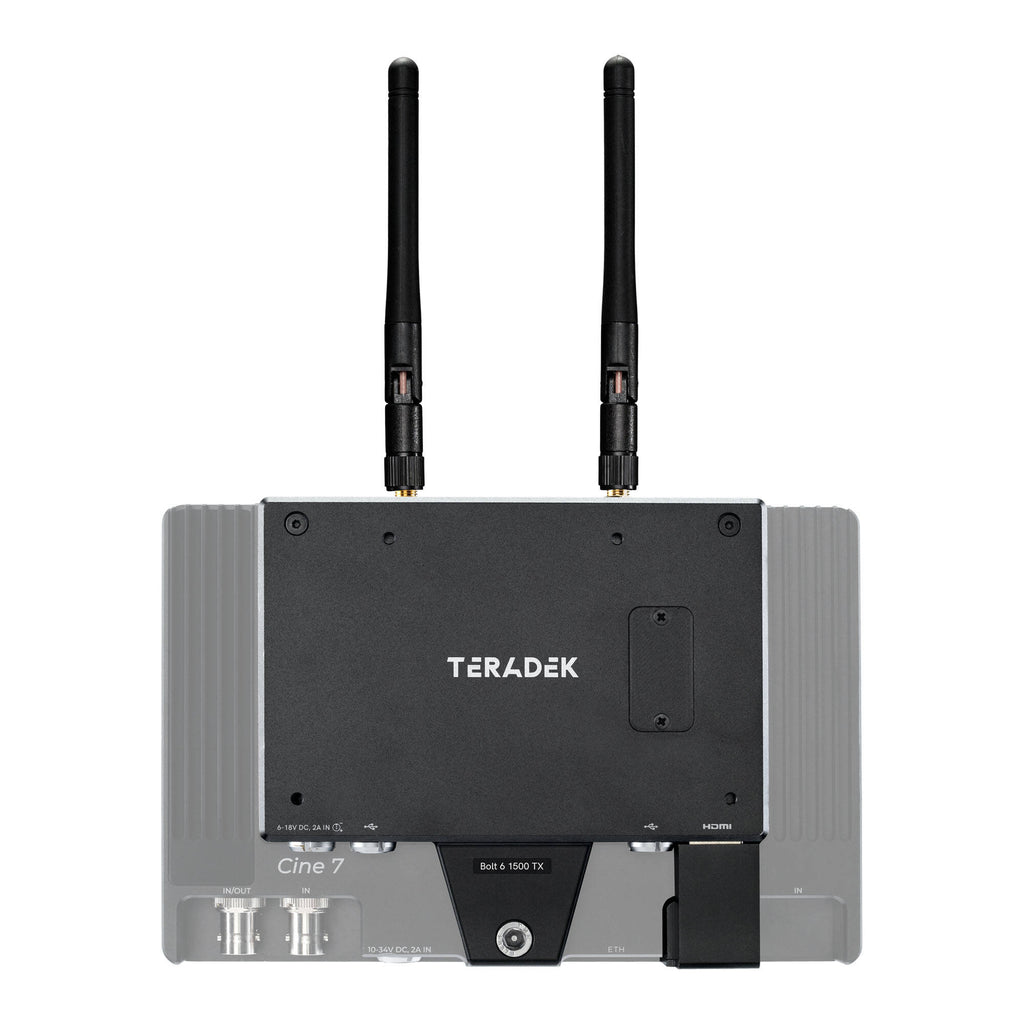

Teradek Bolt 6 Monitor Module 1500 TX for Smart 7 Monitors
Wirelessly Transmit Video to 1500"
Wirelessly transmit up to UHD 4K30 video and control your camera from a touchscreen monitor from up to 1500' away with the
Bolt 6 Monitor Module 1500 TX from
Teradek. This module mounts directly on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can transmit up to UHD 4K30 video to any Bolt 4K receiver.
Monitor-Integrated Transmitter
You can wirelessly control supported cameras by connecting to an optional Bolt 4K RX monitor module on a similar monitor with installed camera control software. The I/O signal connection between the two units allow you to control the camera wirelessly right from the screen of the RX module monitor, or locally from the TX module monitor, with zero delay.
Imaging Tools
The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
Supports up to UHD 4K30 Video
- The monitor inputs up to UHD 4K30 video from the camera for a high-resolution preview, and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support.
- It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters.
- Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
- Though this module can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
PageOS 5 Software
It can be powered using the 2-pin DC power input or with a separately available battery plate. It runs on PageOS 5, the same software running on the monitors, for compatibility with the SmallHD monitors. The camera control option requires a specific camera control license to be purchased separately.
Additional Details
- Transmits video on the newly available 6 GHz wireless frequency band
- Transmit to up to six Bolt 4K or Bolt 6 series receivers
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Can coexist with Wi-Fi and 5 GHz cordless phones
- Cross-compatible with all Bolt 4K and 4K LT series receivers and the Bolt 4K RX monitor module
- Mounts on the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor
- Compatible with ARRI, RED KOMODO, and Sony VENICE cameras with separately available licenses
UPC: 818264028780
Items Included
- SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
- SmallHD Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
- Limited 1-Year Warranty
- Teradek Bolt 6 Monitor Module 1500 TX for Smart 7 Monitors
- 2 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
- Limited 1-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Kit Contains:
![SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)]()
![Teradek Bolt 6 Monitor Module 1500 TX for Smart 7 Monitors]()
SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)
Key Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
Yes
|
| HDR Support |
No
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Input/Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [LUT Upload Only]
|
| Video Format |
HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/100/60/59.94 576i: 200/100/50 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i: 50 480i: 59.94 |
| Battery |
2x L-Series Mount on Fixed Plate
|
Display
| Panel Type |
IPS-Type LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1800 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support |
No
|
| Color Gamut |
100% DCI-P3
|
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
|
Inputs/Outputs
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Input/Output |
| Embedded Audio |
HDMI: 8-Channel
SDI: 8-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 2-Pin (34 VDC) Input
|
| Other I/O |
1x Micro-USB 2.0
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [LUT Upload Only]
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
