Description
SmallHD Cine 24 Overview
- 1Description
- 2Key Features
- 3SmallHD OS4.1
- 4Power Options

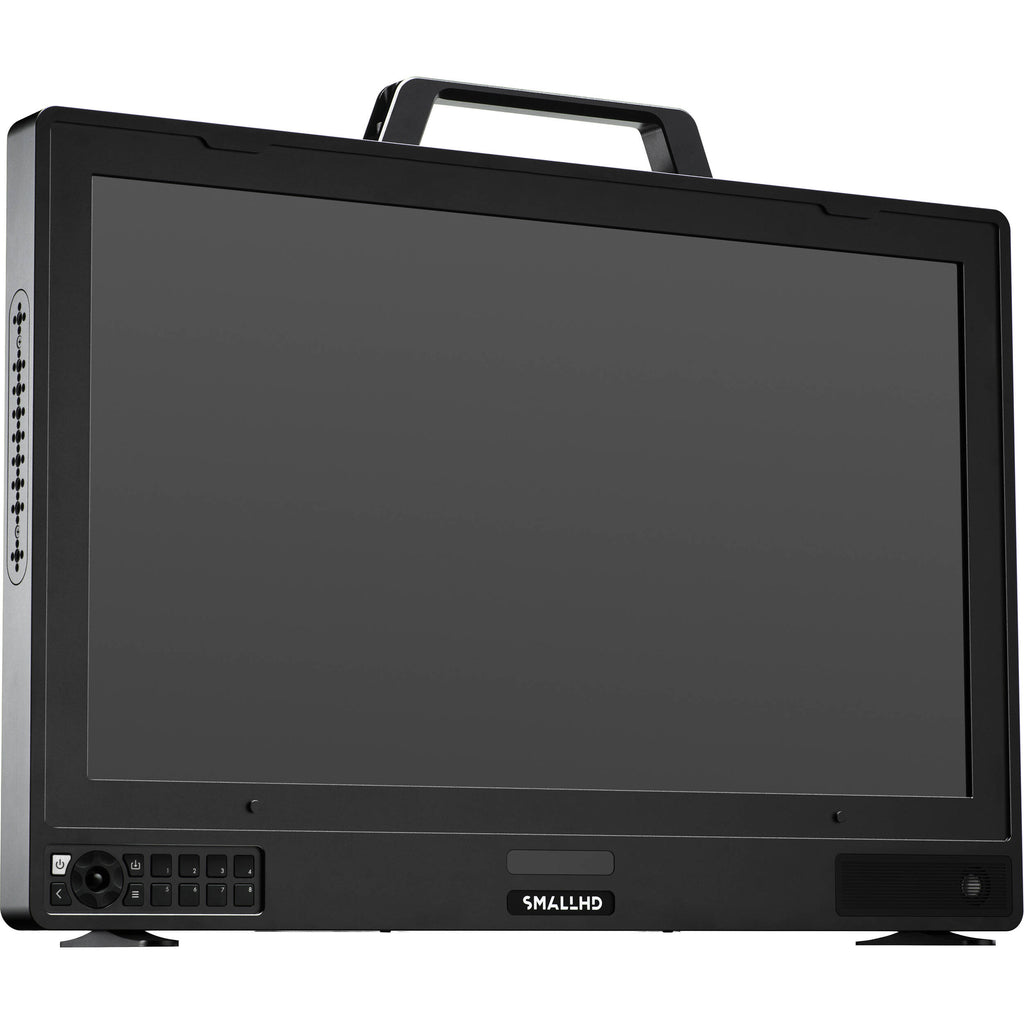

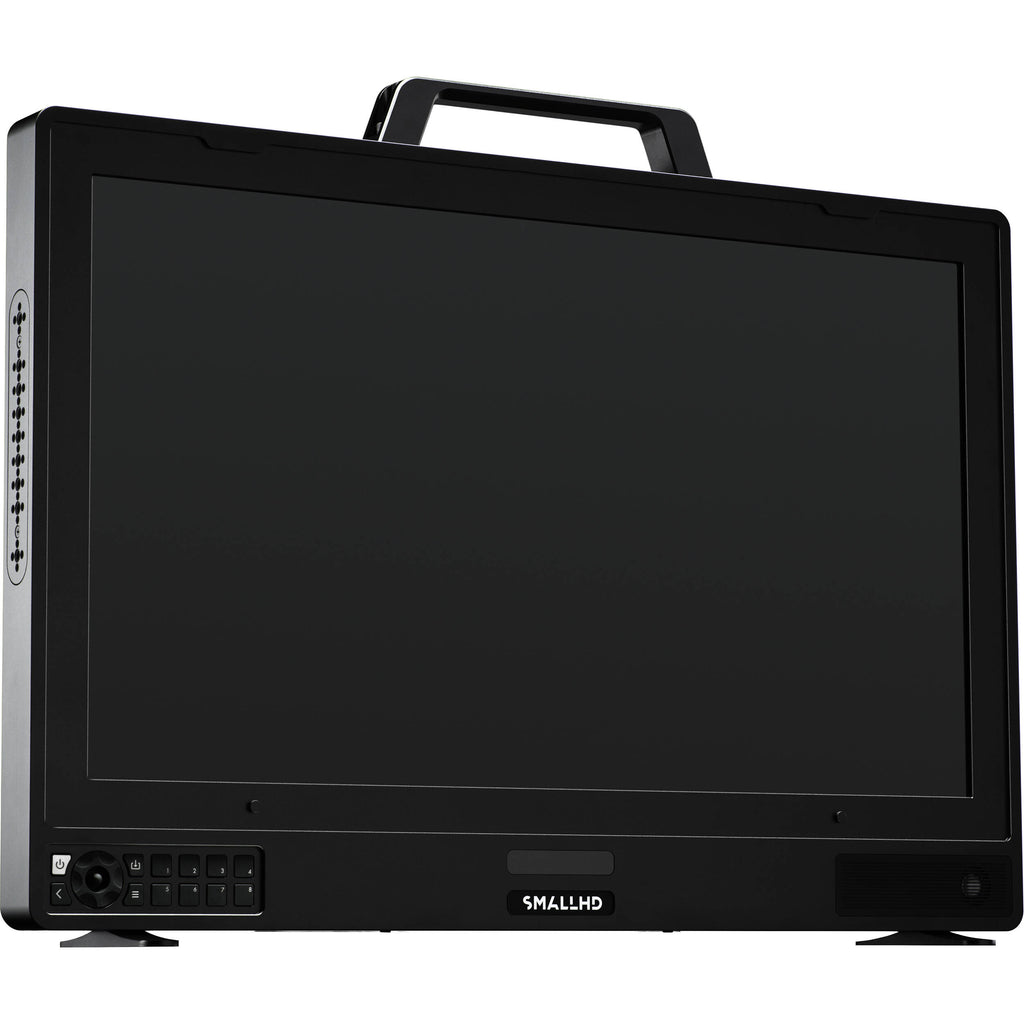

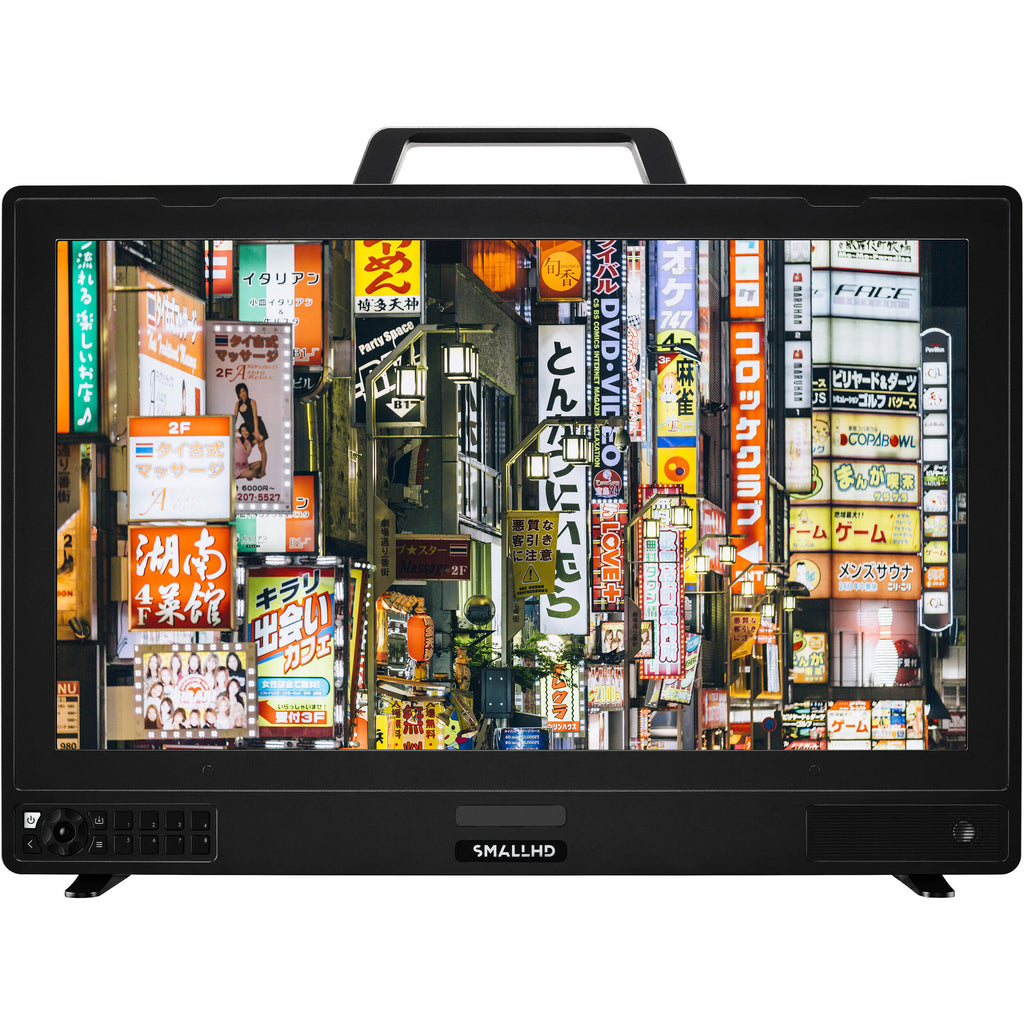

Add a professional UHD 4K monitor to your studio with the Cine 24" 4K High Bright Pro Monitor from SmallHD. Featuring the updated SmallHD OS4.1, the monitor provides a crisp image with 10-bit DCI-P3 color intelligence, 1350 cd/m² brightness, and a 1000:1 contrast ratio.
The monitor features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1 that features a fully redesigned UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons. Additional functions with updates of OS4.1 will include dual and quad view and 4K waveforms and scopes with regions of interest.

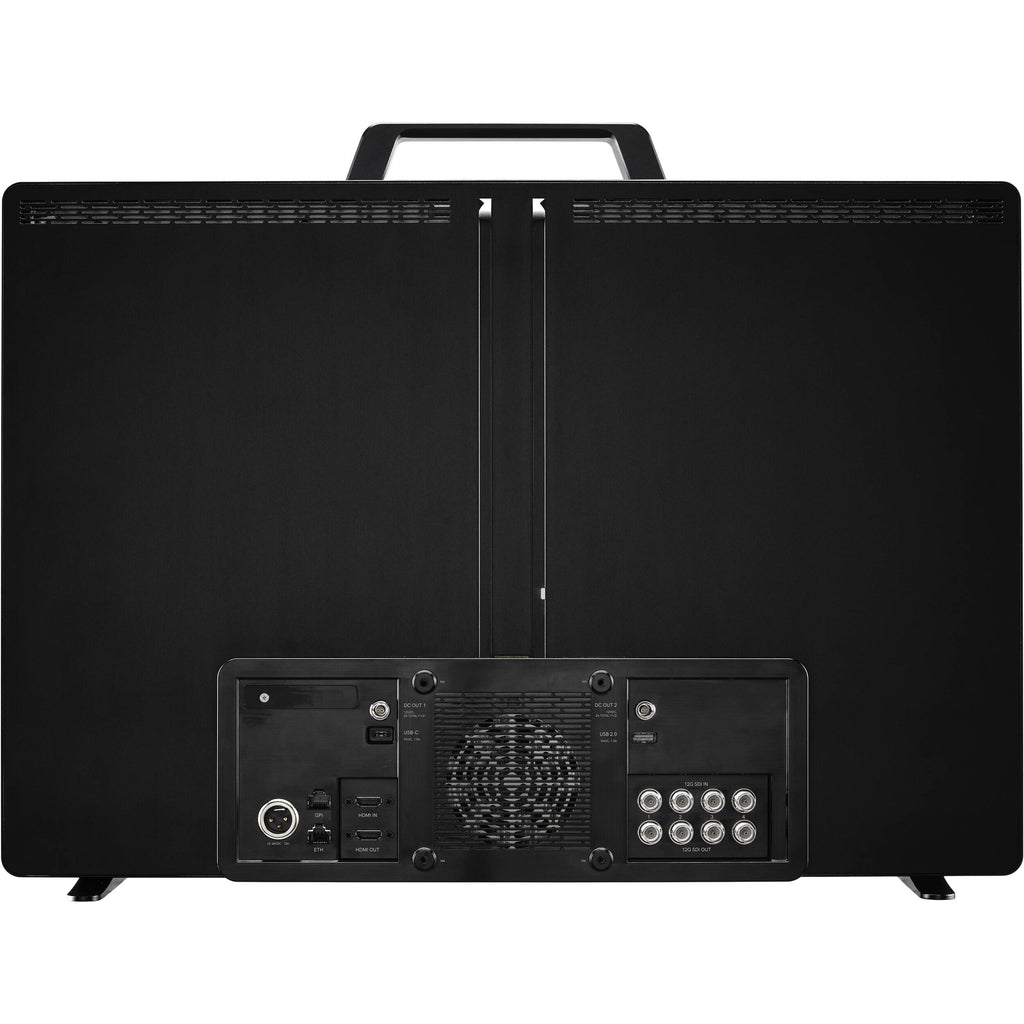

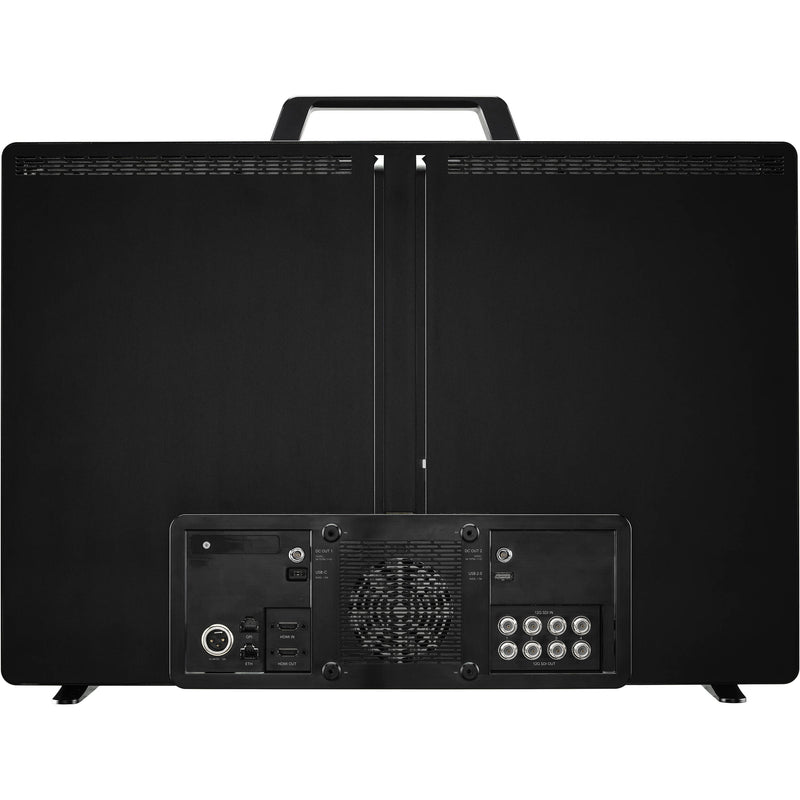

The monitor can be mounted using the 110mm VESA pattern on the back or by thirty-six 1/4"-20 threads around the top and sides of the monitor. You can power the monitor using a 3-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. You can also power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output.
Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.
The monitor includes numerous accessories such as an acrylic screen protector, a 3' long HDMI cable, two 1/4"-20 cheese-style accessory mounting sticks, two 1/4"-20 and 3/8"-16 cheese-style accessory mounting sticks, monitor feet, a monitor handle, a 3-pin XLR power supply, an 8GB SD card, and a microfiber cleaning cloth.
Key Features
- 24" UHD 4K monitor
- 1000:1 contrast ratio
- 1350 cd/m² brightness
- Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs
- One HDMI 2.0 input and one HDMI 2.0 output
- SD card slot for 3D LUTs
- One RJ45 Ethernet port
- One RJ45 GPI port
- 110mm VESA mounting on the back

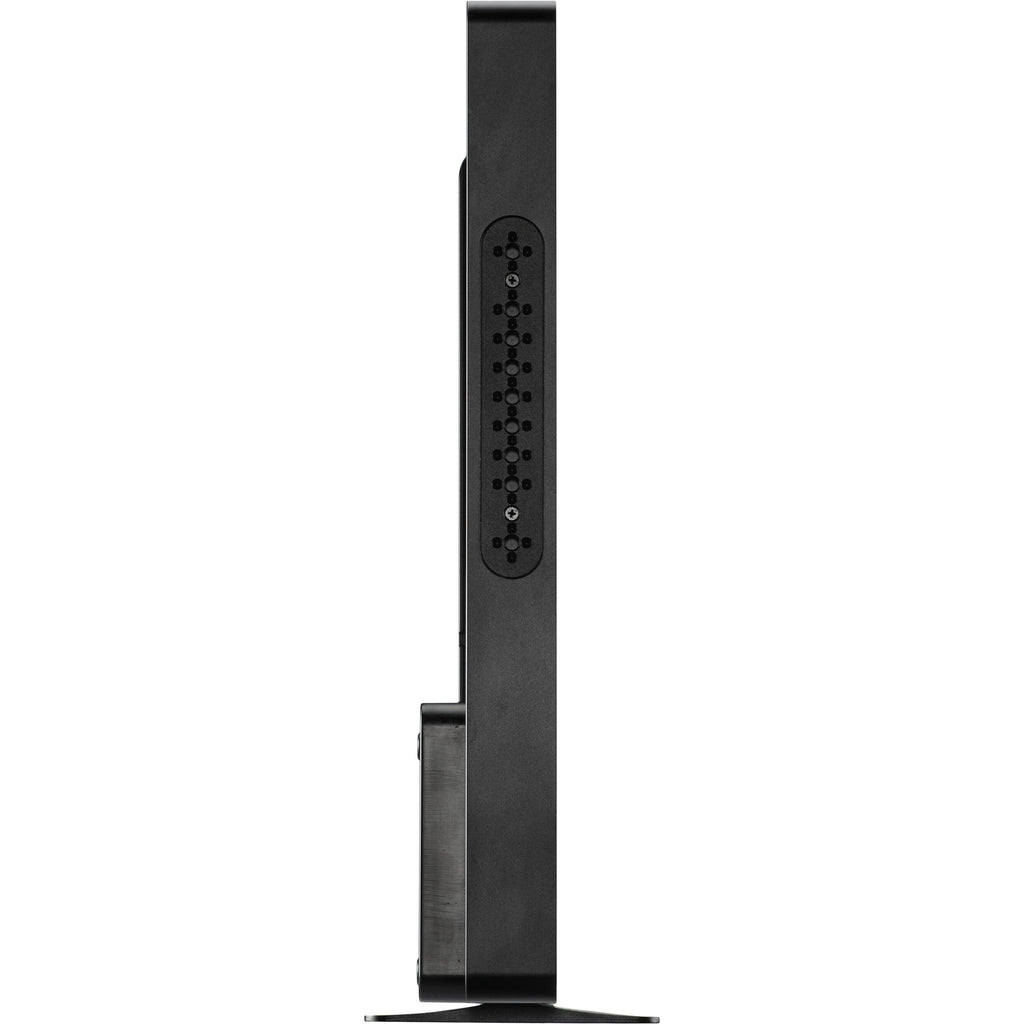

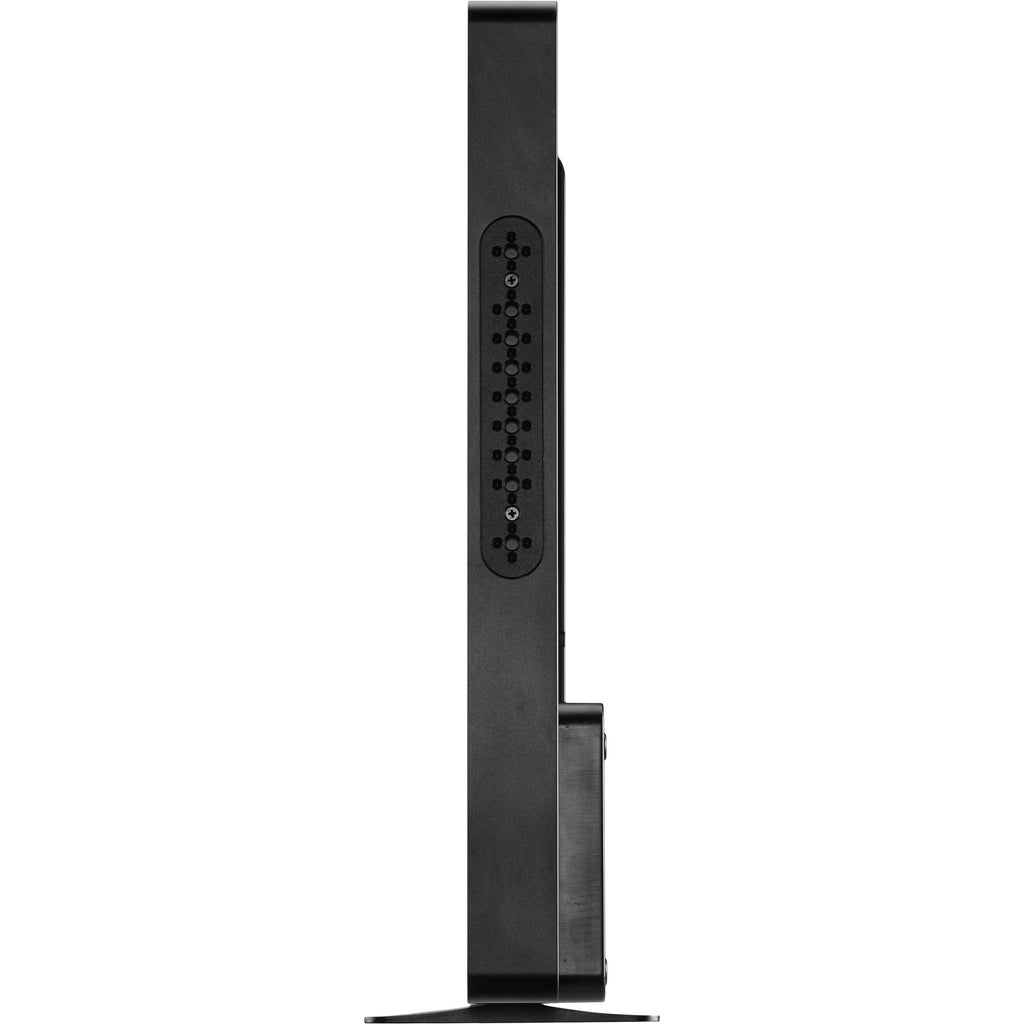

- Thirty-six 1/4"-20 mounting threads on top and sides
- Smartrail mounting options
- 1/4"-20 and 3/8"-16 cheese-style mounting sticks included
SmallHD OS4.1
- Internal calibration wizard
- Color pipe color-space formatting
- Settings dashboard for easy access to common settings
- Preconfigured pages
- Page tabs
- Customizable false color overlays
- Customizable 4K waveform with region-of-interest highlighting
- Improved function buttons
- Pixel zoom, focus assist, peaking
- Total UI overhaul
Power Options
- One 3-pin XLR 12 to 24V, 12A input
- Two 2-pin LEMO 12V, 2A outputs
- Two USB Type-A 5V, 2.4A outputs
- Two USB Type-C 5V, 1.5A outputs
- Separately available V-mount or Gold mount battery plates
- XLR and battery options are hot-swappable
In the Box
- SmallHD Cine 24" 4K High Bright Pro Monitor
- Acrylic Screen Protector
- HDMI Cable (3')
- 2 x Cheese Stick Mount (1/4"-20)
- 2 x Combo Cheese Stick Mount (1/4"-20 & 3/8"-16)
- Monitor Feet
- Monitor Handle
- 3-Pin XLR Power Supply
- 8GB SD Card
- Microfiber Cleaning Cloth
- Limited 1-Year Warranty
- Description
- Key Features
- SmallHD OS4.1
- Power Options
SmallHD Cine 24 Specs
| Panel Type | LCD |
| Display Size | 24.00" / 61.0 cm |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Touchscreen | No |
| Maximum Brightness | 1350 cd/m2 |
| Dynamic Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 93 ppi |
| Color Gamut | 115% DCI-P3 |
| Image Controls | False Color, Focus Assist, Focus Peaking, Pixel Zoom, Waveform |
| Video | 1 x HDMI Type A (HDMI 2.0) Input 4 x BNC (12G-SDI/6G-SDI/3G-SDI/HD-SDI) Input 1 x HDMI Type A (HDMI 2.0) Output 4 x BNC (12G-SDI/6G-SDI/3G-SDI) Output |
| Embedded Audio | HDMI SDI |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x 3-Pin XLR (12 A / 34 VDC) Input 2 x 2-Pin LEMO (2 A / 12 VDC) Output 2 x USB Type-A (2.4 A / 5 VDC) Output 1 x USB Type-C (1.5 A / 5 VDC) Output |
| Other I/O | 1 x GPI (RJ45) Input/Output 1 x LAN (RJ45) Input/Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | HDMI DCI 4K: 60 SDI UHD 4K: 60 |
| DC Input Power | 12 to 34 VDC at 18 A |
| Battery Type | 2 x V-Mount, Gold Mount (Interchangeable Mount) |
| Power Consumption | 128 W (Typical) 209 W (Maximum) |
| Mounting-Hole Pattern | 100 x 100 mm |
| Mounting | 36 x 1/4"-20 Female |
| Dimensions | 23.25 x 17.5 x 2" / 59.05 x 44.5 x 5.1 cm |
| Weight | 16.5 lb / 7.48 kg |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 24.54 lb |
| Box Dimensions (LxWxH) | 26.3 x 23.8 x 9.6" |
