Description
SmallHD 703 UltraBright Overview
- 1Description
- 2SmallHD 703 UltraBright On-Camera Monitor
- 3SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor (V-Mount)
- 4SmallHD Monitor Handles and Neck Strap
- 5SmallHD Thin BNC Cable (12")
- 6SmallHD Thin BNC Cable (48")
- 7SmallHD D-Tap to 2-Pin Power Cable (36")
- 8SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors
- 9SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors
- 10SmallHD Microfiber Cleaning Cloth

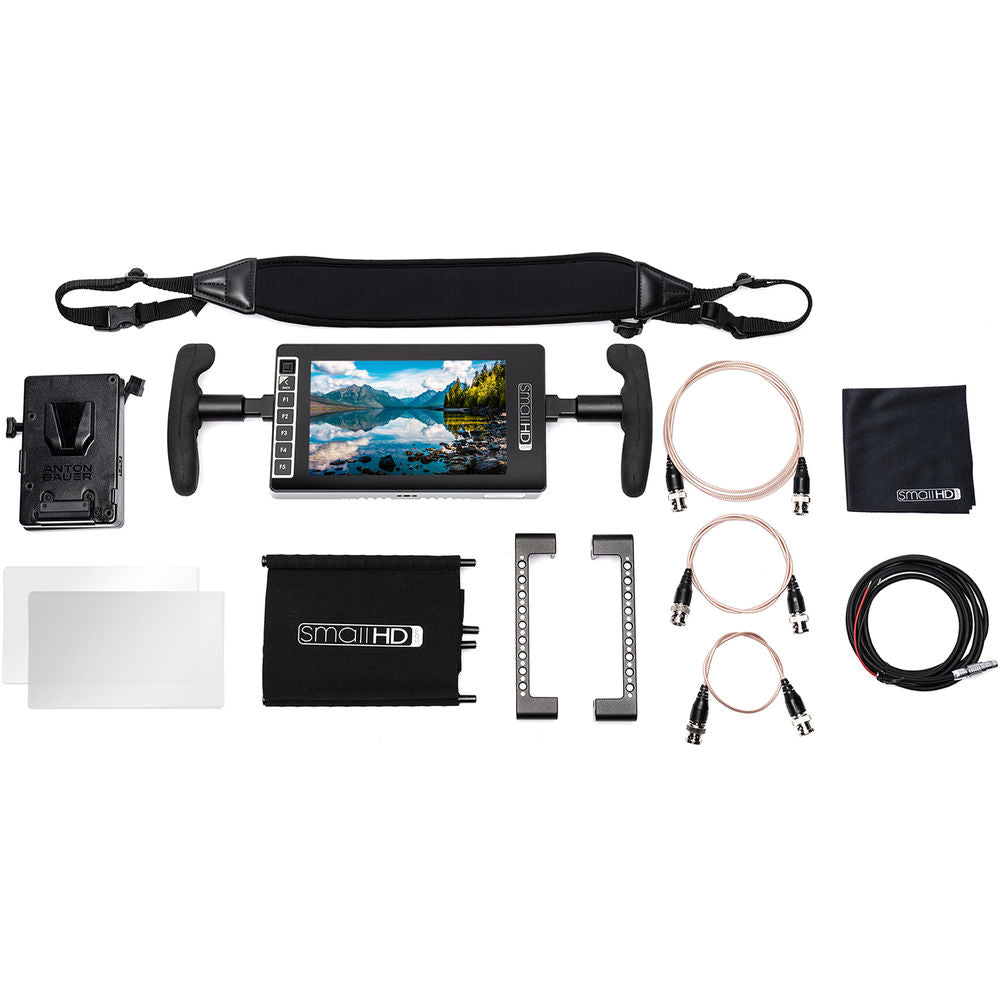

This SmallHD 703 UltraBright Directors Kit with V-mount battery plate provides you with a 7", 2200 cd/m² brightness monitor, a cage and sun hood, accessory handles and neck strap, as well as screen protectors, BNC cable, D-Tap to 2-pin LEMO power cable, and a cleaning cloth. This kit makes it simple for the director to see what the camera sees, indoors or out. The included handles allow the monitor to be easily gripped, positioned, or held, while the neck strap helps prevent the monitor from crashing to the ground when held by an easily distracted operator.
The UltraBright monitor's display is easily visible outdoors, even on bright days, and the included antireflection screen protector helps with visibility on gray, overcast, glare-riddled days. If you don't need the anti-glare properties, you can use the included clear screen protector instead. Either protects your screen from day-to-day wear, but the screen protector will not protect your monitor or screen from impact damage.

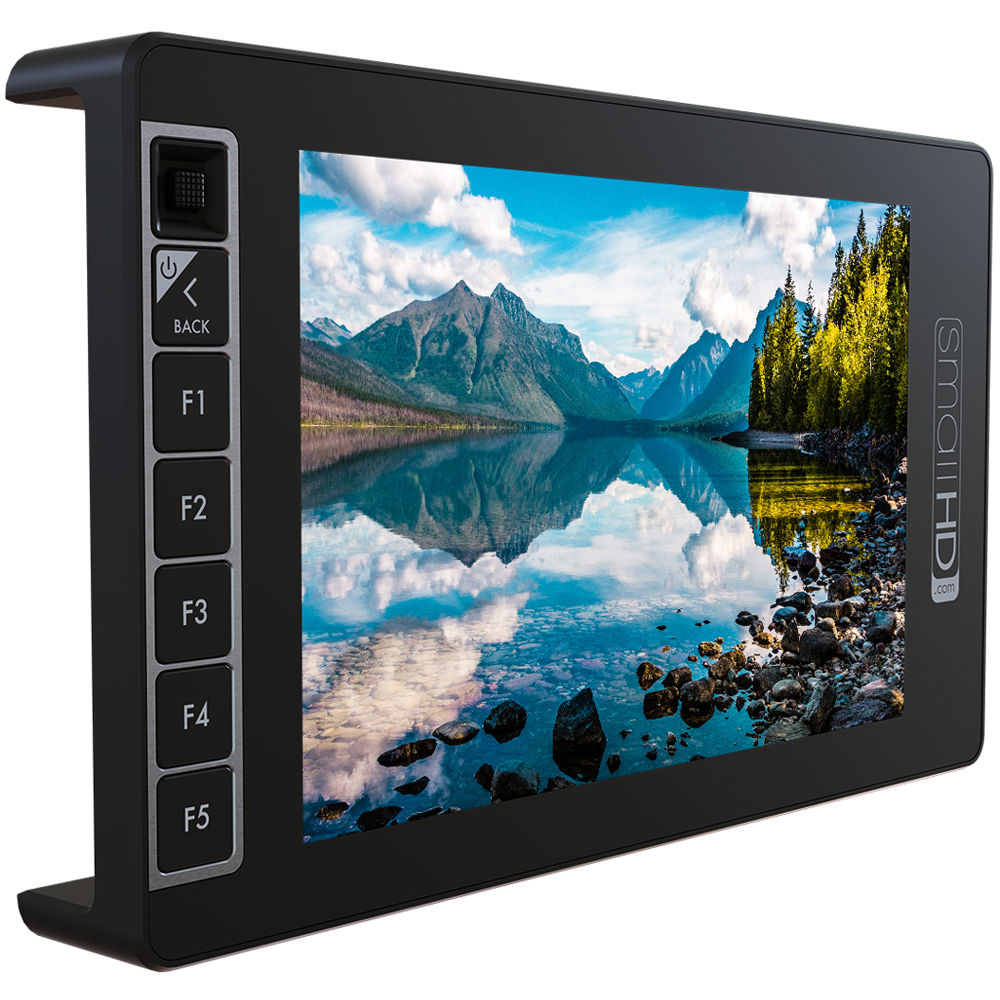

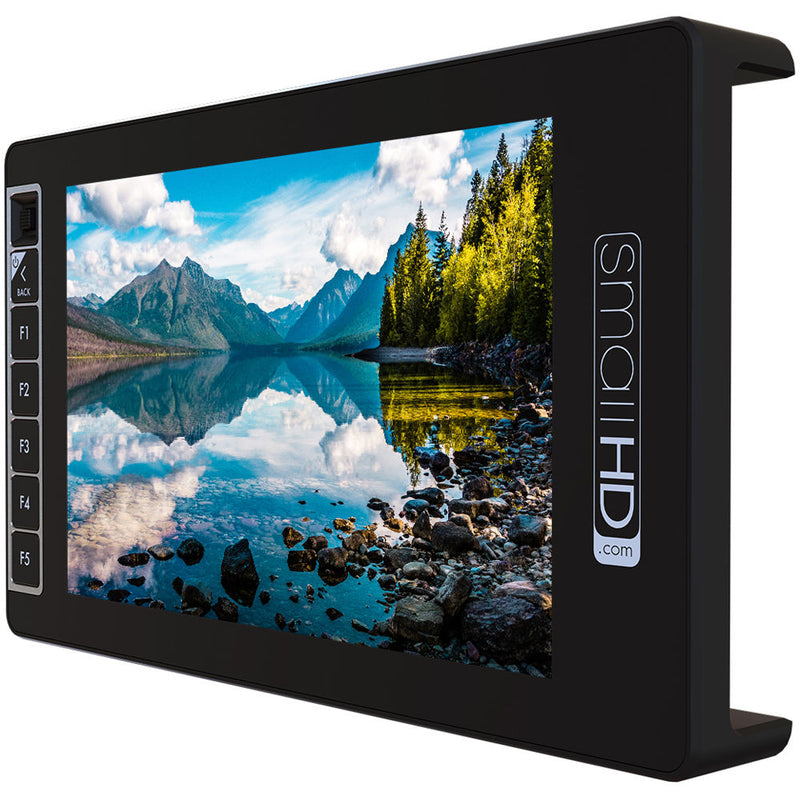

Though monitoring HD video signals outdoors can be difficult, the SmallHD 703 UltraBright On-Camera Monitor, with its 2200 cd/m² bright backlight, overcomes this environmental difficulty. The 7" 1920 x 1080 LCD provides a sharp image, ideal for focus pulling and image analysis on set and in the field. Another advantage of the high-brightness panel is the monitor's ability to preview HDR content. HDR preview extends the display's dynamic range to portray a greater range of brightness in the image.

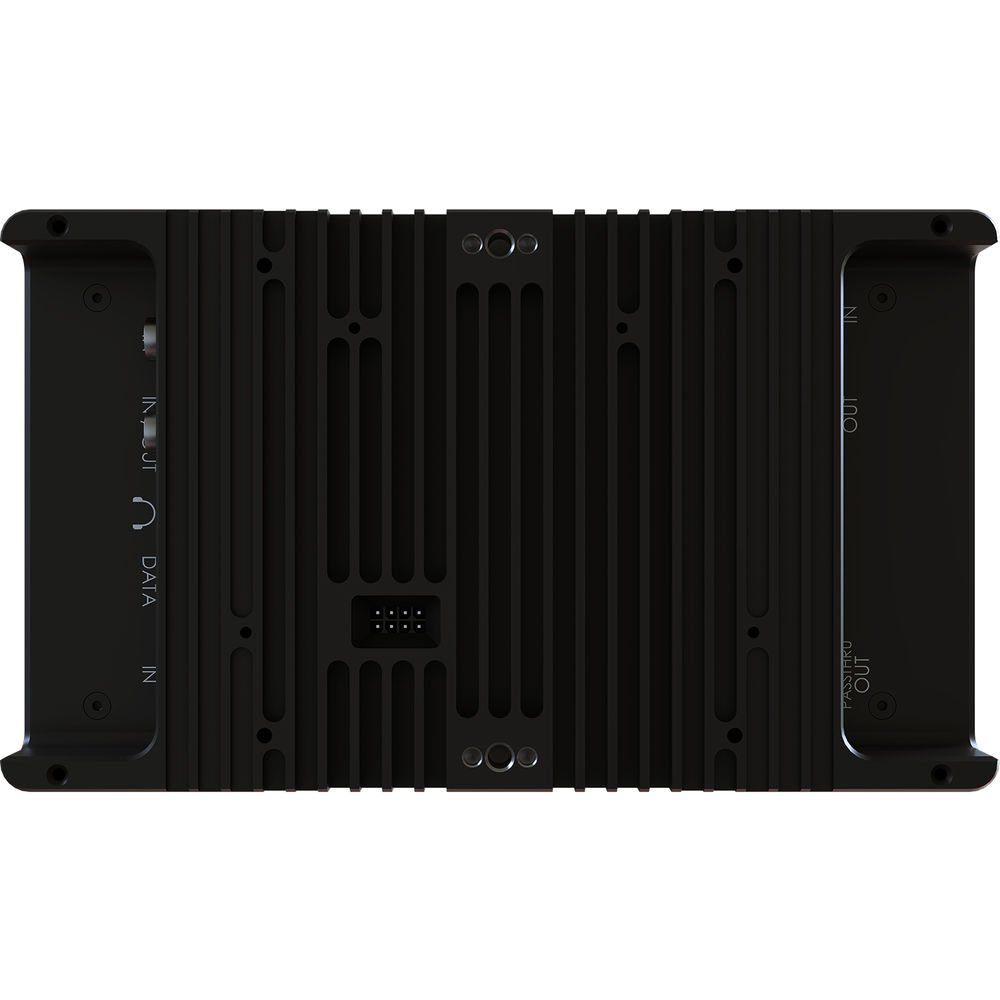

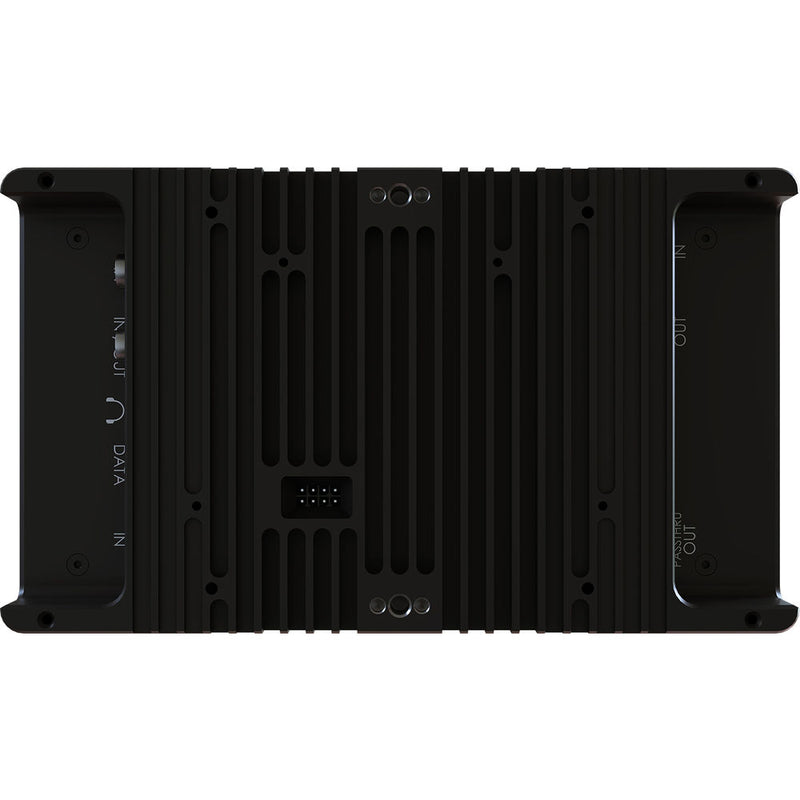

A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. The LCD panel itself is protected by a layer of optically-bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.
On the sides of the display are the SDI and HDMI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface.
The V-mount SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor is designed to work with and power either the SmallHD 503U or 703U on-camera monitor. The battery plate features a solid locking system that prevents your professional battery from accidentally disconnecting.
These Monitor Handles and Neck Strap from SmallHD give you a comfortable way of holding a compatible monitor. Easy to install, the lightweight black rubber handles attach securely to your monitor's side threaded holes using the included screws. The padded neoprene neck strap is adjustable and fastens onto the handles.
- SmallHD Smart 5 and 7 Series monitors with 1/4"-20 mounting threads
- SmallHD 503U and 703U Ultrabright monitors with separately available Ultrabright Mounting Cage
- Anti-slip rubber handles
- Woven nylon strap with neoprene padding
- Anti-spin handle connection
- Easy to install and hold
At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI.
At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI.
Output power from your Cine 13 monitor to power or charge accessories with this D-Tap to 2-Pin Power Cable from SmallHD. The cable features a 2-pin LEMO-type connector on one end and a D-Tap connector on the other. The cable can plug into the output of the Cine 13 monitor to output power to other accessories.
This SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors is flexible and features a clear screen with no anti-reflection properties. It protects your screen from incidental contact, scratches, and wear. However, it does not provide impact protection to your screen.
This SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors is flexible and features anti-reflection properties that minimize glare. It protects your screen from incidental contact, scratches, and wear. However, it does not provide impact protection to your screen.
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
In the Box
- SmallHD 703 UltraBright On-Camera Monitor
- SmallHD 2-Pin LEMO to D-Tap Power Cable (36")
- SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor (V-Mount)
- SmallHD Cage and Hood Kit for 703 UltraBright Monitor
- SmallHD Mounting Cage for 703 UltraBright Monitor
- SmallHD Sun Hood for 703 UltraBright Monitor
- SmallHD Monitor Handles and Neck Strap
- 2 x Mounting Screw
- SmallHD Thin BNC Cable (12")
- SmallHD Thin BNC Cable (48")
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors
- SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors
- SmallHD Microfiber Cleaning Cloth
- Description
- SmallHD 703 UltraBright On-Camera Monitor
- SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor (V-Mount)
- SmallHD Monitor Handles and Neck Strap
- SmallHD Thin BNC Cable (12")
- SmallHD Thin BNC Cable (48")
- SmallHD D-Tap to 2-Pin Power Cable (36")
- SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors
- SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors
- SmallHD Microfiber Cleaning Cloth
SmallHD 703 UltraBright On-Camera Monitor Specs
| Panel Type | TFT LCD |
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
| Maximum Brightness | 2200 cd/m2 |
| Contrast Ratio | 1200:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 323 ppi |
| Color Gamut | 70% NTSC |
| Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x BNC (3G-SDI) Input 1 x HDMI Input |
| Embedded Audio | HDMI SDI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x LEMO 2-Pin Input 1 x LEMO 2-Pin Output |
| Video Format | SDI (10-Bit 4:2:2) 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 480i 576i HDMI (8/10/12-Bit) 1080p: 23.98/24/25/30/50/59.94/60 1080PsF: 23.98/24/25/30 1080i: 50/59.94/60 720p: 23.98/24/25/30/50/59.94/60/100/119.88/120 576p: 50/100 480p: 59.94/60/119.88/120 480i: 59.94/60/119.88/120/239.76/240 576i: 50/100/200 |
| DC Input Power | 6 to 34 VDC |
| Battery Type | None |
| Power Consumption | 13 W |
| Mounting | 2 x 1/4"-20 Female |
| Certifications | CE, FCC, IC, RoHS *as per Manufacturer |
| Operating Temperature | 0 to 100°F / -18 to 38°C |
| Storage Temperature | -4 to 120°F / -20 to 48.9°C |
