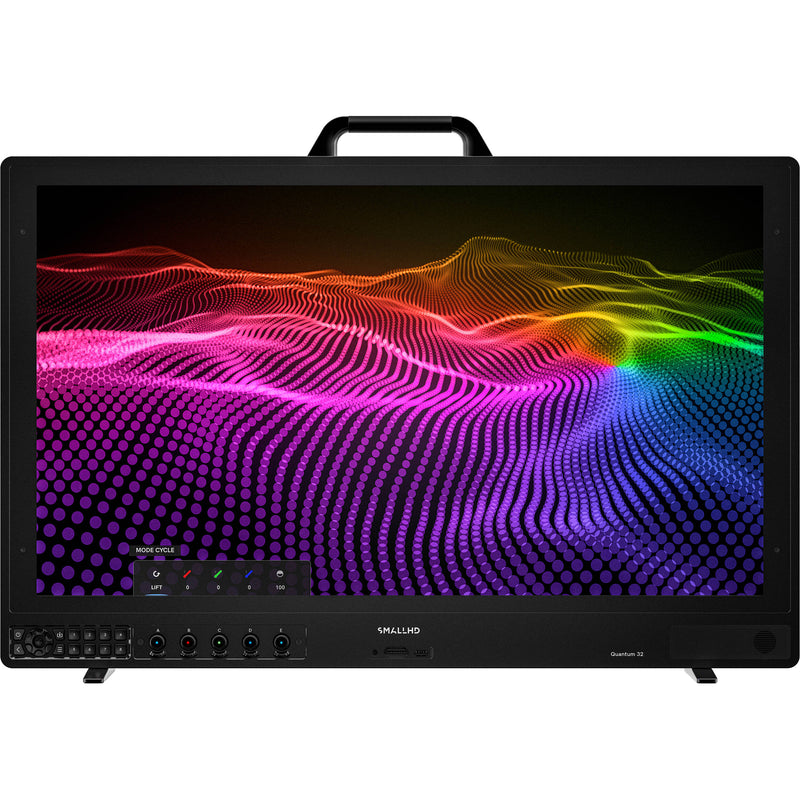

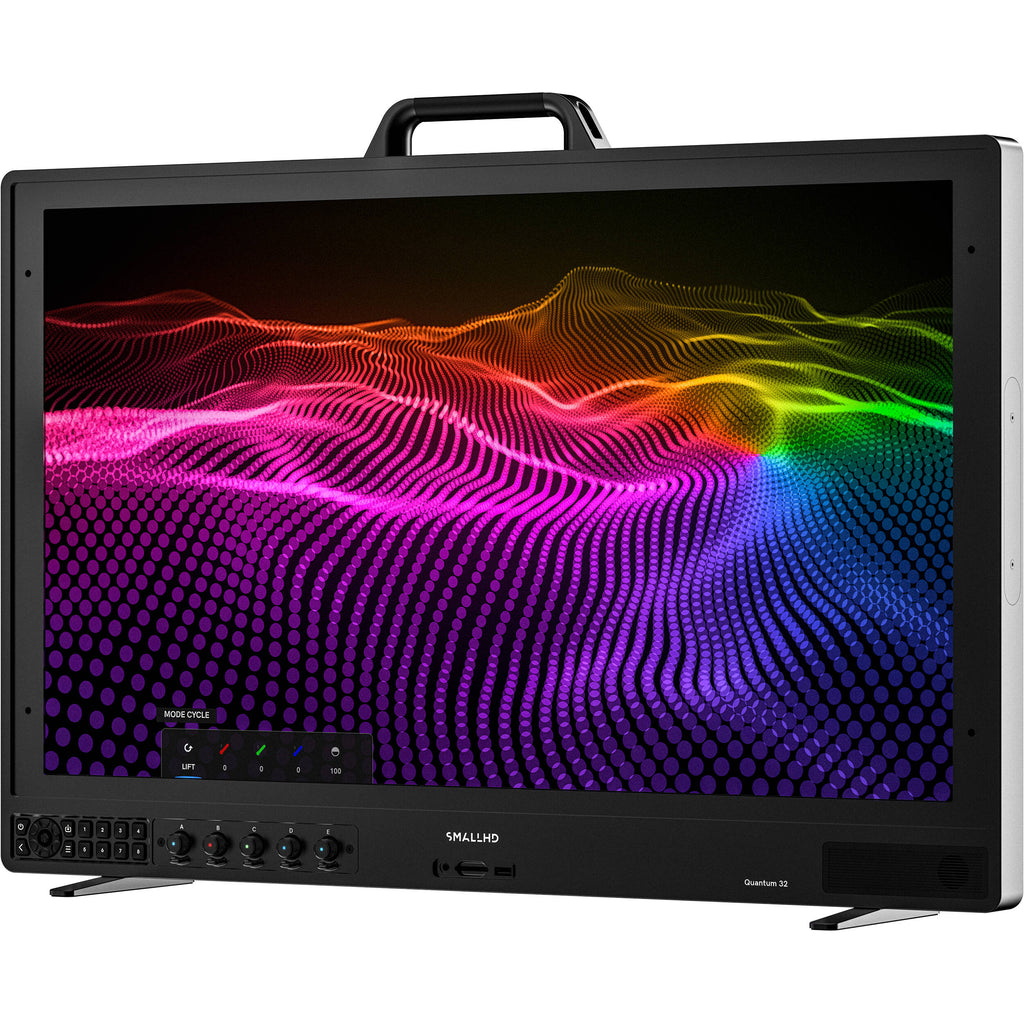

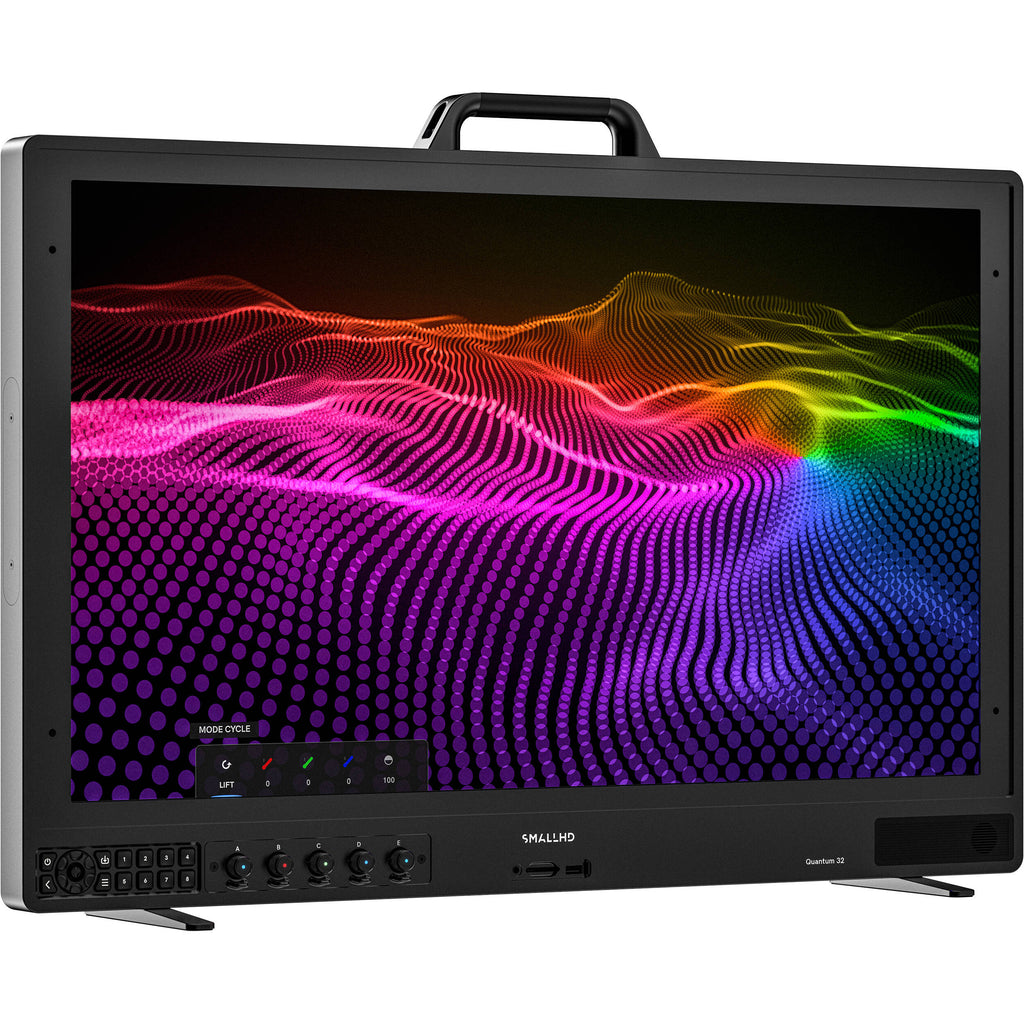

SmallHD 31.5" Quantum 32 True Reference OLED Display

Add a professional DCI/UHD 4K OLED display to your production or color grading studio with the 31.5" Quantum 32 True Reference OLED Display from SmallHD. Featuring the updated PageOS operating system, the 31.5" display provides a crisp image with HDR support with high brightness, high contrast, and multiple power, control, and mounting options.

QD-OLED panels directly emit narrow spectrum RGB light evenly in all directions, providing uniform luminance up to 1000 cd/m², extending color gamut coverage to 99% of DCI-P3, and enabling an ultrawide viewing angle.

Quantum-dot OLED enables an exceptionally high volume of color expressions. The results closely approximate human vision with extremely high color purity and peak luminance.

• UHD 4K 3840 x 2160 resolution OLED display
• 99% DCI-P3 color gamut
• 1000 cd/m² brightness
• 10-bit HDR color
• 1,500,000:1 contrast ratio

The monitor features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs to support up to DCI/UHD 4K input and output. The SDI ports allow 3D LUTs to be applied to output video. It also features one HDMI 2.0 2.0 input and one HDMI output that support up to DCI/4K60. Video can be sent downstream to other devices with 3D LUTs applied. It also features an RJ45 GPI port for tally triggering.

The monitor can be powered using a separately available dual 26V Gold mount or V-mount battery plate or via a DC input. It can also power other accessories using its two 5V USB-A, one 5V USB-C, and dual 12V 2-pin power outputs.

Quantum 32 features a new, more powerful central processor with a custom-designed architecture running PageOS, SmallHD's unique operating system. PageOS is an intuitive and highly customizable page-based monitoring interface with an intuitive UI/UX and extensive tools for video engineering workflows and numerous third-party software integrations. It gives you full control over exclusive integrated tools, color, exposure, camera, LUTs, and much more.

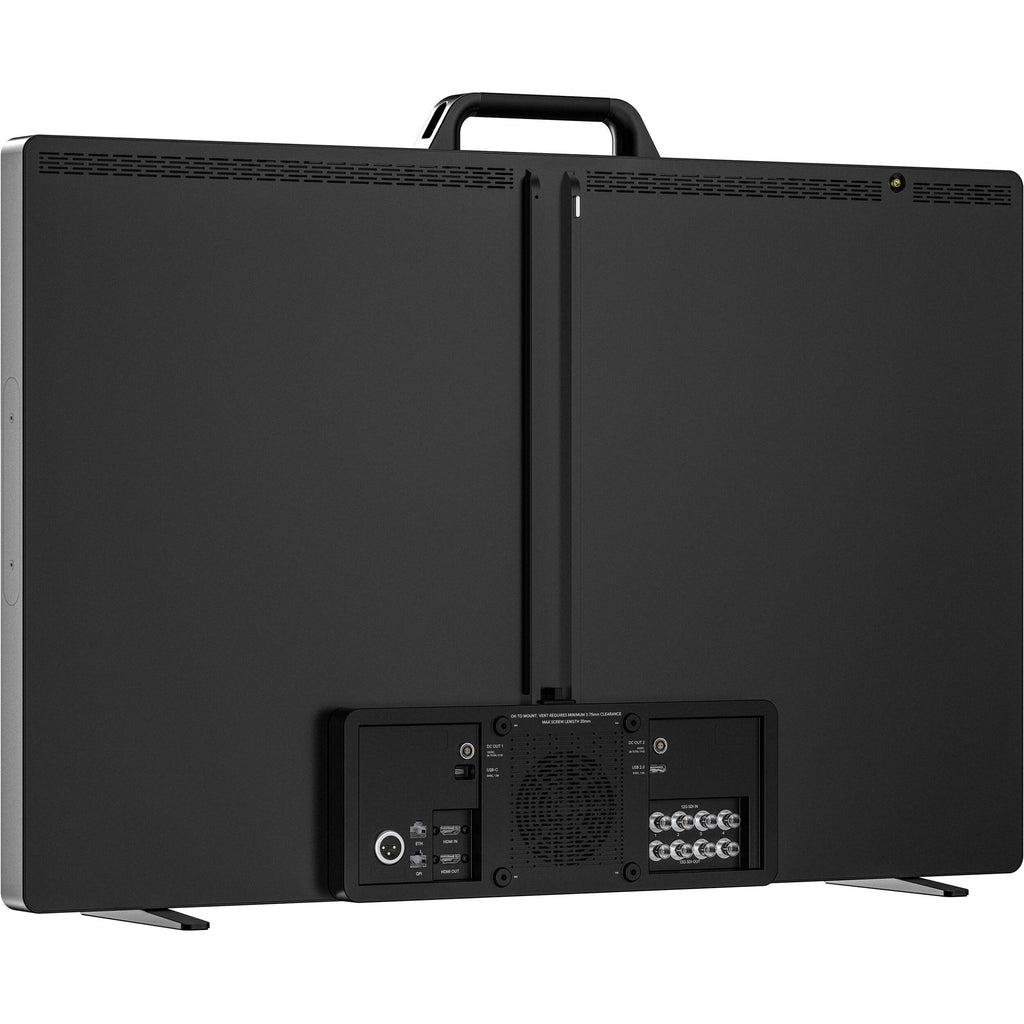

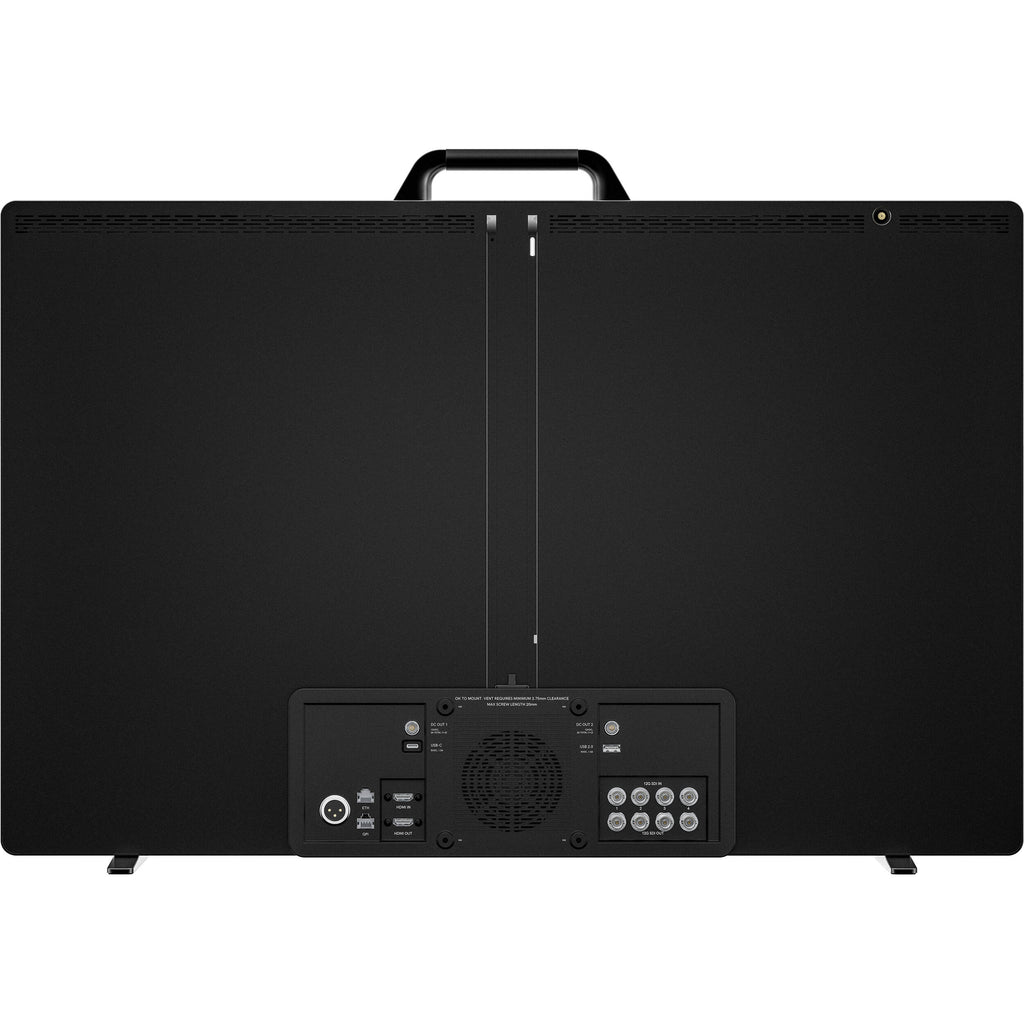

The unibody design can be mounted using the 100mm VESA pattern on the back, and you can add accessories using its integrated dovetail rail or with optional cheese-style plates, and you can transport it using an optional top handle.

You can control the display using Wi-Fi and the downloadable Fleet app, which can be used to control settings, tools, and more. It can also be controlled using tactile rotary encoder knobs with touch-activated illumination to identify programmed functions with long-push, short-push, rotary, and capacitive-touch features.

SmallHD Quantum 32 Specs

Display Size	31.5" / 80.0 cm
Native Resolution	3840 x 2160
Touchscreen	No
HDR Support	Yes
Video I/O	4x BNC (12G-SDI) Input 4x BNC (12G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
Video Format	SDI (10-Bit 4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 30/25/24/23.98 1080PsF: 25/24/23.98 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 100/50 480p: 120/119.88/100/60/59.94 576i: 100/50 480i: 120/119.88/60/59.94 HDMI (8/10/12-Bit 4:2:2 RGB, YCC) DCI 4K: 60
Power Consumption	186 W (Typical) 267 W (Maximum)
Mounting	1/4"-20 Female (Bracket) 3/8"-16 Female (Bracket)

Panel Type	Quantum Dot OLED
Display Size	31.5" / 80.0 cm
Screen Area	27.54 x 15.54" / 699.48 x 394.73 mm
Native Resolution	3840 x 2160
Aspect Ratio	16:9
Viewing Angle	180°
Touchscreen	No
Maximum Brightness	1000 nits / cd/m2
Contrast Ratio	1,500,000:1
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes
Pixels Per Inch (ppi)	140 ppi
Color Gamut	99% DCI-P3 80% Rec. 2020
LUT Support	Yes
Image Controls	False Color, Focus Assist, Focus Peaking, Pixel Zoom, Waveform

Video I/O	4x BNC (12G-SDI) Input 4x BNC (12G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output
Embedded Audio	HDMI/SDI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x XLR 3-Pin (12 A / 34 VDC) Input 2x LEMO 2-Pin (2 A / 12 VDC) Output 2x USB-A (2.4 A / 5 VDC) Output 1x USB-C (1.5 A / 5 VDC) Output
Other I/O	1x RJ45 (GPI) Input/Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
Wi-Fi	Yes
Bluetooth	No
Mobile App Compatible	Yes: Android & iOS App Name: Fleet Functionality: Adjust Settings

Video Format	SDI (10-Bit 4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 30/25/24/23.98 1080PsF: 25/24/23.98 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 576p: 100/50 480p: 120/119.88/100/60/59.94 576i: 100/50 480i: 120/119.88/60/59.94 HDMI (8/10/12-Bit 4:2:2 RGB, YCC) DCI 4K: 60
Gamma Curve	DCI-P3, Rec2020

Input Power	25 to 34 VDC at 12 A
Power Consumption	186 W (Typical) 267 W (Maximum)

Mounting

1/4"-20 Female (Bracket) 3/8"-16 Female (Bracket)

Operating Conditions	32 to 100°F / 0 to 37°C
Storage Conditions	0 to 105°F / -17 to 40°C
Material of Construction	Aluminum, Glass, Plastic
Dimensions	30.4 x 19.5 x 2.8" / 77.3 x 49.5 x 7 cm (Excluding Feet, Handle)
Weight	18.3 lb / 8.3 kg

Package Weight	38.5 lb
Box Dimensions (LxWxH)	34.21 x 25 x 10"
