Load Capacity: 11 lbMaximum Height: 65.9"Minimum Height: 12.5"Folded Length: 26" The PRO AL-523BH5 Tripod Kit from Slik is a 3-section support with a flip-lock leg system. You can extend the legs by disengaging them and raising the rapid center column, so the tripod can reach a maximum height of 65.9". For the tripod to drop to a minimum height of 12.5", you can splay the legs out and split the column in half, so the column doesn't hit the ground when the tripod is at its lowest height. The 4.6 lb support with the included PBH-535AS ball head has a load capacity of 11 lb, and its rubber feet prevent the tripod from sliding on smooth surfaces, providing a secure hold on uneven terrain. The tripod folds to a length of 26" to easily store in its tripod case for travel.
Slik PRO AL-523 Aluminum Tripod

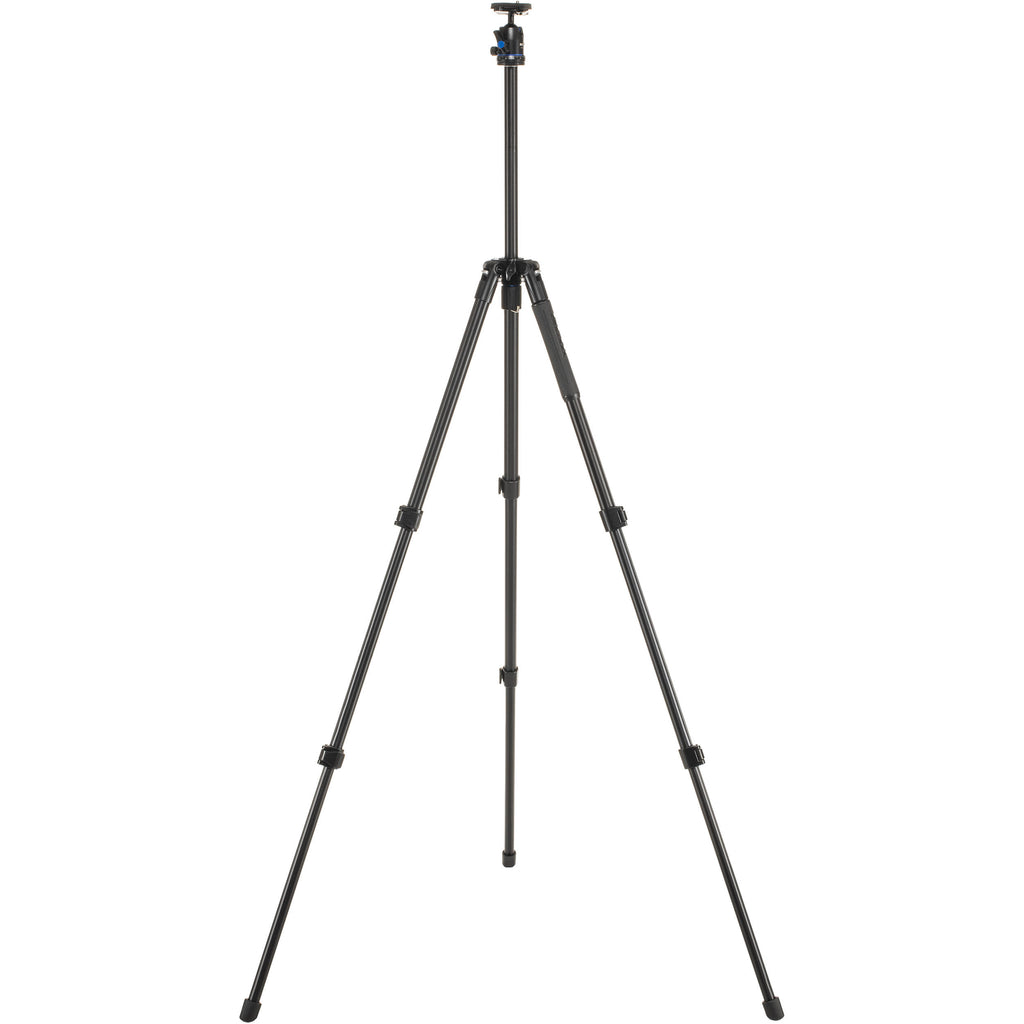

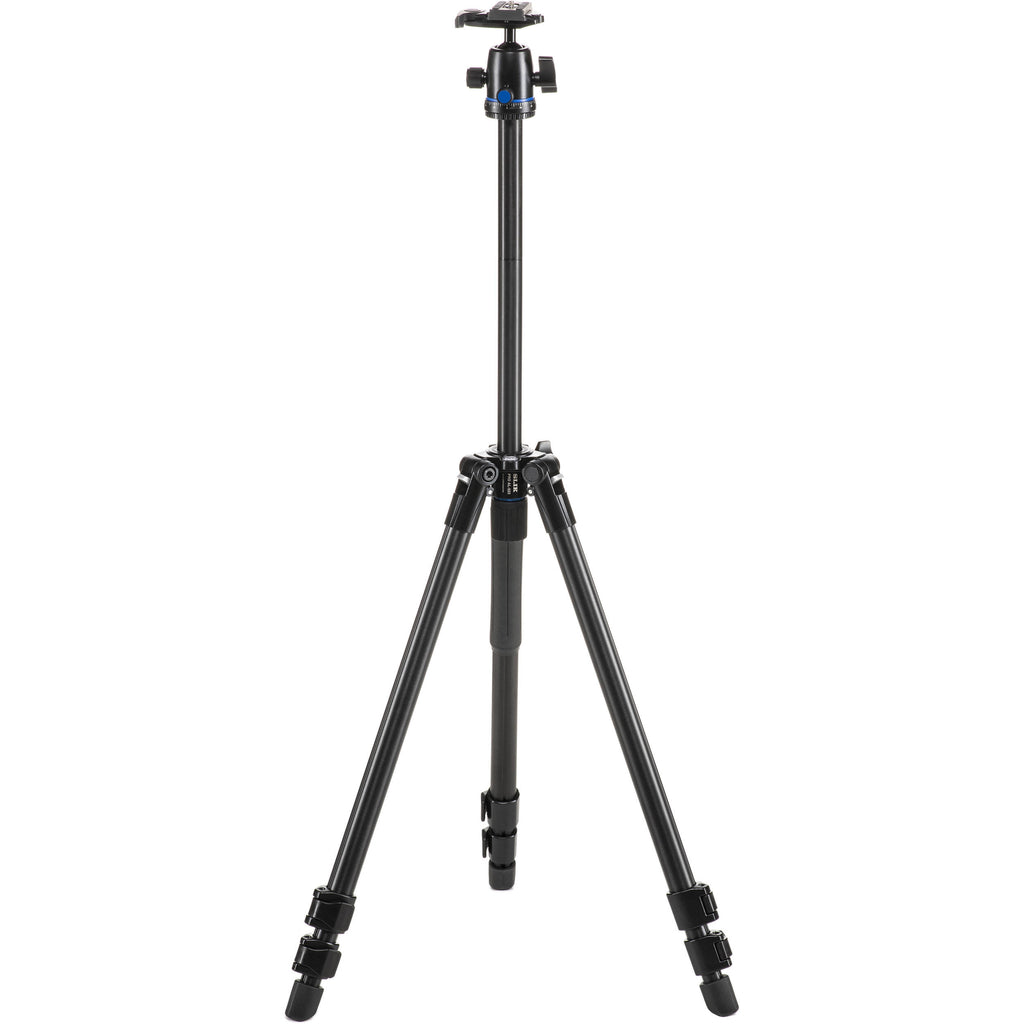

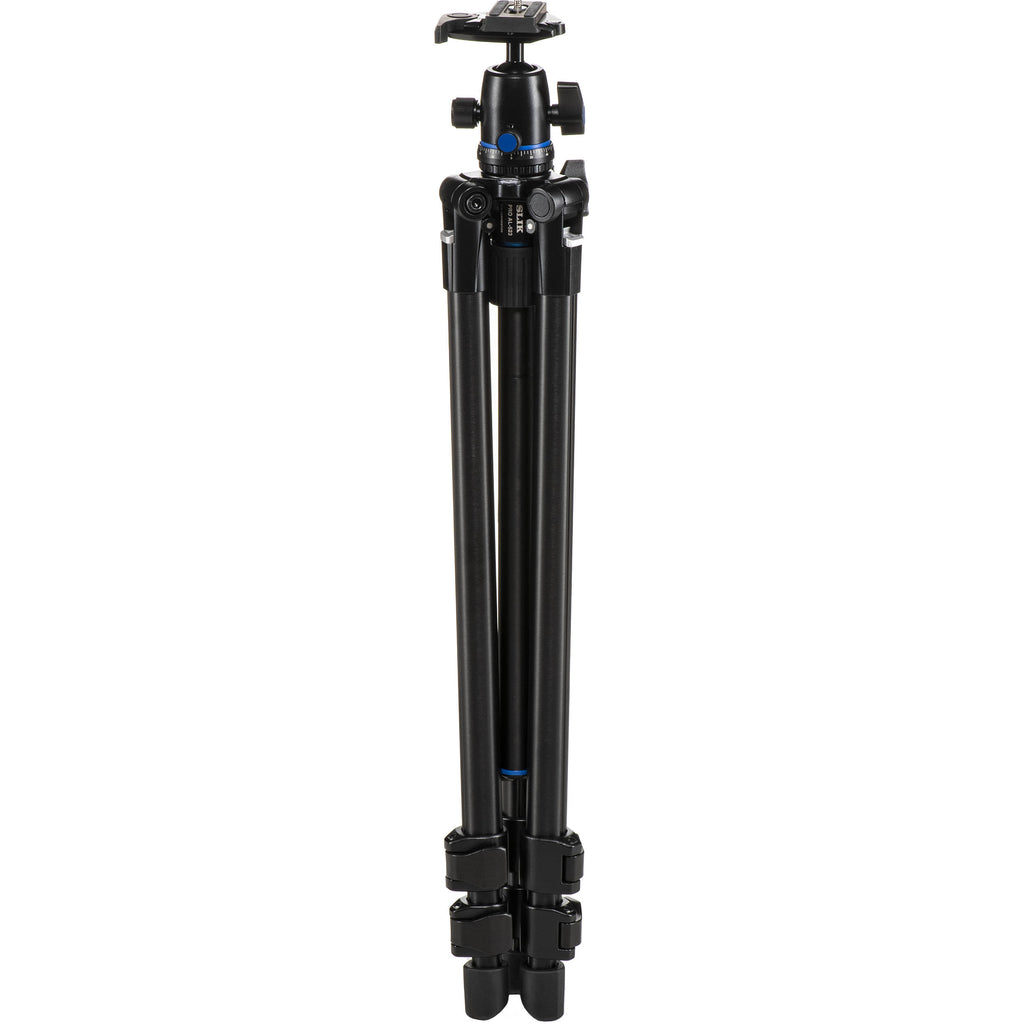

The PRO AL-523 Aluminum Tripod from Slik is a 3-section support with a flip-lock leg system. You can extend the legs by disengaging them and raising the rapid center column, so the tripod can reach a maximum height of 62.1". For the tripod to drop to a minimum height of 8.7", you can splay legs out and split the column in half, so the column doesn't hit the ground when the tripod is at its lowest height. The 3.8 lb support has a load capacity of 13.2 lb, and its rubber feet prevent the tripod from sliding on smooth surfaces and provide a secure hold on uneven terrain. The tripod folds to a length of 23" to easily store in its included case for travel.
UPC: 049368706773 Slik PBH-535AS Ball Head with 6507 Quick Release Plate
The SLIK PBH-535AS Ball Head with 6507 Quick Release Plate is an Arca-type ball head that has a load capacity of 11 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. A reducer bushing is provided, which allows this ball head to be attached to tripods or other support systems that feature a 1/4"-20 mount.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included 6507 Quick Release Plate. The quick release plate can be attached or removed from the Arca-Type clamp located at the top of the head's ball-and-socket joint by pulling clamp's integrated cam lock lever, which also allows the plate to be reattached. The quick release plate features a rubberized, non-slip platform while a built-in bubble level along the edge of the clamp accommodates landscape orientations.
By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by rotating the friction knob located on the opposite side of the primary locking knob. Between the primary locking knob and friction knob is a secondary locking knob, which controls the ability to rotate the head 360°.
PBH-535AS Ball Head
- Arca-type ball head with 11 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Reducer bushing included for compatibility with tripods or support systems that feature a 1/4"-20 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Large, primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Knurled friction knob on the opposite side of the primary locking knob applies variable tension on the ball-and-socket joint's movements
- Secondary locking knob with knurled surface allows head to rotate 360°
- Integrated cam lock on top of the ball-and-socket joint is compatible with included 6507 Quick Release Plate
- Built-in bubble level along the edge of the clamp accommodates landscape orientations
- Durable, aluminum-alloy construction
6507 Quick Release Plate
- Compatible with Arca-type quick release clamps
- 1/4"-20 folding-wing thumb screw mount for easy installation and removal
- Durable, aluminum-alloy construction
UPC: 049368706155
| Load Capacity | 13.2 lb / 5.99 kg |
| Maximum Working Height | 62.1" / 157.7 cm |
| Max Height without Center Column | 49.4" / 125.48 cm |
| Minimum Working Height | 8.7" / 22.1 cm |
| Folded Length | 23" / 58.42 cm |
| Weight | 3.8 lb / 1.72 kg |
| Materials | Aluminum Alloy |
| Leg Lock Type | Flip Lock |
| Independent Leg Spread | Yes |
| Leg Sections | 3 |
| Leg Diameter | 26.8" / 680.72 mm (Maximum) |
| Feet Features | Rubber |
| Center Column Features | Ballast Hook, Removable, Split |
| Center Column Shape | Round |
| Center Column Sections | 1 |
| Center Column Extension Type | Rapid |
| Package Weight | 5.205 lb |
| Box Dimensions (LxWxH) | 26.1 x 4.9 x 4.8" |
| Head Type | Ball Head |
| Base Mount | 3/8"-16 Female & 1/4"-20 with Bushing |
| Camera Mounting Screw | 1/4"-20 Male |
| Number of Bubble Levels | 1 |
| Friction Control | Yes |
| Independent Pan Lock | Yes |
| Vertical Tilt | 90° |
| Panning Range | 360° |
| Load Capacity | 11.0 lb / 4.99 kg |
| Maximum Working Height | 3.8" / 9.7 cm |
| Minimum Working Height | 3.8" / 9.7 cm |
| Diameter | 1.97" / 50.00 mm |
| Materials | Aluminum Alloy |
| Weight | 12.8 oz / 362.88 g |
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 5.54 x 4 x 4" |
In the Box
- Slik PRO AL-523 Aluminum Tripod
- Tripod Case
- Limited 3-Year Warranty
- Slik PBH-535AS Ball Head with 6507 Quick Release Plate
- Slik 6507 Quick Release Plate
- 3/8"-16 to 1/4"-20 Reducer Bushing
- Limited 3-Year Warranty
