Slik 618-762 Overview
-
1Description
-
2Slik Creator's Clamp
-
3Slik Sliding Arm II
-
4Slik SBH-400AS Ball Head

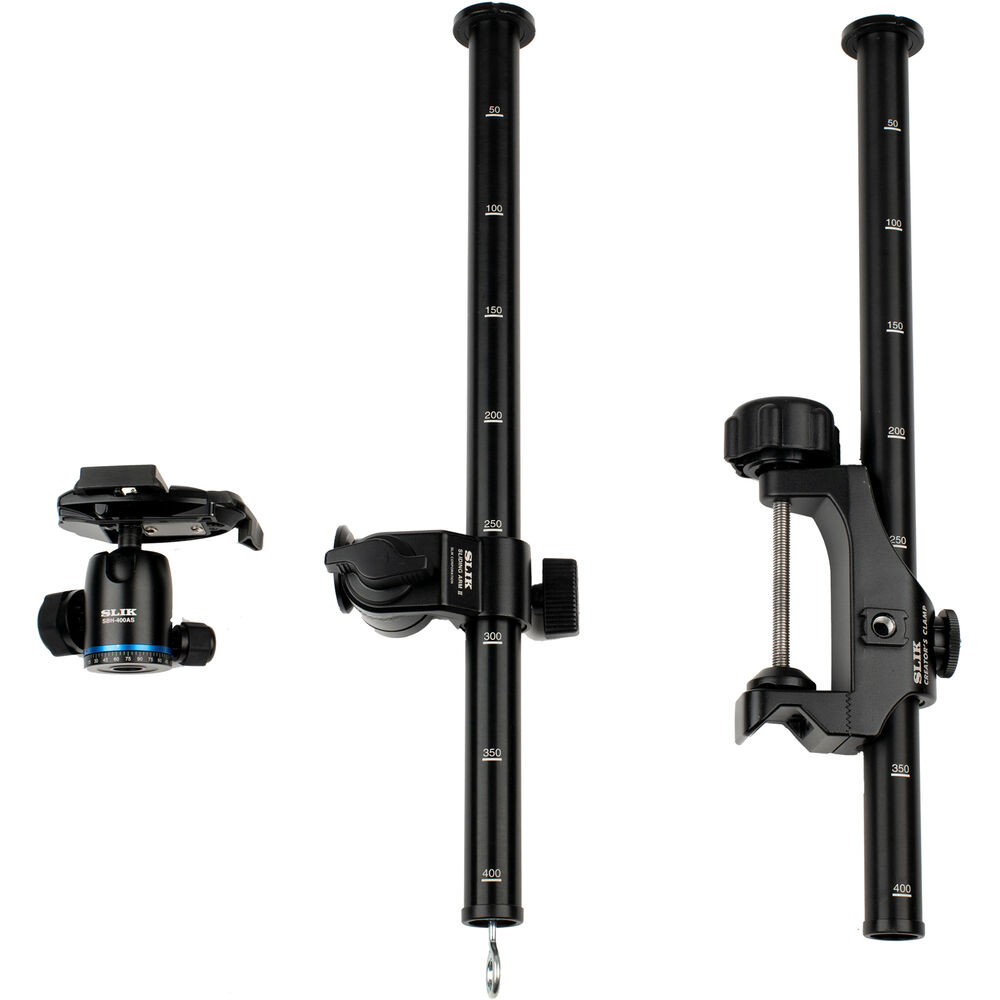

Three popular Slik products are bundled together in the Creator's Studio Kit. The versatile system includes the Slik Creator's Clamp, the Sliding Arm II mini-boom extension, and the SBH-400AS Ball Head for a complete support solution that is ideal for studio use and can easily be taken out on the field as well.

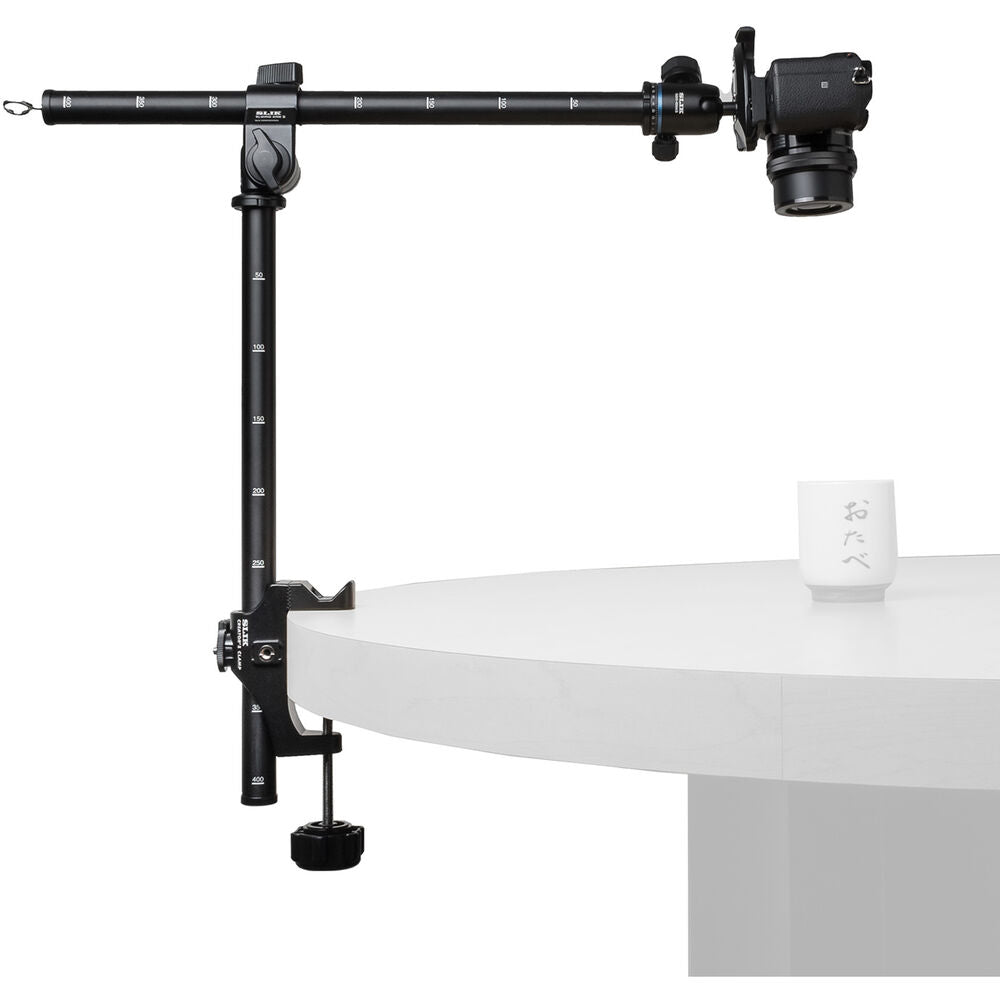

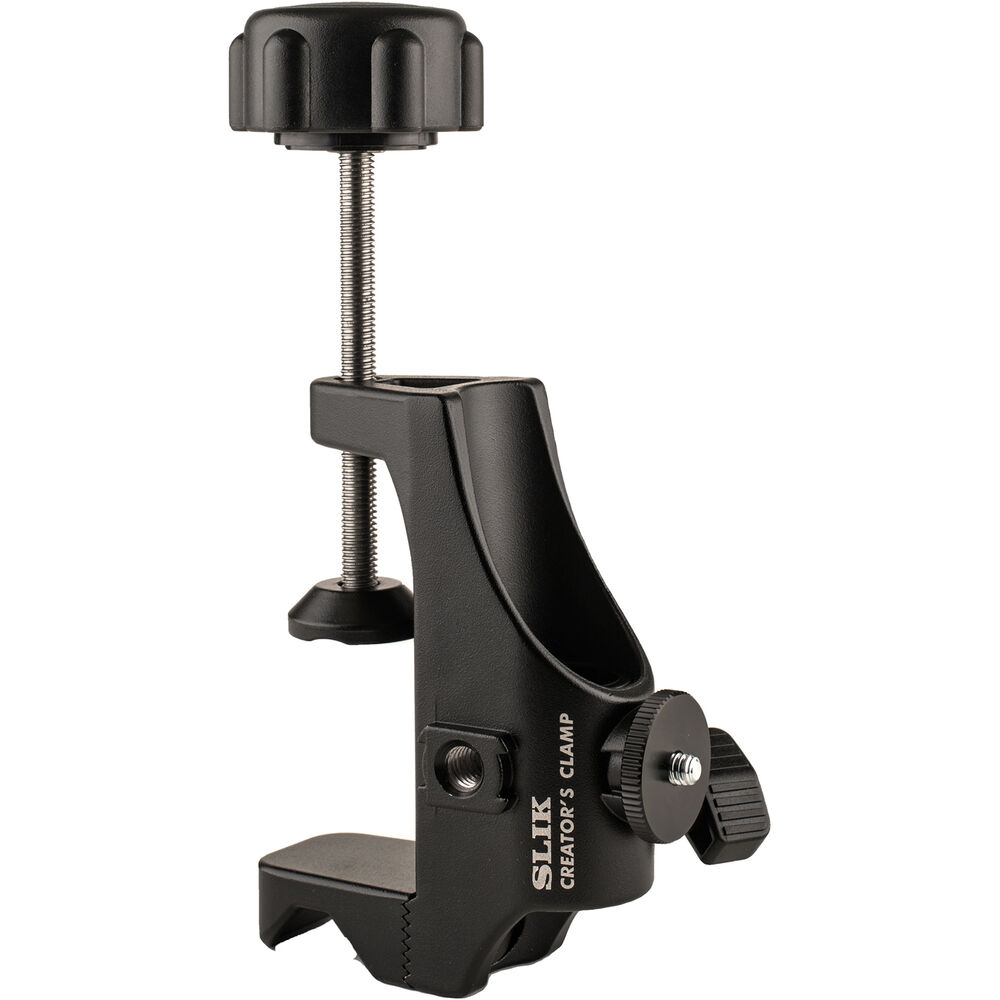

The Creator's Clamp from Slik enables you to support your camera, mobile phone, or another device crucial to your creativity on almost any surface. This universal support combines a C-clamp with a sliding 17" pole for easy vertical adjustments. It has a top 1/4"-20 screw and a 3/8"-16 adapter for compatibility with most ball heads, and it provides two 1/4"-20 threads for mounting accessories.
For Surfaces up to 3" Thick
- Supports camera or another device
- Clamps to flat or rounded surfaces up to 3" thick
- Enables precise positioning
- Sliding range of up to 17"

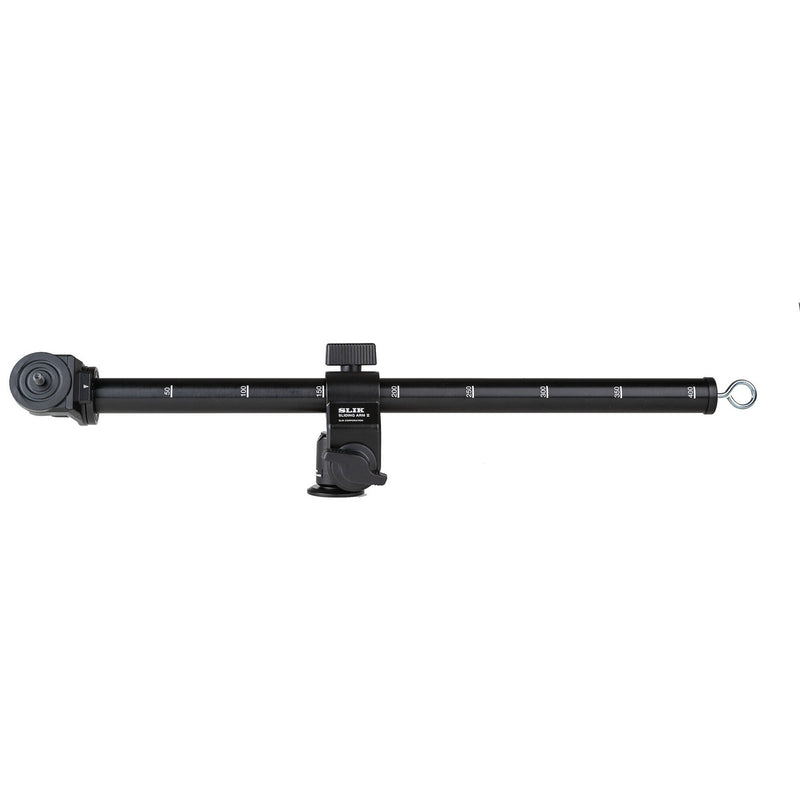

The Sliding Arm II from Slik is a mini-boom extension arm that allows photographers access to multiple unique angles and vantage points when added to an existing tripod leg set. The arm tube is connected to a fulcrum that allows it to swing, shift, tilt, and move freely in any direction. Extending up to 19.5" out over the legs of a tripod allows for vertical, lateral perspectives that are useful for copy stand or macro photography applications. The extension tube arm features a 50mm scale, making it easy to determine placement, and also incorporates a counterweight hook for stability as the arm is extended out from the tripod. The sliding arm features knob threads that lock into place at multiple positions, and a 1/4"-20 head mounting screw that is compatible with most tripod heads.

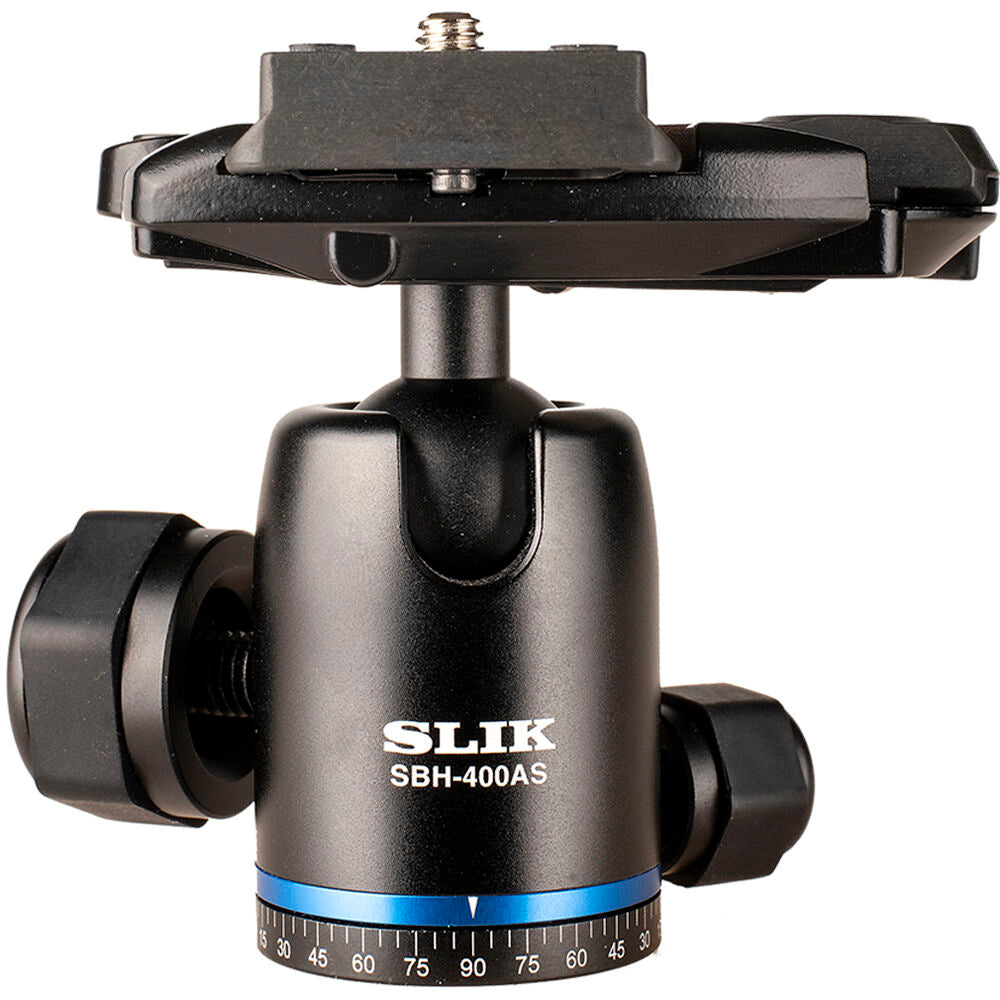

The SBH-400AS Ball Head from Slik is a low profile and compact ball head. Weighing just 9.7 oz, this ball head boasts an 8.8 lb load capacity, making it suitable for small to medium-size digital cameras. A pan locking knob enables you to pan the head a full 360°, and degree markings surround the base of the unit for stitching together panoramic photos. The head has a 90° notch for shooting in portrait orientation, and a bubble level is provided to assist you with composition. A quick release plate is included, and the ball head's cam lock quick release system allows users to attach the camera from the top of the platform without sliding in or out of the grooves. The base of the unit features a 3/8"-16 tripod socket, and a 1/4"-20 thread adapter is included so you can mount the ball head on your tripod of choice.

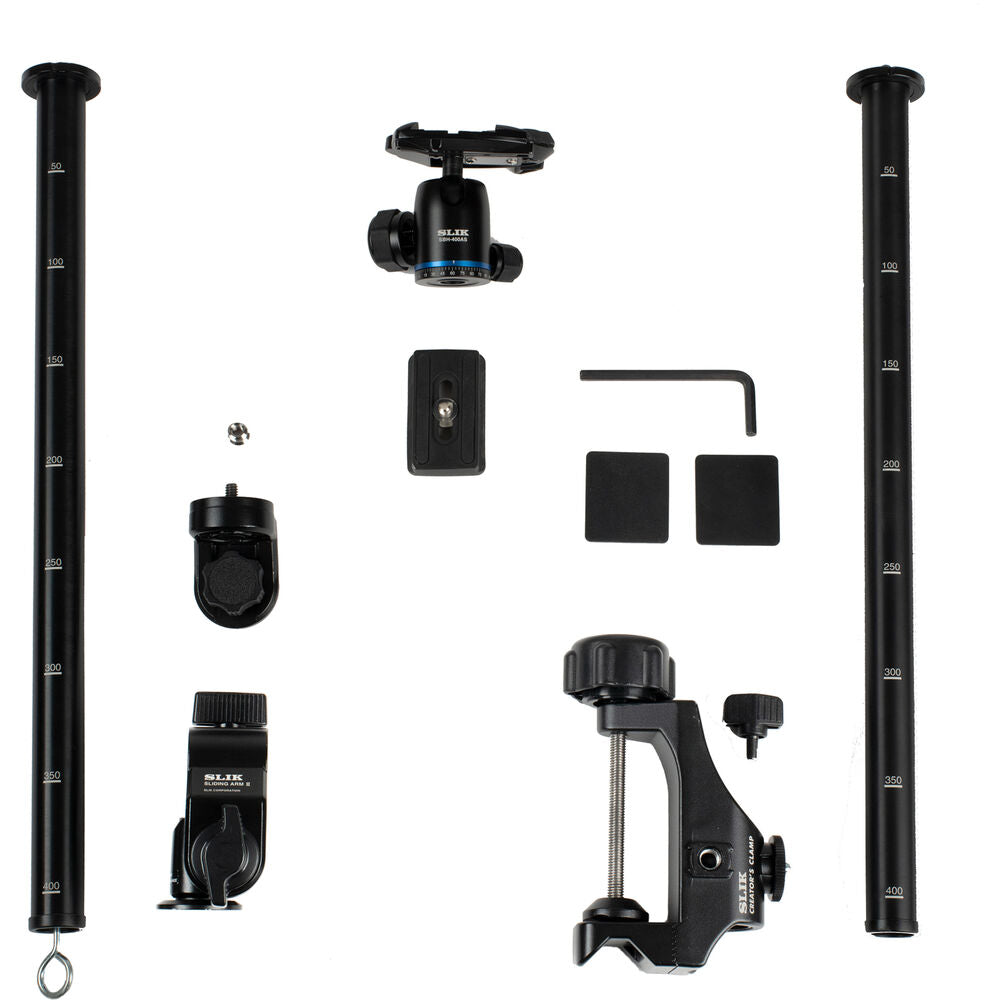

In the Box
- Slik Creator's Clamp
- Sliding Pole
- 3/8"-16 Bushing
- Slik Sliding Arm II
- 1/4"-20 to 3/8"-16 Bushing
- Limited 3-Year Warranty
- Slik SBH-400AS Ball Head
- Slik 6507 Quick Release Plate
- Limited 3-Year Warranty
Table of Contents
- Description
- Slik Creator's Clamp
- Slik Sliding Arm II
- Slik SBH-400AS Ball Head
Slik Creator's Clamp Specs
General
Mounting |
1 x 1/4"-20 Stud 2 x 1/4"-20 Threads |
Max Clamp Range |
3" / 7.7 cm |
Maximum Load |
4.4 lb / 2 kg on Pole 11 lb / 5 kg Directly on Clamp |
Material of Construction |
Machined Aluminum |
Pole Length |
19.5" / 497 mm |
Weight |
1.2 lb / 540 g |
Packaging Info
Package Weight |
1.995 lb |
Box Dimensions (LxWxH) |
20.6 x 5 x 3" |
Slik Sliding Arm II Specs
Load Capacity |
4.4 lb / 2 kg |
Length |
19.5" / 497 mm |
Weight |
1.2 lb / 530 g |
Packaging Info
Package Weight |
1.73 lb |
Box Dimensions (LxWxH) |
20.4 x 4.9 x 3" |
Slik SBH-400AS Ball Head Specs
Head
Head Type |
Ball Head |
Base Mount |
3/8"-16 Female |
Camera Mounting Screw |
1/4"-20 Male |
Number of Bubble Levels |
1 |
Pan & Tilt Range
Vertical Tilt |
+90° to 0° |
Panning Range |
360° |
General
Load Capacity |
8.8 lb / 4 kg |
Weight |
9.7 oz / 275 g |
Packaging Info
Package Weight |
0.83 lb |
Box Dimensions (LxWxH) |
5.65 x 4.4 x 4.35" |
