Sky-Watcher AZ-EQ5 Overview

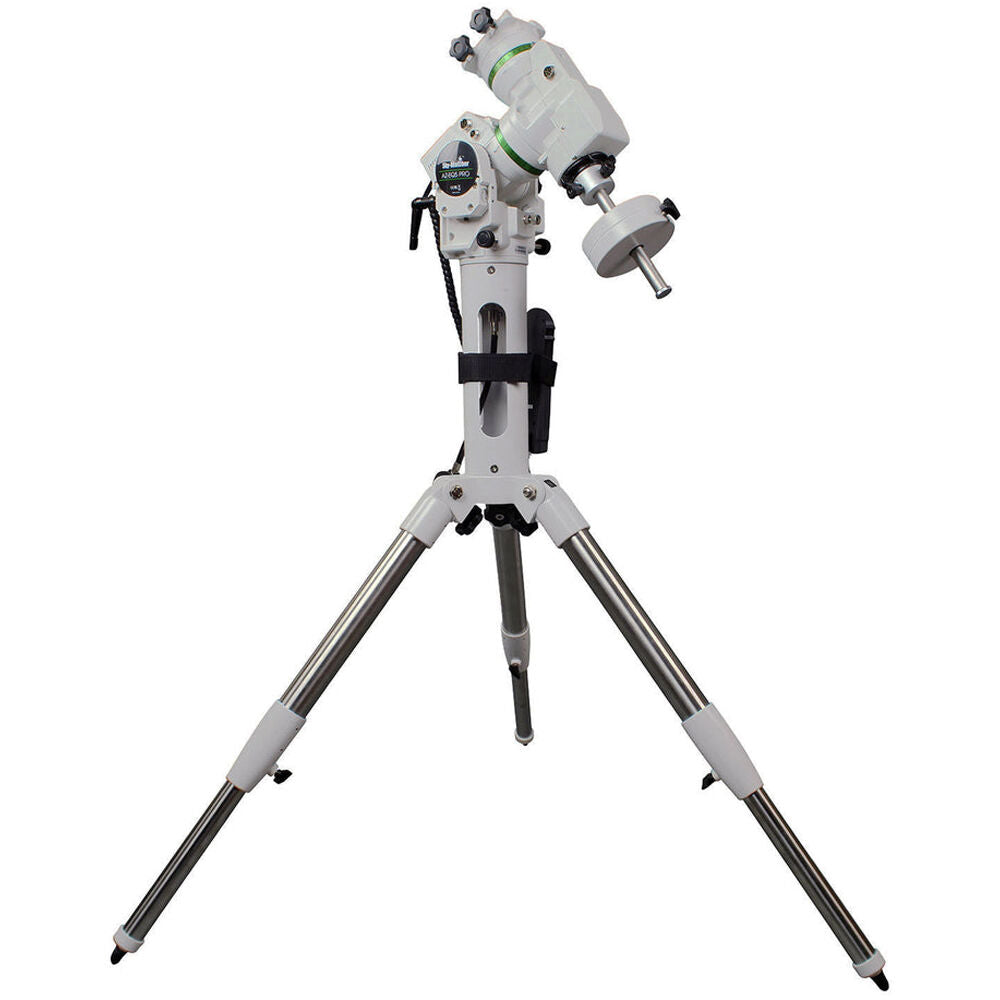

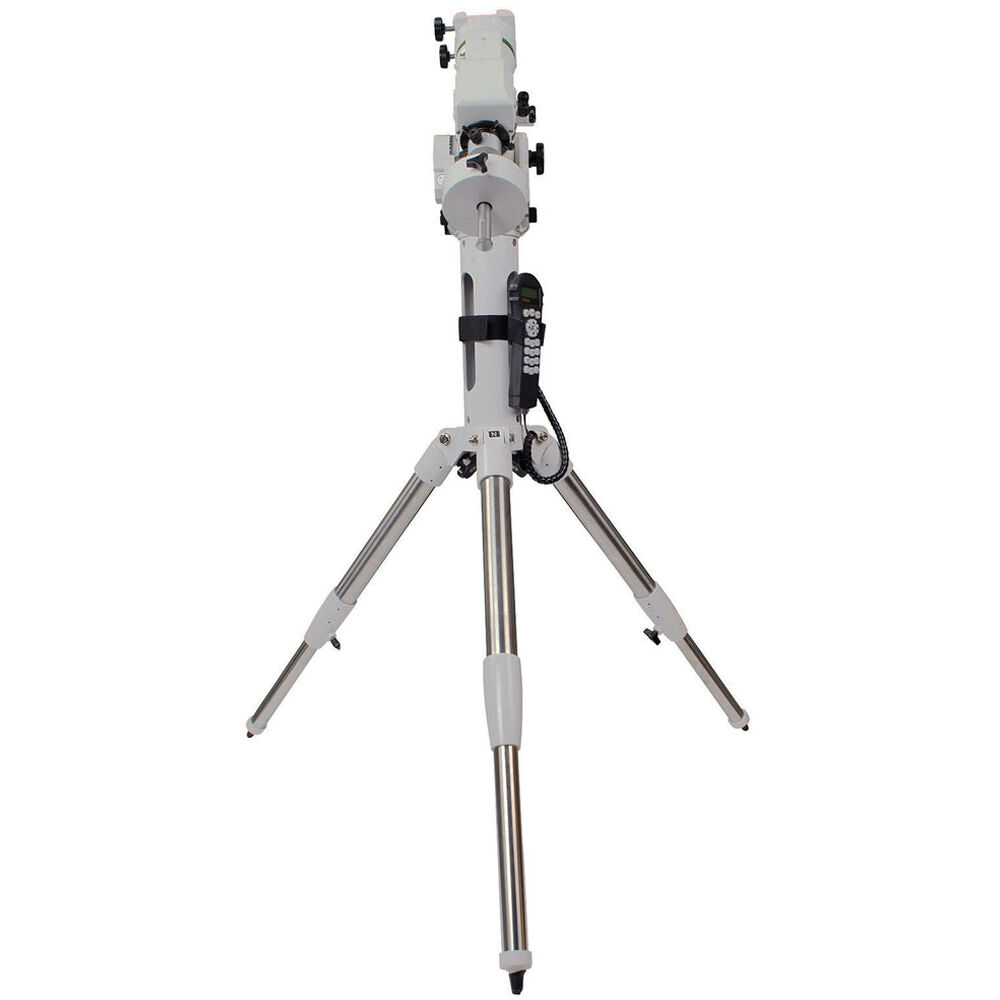

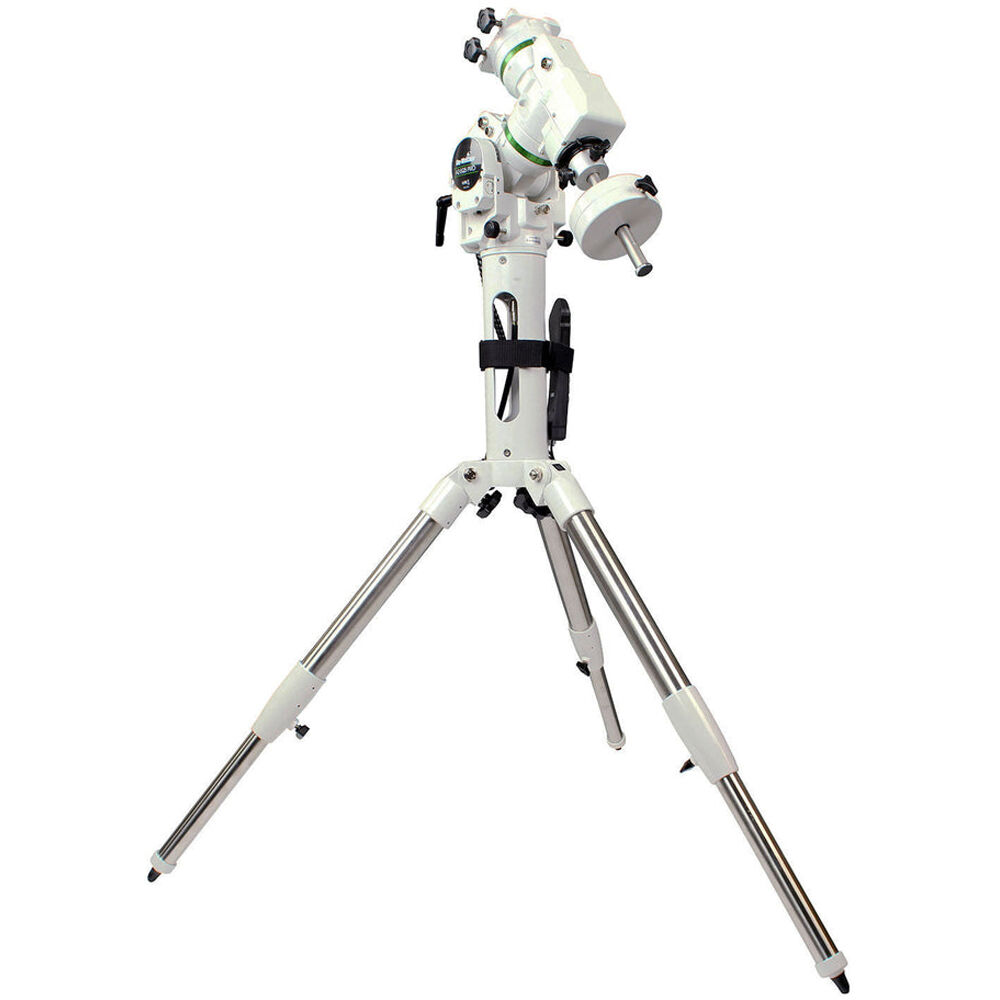

The Sky-Watcher AZ-EQ5 Mount Head + Pier Tripod & Riser Kit from is the full AZ-EQ5 system, which includes a motor controller with high torque and accuracy. The system has a 30 lb payload capacity and handles most mid-range OTAs. It offers German equatorial, Alt-Az, and dual-OTA modes. A key feature is permanent periodic error correction (PPEC). The system's belt drive delivers a smooth PE curve with low backlash and silent slewing. A retractable counterweight bar and a counterweight extension bar are included. Dual SNAP shutter release ports are provided for batch exposures of astrophotos. Also included are two V-style saddles for mounting dual OTAs. Dual encoders with Freedom Find technology allow for manual control without alignment loss.

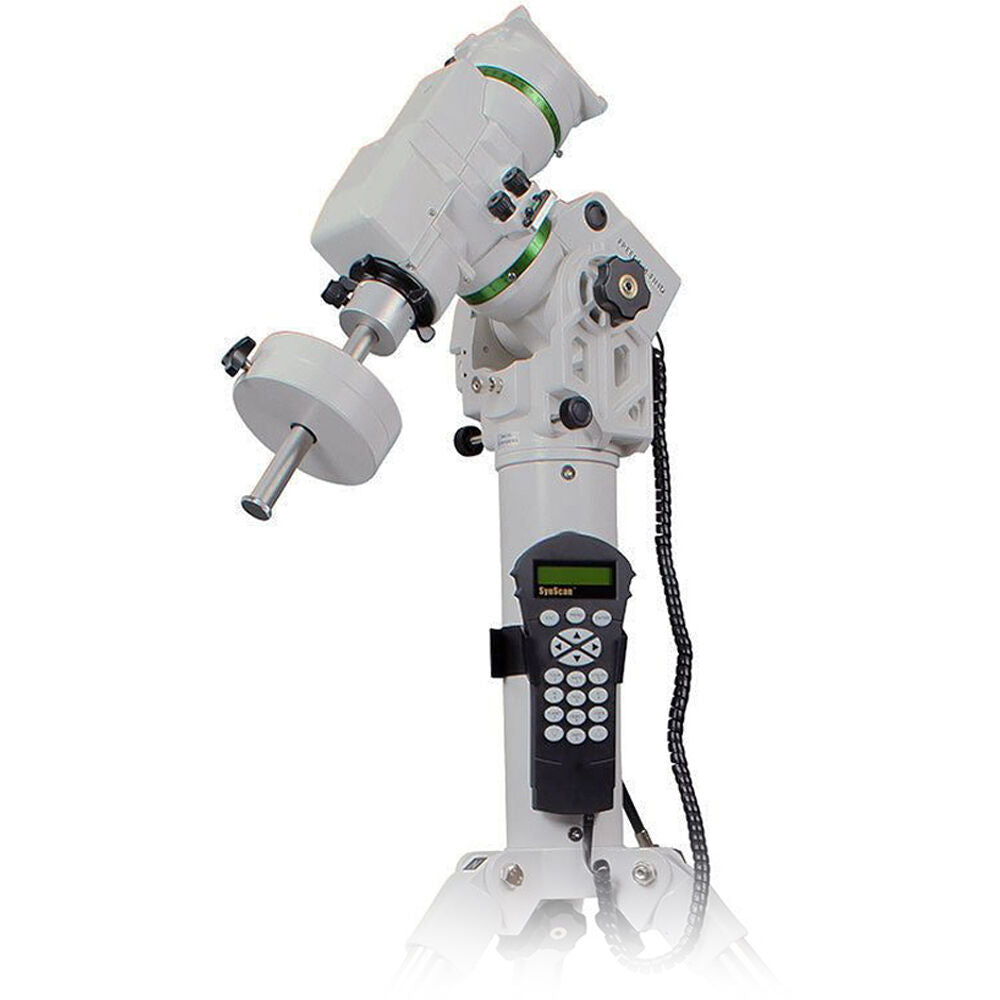

Sky-Watcher AZ-EQ5 Mount Head
The Sky-Watcher AZ-EQ5 Mount Head supports most mid-range telescope OTAs and has a 30 lb payload capacity. Designed for a flexible workflow, the AZ-EQ5 is equally suitable for the beginner astronomer interested in astrophotography, the seasoned professional imager, and educators. Part Alt-Az mount and part German equatorial, the AZ-EQ5 is a highly versatile mount. It's capable of aligning in either Alt-Az for casual observation, equatorial for serious astrophotography, or dual-OTA mode for astronomy outreach with twice the impact.

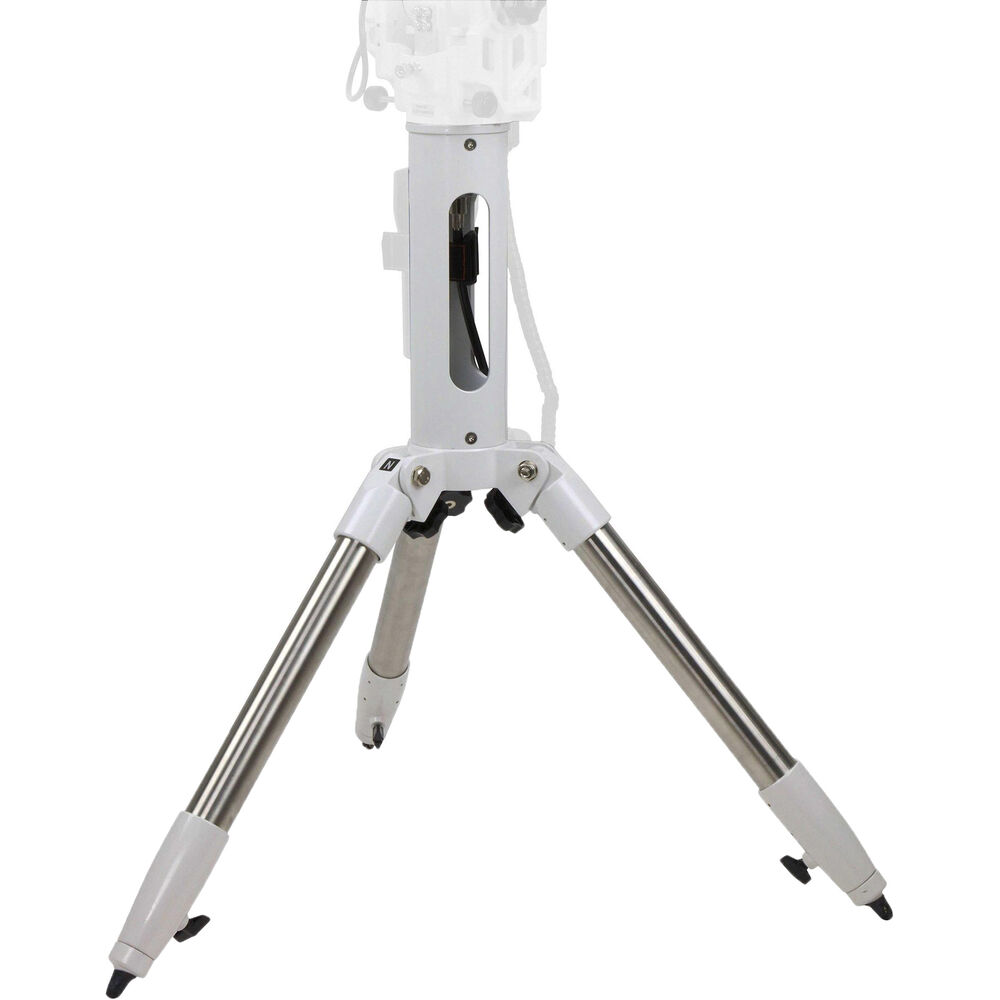

Sky-Watcher AZ-EQ5 Pier Tripod
The Sky-Watcher AZ-EQ5 Pier Tripod supports the AZ-EQ5 mount head for mid-range telescope OTAs. It consists of a tripod and sturdy pier extension. Thanks to the pier extension that sits on top, the tripod enables the optional AZ-EQ5 head to be polar-aligned at almost any latitude by elevating the mount head away from the tripod legs.

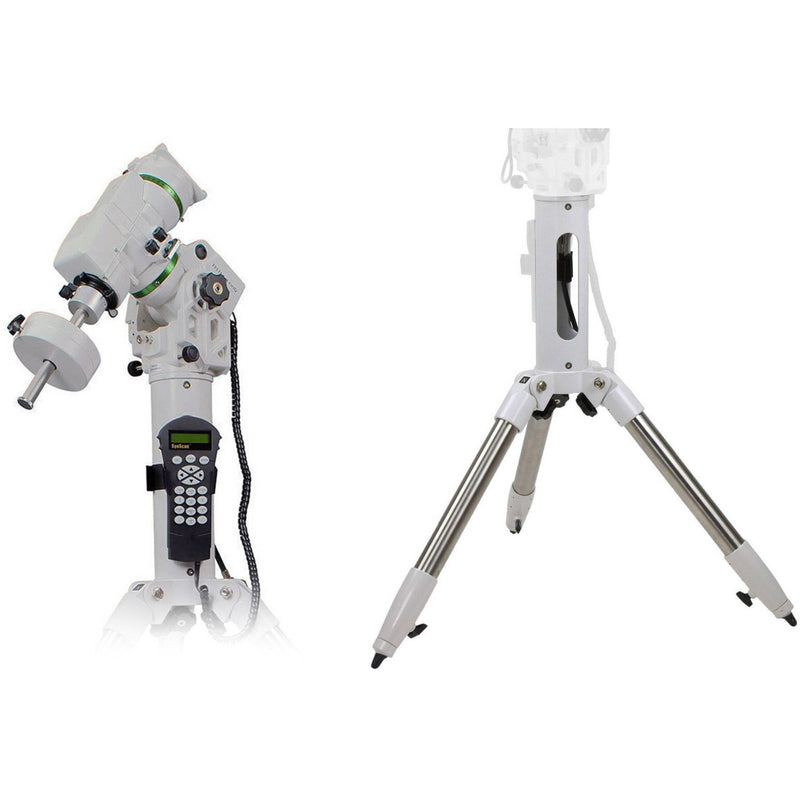

In the Box
- Sky-Watcher AZ-EQ5 Mount Head
- Sky-Watcher AZ-EQ5 Pier Tripod
Sky-Watcher AZ-EQ5 Mount Head Specs
Mount
| Mount Type |
Motorized; Alt-Azimuth/German Equatorial |
| GoTo Capability |
Yes |
| Payload Capacity |
30 lb / 13.6 kg |
| Motor |
Yes |
| Polar Axis Scope |
None |
Tripod
| Height Adjustment Range |
41 to 48.7" / 1 to 1.2 m |
| Leg Diameter |
1.75" / 4.45 cm |
General
| GPS |
No |
| Wi-Fi |
No (Not Included) |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
24.1 lb |
| Box Dimensions (LxWxH) |
22 x 17 x 12" |
Sky-Watcher AZ-EQ5 Pier Tripod Specs
| Leg Diameter |
1.75" / 4.4 cm |
| Weight |
Approx. 13.5 lb / 6 kg |
Packaging Info
| Package Weight |
36 lb |
| Box Dimensions (LxWxH) |
44 x 13 x 11" |
Sky-Watcher AZ-EQ5 Reviews
