Sky-Watcher S11540 Overview
- 1Description
- 2Optical Performance
- 3Mounting
- 4Included Accessories

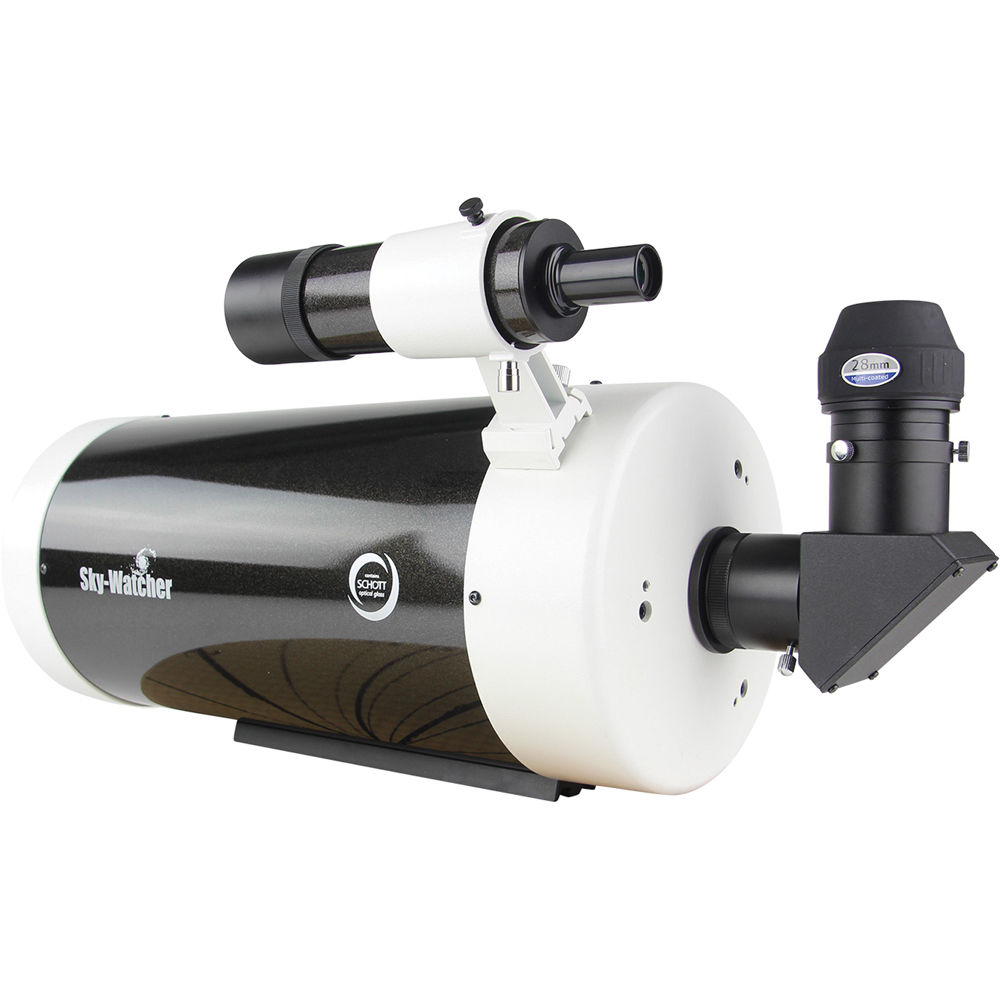

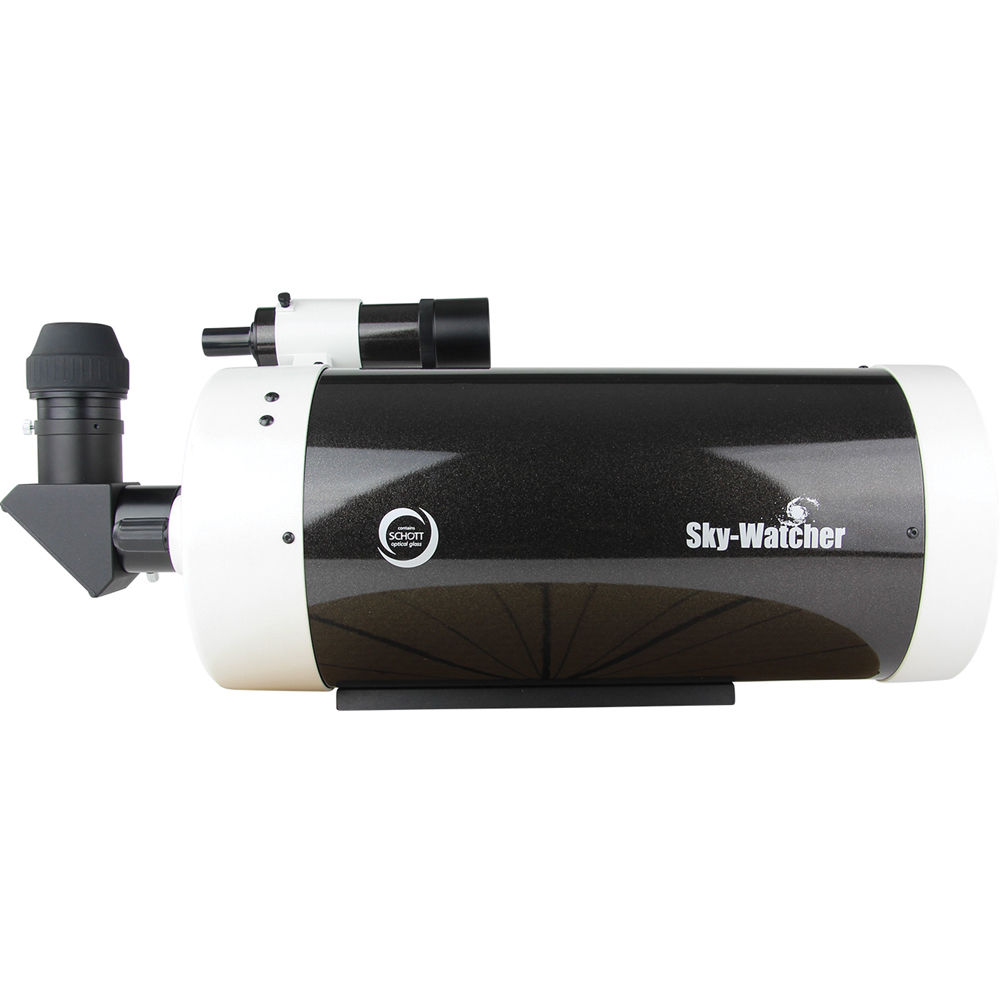

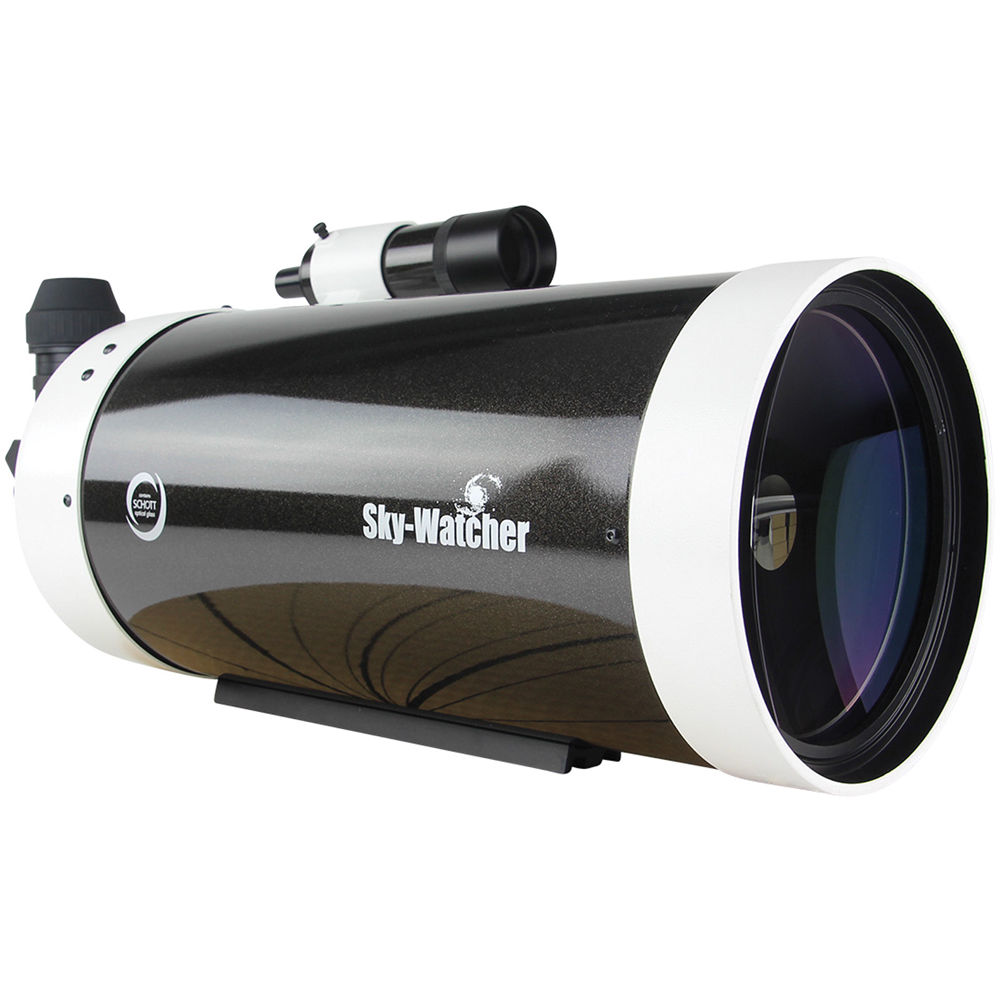

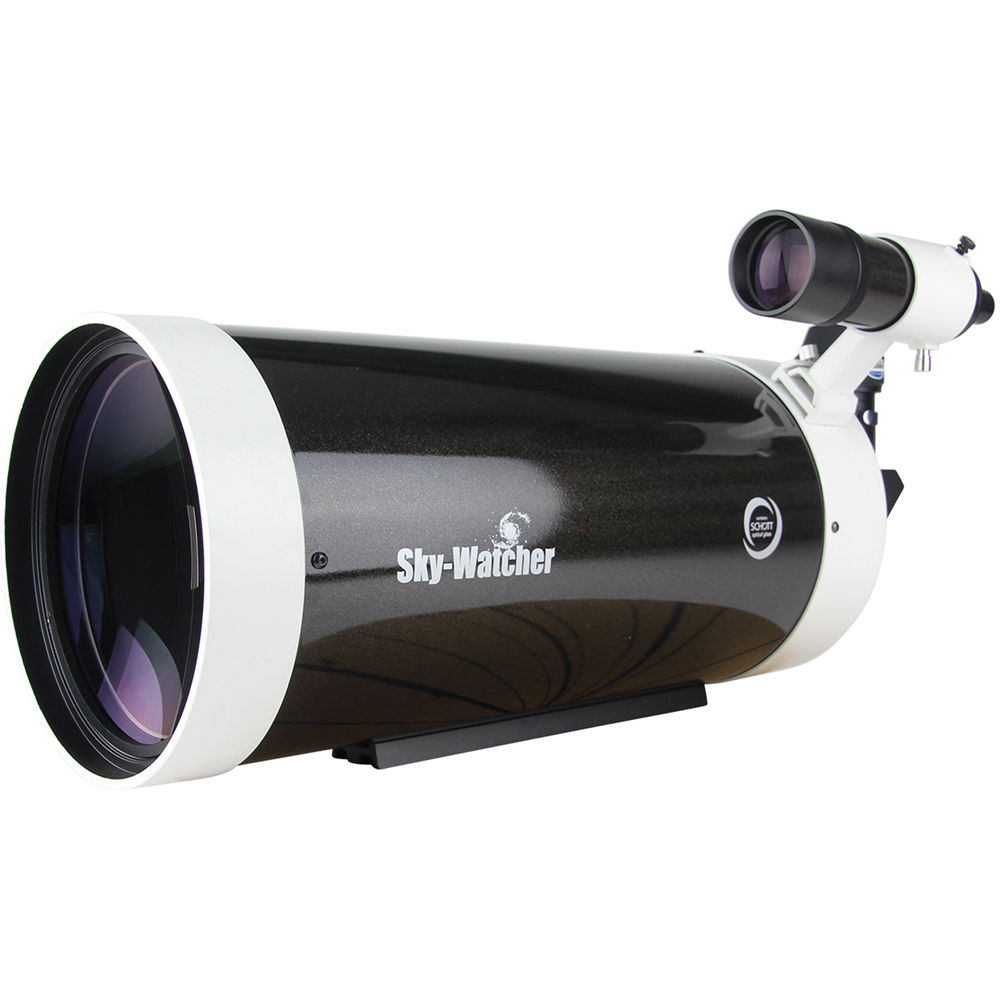

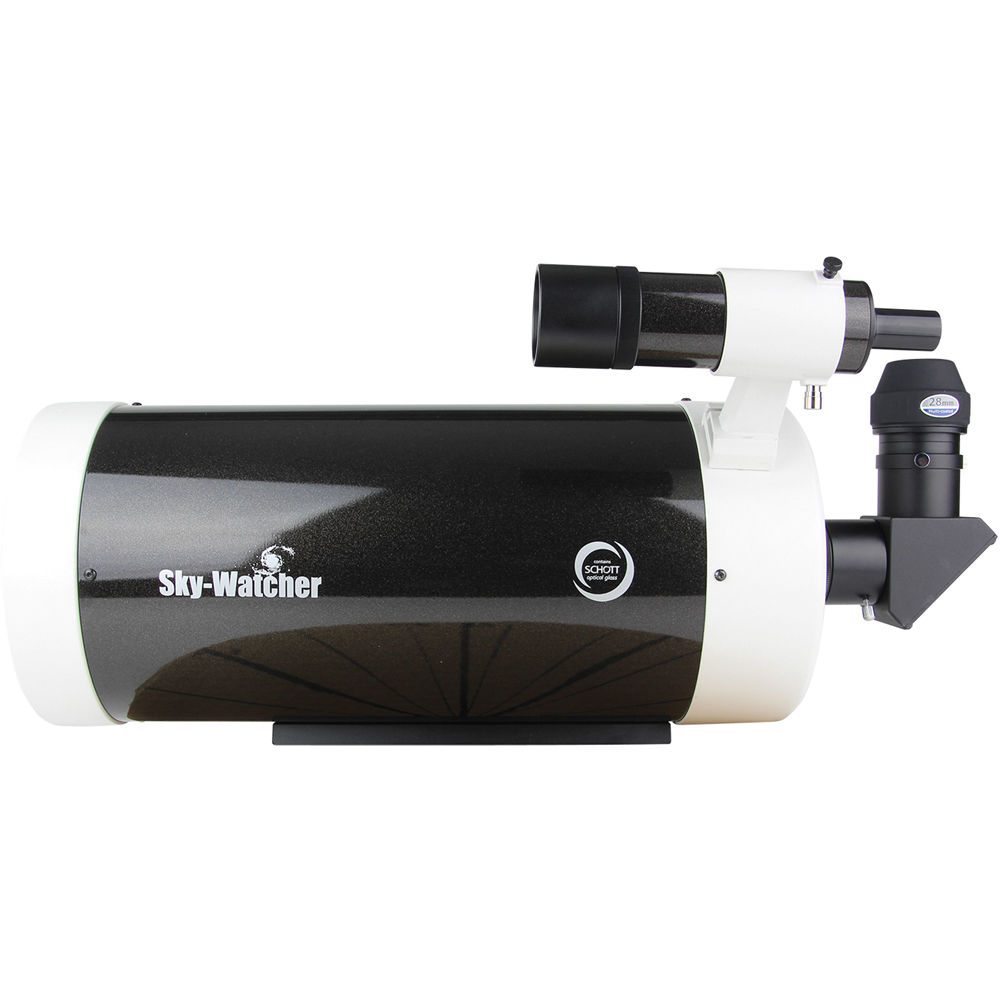

With the largest aperture in the series, the Sky-Watcher 180mm f/15 Maksutov-Cassegrain Telescope is a powerful astronomical tool that remains manageable and portable. The Maksutov design exchanges the conventional front corrector plate of a Schmidt with a convex meniscus lens, resulting in a smaller secondary mirror that limits obstruction and increases contrast, while eliminating the need for periodic collimation. This modified optical path results in a slower focal ratio and narrower field of view versus a similar Schmidt, but the optical benefits, when coupled with the larger aperture and fully multi-coated optics, make this an ideal scope for making detailed solar, lunar, and planetary observations, while being able to resolve deep-sky objects like stars, clusters, galaxies, and nebulae.
The scope is outfitted with a large 2" visual back. To get users started, Sky-Watcher includes a 28mm long eye relief eyepiece that produces 96x magnification and a 90° star diagonal for viewing with the optical tube assembly (OTA) pointed at or near the celestial zenith. The OTA is offered here without a mount or tripod for users who have a reliable support system or want to use it as part of a dual-OTA setup for star parties or observation/imaging rigs. It is outfitted with a Vixen-style dovetail plate for use with compatible mounts. This OTA's compact form factor belies its observation power and resolution and is ideally suited as a grab-and-go option for quick observation sessions or heading out to remote locations.
- 180mm aperture
- f/15 focal ratio
- 2700mm focal length

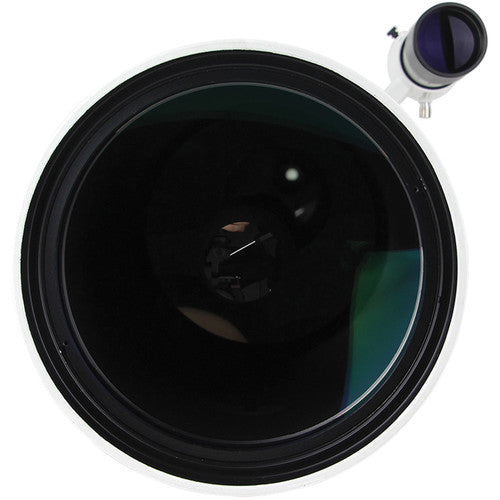

- Front convex meniscus lens corrects spherical and chromatic aberrations as well as comas (off-axis aberrations) across the entire field of view
- Smaller secondary mirror versus Schmidt-Cassegrains reduces obstructions and increases contrast
- Fully multi-coated optics maximize light transmission to improve brightness, color rendition, sharpness, and contrast
- Resolution: 0.64 arcsec
- Internal primary mirror focus
- 2"-diameter visual back accepts larger eyepieces and accessories
- Requires mount and tripod for proper use
- Vixen-style dovetail plate
- Weight: 19 pounds including OTA, dovetail plate, finder, diagonal, and eyepiece
- 2" barrel diameter
- Accepts most 2" astronomical filters
- 28mm eyepiece yields 96x power
- Comfortable long eye relief

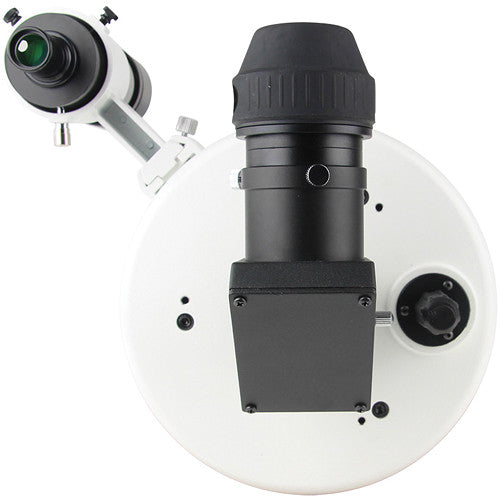

Diagonal:
- 2" snout and eyepiece holder
- 90° angle places head in a comfortable viewing position
- Star configuration corrects image horizontally for terrestrial use
Finderscope:
- Relatively low 8x magnification provides a wide field of view for easier alignment and faster star-hopping navigation
- 50mm aperture helps resolve dimmer objects that dot finders cannot
In the Box
- Sky-Watcher 180mm f/15 Maksutov-Cassegrain Telescope (OTA Only)
- 90° Star Diagonal
- 28mm Eyepiece
- 8x50 Straight View Finderscope
- Limited 2-Year Manufacturer Warranty
- Description
- Optical Performance
- Mounting
- Included Accessories
Sky-Watcher S11540 Specs
Optical Design | Maksutov-Cassegrain |
Aperture | 180mm |
Focal Length | 2700mm |
Focal Ratio | f/15 |
Eyepiece Barrel Diameter | 2" |
Diagonal | 90° star 2" snout and eyepiece holder |
Finderscope | 8 x 50 straight view |
Tripod | None |
Mount Type | Vixen-style dovetail plate |
Power Source | N/A |
Optical Tube Dimensions | Not specified by manufacturer |
Weight | 19.0 lb / 8.6 kg |
Package Weight | 22.8 lb |
Box Dimensions (LxWxH) | 30 x 13 x 11" |
