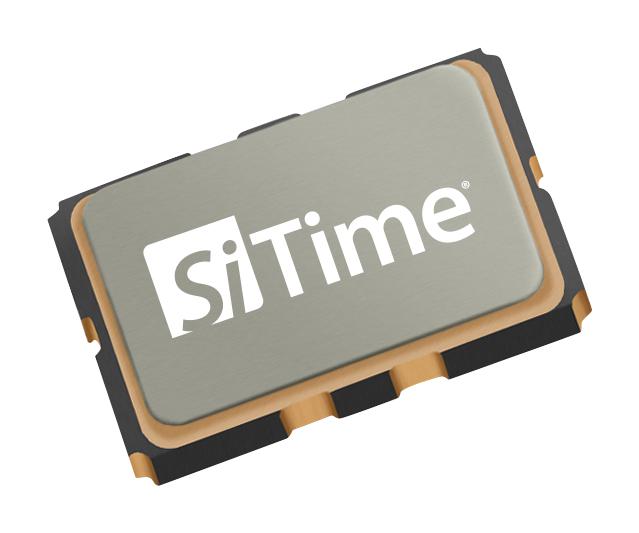

The SiT5356 Series of Super-TCXO's from SiTime are engineered for tight-stability, high-reliability while being highly flexible. Based on SiTime's unique DualMEMS� temperature sensing and TurboCompensation� technology, this device delivers excellent dynamic performance in the presence of common environmental hazards, such as airflow, temperature perturbation, vibration, shock, power supply noise and electromagnetic interference (EMI).
- Exceptional dynamic stability under airflow and fast tempature ramp
- Enables fastest satellite lock and minimizes loss of satellite lock in high-vibration environments
- 20x better phase noise under vibration
- No activity dips or microjumps
- Eliminates the need for costly screening or burn-in test
- Reduces BOM by eliminating a dedicated LDO for the TCXO
- LVCMOS or Clipped sinewave output
- Optimize for best balance between EMI and jitter
- Eliminate frequency shift caused by board noise
- Superior reliability
Product details
| Frequency Nom |
20MHz |
| Frequency Stability + / - |
0.1ppm |
| Oscillator Output Compatibility |
LVCMOS |
| Supply Voltage Nom |
3.3V |
| Oscillator Case |
SMD, 5mm x 3.2mm |
| Product Range |
SiT5356 Series |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
SITIME |
| Part Number |
SIT5356AI-FQ-33VT-20.000000X |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
