Sirui P-424FS with Fluid Head Overview
-
1Description
-
2VH-10 Video Head with QR Plate
-
3Modular Quick Release Head Mount Plate
-
4Tilting, Folding Tripod Foot Base

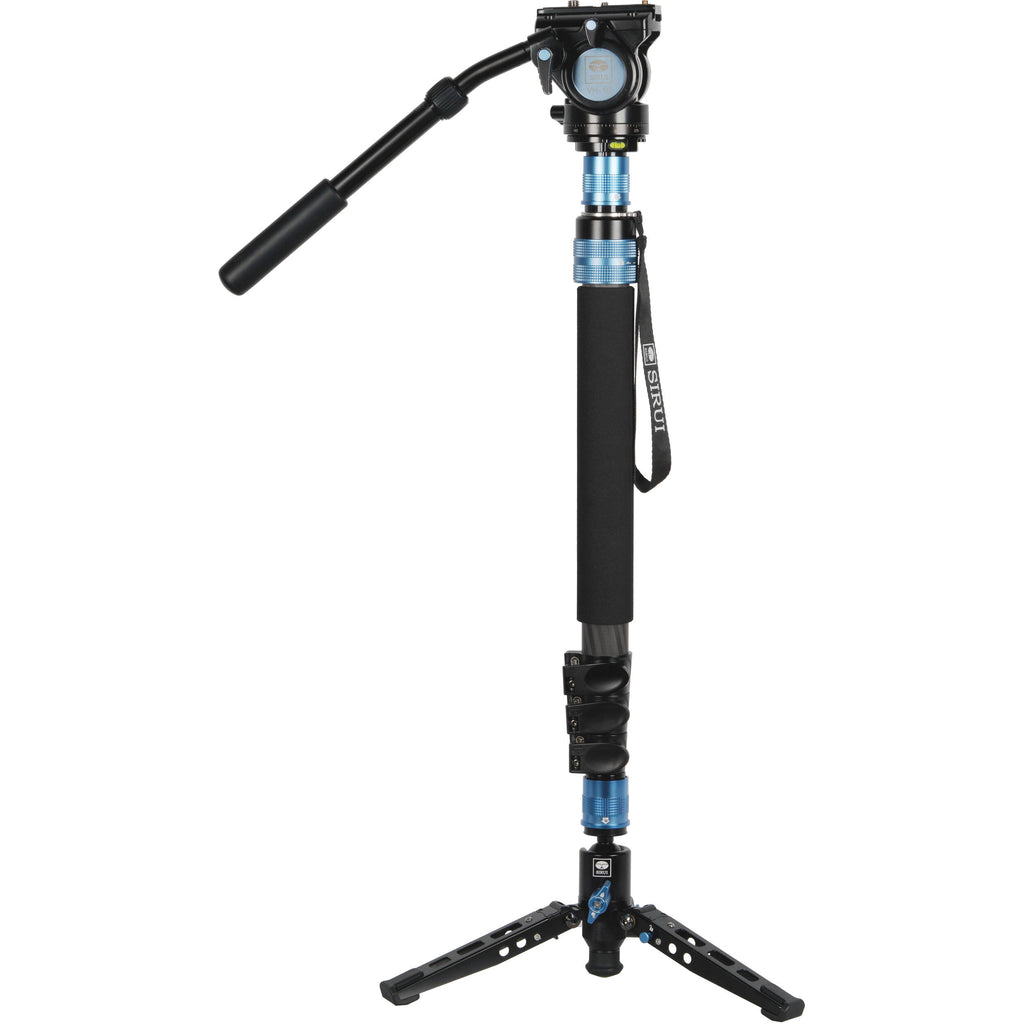

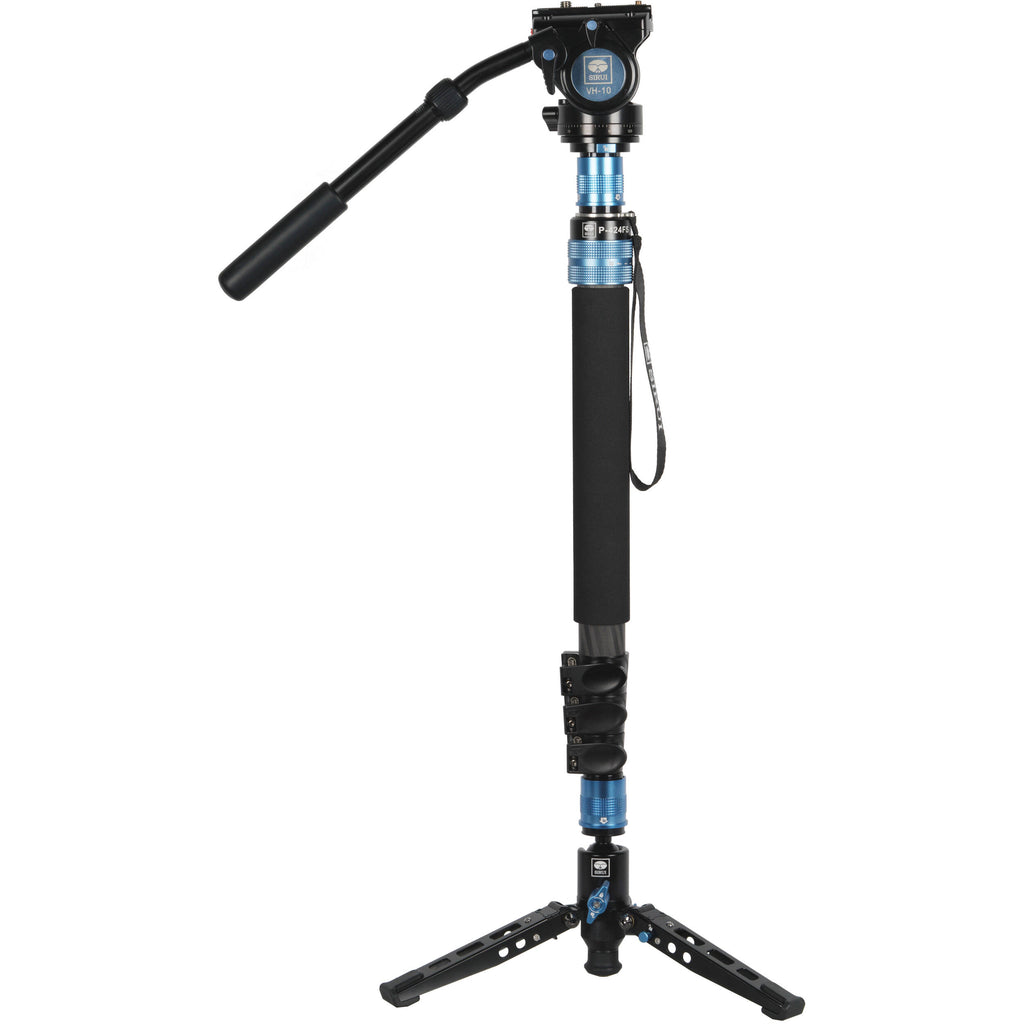

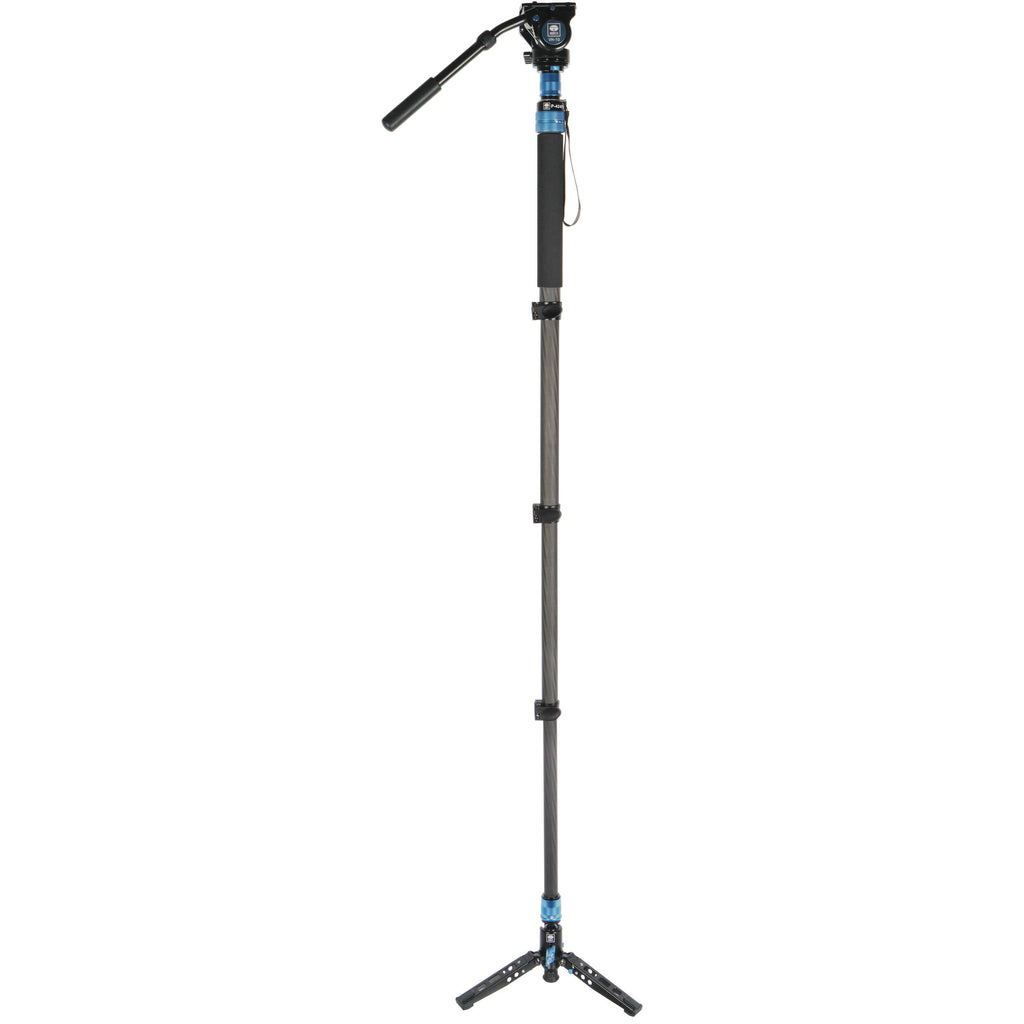

The P-424FS 5-Section Carbon Fiber Monopod with VH-10 Video Head from Sirui is a versatile, feature-laden carbon fiber monopod with a load capacity of 13.2 pounds and a maximum height of 66.8 inches. The monopod extends and folds quickly thanks to the ergonomic flip-lock joints. The head plate incorporates a quick release collar to easily remove and store a mounted camera or tripod head, and it features a reversible 1/4"-20 to 3/8"-16 mounting stud.
The base of the monopod incorporates a tripod foot base for added stability, which features a locking ball joint with a tilt range of up to 36° and rubber-tipped feet for added traction. The quick release mounting plate can be attached directly to the tripod foot base to form a mini tripod for macro photography or tabletop use.
The included VH-10X fluid video head uses a fluid system to produce smooth pans and tilt movements for DSLRs and compact video cameras weighing up to 8.8 lb. It features an independent pan locking knob and uses an internal spring-assisted counterbalance mechanism for smoother tilt movements with heavier cameras. It includes an Arca-type quick release plate.

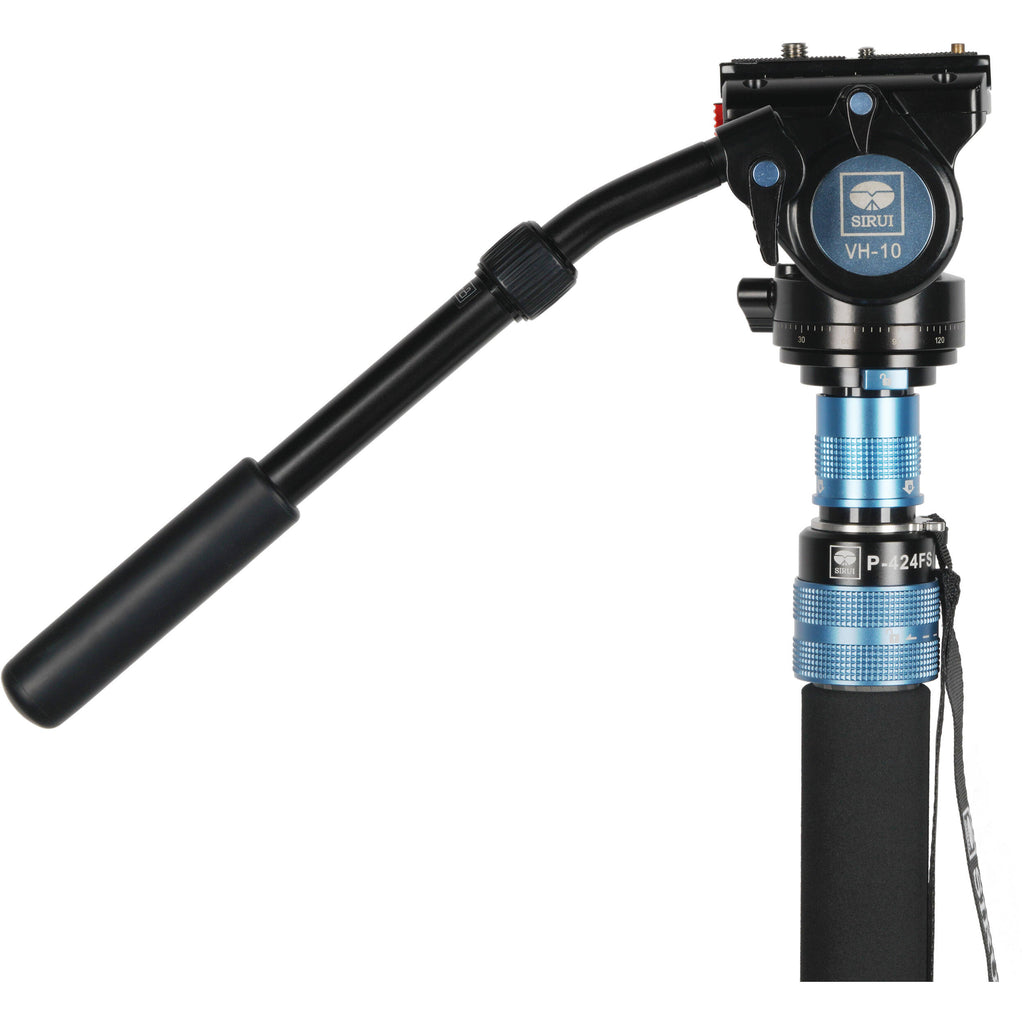

VH-10 Video Head with QR Plate
- 13.2 lb load capacity
- Fluid system for smooth pans and tilts
- Spring-assisted counterbalance
- Includes Arca-type quick release plate
- Independent pan lock lever
- Dual bubble levels
- Adjustable boom arm with padded handle
Modular Quick Release Head Mount Plate
- Locking quick-release collar
- Reversible 1/4"-20 to 3/8"-16 head mounting stud
- 2 x bubble levels

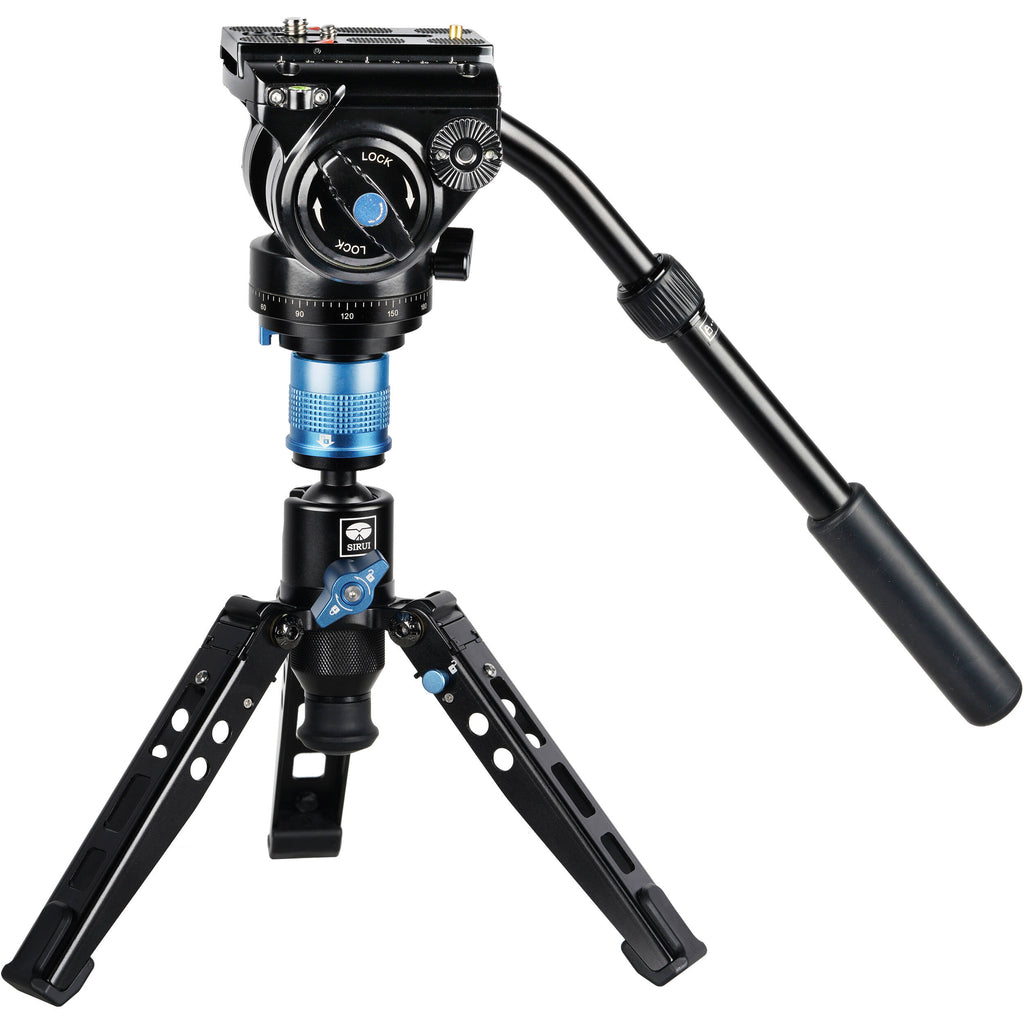

- Mounts on tripod foot base to form tabletop tripod

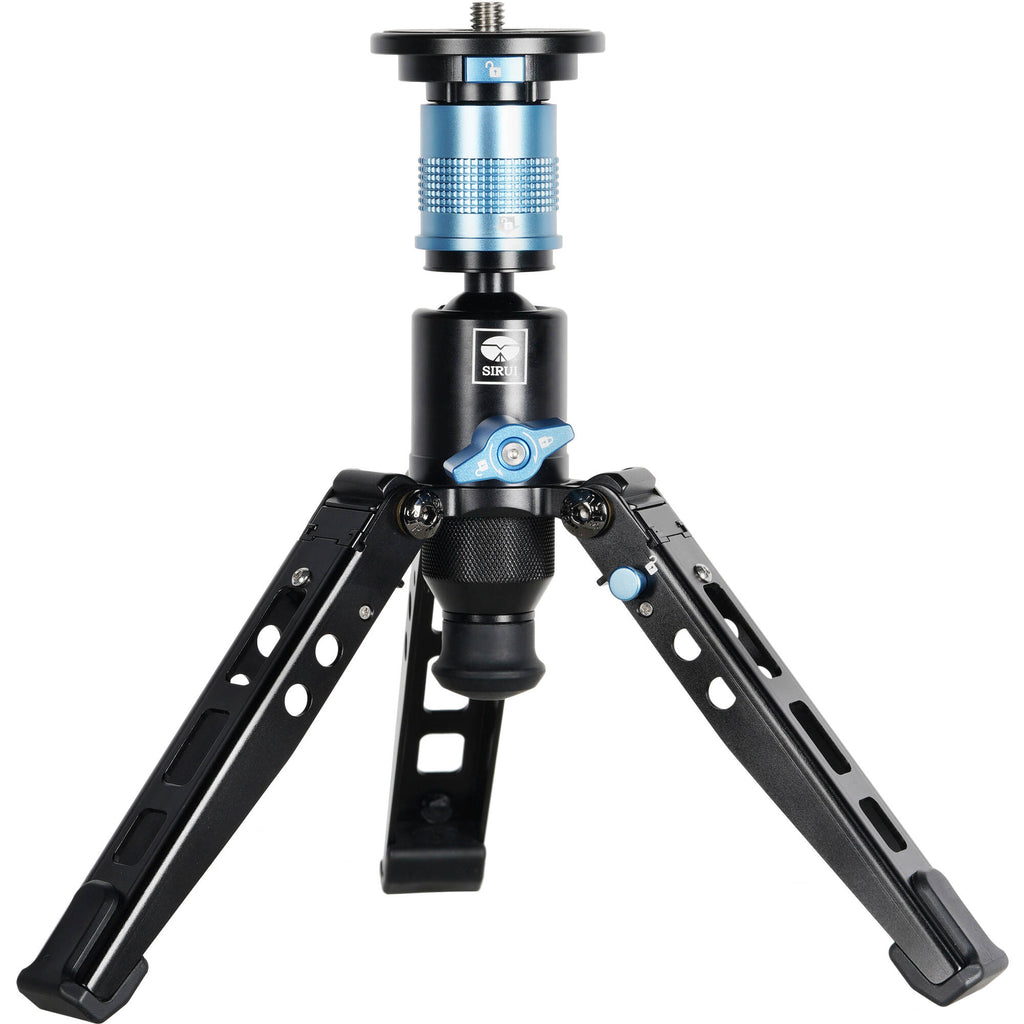

Tilting, Folding Tripod Foot Base
- Folding tripod foot base for added stability
- Locking quick-release collar
- Locking ball head receiver with 36° tilt
- 3 x rubber feet
- 1 x removable rubber monopod foot with retractable spike
In the Box
- Sirui P-424FS 4-Section Carbon Fiber Monopod with VH-10 Video Head
- VH-10 Video Head with QR Plate
- Limited 6-Year Manufacturer Warranty
Table of Contents
- Description
- VH-10 Video Head with QR Plate
- Modular Quick Release Head Mount Plate
- Tilting, Folding Tripod Foot Base
Sirui P-424FS with Fluid Head Specs
Head
| Head Type |
Fluid Head |
| Base Mount |
3/8"-16 Female |
| Camera Mounting Screw |
1/4"-20 Male, 3/8"-16 Male |
| Quick Release Plate Type |
Arca-Type |
| Number of Bubble Levels |
2 |
| Friction Control |
Yes |
| Independent Pan Lock |
Yes |
Pan & Tilt Range
| Vertical Tilt |
+90° to -70° |
| Panning Range |
360° |
General
| Load Capacity |
13.2 lb / 6 kg |
| Maximum Working Height |
66.8" / 169.7 cm |
| Minimum Working Height |
29.3" / 74.5 cm |
| Closed Length |
Not Specified by Manufacturer |
| Materials |
Aluminum Alloy, Carbon Fiber |
| Weight |
4.6 lb / 2.1 kg |
Leg
| Leg Lock Type |
Flip Lock |
| Leg Sections |
4 |
| Leg Diameter |
1.4" / 36 mm (Maximum)
1" / 25 mm (Minimum) |
| Bubble Level |
Yes |
| Monopod Foot Features |
Fold Out Base, Removable, Retractable, Rubber, Spiked |
Packaging Info
| Package Weight |
7.04 lb |
| Box Dimensions (LxWxH) |
30 x 7.4 x 6.2" |
