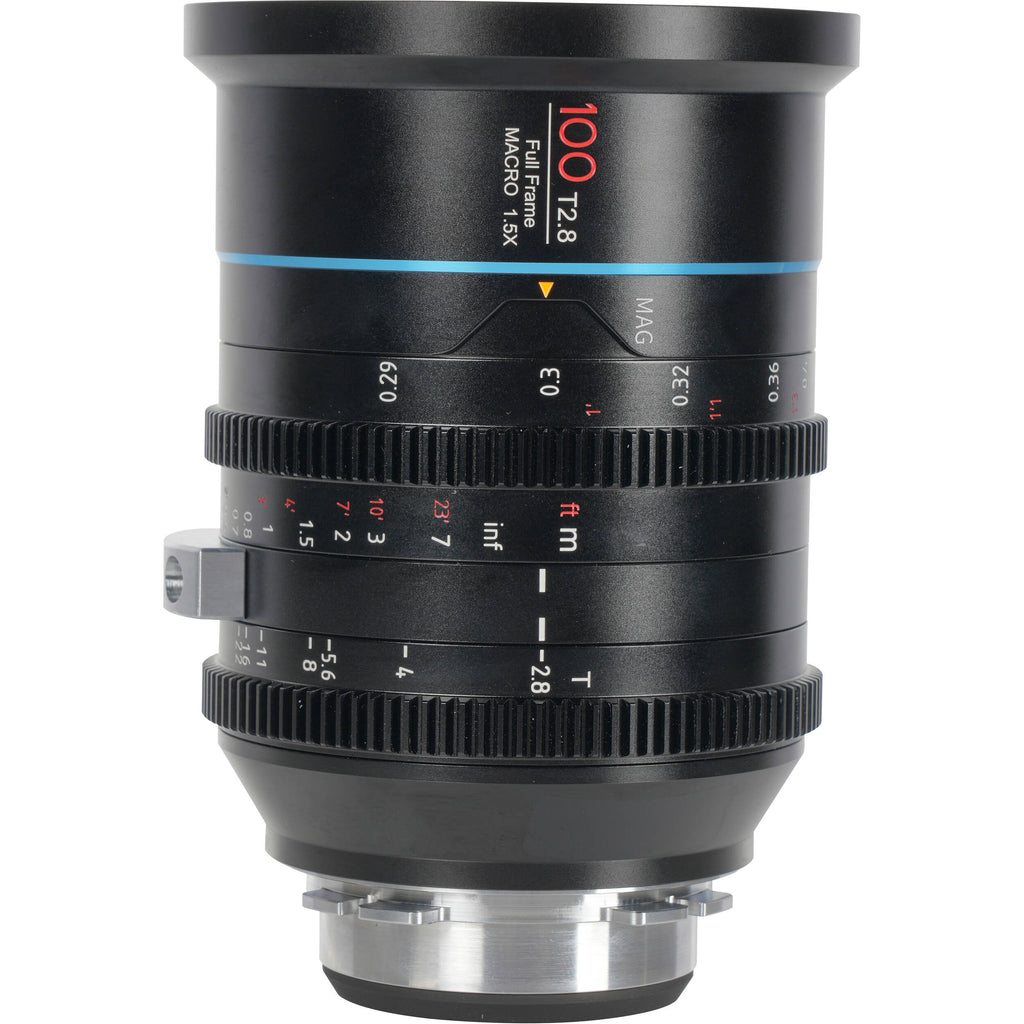

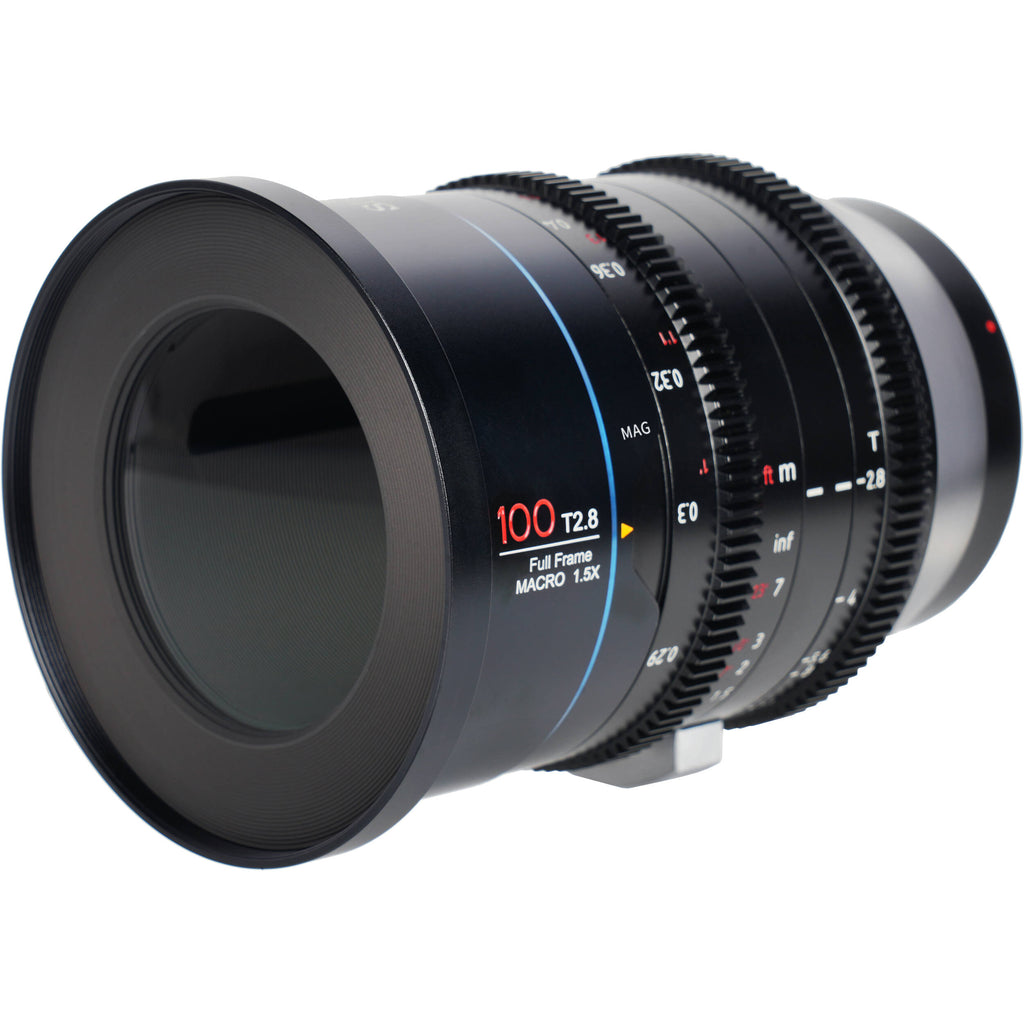

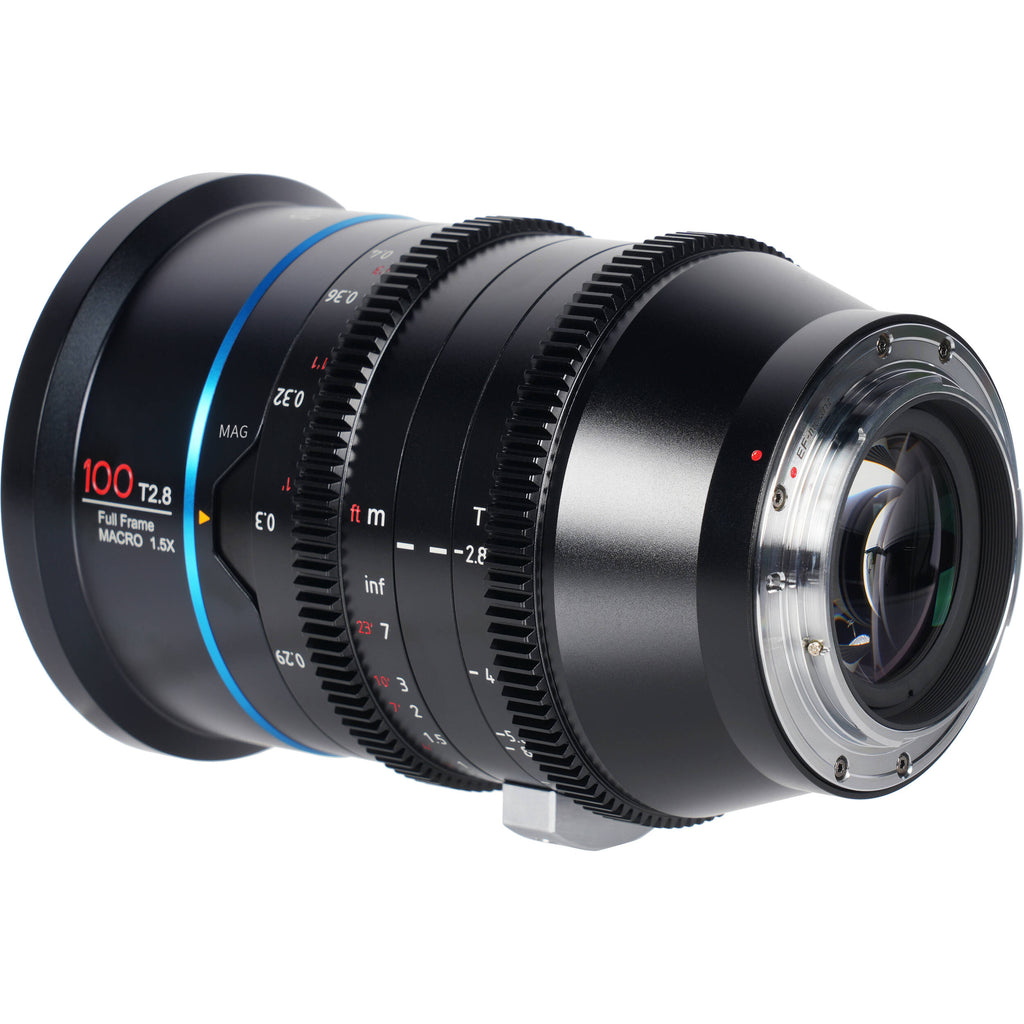

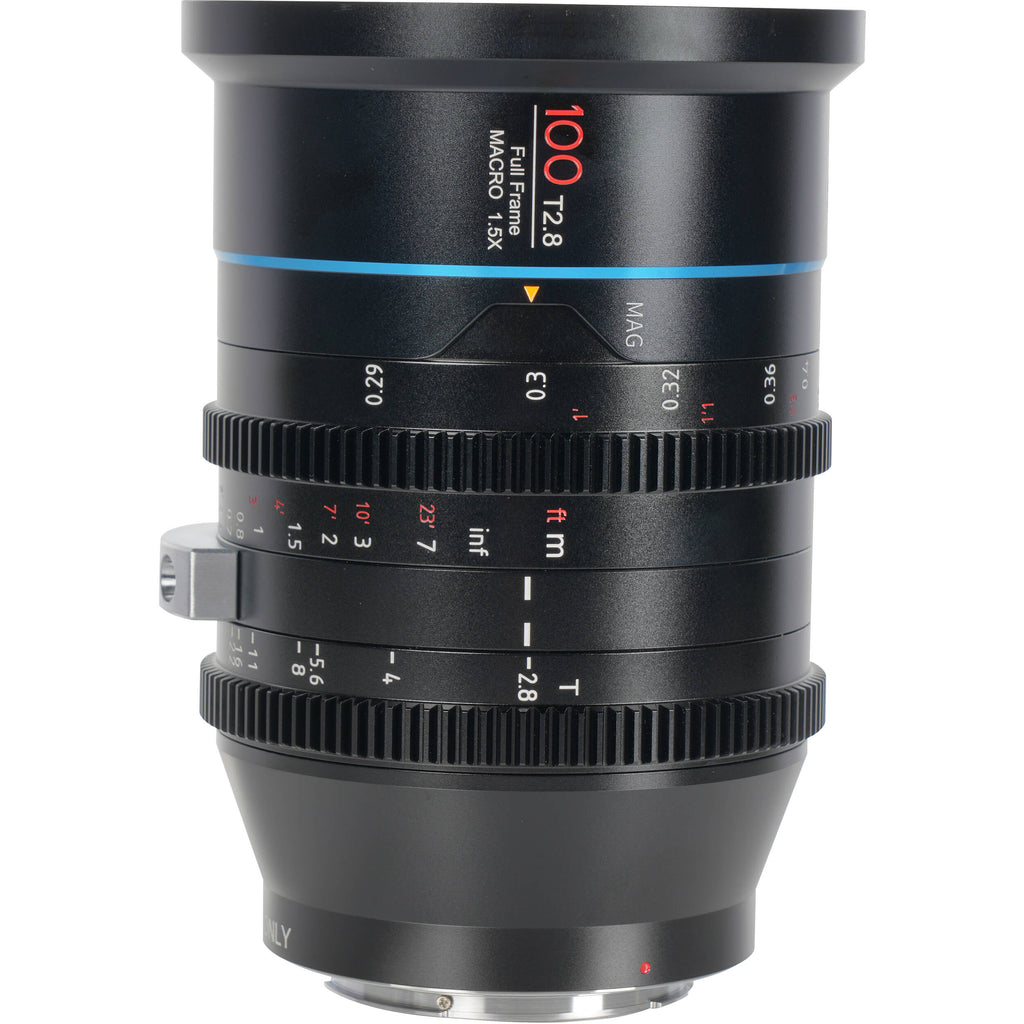

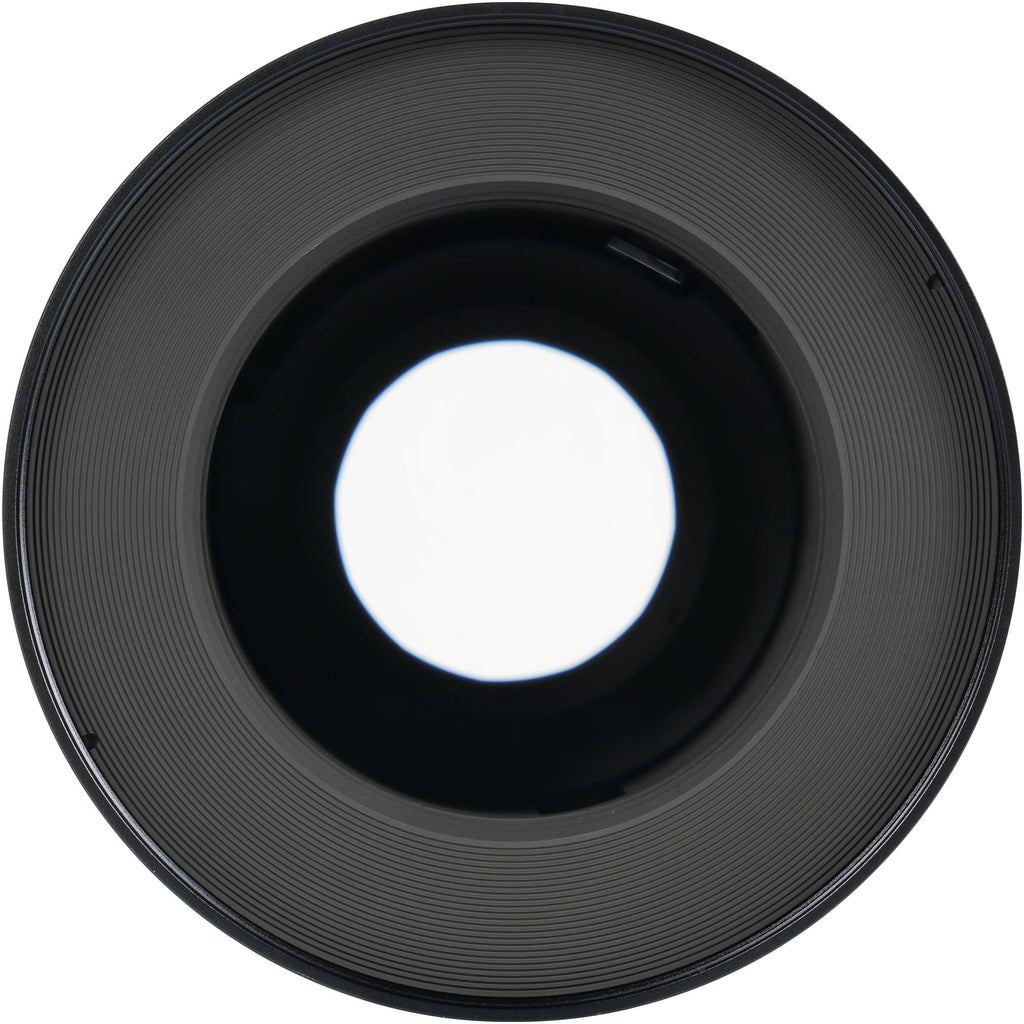

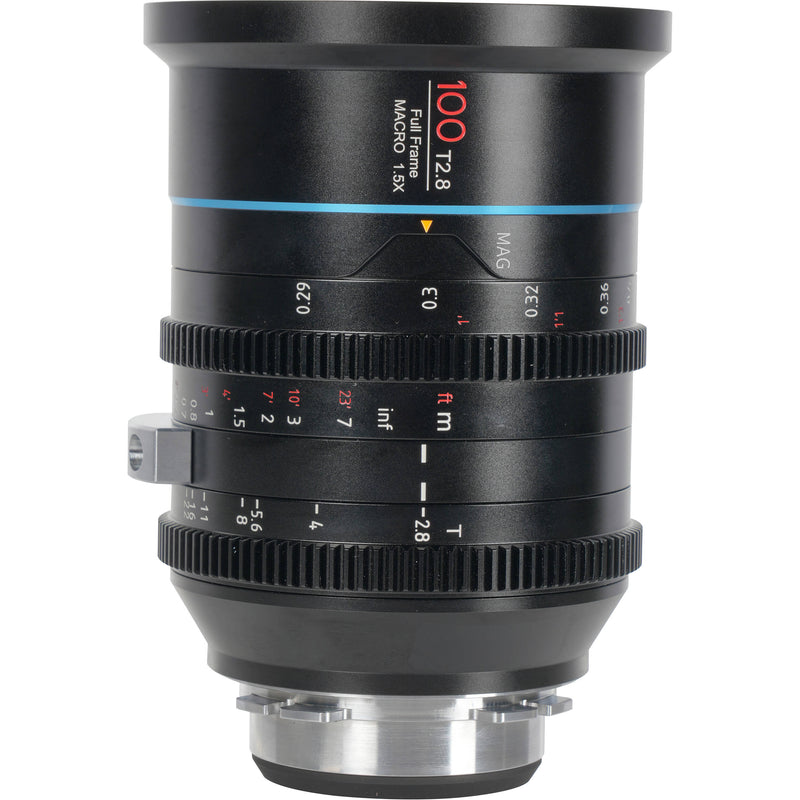

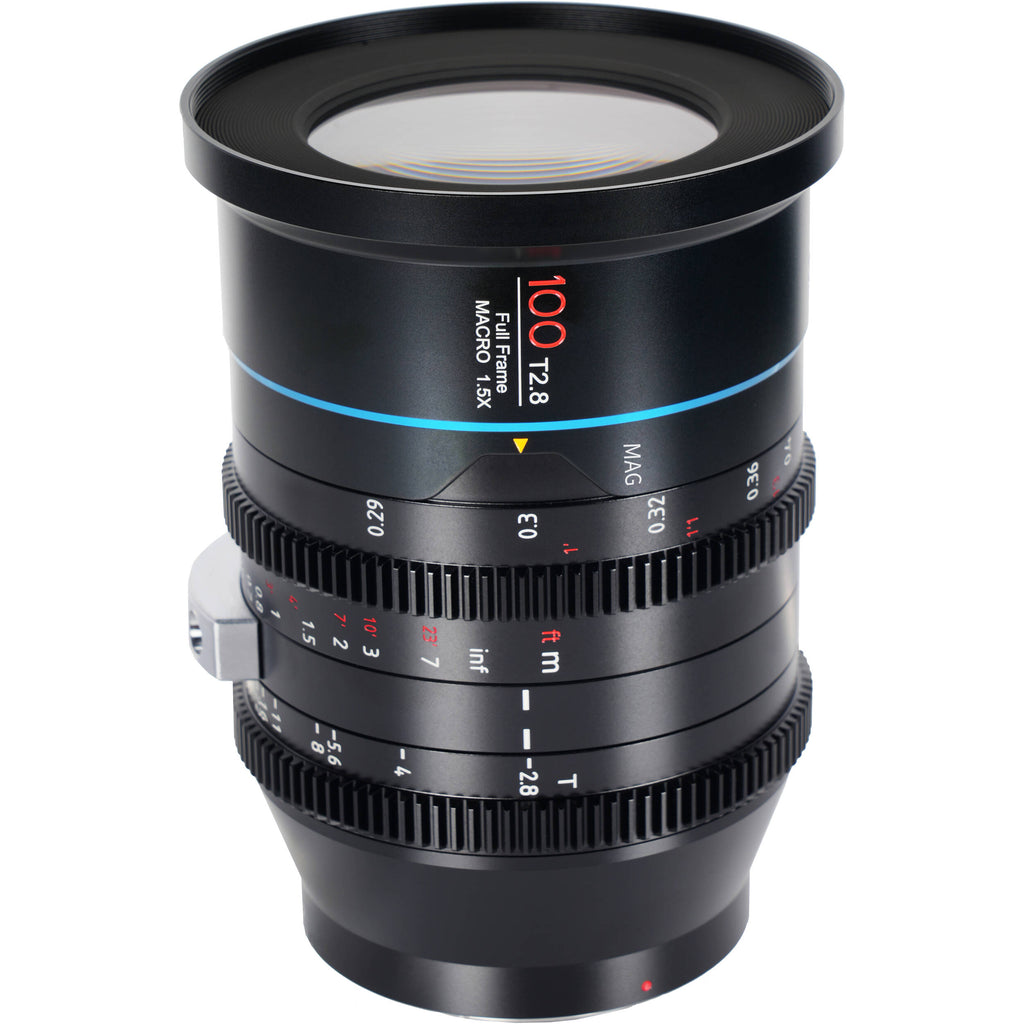

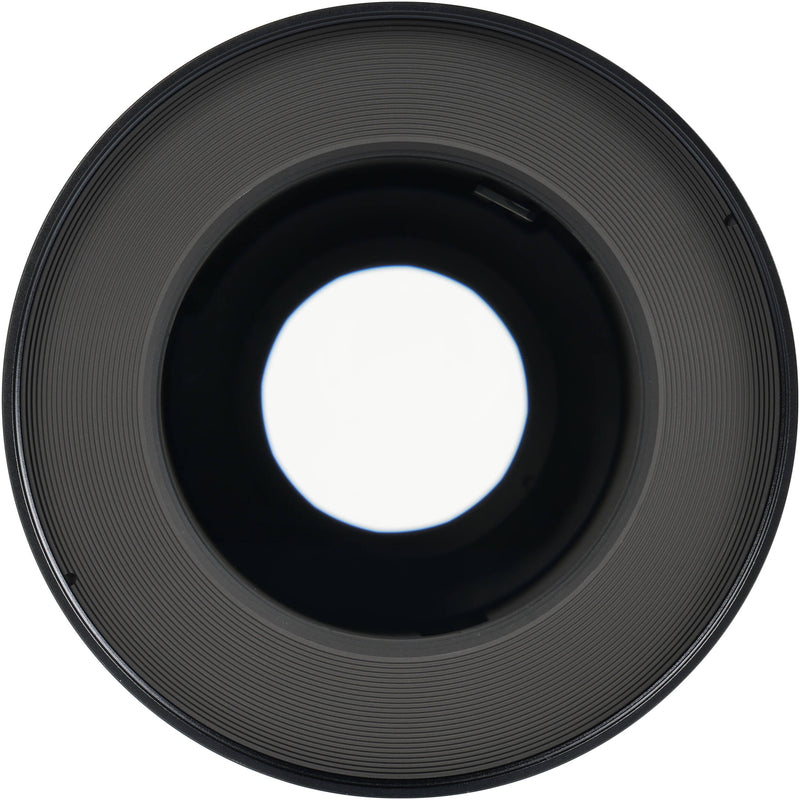

Sirui Jupiter 100mm T2.8 Full-Frame Macro 1.5:1 Cine Lens (ARRI PL)

The Jupiter 100mm T2.8 Full-Frame Macro 1.5:1 Cine Lens from Sirui captures sharp macro shots with full-frame ARRI PL mount cameras. It features an aperture range of T2.8 to T22 for a deep or shallow depth of field, depending on your cinematic vision. A lens construction of 13 elements in 9 groups with 12 aperture blades creates a smooth, circular bokeh with minimal focus breathing. The focus ring can rotate up to 200°, and both focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls.

Focus distance and iris marks are displayed in both meters and feet. The lens has a minimum focus distance of 11.4", and the 95mm front diameter is compatible with many matte boxes and adapters. A 92mm filter thread with a filter pitch of 0.75 allows you to attach filters of your choosing to further customize the light quality and effects of the lens.

• Provides up to 1.5x macro coverage for full-frame sensor cameras at an 11.4" minimum working distance.

• This longer focal length compresses the image, creating a sharp foreground and blurred background.
• Ideal for capturing close-ups of nature, products, and emotional scenes.

• Lenses in the Jupiter macro series share a common 95mm front diameter and focus and iris gear ring positions.
• Enables quick lens changes by reducing the need for follow focus units or iris motors to be repositioned.

• The high-quality coating minimizes flares.
• Sharp imaging with excellent color accuracy.
• Aberration and distortion are strictly controlled.

• Focus markings and measurements are provided in both feet and meters.

Sirui Jupiter 100mm T2.8 Full Frame CineSpecs

Focal Length	100mm
Maximum Aperture	T2.8
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	92 mm
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T2.8
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	No
Lens Format Coverage	Full Frame
Image Circle	Not Specified by Manufacturer
Angle of View	Full Frame Horizontal: 20.65° Vertical: 13.75°
Focus Scales	Metric, Imperial
Optical Design	13 Elements in 9 Groups
Filter Thread	92 mm
Minimum Focus Distance	From Camera Sensor: 11.42" / 0.29 m
Maximum Magnification Ratio	1.5:1
Diaphragm Blades	12
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus: 200°
Electronic Communication	No
Environmental Resistance	No
Diameter	Maximum: 3.7" / 95 mm Focus Ring: 3.5" / 88 mm
Length	5" / 128.1 mm
Weight	1.9 lb / 870 g

Package Weight	3.325 lb
Box Dimensions (LxWxH)	9.3 x 7 x 6"
