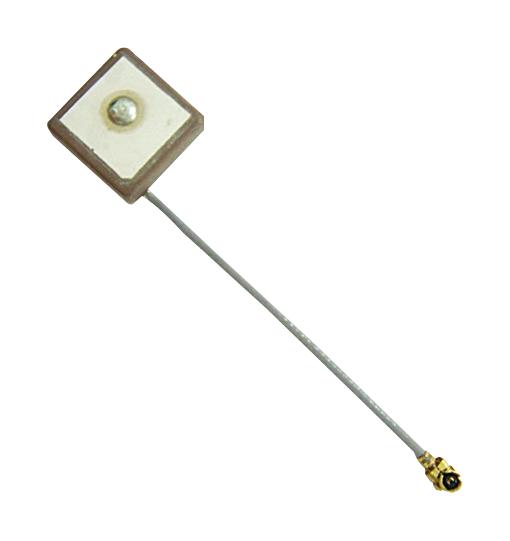

The ECHO27/0.1M/IPEX/S/S/15 from Sirreta is a 27dBi GPS active antenna. Combine excellent performance characteristics at a low operating voltage in a small sized format making it an ideal antenna where power consumption and board space is a key factor. A built in LNA giving 27dB gain from just 6.6mA current consumption it operates between 2.3 - 5.5V DC. Combined with a small size of just 15mm x 15mm it is ideally suited to low power, small sized applications.
- Built in LNA (Low Noise Amplifier) that produces high gain potential
- Ceramic filter to reduce noise
- Small footprint allows integration into tight spaces
- 1.13mm cable type
- Dimensions: 15x15x7.45mm
Other details
Brand |
SIRETTA |
Part Number |
ECHO27/0.1M/IPEX/S/S/15 |
Quantity |
Each |
Technical Data Sheet EN |
|
