Description

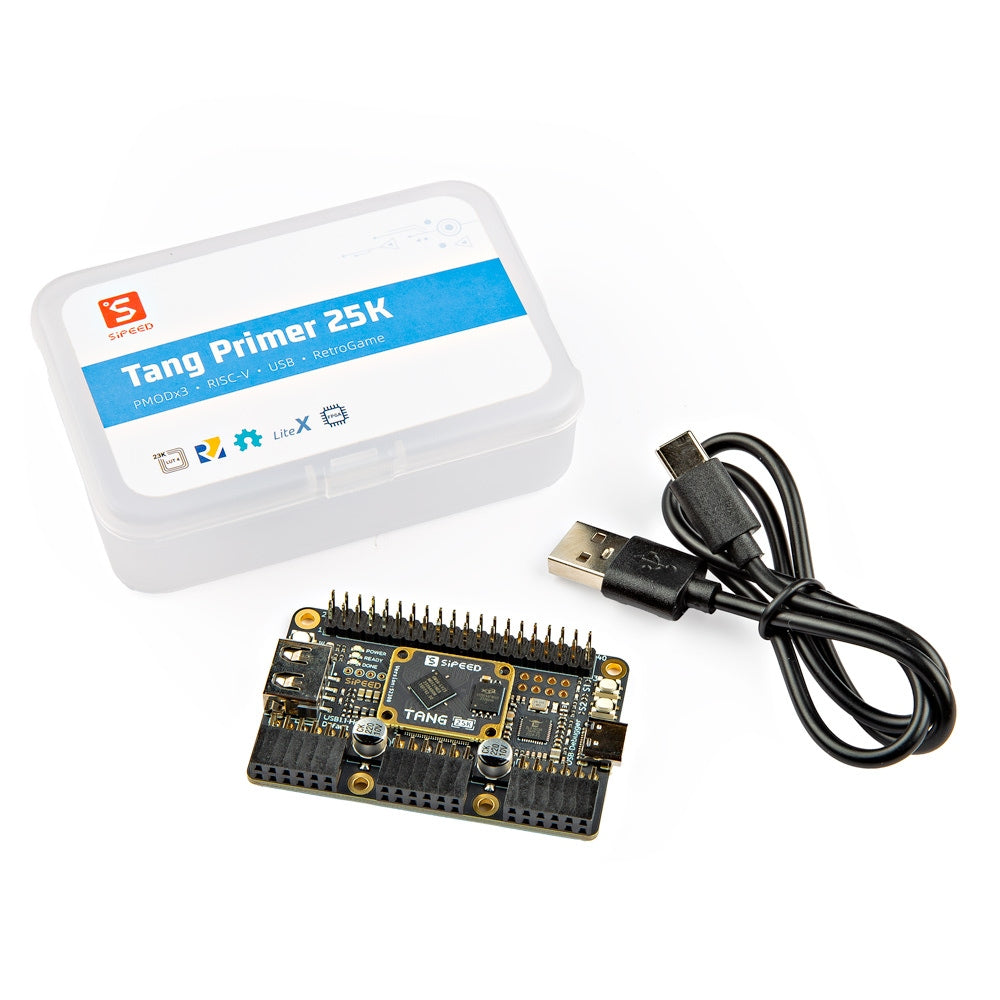

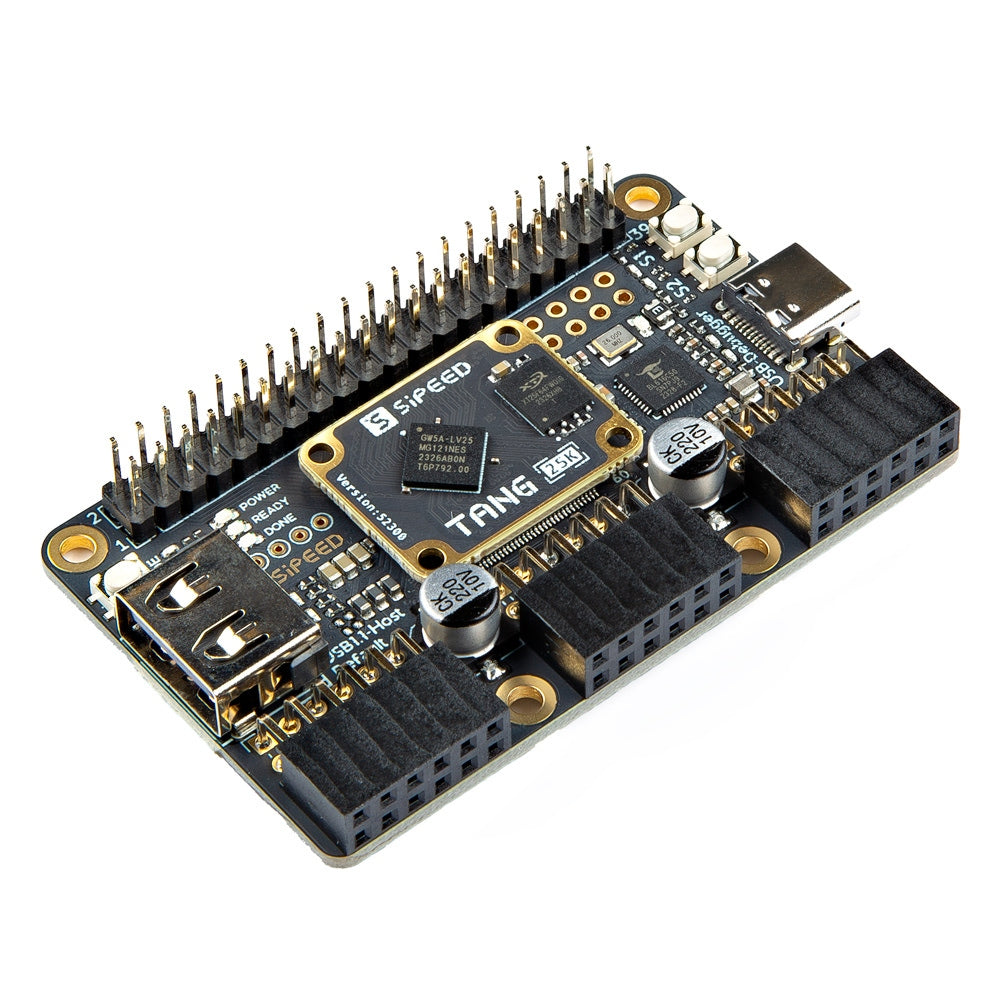

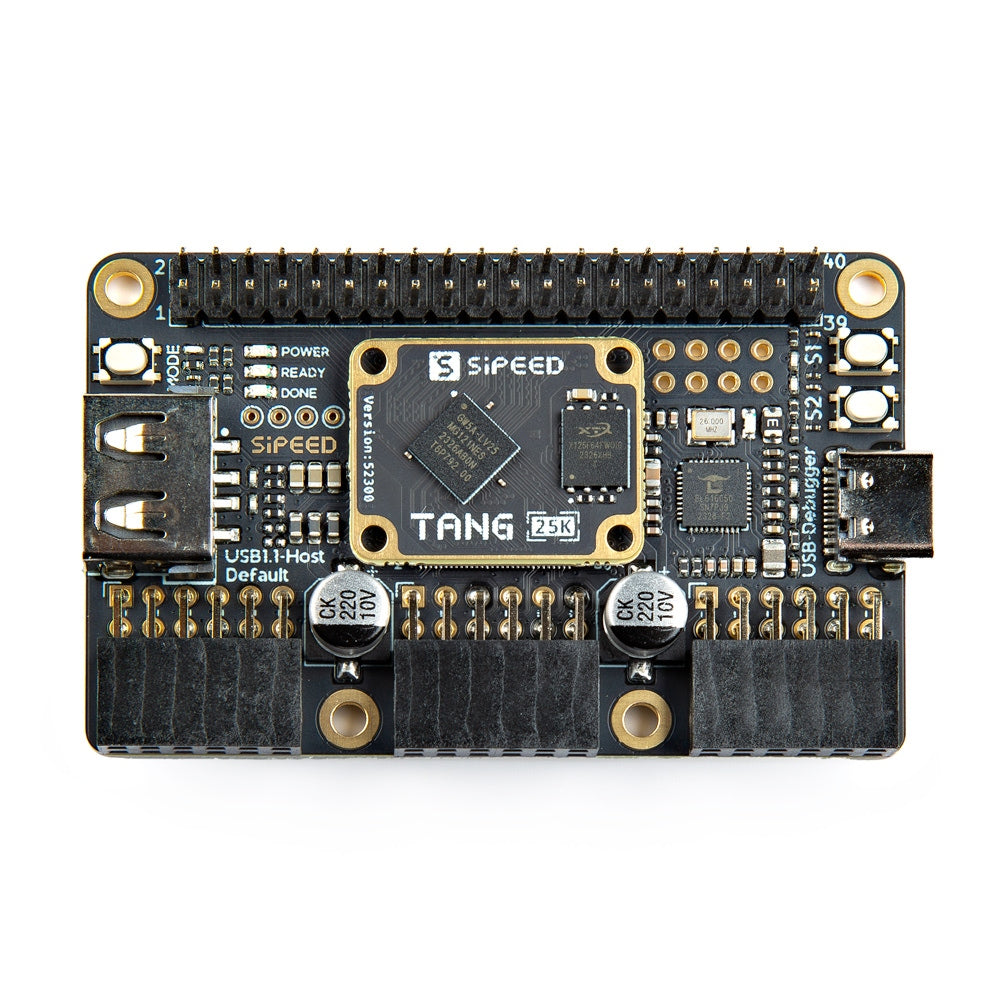

Small and cost effective FPGA board from Sipeed.
Features & Specs
- FPGA: GW5A-LV25MG121
- Logic Unit (LUT4) - 23040
- Register (FF) - 23040
- Distributed Static Random Access Memory S-SRAM (bits) - 180K
- Block Static Random Access Memory B-SRAM (bits) - 1008K
- Number of Block Static Random Access Memory B-SRAM - 56
- Multiplier (18x18 Multiplier) - 28
- Phase-Locked Loop (PLLs) - 6
- Total I/O Bank - 8
- Flash: 64Mbits NOR Flash
- Overall Packaging: 2x60P BTB Core Board
- General I/O - 75
- MIPI I/O - 4 Lane Data
Board Specs:

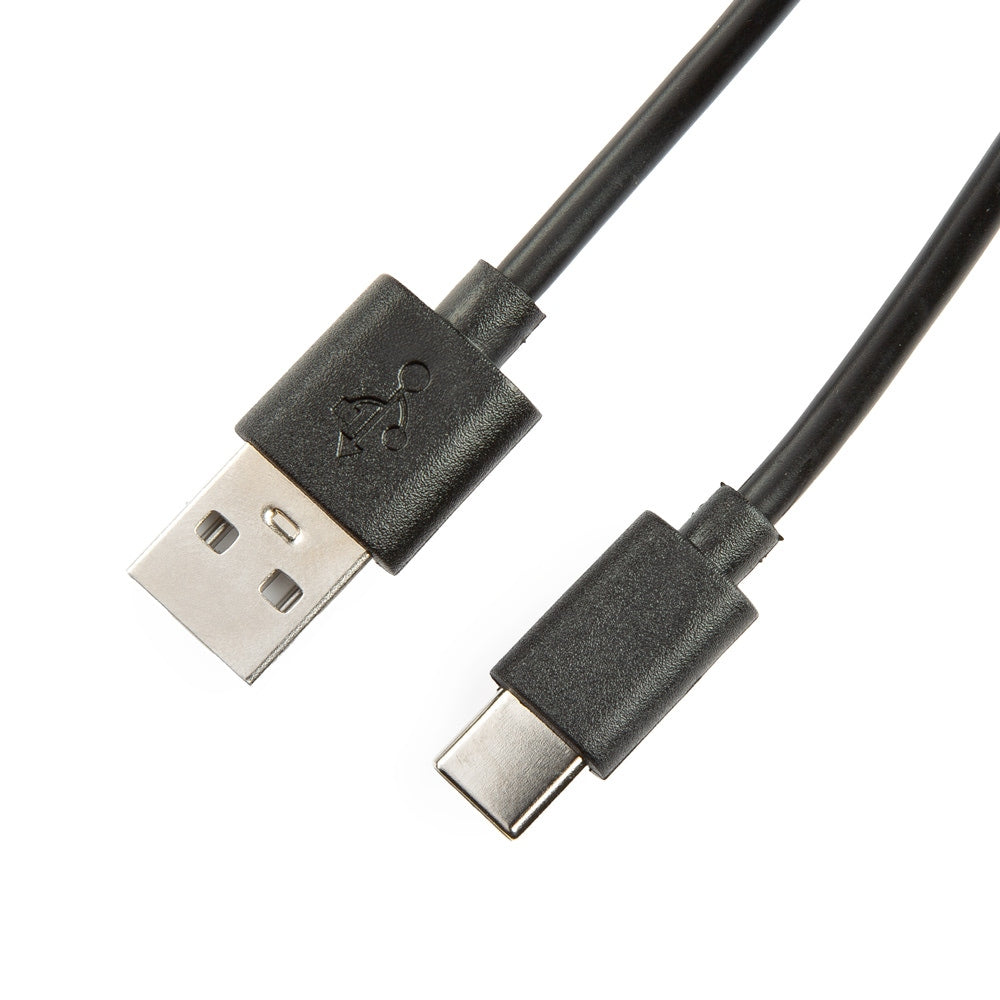

- Debugger: Onboard high-speed debugger, supports JTAG+UART, uses USB-C port for programming
- USB-A Port: One, can be used as a USB1.1 Host to connect game controllers and other HID devices

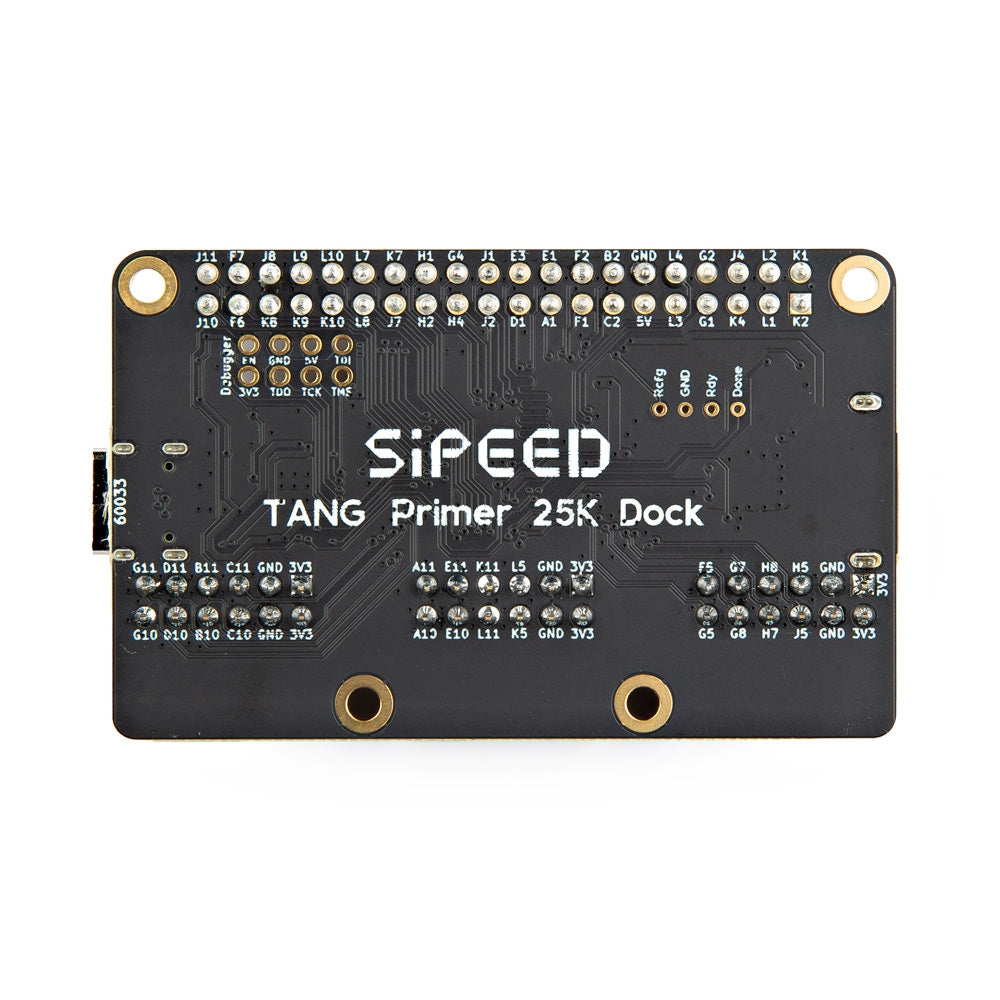

- I/O Pins: One 2x20Pin 2.54 pin, Can support SDRAM module
- PMOD Ports: 3
- Buttons: 2

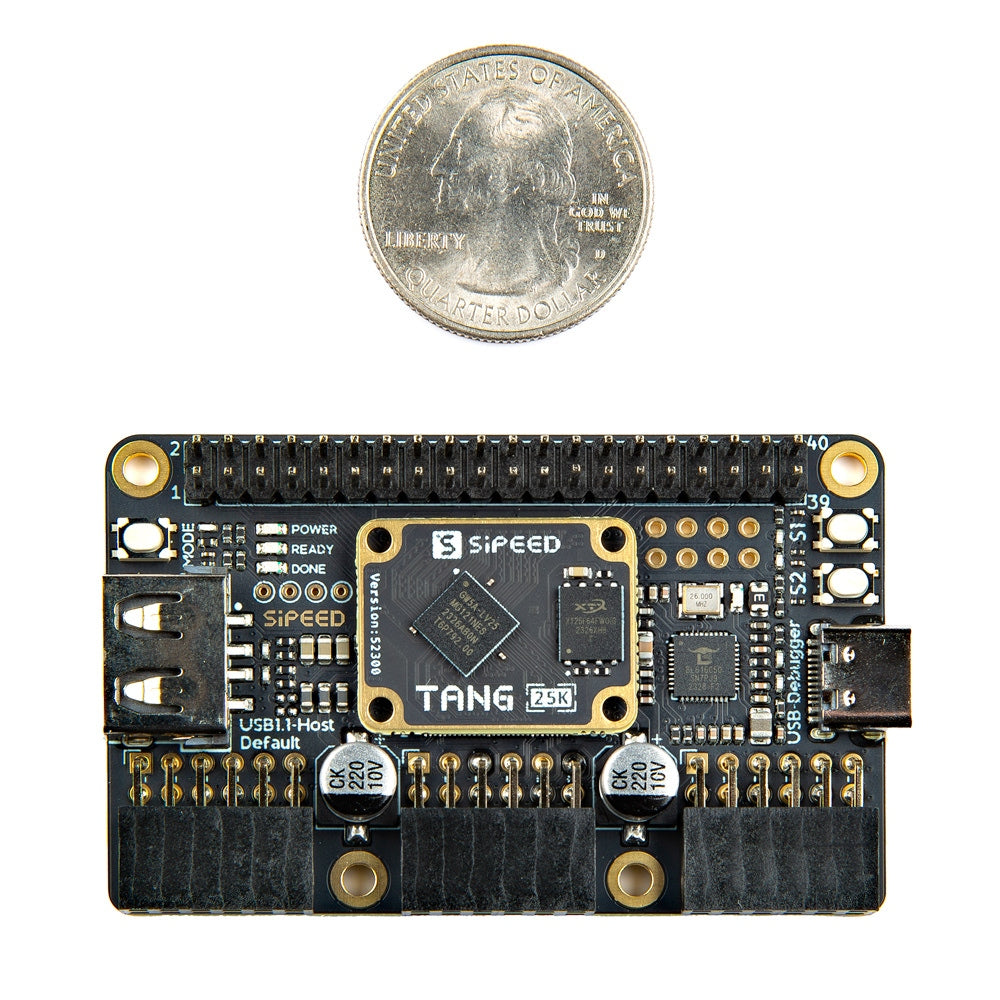

- Dimensions: 64x40mm
Features & Specs
- FPGA: GW5A-LV25MG121
- Logic Unit (LUT4) - 23040
- Register (FF) - 23040
- Distributed Static Random Access Memory S-SRAM (bits) - 180K
- Block Static Random Access Memory B-SRAM (bits) - 1008K
- Number of Block Static Random Access Memory B-SRAM - 56
- Multiplier (18x18 Multiplier) - 28
- Phase-Locked Loop (PLLs) - 6
- Total I/O Bank - 8
- Flash: 64Mbits NOR Flash
- Overall Packaging: 2x60P BTB Core Board
- General I/O - 75
- MIPI I/O - 4 Lane Data
Board Specs:
- Debugger: Onboard high-speed debugger, supports JTAG+UART, uses USB-C port for programming
- USB-A Port: One, can be used as a USB1.1 Host to connect game controllers and other HID devices
- I/O Pins: One 2x20Pin 2.54 pin, Can support SDRAM module
- PMOD Ports: 3
- Buttons: 2
- Dimensions: 64x40mm
Documentation
