Simply45 S45-3600W Overview

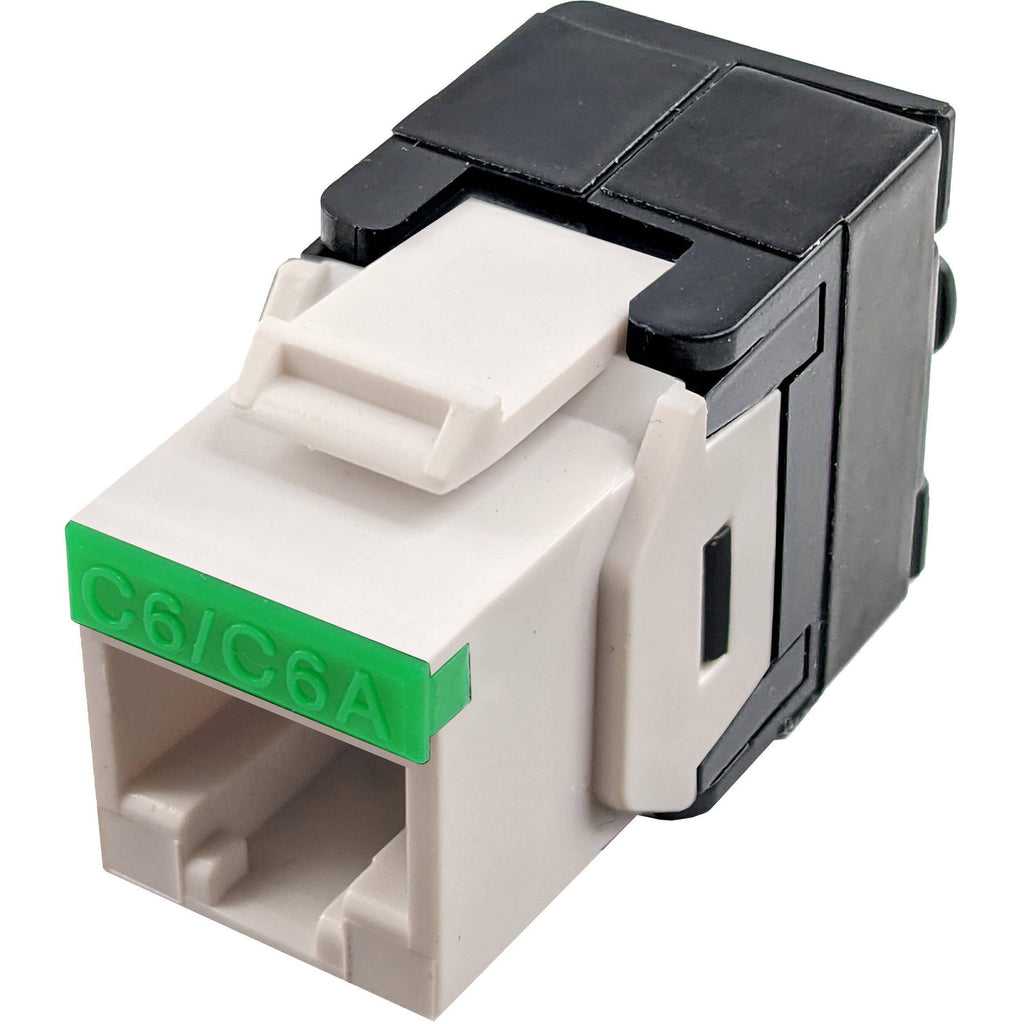

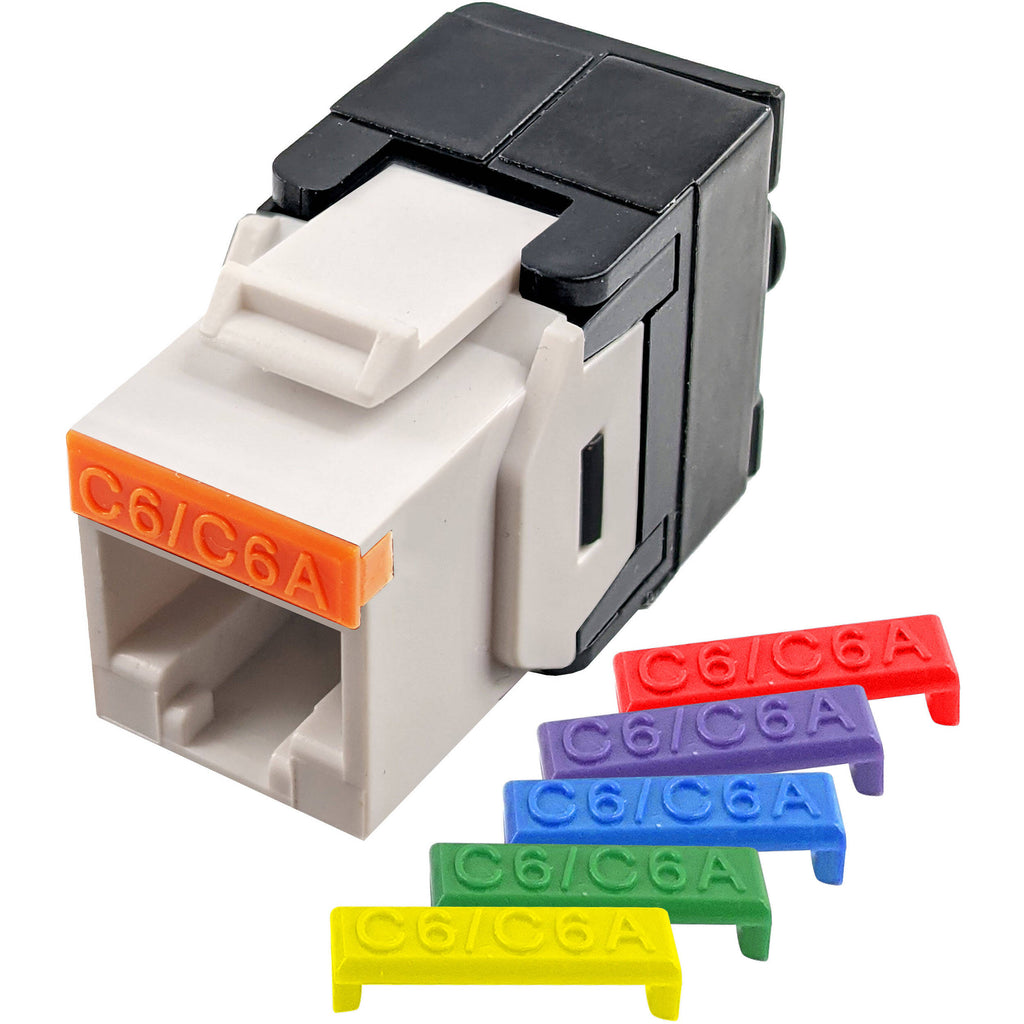

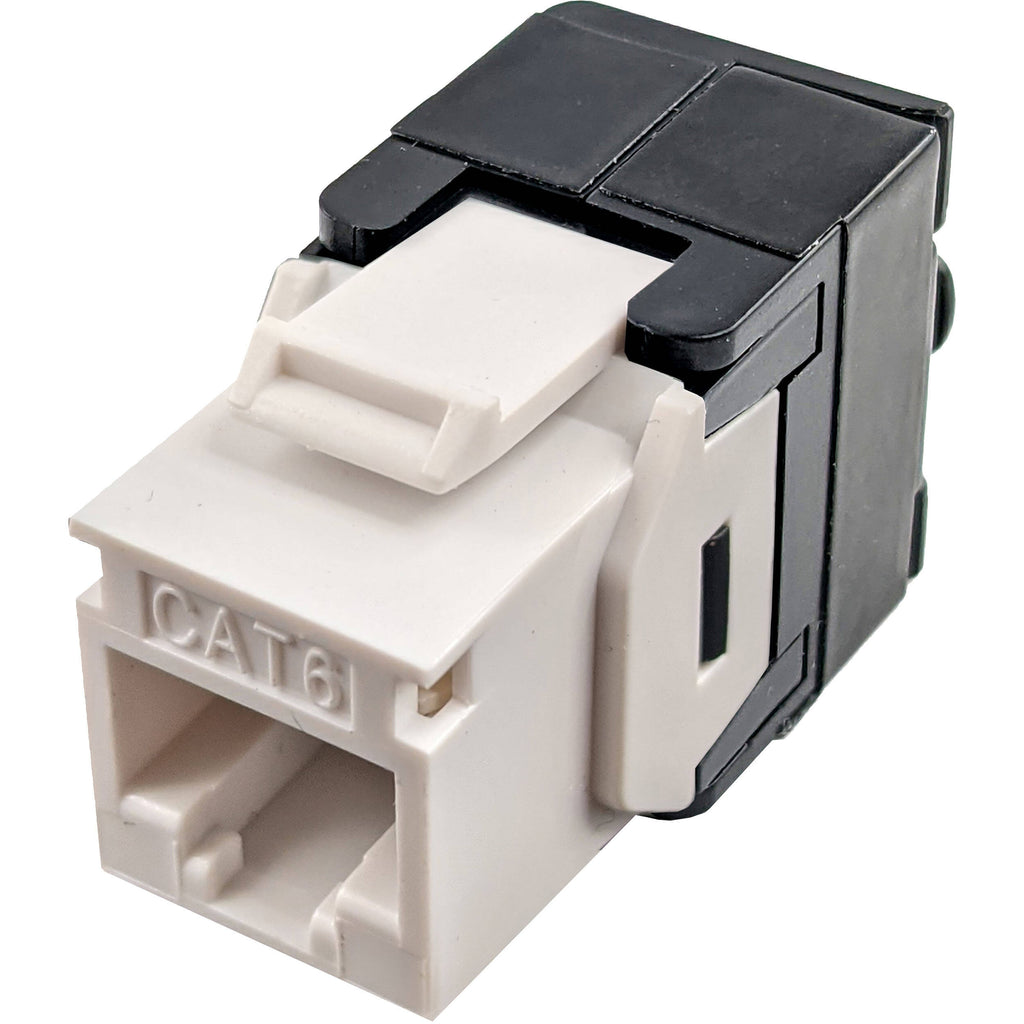

Quickly complete your network installation by finishing your cable with the S45-3600W Cat 6/6a UTP 180 Degree Keystone Jack from Simply45. Ideal for patch panel applications, this white 180° keystone module features a slim design that supports side-by-side installations. The unshielded keystone fits up to 23 AWG Cat 6 and 6a UTP cables, with gold-plated contacts that support 802.3bt PoE standards. No punchdown or specialty tools are required for installation. Inside is a 568B wiring label for easy termination. Interchangeable red, orange, yellow, purple, blue, and green snap-on bars are included for quick identification along with a convenient dust cover and zip tie.

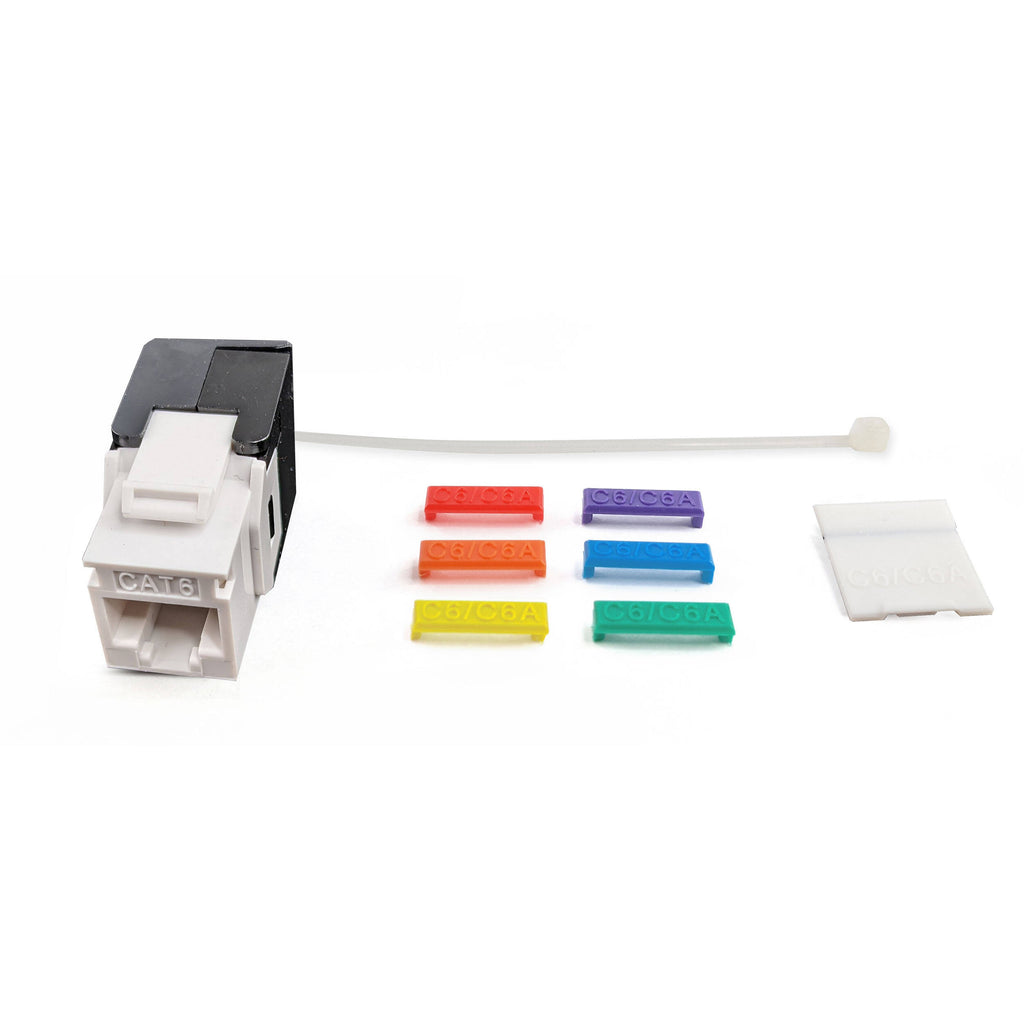

In the Box
- Simply45 S45-3600W Cat 6/6a UTP 180 Degree Keystone Jack (White)
- 6 x Color Snap-On Bars
- Dust Cover
- Zip Tie
- Limited Lifetime Warranty
Simply45 S45-3600W Specs
General
| Type |
RJ45 |
| Quantity |
1 |
| Contact Plating |
50 µ Gold |
| Shielded |
No |
| Contact Resistance |
20 milliohms |
Compatibility
| Wire Gauge Supported |
23 to 23 AWG |
| Networking Type |
Cat 6, Cat 6a |
Physical
| Compliance |
IEC, TIA, UL |
| Flame Resistance Rating |
None |
| Operating Temperature |
14 to 140°F / -10 to 60°C |
Packaging Info
| Package Weight |
0.04 lb |
| Box Dimensions (LxWxH) |
4.6 x 3.8 x 0.85" |
