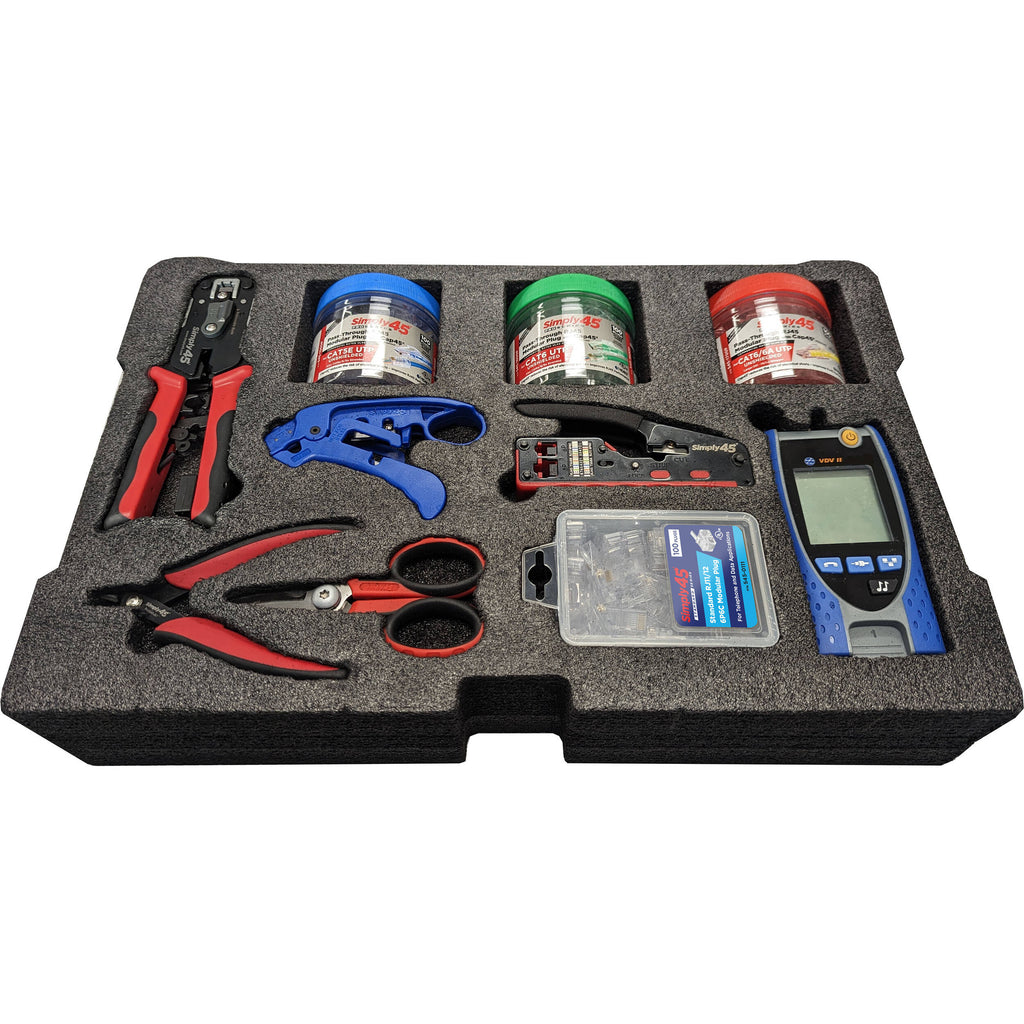

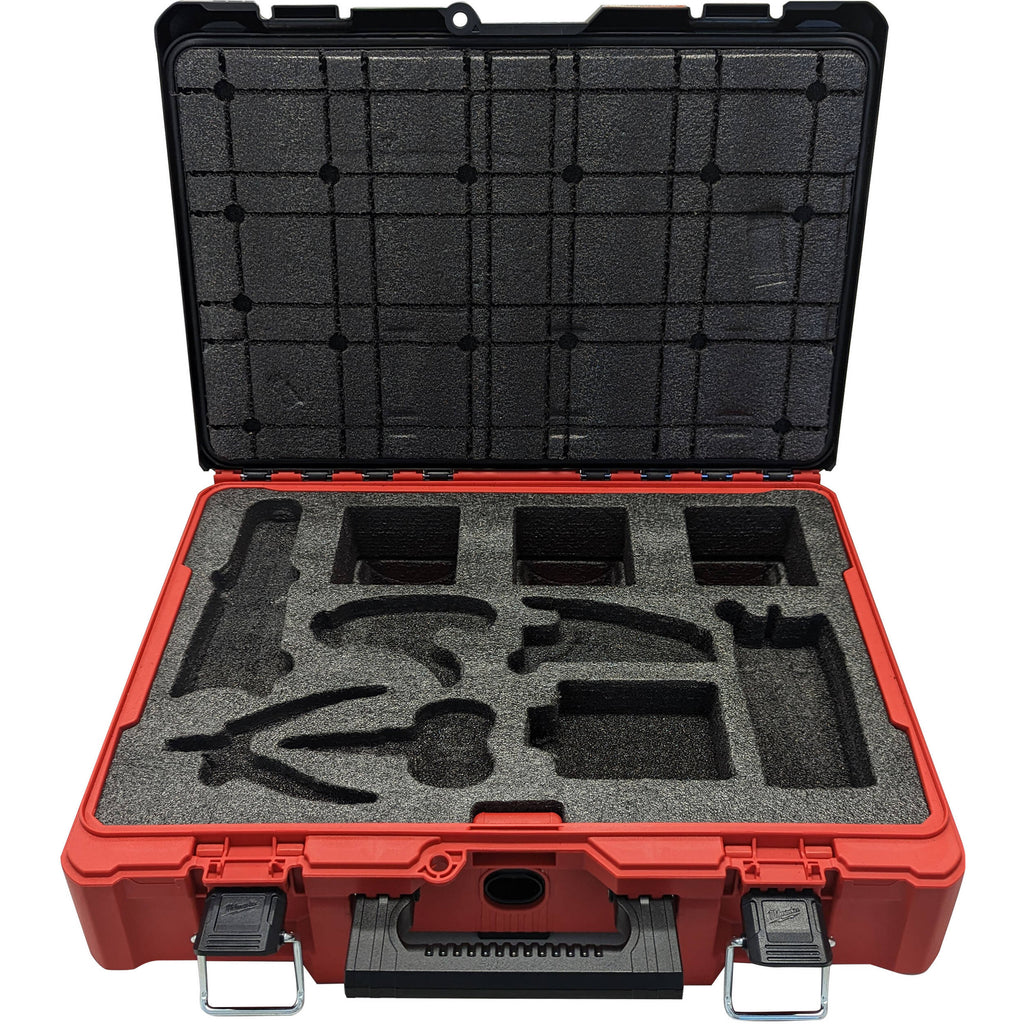

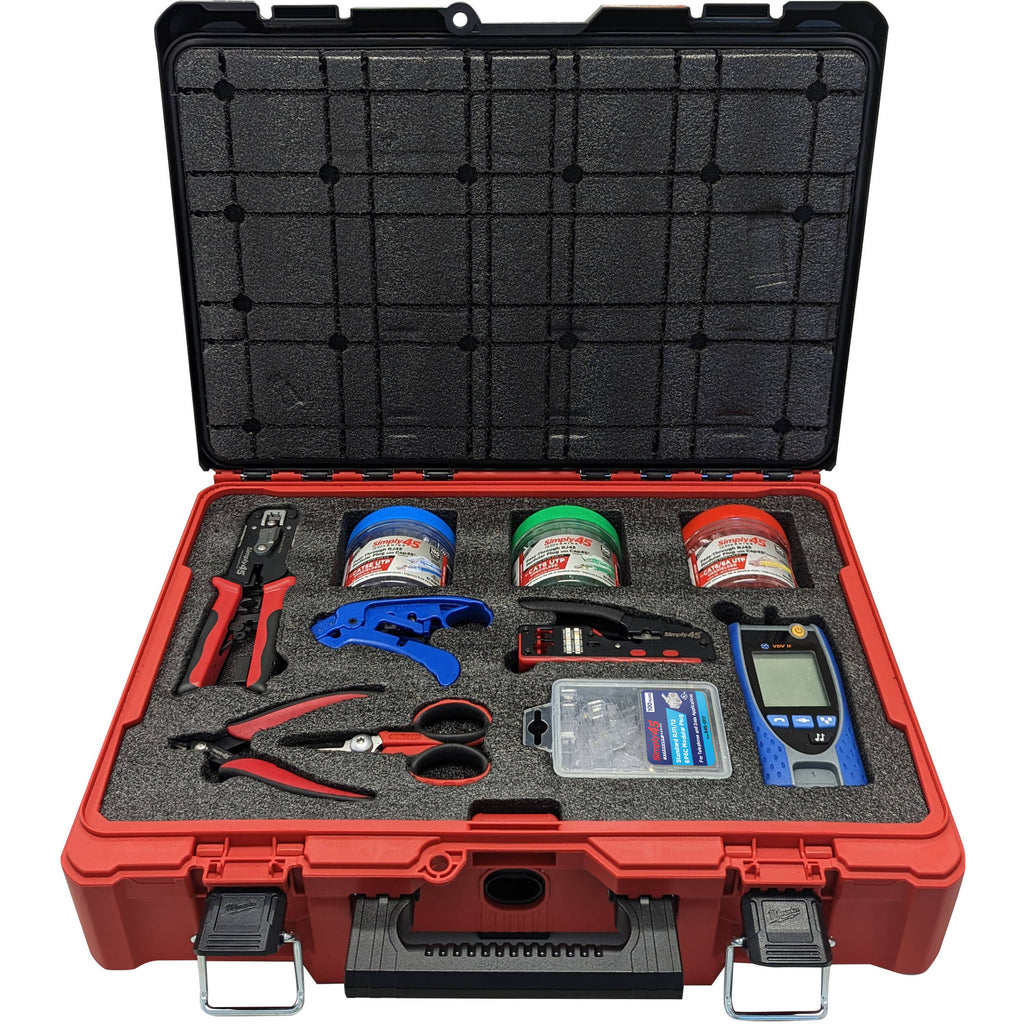

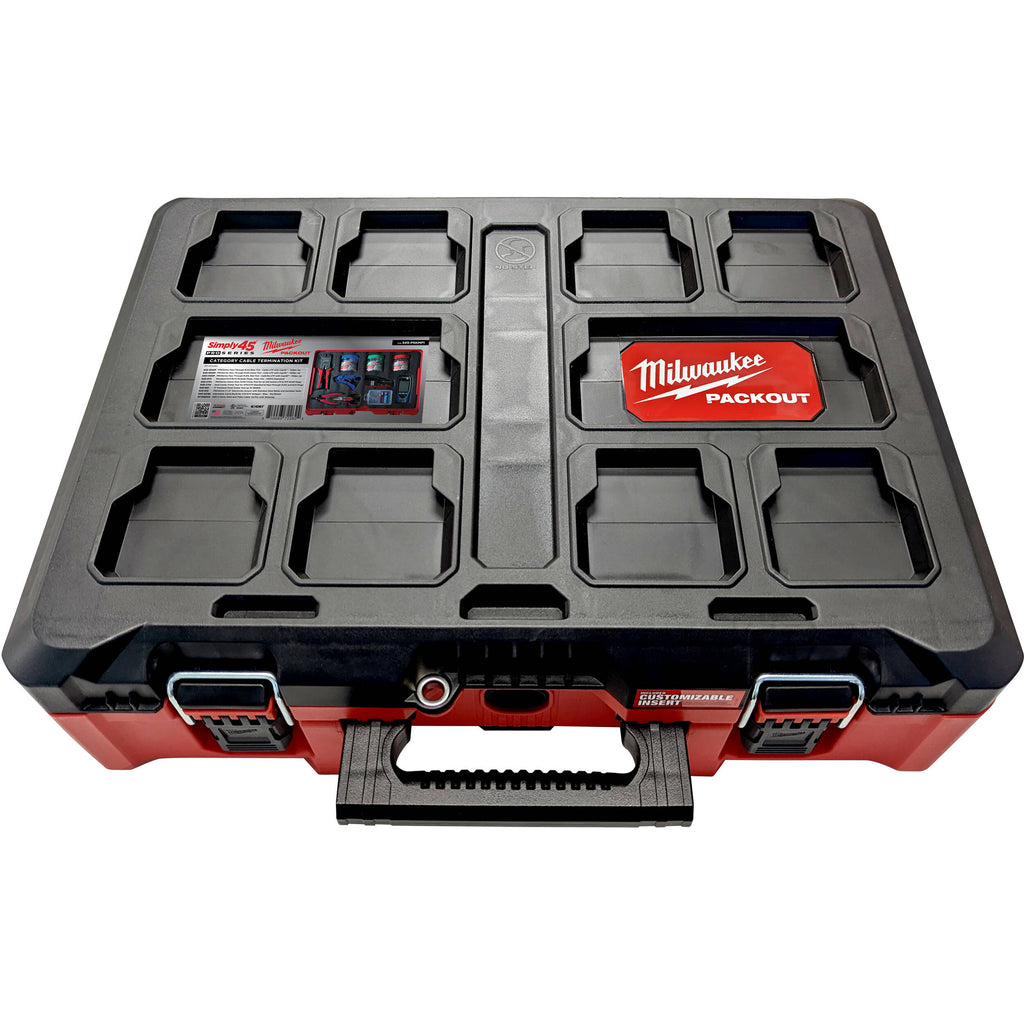

Simply45 PROSeries Category Cable Termination Kit with Case

Achieve reliable performance from your unshielded twisted pair (UTP) LAN cables by finishing them with the Simply45 Cat 5e Unshielded RJ45 Modular Plug. One-hundred single-piece pass-through modular RJ45 plugs come packed inside of a convenient plastic jar. The plugs are designed to fit 24 AWG solid Cat 5e and 28 to 26 AWG stranded Cat 6/5e cables up to 6.5mm in diameter in a straight-line arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light blue tint for easy identification. The Cap45 isolation cap/bar covers exposed wire ends to reduce the risk of electrical shorting. These modular plugs are rated to work with PoE and PoH devices.

Achieve reliable performance from your unshielded twisted pair (UTP) LAN cables by finishing them with the Simply45 Cat 6 Unshielded RJ45 Modular Plug. One-hundred single-piece pass-through modular RJ45 plugs come packed inside of a convenient plastic jar, which are designed to fit 23 AWG solid or stranded Cat 6 cables up to 7mm in diameter in a straight-line arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light green tint for easy identification. The Cap45 isolation cap/bar covers exposed wire ends to reduce the risk of electrical shorting. These modular plugs are rated to work with PoE and PoH devices.

Designed to work with unshielded twisted pair (UTP) LAN cables, the red-tinted Simply45 ProSeries Cat 6/6a UTP Unshielded Pass-Through Modular Plug connects onto 23 AWG solid twisted pair LAN cables up to 0.29" in diameter. One-Hundred single piece pass-through modular RJ45 plugs come packed inside of a convenient wide-mouth plastic jar, which work with most Cat 6a and Cat 6 cables in a staggered high/low wire arrangement.

Its patented Cap45 design features a cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, which helps to prevent electrical shorts and other electrical risks by covering the exposed wire ends. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a colored tint for easy identification. These modular plugs are rated to work with PoE and PoH devices.

This clamshell package of Standard RJ11/RJ12 Modular Plug from Simply45 holds 100 plugs. The plugs are good for all 6P4C and 6P6C applications. Each plug is transparent and without tint, and they feature 24ct gold-plated contacts (15ÿµ) and a UL94V-2 flammability rating. The connectors meet ROHS, UL, and FCC standar

Designed with many installer-recommended features, the Simply45 ProSeries All-In-One RJ45 Crimp Tool is used for terminating all shielded and unshielded pass-through and standard WE/SS (8P8C) RJ45 modular plugs. It features a tool lock, click-lock socket, external ground crimping socket, blade storage in the handle, and several other key features that make for a reliable and efficient tool.

The all-in-one tool is built to provide consistent flush-to-the-plug wire trimming over time. Even force is delivered to the trimming blades by the synchronized crimp tool handles. The tool uses a diamond-polished hardened steel trimming blade, and a fixed blade position alignment ensures no adjustments are required. These and many other features ensure more flush and consistent wire trimming over many termination cycles. This tool works with Simply45 and 3rd-party plugs, but it is not compatible with 3rd-party external ground shielded plugs nor with Platinum Tools ezEX plugs.

This S45-C110 Installer Series Dual-Cavity Crimp Tool from Simply45 is for use with STP/UTP standard and pass-through RJ45 and RJ11/12 connectors. It is a professional tool designed for voice and data terminations, and the parallel crimping action delivers straight, inline motion for consistent plug pin seating. It features a built-in cutter and stripper. It also includes a push-button tool handle lock.

Simply45 has designed the 5" Premium Flush Cutter Tool of premium quality for durability in professional applications. It's made for trimming LAN cable wire conductors, precision trimming of load bars and jacks, and other installer uses. It's capable of shearing soft copper wire up to 18 AWG (1mm). It can also be used for electronics products, jewelry, and various other purposes.

The design features a heat-treated high-carbon steel blade, an angled jar for precision flush cuts, and cushioned handles with a non-slip grip that's effective even in humid weather conditions.

The Simply45 PROSeries 5.5" Electrician Scissors with Stainless Steel Blade and Serrated Teeth is a pair of heavy-duty shears with finely serrated high-carbon stainless steel blades. They cut copper wire cable, tape, and cable ties, can strip insulation, and can help straighten conductors. The integrated notches enable stripping 18 to 24 AWG wire. The cable-cutting notch in the scissor blade reduces the force required to cut larger cables.

The Simply45 Adjustable LAN Cable Stripper, in blue, allows you to professionally strip shielded (STP) and unshielded (UTP) copper LAN cables, including Cat7a, Cat7, Cat6a, Cat6, Cat5e, and Cat3 cables. This cable stripper is a multi-function tool that also lets you strip speaker and audio cables, straighten LAN cable wire conductors, and more. For precision performance, a turning knob is adjustable to raise or lower the trimming blade for ideal depth.

The Simply45 VDV II Cable Tester is an easy-to-use cable tester that checks the integrity of copper cables found in voice, data, or video installations thanks to its various connectors and intelligent interface. A 6-pin RJ-11/RJ-12 port, an RJ45 port, and a Coax F-type port on the VDV II allow you to connect and verify copper cables typically found in domestic, commercial, or industrial applications.

The VDV II can subsequently measure the cable's length and display it on the backlit screen. An analog tone generator helps identify signals or cross-connections within the cabling. Wiremap technology determines where there might be damage to the cable with miswires, shorts, or opens. The included remote unit or dual-port remote unit can be embedded into the bottom of the device for easy storage and portability. The VDV II is powered by an included 9V alkaline battery.
