Description
Simply45 S45-1650P Overview

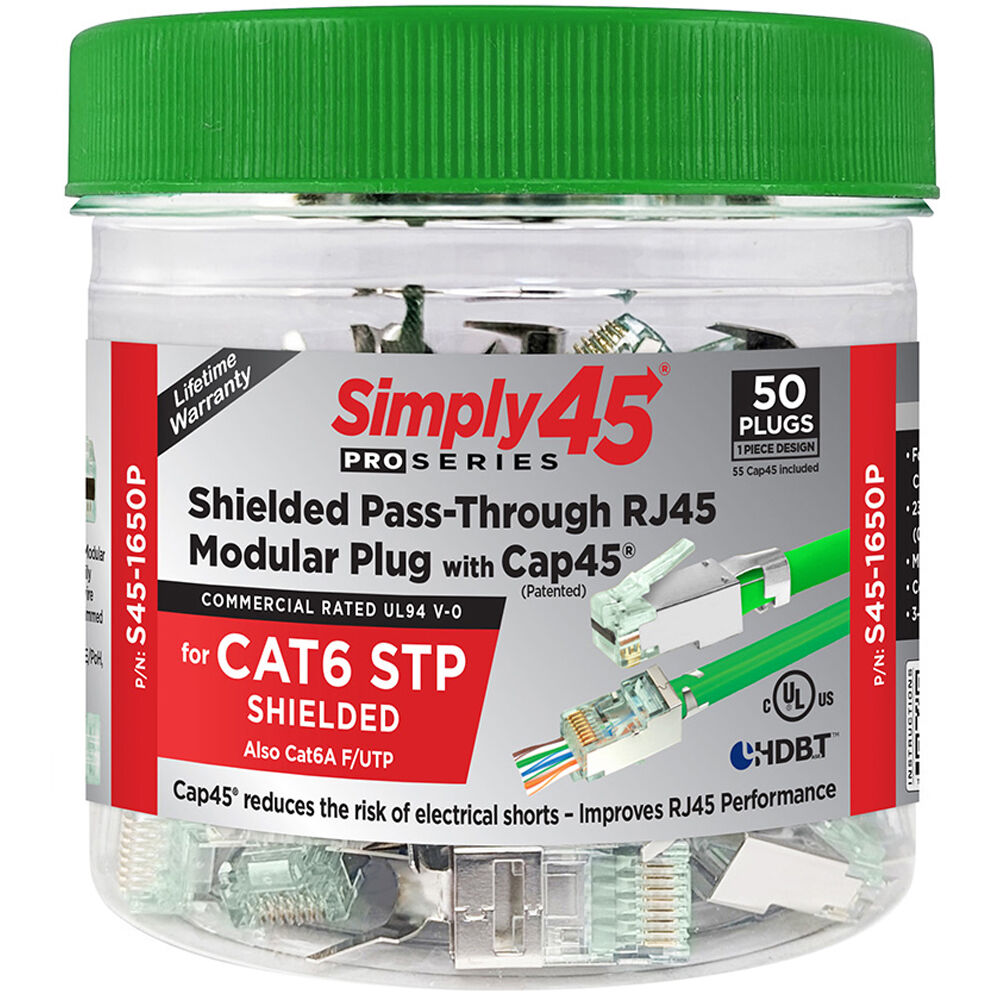

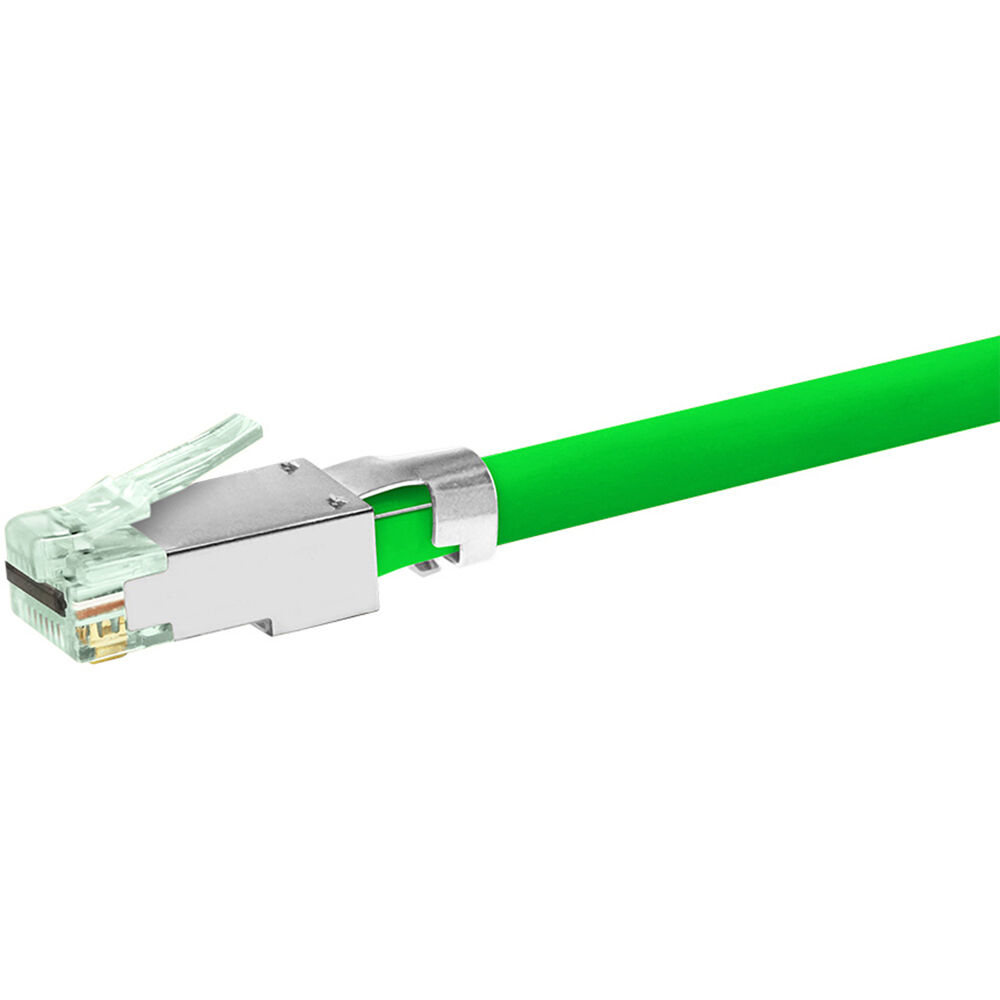

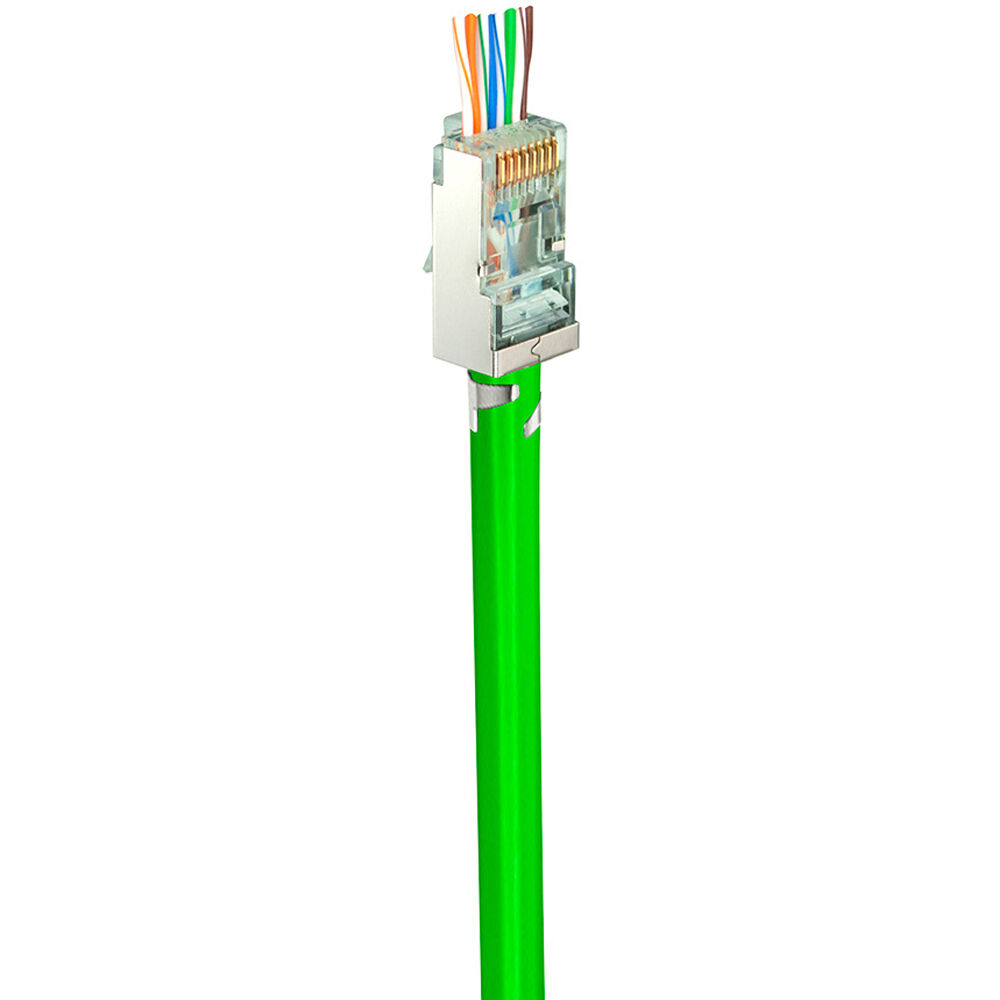

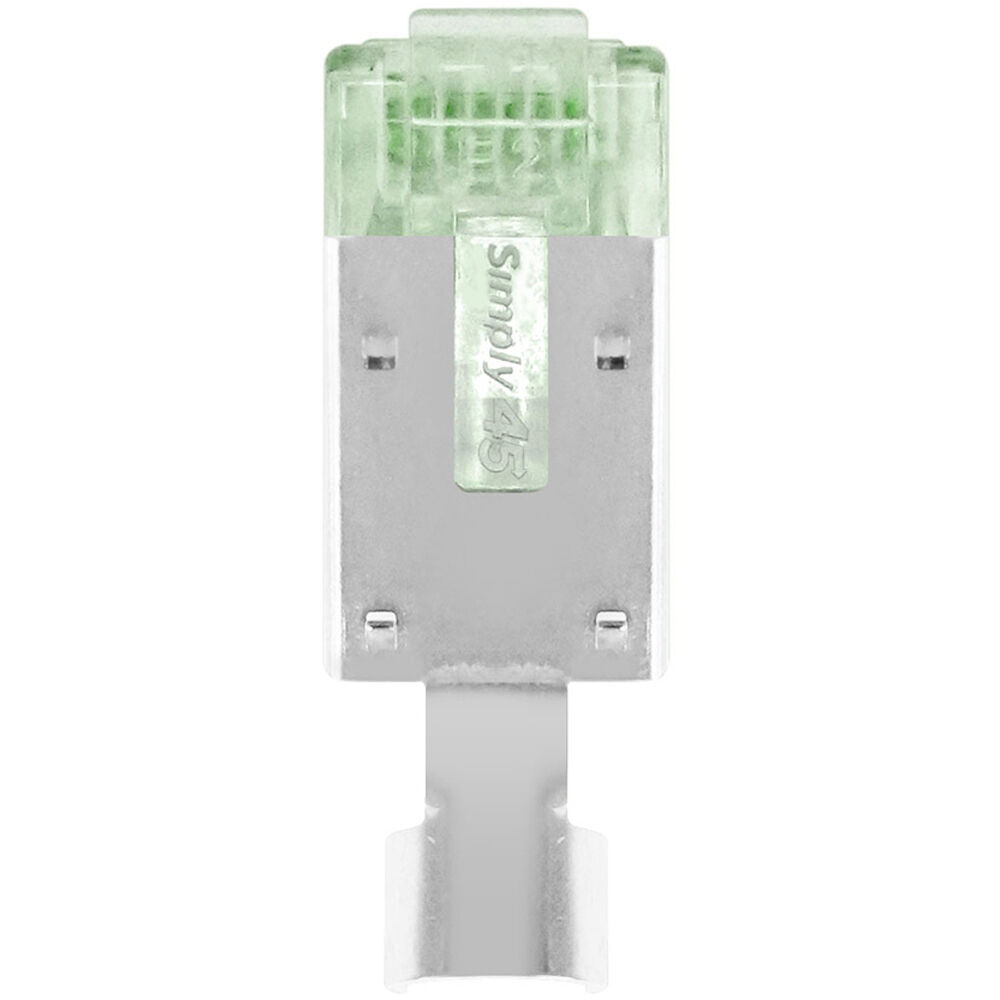

Achieve reliable performance from your shield twisted pair (STP) LAN cables by finishing them with the Simply45 Cat 6 STP External Ground Pass-Through Modular Plug. Fifty single-piece pass-through modular RJ45 plugs with external grounds come packed inside of a convenient wide-mouth plastic jar, which are designed to fit 23 AWG solid Cat 6 cables up to 0.8mm in diameter in a staggered high/low wire arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a green tint for easy identification. The Cap45 isolation cap/bar covers exposed wire ends to reduce the risk of electrical shorting. These modular plugs are rated to work with PoE and PoH devices.
In the Box
- Simply45 ProSeries Cat 6 STP External Ground Pass-Through Modular Plug (50-Piece Jar)
- Limited Lifetime Warranty
Simply45 S45-1650P Specs
| Type |
RJ45
|
| Shielded |
Yes
|
| Networking Type |
Cat 6
|
| Type |
RJ45
|
| Quantity |
50
|
| Contact Plating |
50 µ Gold
100 µ Nickel |
| Contact Material |
Bronze
|
| Shielded |
Yes
|
| Conductor Diameter |
0" / 1.1 mm
|
| Contact Resistance |
20 milliohms
|
| Supported Cable Diameter |
0.3" / 8 mm
|
| Wire Gauge Supported |
23 to 23 AWG
|
| Cable Types Supported |
Solid
|
| Networking Type |
Cat 6
|
| Plug Material |
Polycarbonate
|
| Flame Resistance Rating |
UL94V-0
|
| Mating Cycles |
2000
|
| Operating Temperature |
-40 to 158°F / -40 to 70°C
|
| Package Weight |
0.465 lb
|
| Box Dimensions (LxWxH) |
3.6 x 3.6 x 3.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
