Simply45 ProSeries Cat 6/6a UTP Unshielded Pass-Through Modular Plug (100-Piece Jar)

Cat 6/6a Unshielded RJ45 Modular Plug

Supports Solid Twisted Pair Cables

Gold-Plated 3-Prong Pins

High/Low Stagger Wire Alignment

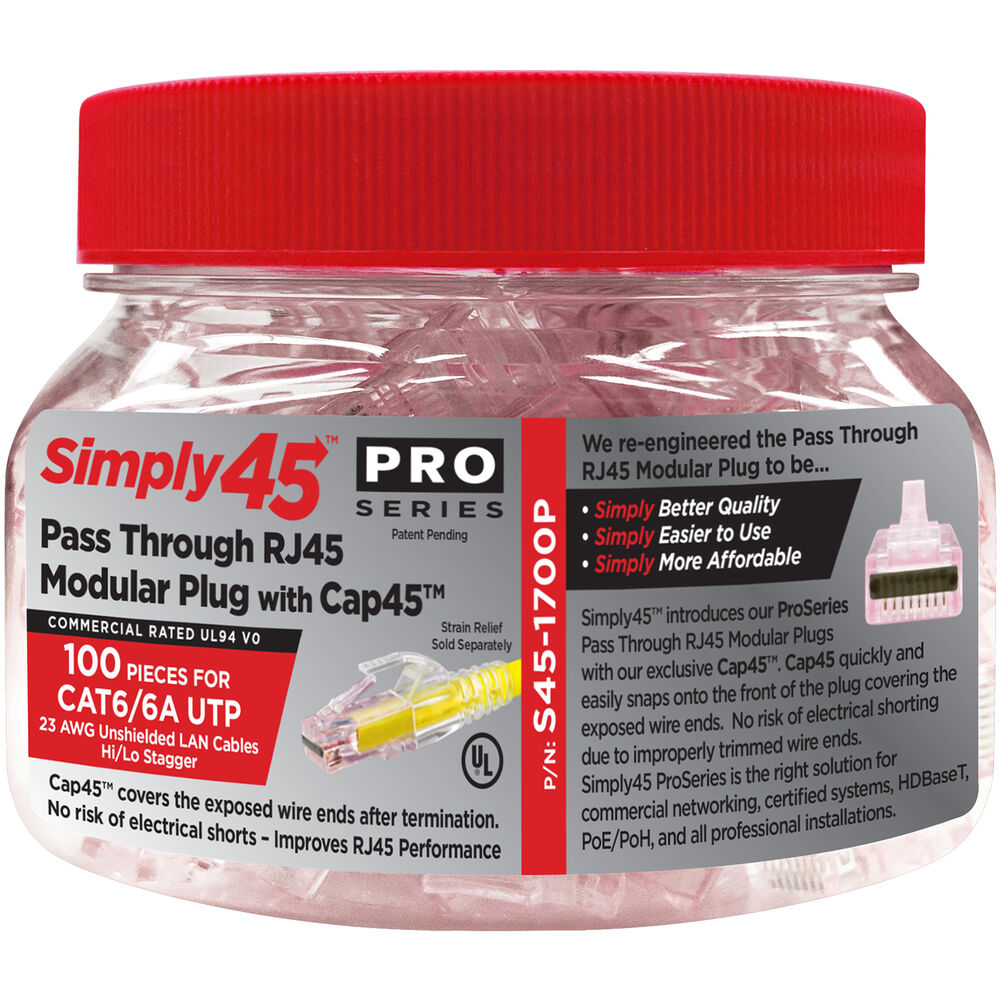

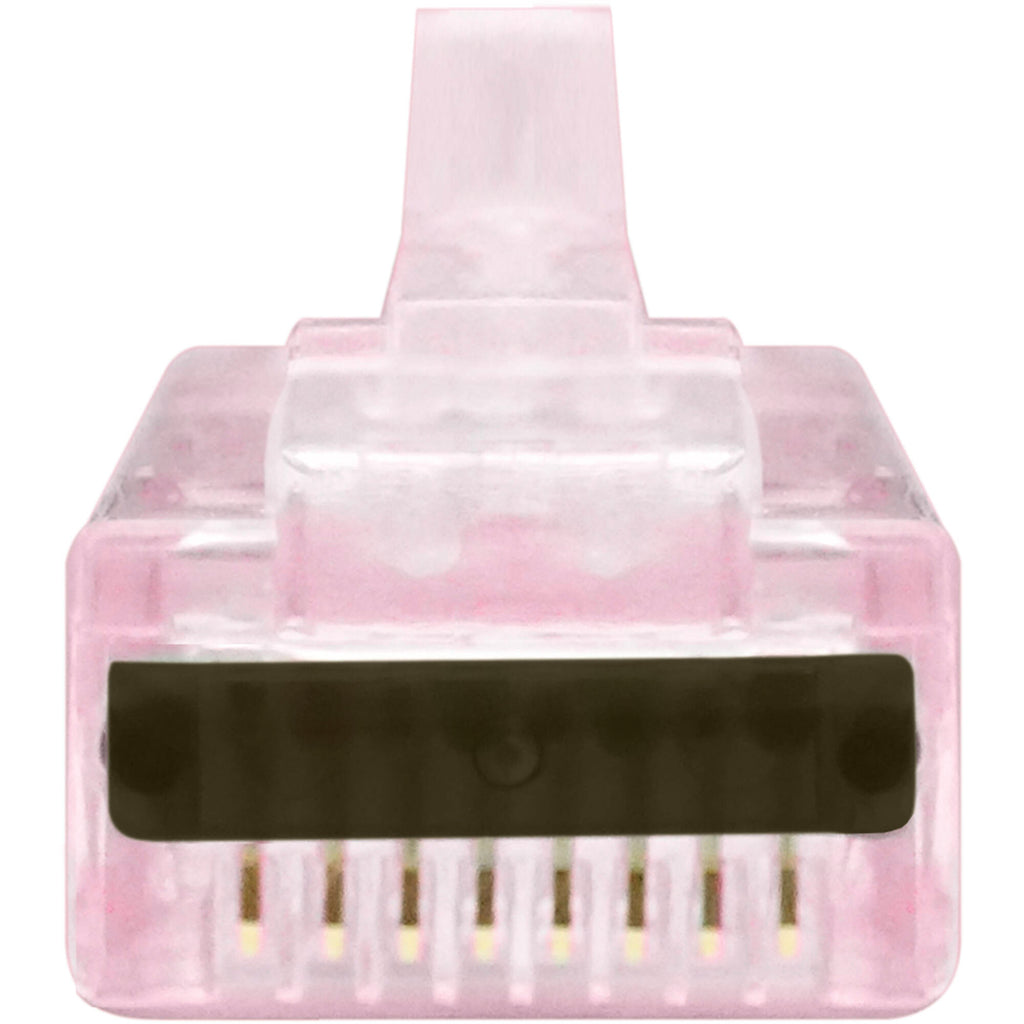

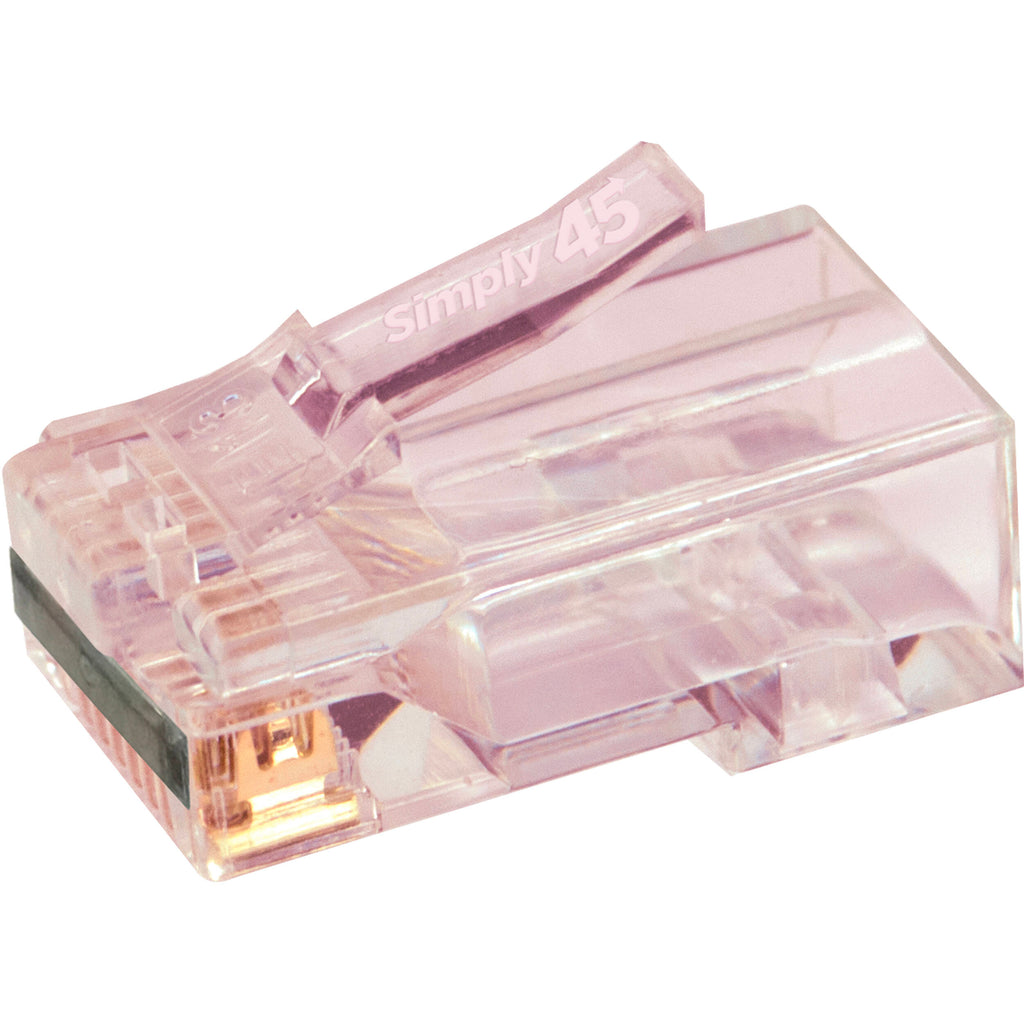

Designed to work with unshielded twisted pair (UTP) LAN cables, the Simply45 ProSeries Cat 6/6a UTP Unshielded Pass-Through Modular Plug connects onto 23 AWG solid twisted pair LAN cables up to 0.29" in diameter. One-Hundred single piece pass-through modular RJ45 plugs come packed inside of a convenient wide-mouth plastic jar, which work with most Cat 6a and Cat 6 cables in a staggered high/low wire arrangement. Its patented Cap45 design features a cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, which helps to prevent electrical shorts and other electrical risks by covering the exposed wire ends. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a red tint for easy identification. These modular plugs are rated to work with PoE and PoH devices.

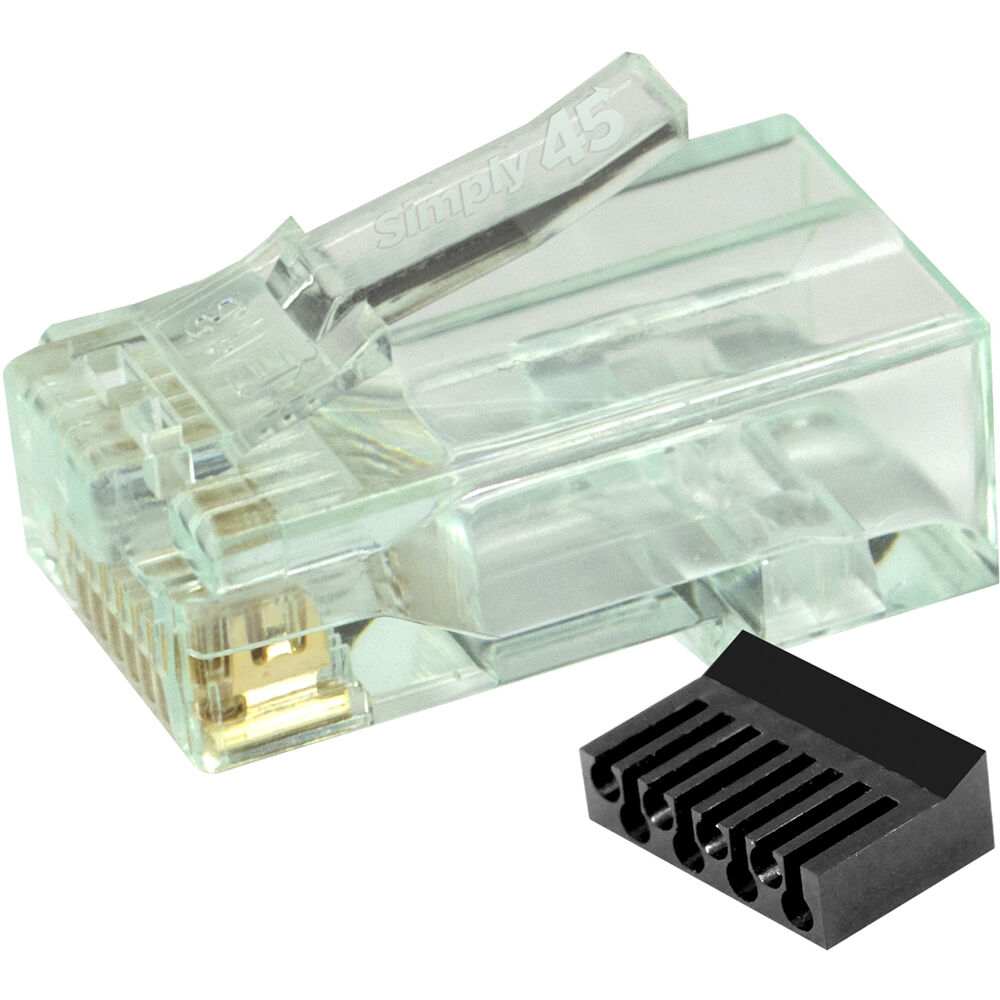

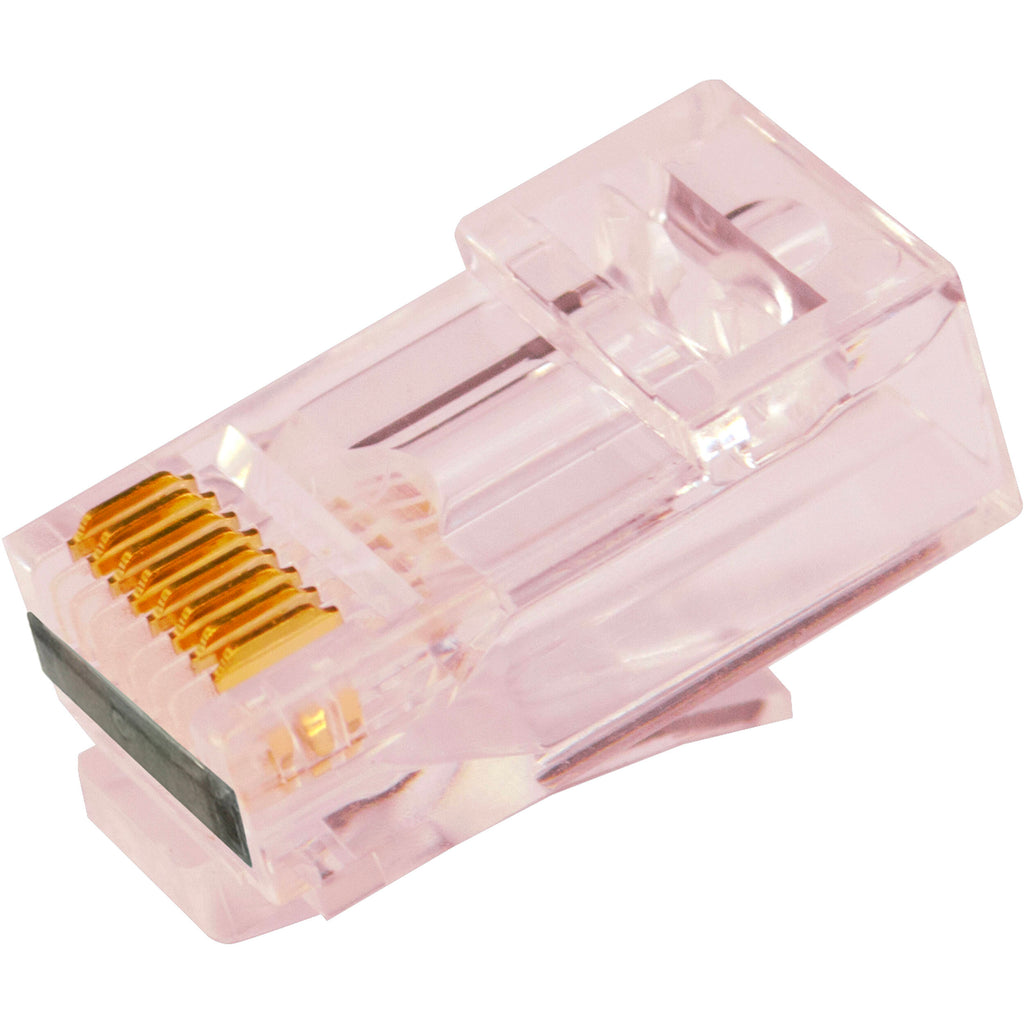

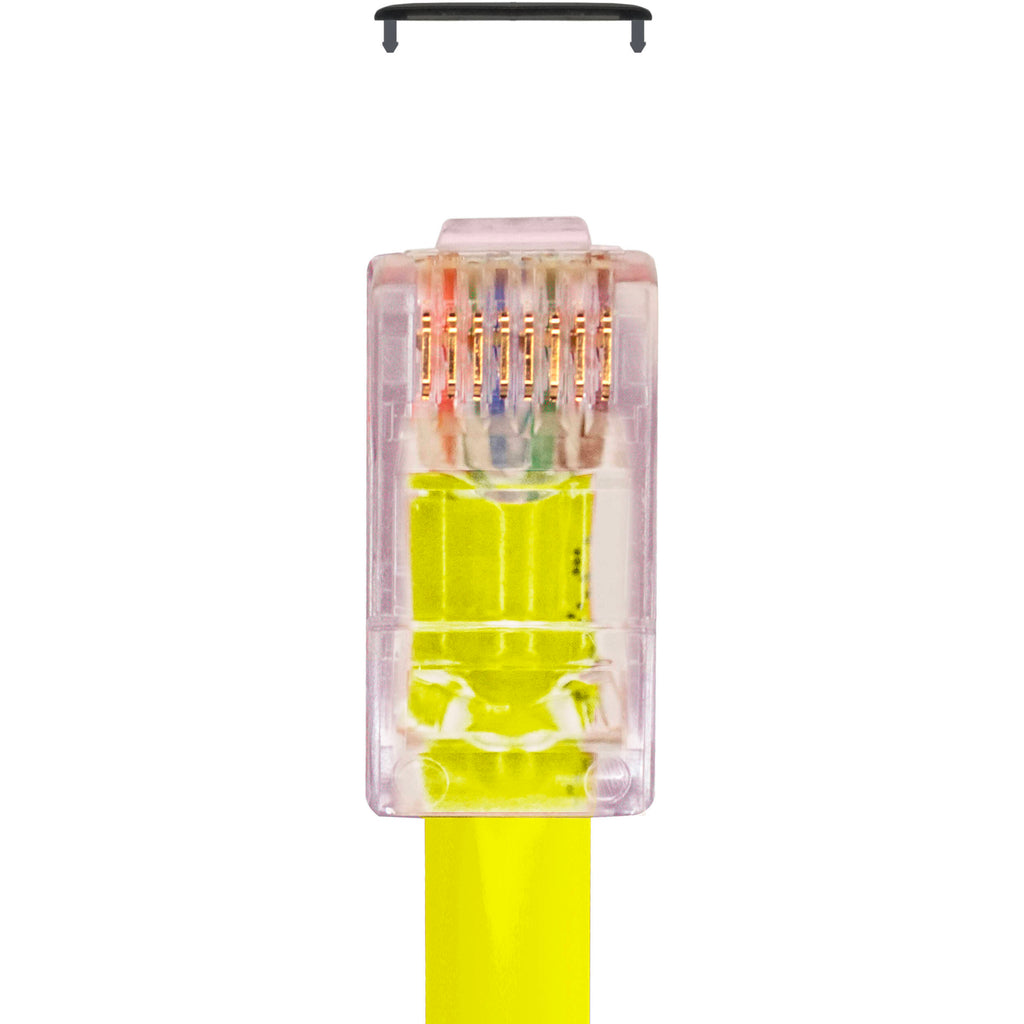

3-Prong Pin Design Simply45's 3-prong pins feature 50? of 24kt gold plating. Having a 3-prong pin provides three points of contact with the copper wire conductor, which provides a strong connection for high electrical performance and improved signal integrity with less heat build-up compared to a 2-prong connection. Cap45 The patented Cap45 design features a cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, which helps to prevent electrical shorts and other electrical risks by covering the exposed wire ends. UPC: 817777017724

Type	RJ45 Male
Quantity	100
Contact Plating	50 µ Gold 100 µ Nickel
Contact Material	Bronze
Shielded	No
Conductor Diameter	0" / 1.2 mm
Contact Resistance	20 milliohms

Supported Cable Diameter	0.3" / 7.4 mm
Wire Gauge Supported	23 to 23 AWG
Cable Types Supported	Solid, Stranded
Networking Type	Cat 6, Cat 6a

Plug Material	Polycarbonate
Compliance	cUL, RoHS, FCC
Flame Resistance Rating	UL94V-0
Mating Cycles	2000
Operating Temperature	-40 to 158°F / -40 to 70°C

Package Weight	0.44 lb
Box Dimensions (LxWxH)	3.95 x 3.7 x 3.25"
