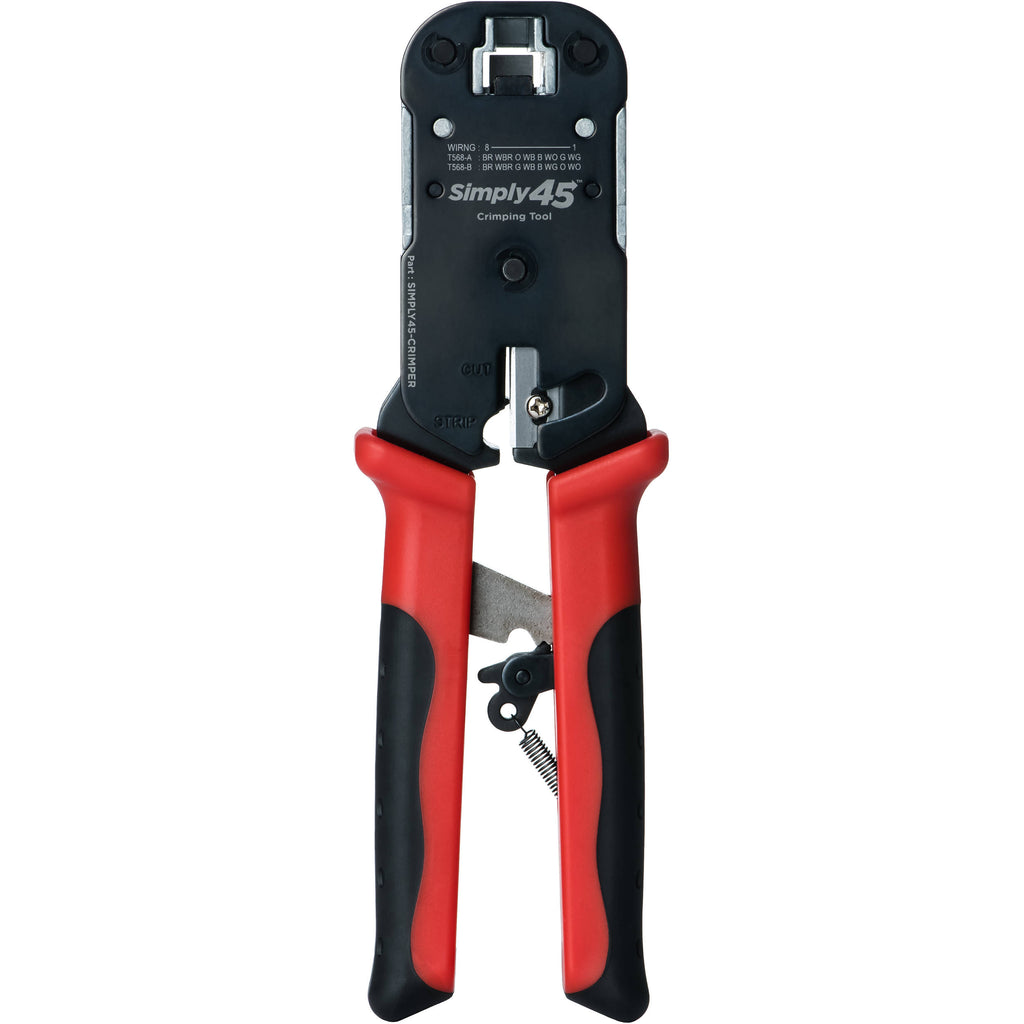

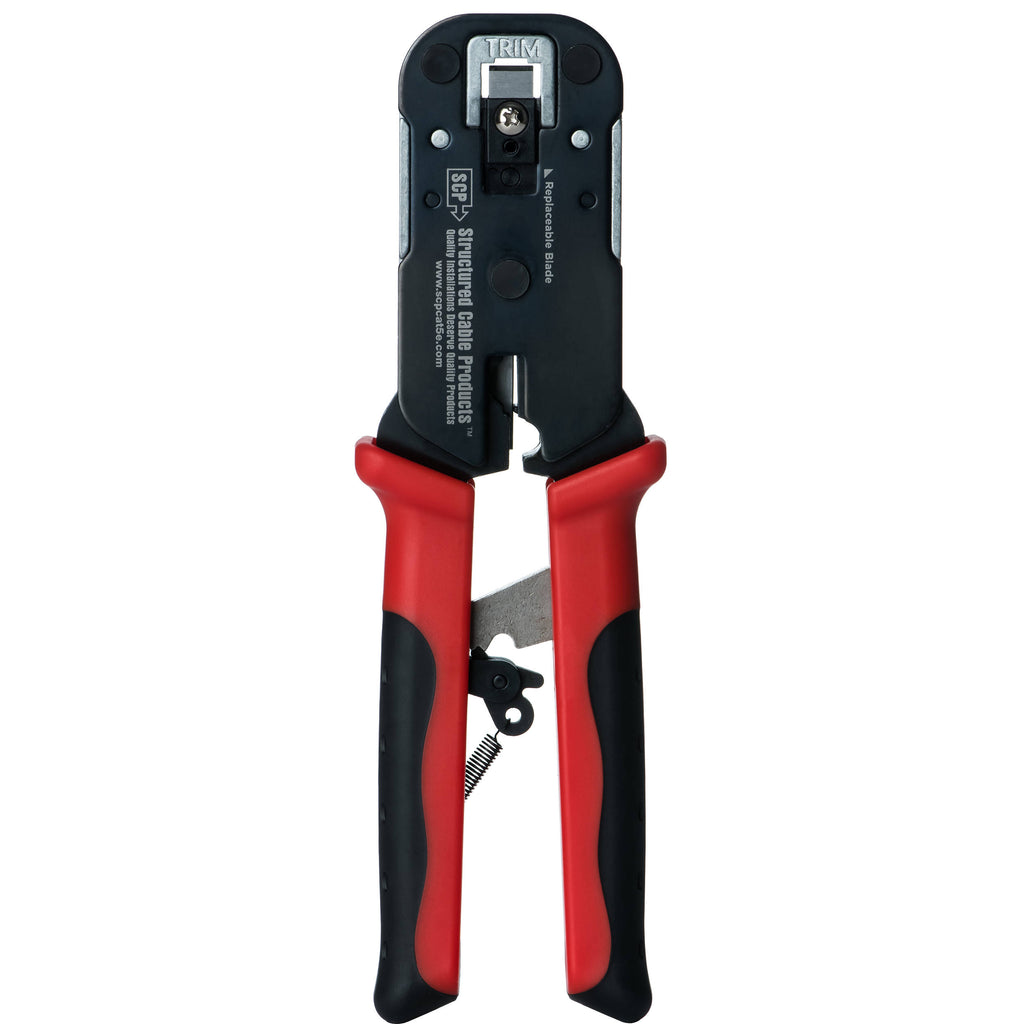

Simply45 Pass-Through RJ45 Crimp Tool

For Unshielded/Internal Ground Plugs

Ratcheted Design & Synchronized Handles

Integrated Narrow Strain Reliefs/Boots

Single-Screw Blade Replacement System

Intro to SImply45

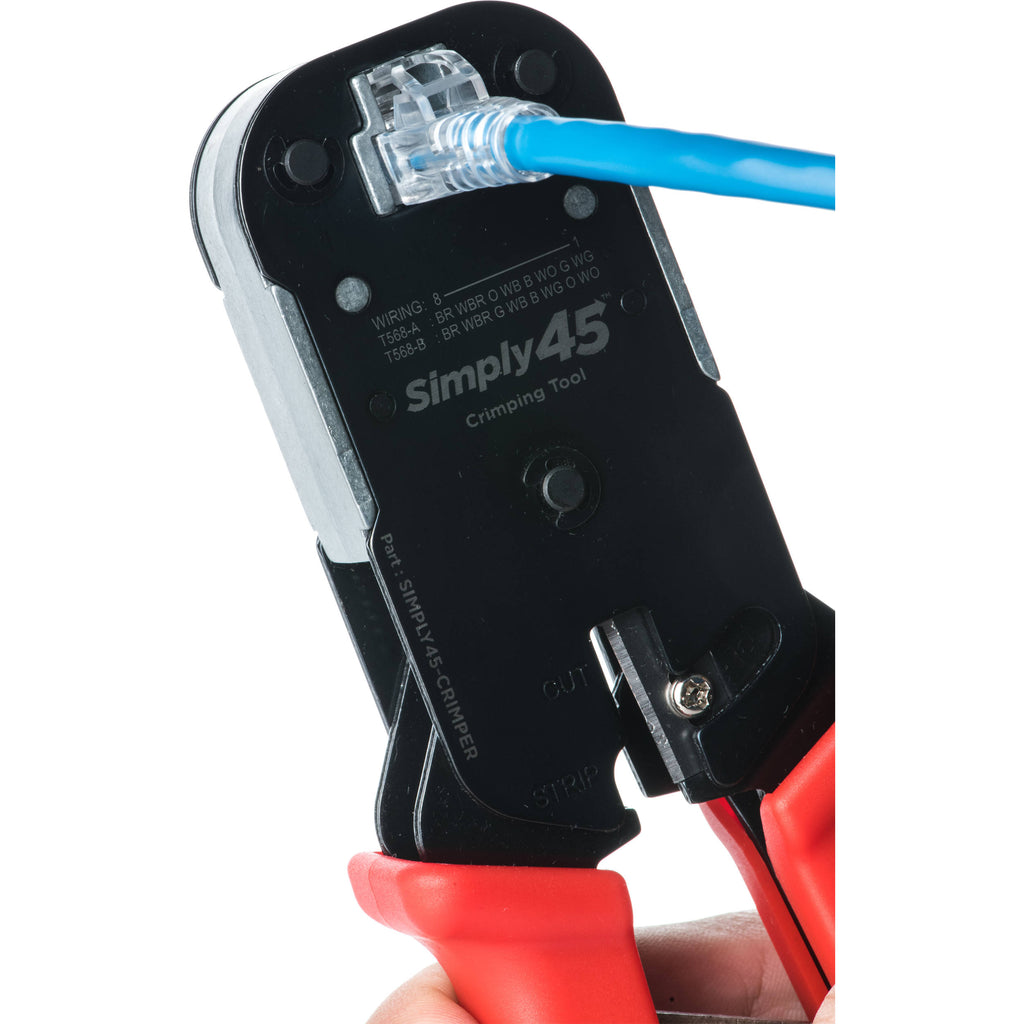

The Pass-Through RJ45 Crimp Tool from Simply45 is designed for unshielded and internal ground shielded pass-through RJ45 modular plugs. With feedback from professional installers, this heavy-duty crimp tool was designed with superior features all around. These include ratcheting, synchronized handles, reinforced steel on top, stable crimping socket, fixed blade position alignment, a diamond-polished hardened steel trimming blade, laser-engraved wire alignment patterns right under the crimping socket, an efficient single-screw blade replacement system, and integrated narrow strain reliefs/boots. It also has a built-in wire cutter and wire stripper.

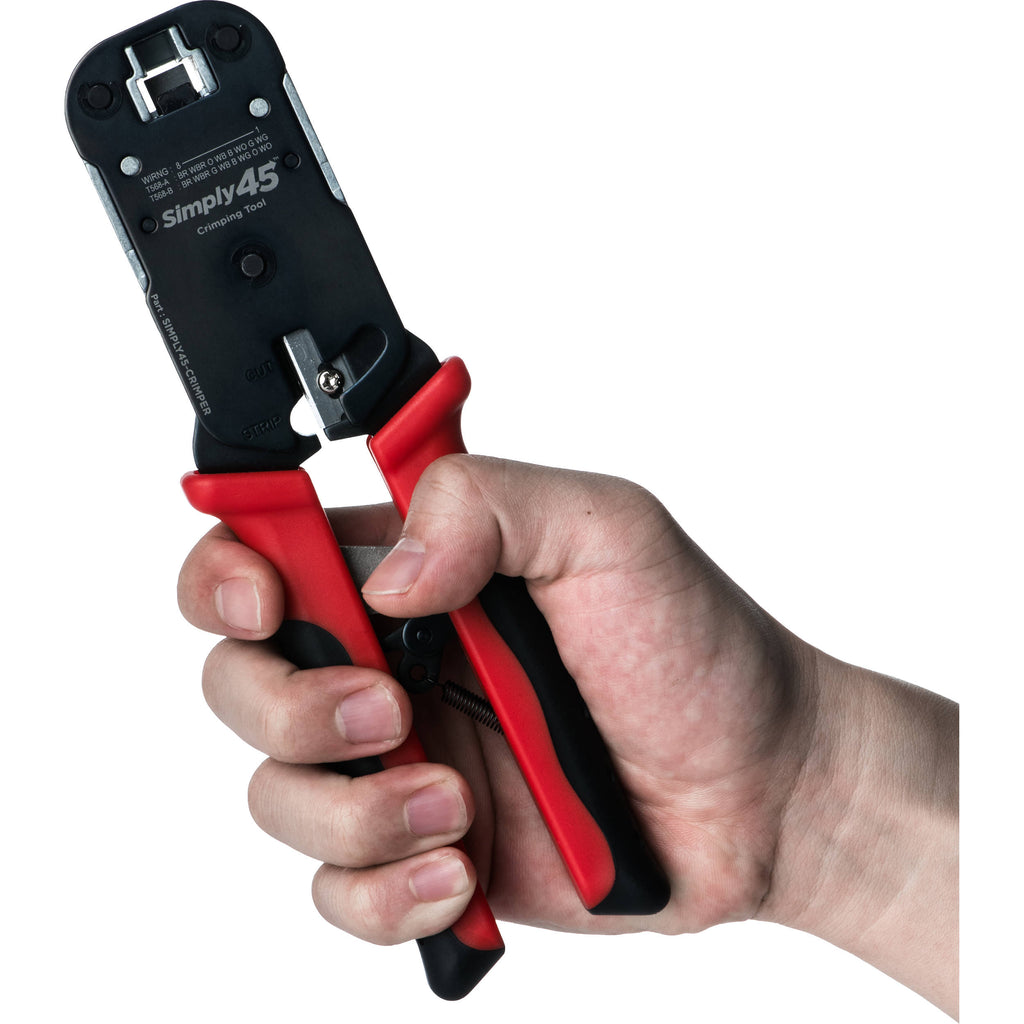

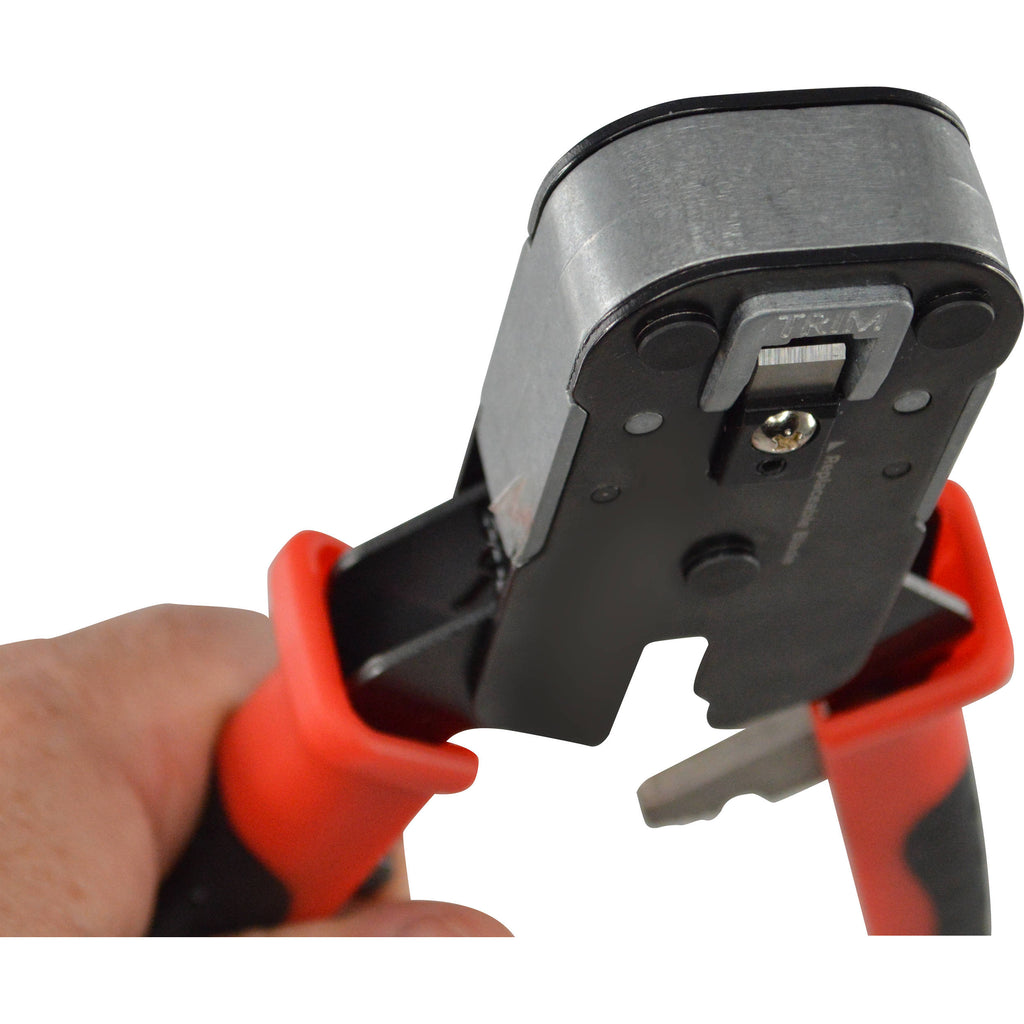

Ratcheted for Full Compression Cycle Simply45 has designed this Pass-Through RJ45 Crimp Tool ratcheted in order to ensure that the RJ45 pins are properly seated onto the wire conductors and the pass-through wires are properly trimmed. Synchronized Handles Synchronized handles compress together during the crimping cycle. This synchronization delivers consistent and even force directly to the plug socket and the wire trimming. The result is a smoother, faster, and easier crimping process. The handles open up to 4.25", allowing for more force with less hand effort during the crimping cycle. This tool uses both handles in tandem to deliver the crimping force with much less effort, and this enables you to crimp Cat 6 or Cat 6a cables with one hand. Being able to do so is especially useful when you have many terminations to complete in a day. Steel Reinforced The Pass-Through RJ45 Crimp Tool is wrapped with reinforced steel to ensure tool stability during the crimping cycle. Crimp tool stability results in a smoother crimping cycle, better pin sets, more consistent wire trimming, and greater durability over time. Improved Trimming Blade Design The Pass-Through RJ45 Crimp Tool is engineered to deliver consistent flush-to-the-plug wire trimming over time. Engineering features include synchronized crimp tool handles that allow even force to be delivered to the trimming blades, a more stable crimping socket, a fixed blade position alignment requiring no adjustments, a more precise angle with no flexing on the trimming blade, and a diamond-polished hardened steel trimming blade. Wire Alignment Pattern Wire alignment patterns type A/B are laser engraved right under the crimping socket. Simply45 also lists the pattern to match how the RJ45 modular plug is inserted into the tool. This makes it easy to provide one last check to be sure the wires are properly aligned inside the plug before crimping. As a result, you eliminate the possibility of putting the wire alignment upside down into the plug. Easy Changing of Blades Dull and worn out trimming blades are among the primary causes for improper wire trimming on pass-through RJ45 modular plugs. With the Pass-Through RJ45 Crimp Tool, about 30 seconds is all you need to change the trimming blade. No adjustments are needed. All that's required is handling a single screw. In contrast, many other crimp tools have a complex process of changing blades. Set Strain Reliefs/Boots Using strain reliefs (boots) is very important to protect the RJ45 modular plug termination. The Pass-Through RJ45 Crimp Tool features integrated strain reliefs/boots that are crimped to the RJ45 modular plug during the crimping cycle. The integrated strain reliefs are narrow. Their width is the same as the RJ45 modular plug, making them ideal for multi-port patch panels because they allow you to easily insert and remove plugs from jacks. The process is fast and secure. Additional Features This tool also offers a built-in wire cutter and wire stripper. EZ-RJ45 Compatibility The Crimp Tool works with Platinum Tools EZ-RJ45 connectors. This compatibility allows existing owners of these connectors to take advantage of the Crimp Tool right away and still be able to use the stock of EZ connectors. Ergonomic Grip An ergonomic grip reduces hand fatigue and slippage. UPC: 817777016857

Handle Opening	4.25" / 10.8 cm
Dimensions	11.6 x 4.5 x 1.2" / 29.5 x 11.5 x 3 cm
Weight	1 lb / 488 g

Package Weight	1.06 lb
Box Dimensions (LxWxH)	11.6 x 4.5 x 1.4"
