Simply45 Cat 6a UTP Unshielded RJ45 Pass-Through Modular Plug (100-Piece Jar)

Cat 6a Unshielded RJ45 Modular Plug

Supports Solid Twisted Pair LAN Cables

Gold-Plated 3-Prong Pins

High/Low Stagger Wire Alignment

Simply45 Cat6A Termination

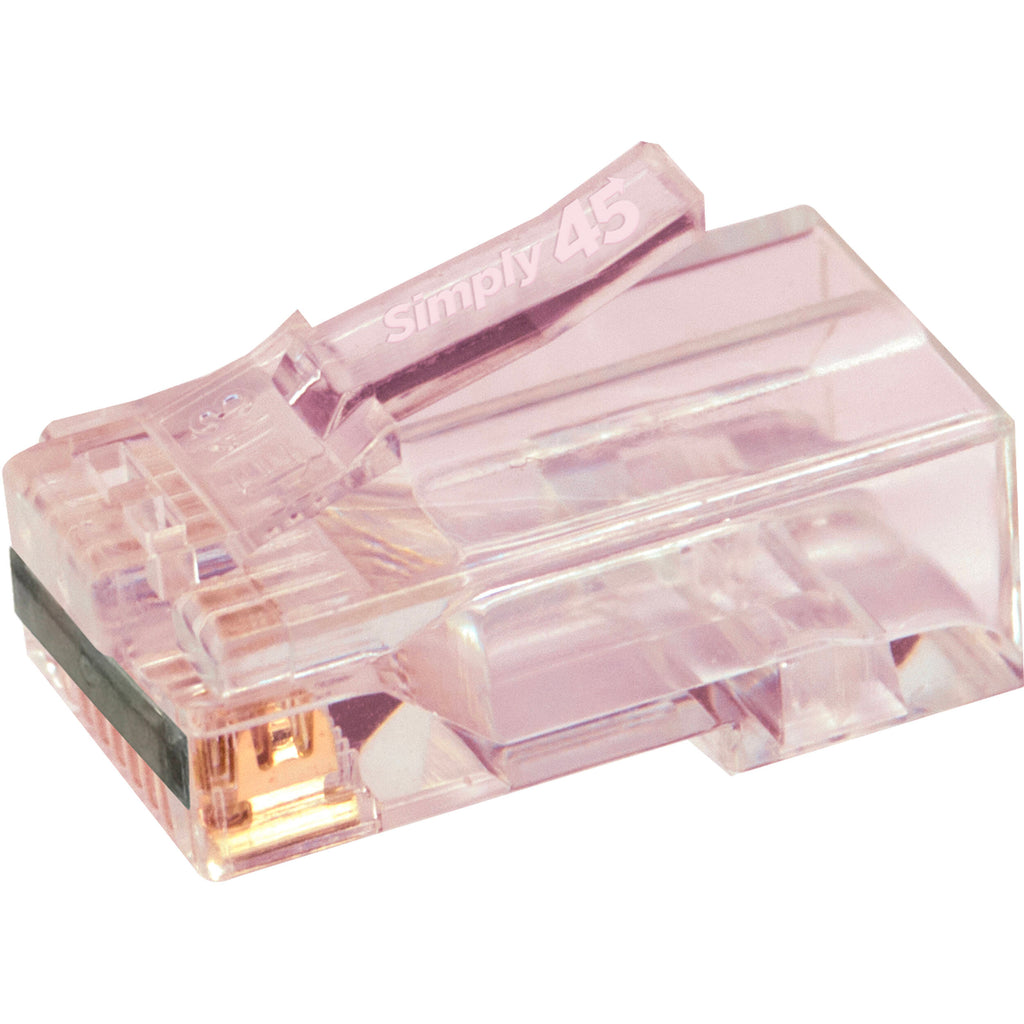

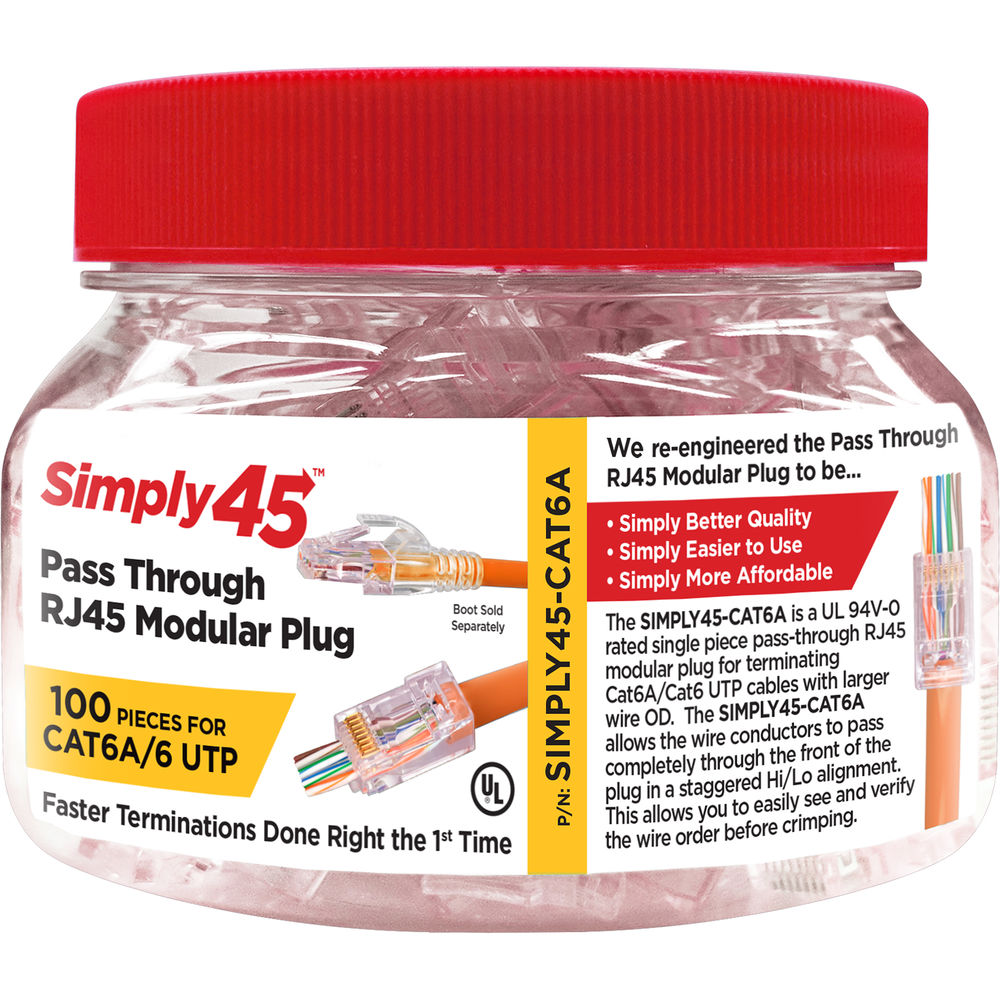

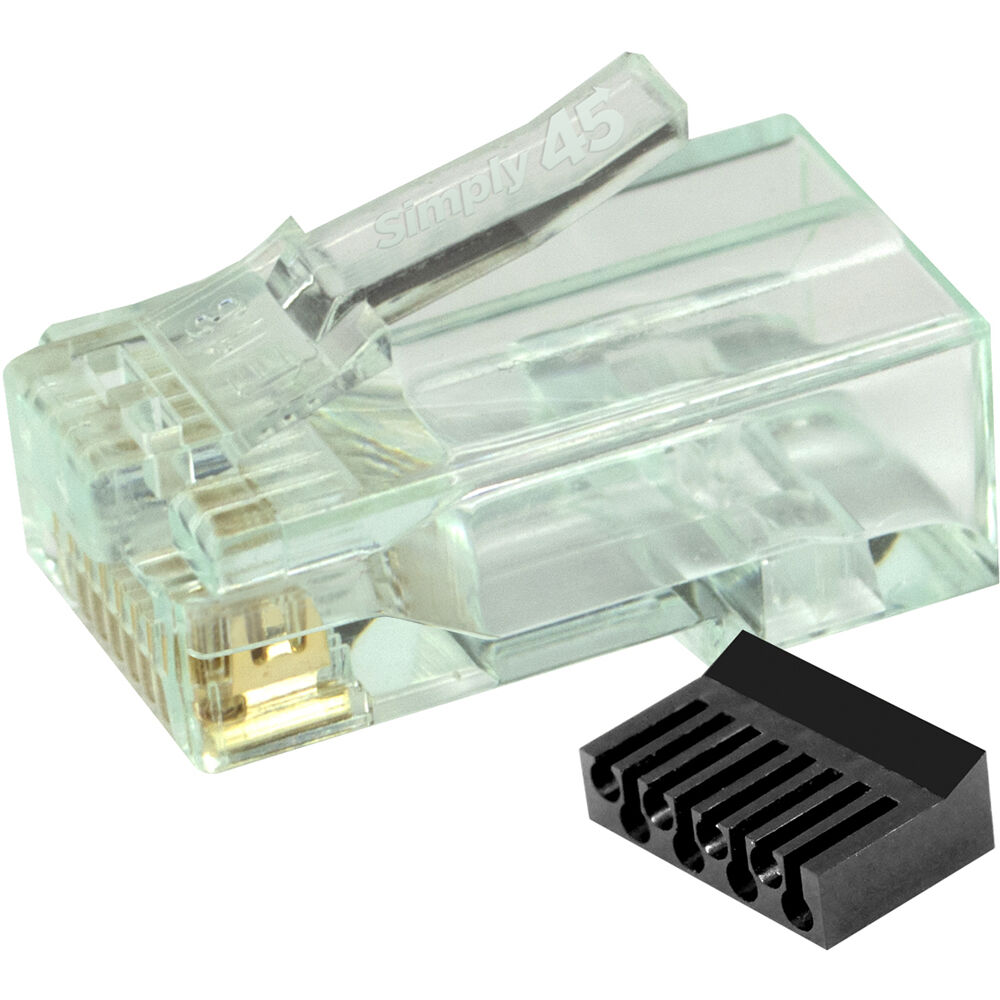

Designed to work with unshielded twisted pair (UTP) LAN cables, the Simply45 Cat 6a UTP Unshielded RJ45 Pass-Through Modular Plug connects onto 23 AWG solid twisted pair LAN cables up to 0.29" in diameter. One-hundred single piece pass-through modular RJ45 plugs come packed inside of a convenient plastic jar, which work with most Cat 6a and Cat 6 cables in a staggered high/low wire arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a red tint for easy identification. These modular plugs are rated to work with PoE and PoH devices.

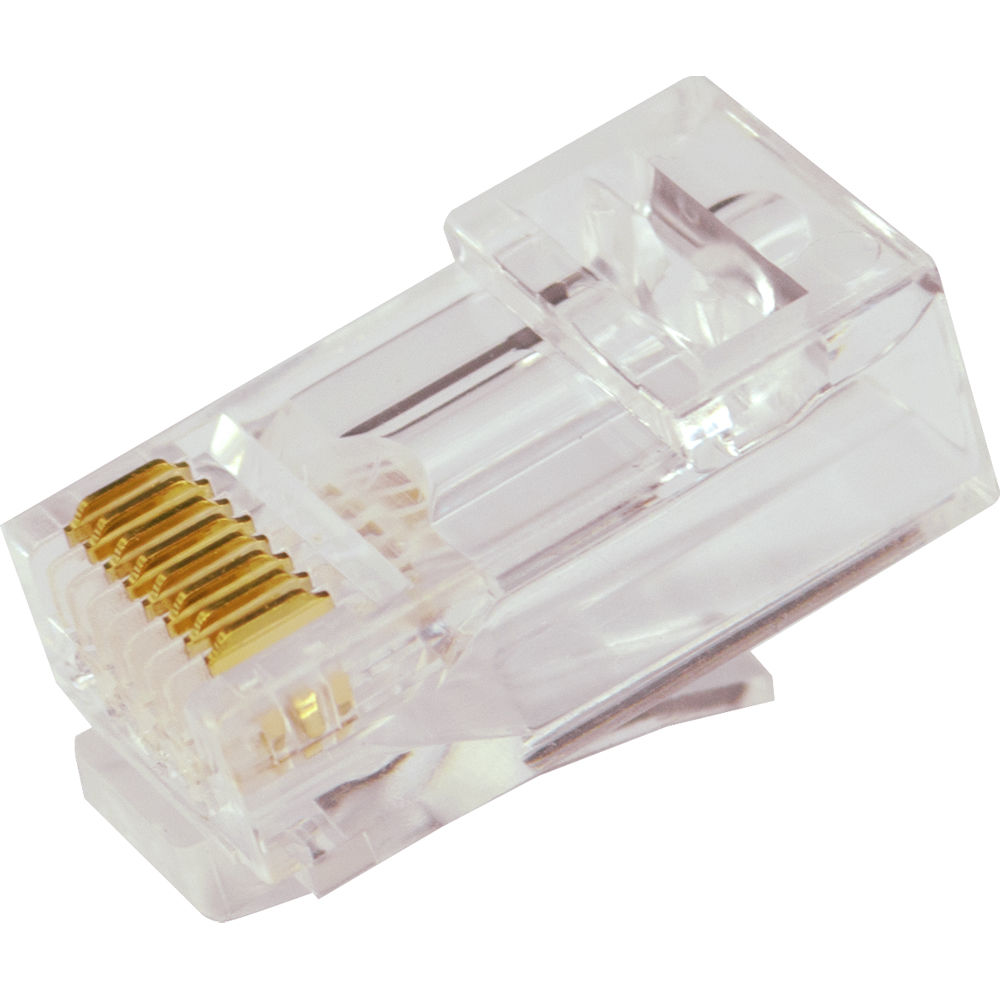

3-Prong Pin Design Simply45's 3-prong pins feature 50? of 24kt gold plating. Having a 3-prong pin provides three points of contact with the copper wire conductor, which provides a strong connection for high electrical performance and improved signal integrity with less heat build-up compared to a 2-prong connection. UPC: 817777016888

Type	RJ45 Male
Quantity	100
Contact Plating	50 µ Gold 100 µ Nickel
Contact Material	Bronze
Shielded	No
Conductor Diameter	0.043" / 1.1 mm
Contact Resistance	20 milliohms

Supported Cable Diameter	0.29" / 7.4 mm
Wire Gauge Supported	23 to 23 AWG
Cable Types Supported	Solid
Networking Type	Cat 6, Cat 6a

Plug Material	Polycarbonate
Compliance	RoHS, TAA, UL, FCC
Flame Resistance Rating	UL94V-0
Mating Cycles	2000
Operating Temperature	-40 to 158°F / -40 to 70°C

Package Weight	0.42 lb
Box Dimensions (LxWxH)	3.95 x 3.65 x 3.25"
