| ₹ 5915.0 includes GST and import duties. | |
| B2B customers can avail ₹ 902.04 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Simply45 S45-1601P Overview

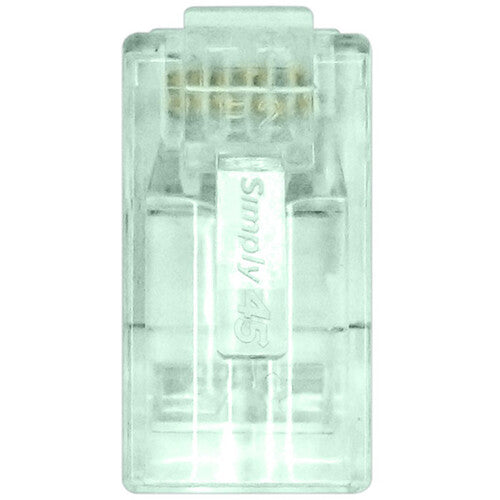

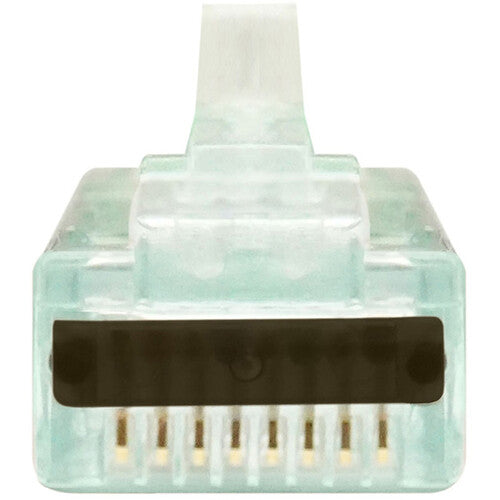

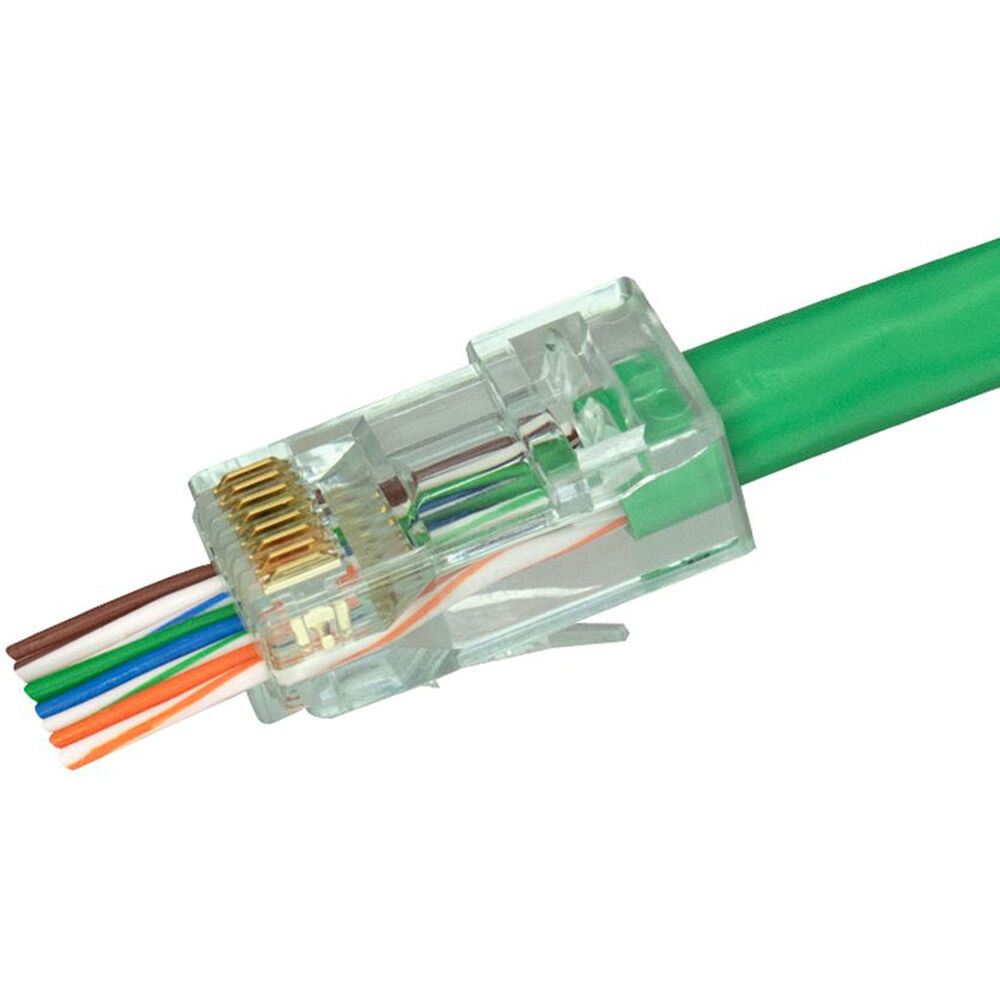

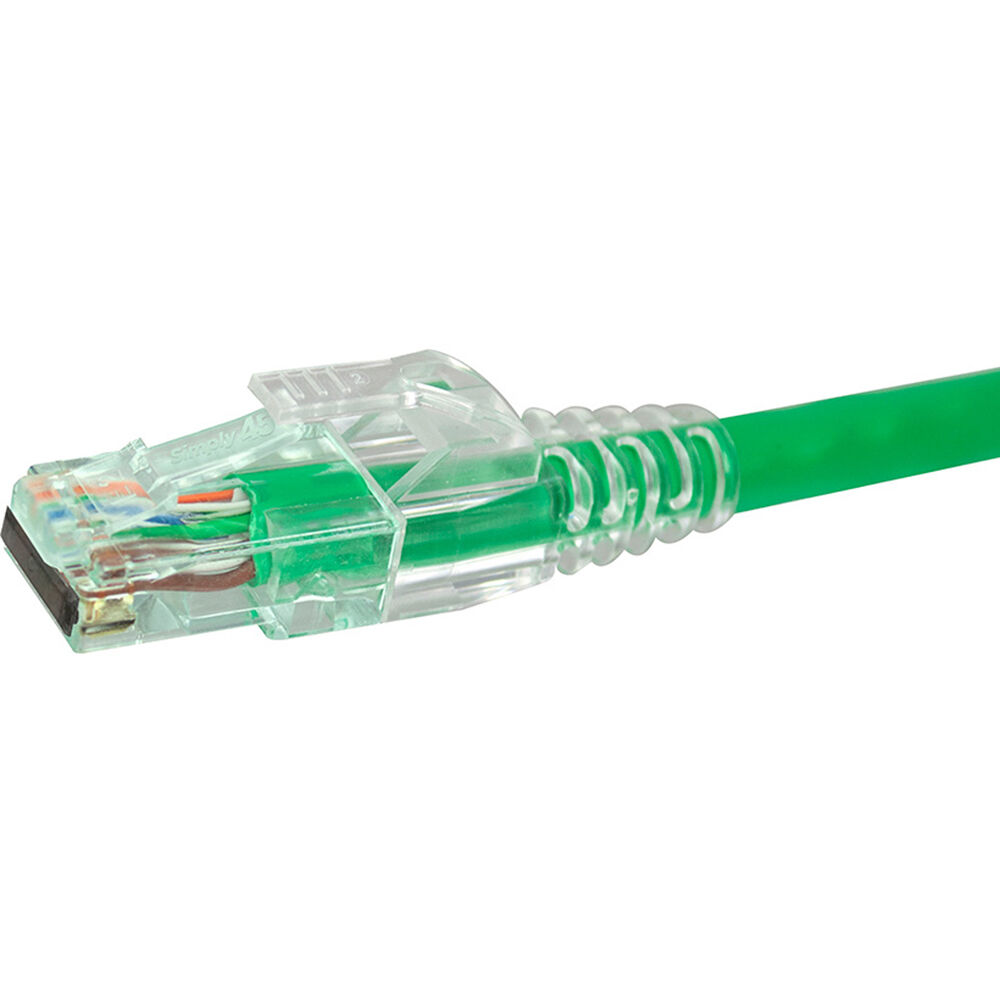

Achieve reliable performance from your unshielded twisted pair (UTP) LAN cables by finishing them with the Simply45 Cat 6 Unshielded RJ45 Modular Plug. Fifty single-piece pass-through modular RJ45 plugs are included in this pack, which are designed to fit 23 AWG solid or stranded Cat 6 cables up to 7mm in diameter in a straight-line arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light green tint for easy identification. The Cap45 isolation cap/bar covers exposed wire ends to reduce the risk of electrical shorting. These modular plugs are rated to work with PoE and PoH devices.
In the Box

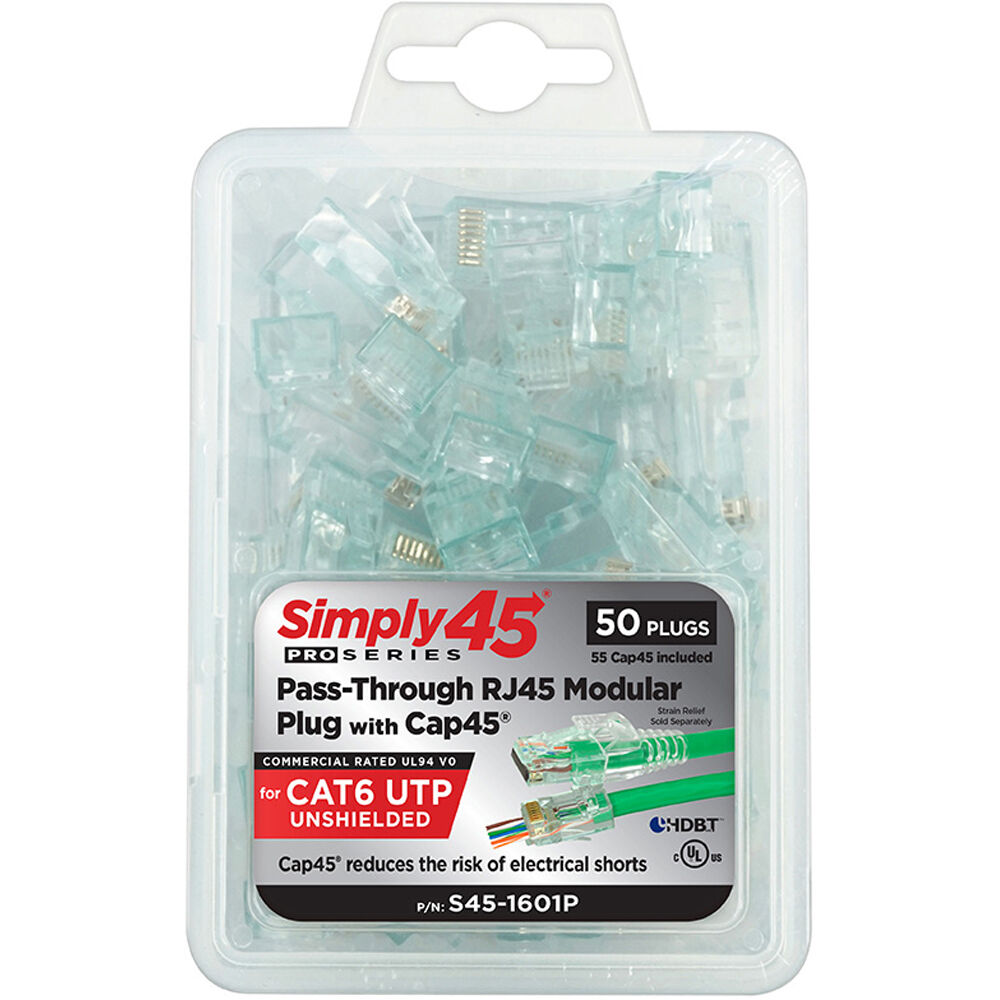

- Simply45 Cat 6 Unshielded RJ45 Pass-Through Modular Plug (50-Piece Clamshell Package)
- Limited Lifetime Warranty
Simply45 S45-1601P Specs
| Type |
RJ45
|
| Shielded |
No
|
| Networking Type |
Cat 6
|
| Type |
RJ45
|
| Quantity |
50
|
| Contact Plating |
50 µ Gold
Nickel |
| Contact Material |
Bronze
|
| Shielded |
No
|
| Conductor Diameter |
0.04" / 1.05 mm
|
| Contact Resistance |
20 milliohms
|
| Supported Cable Diameter |
0.3" / 7 mm
|
| Wire Gauge Supported |
23 to 23 AWG
|
| Cable Types Supported |
Solid, Stranded
|
| Networking Type |
Cat 6
|
| Plug Material |
Polycarbonate
|
| Flame Resistance Rating |
UL94V-0
|
| Mating Cycles |
2000
|
| Operating Temperature |
-40 to 158°F / -40 to 70°C
|
| Package Weight |
0.235 lb
|
| Box Dimensions (LxWxH) |
4.6 x 2.9 x 1.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5796.7 |
| 3-5 | ₹ 5737.55 |
| 5-10 | ₹ 5619.25 |
| 10+ | ₹ 5500.95 |
Bulk discount will be automatically applied during checkout based on quantity.
