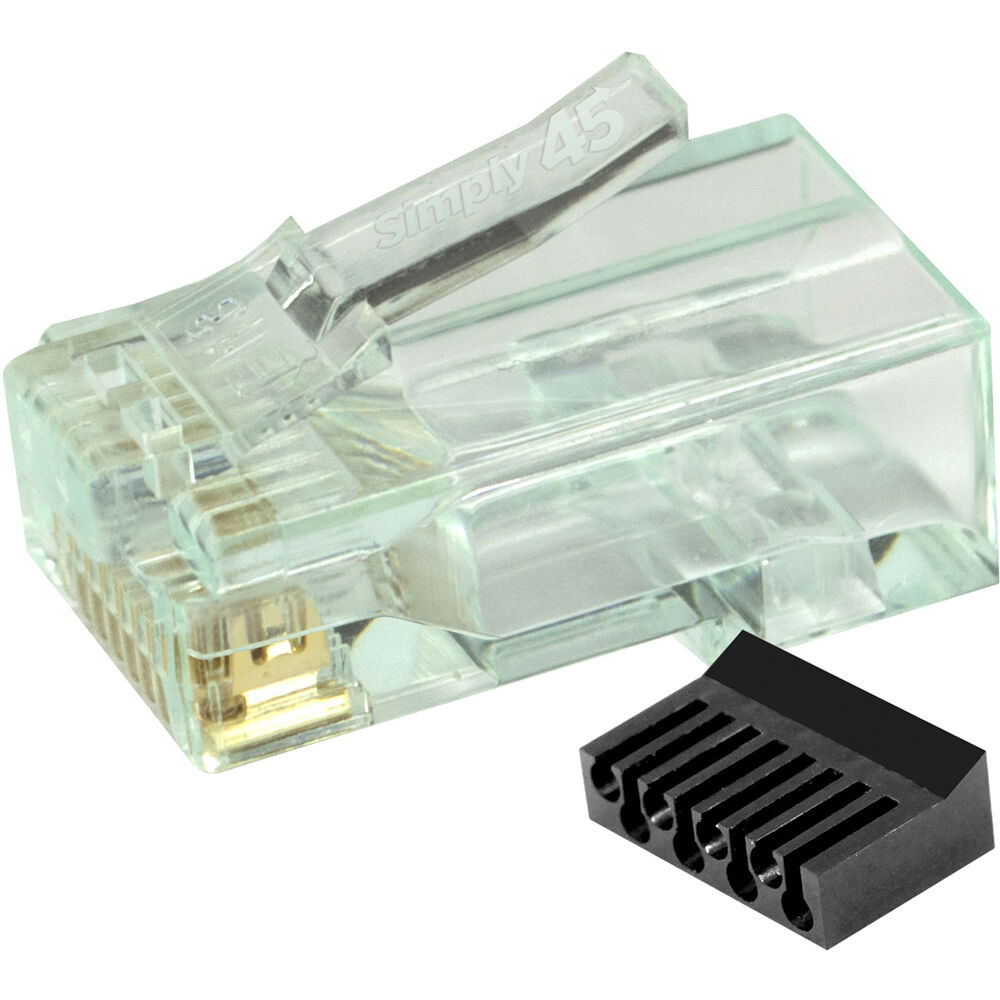

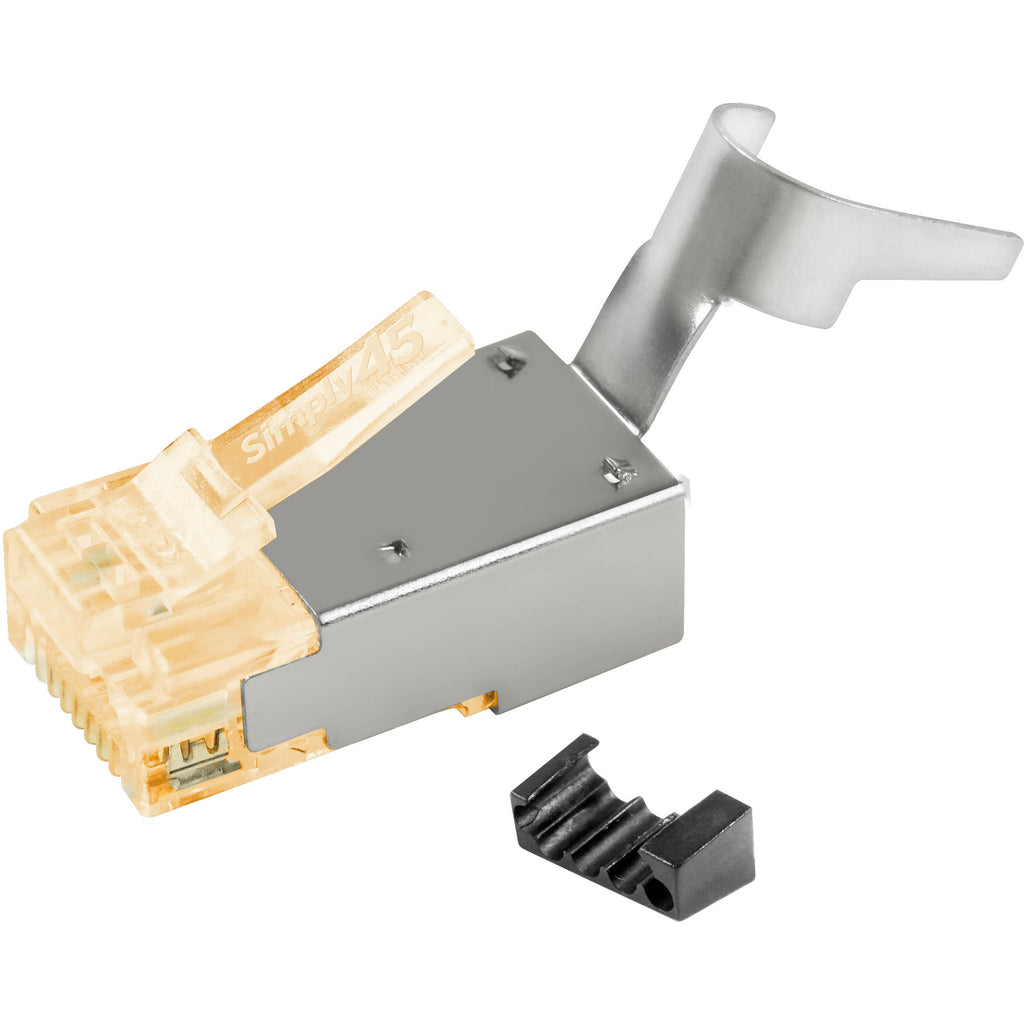

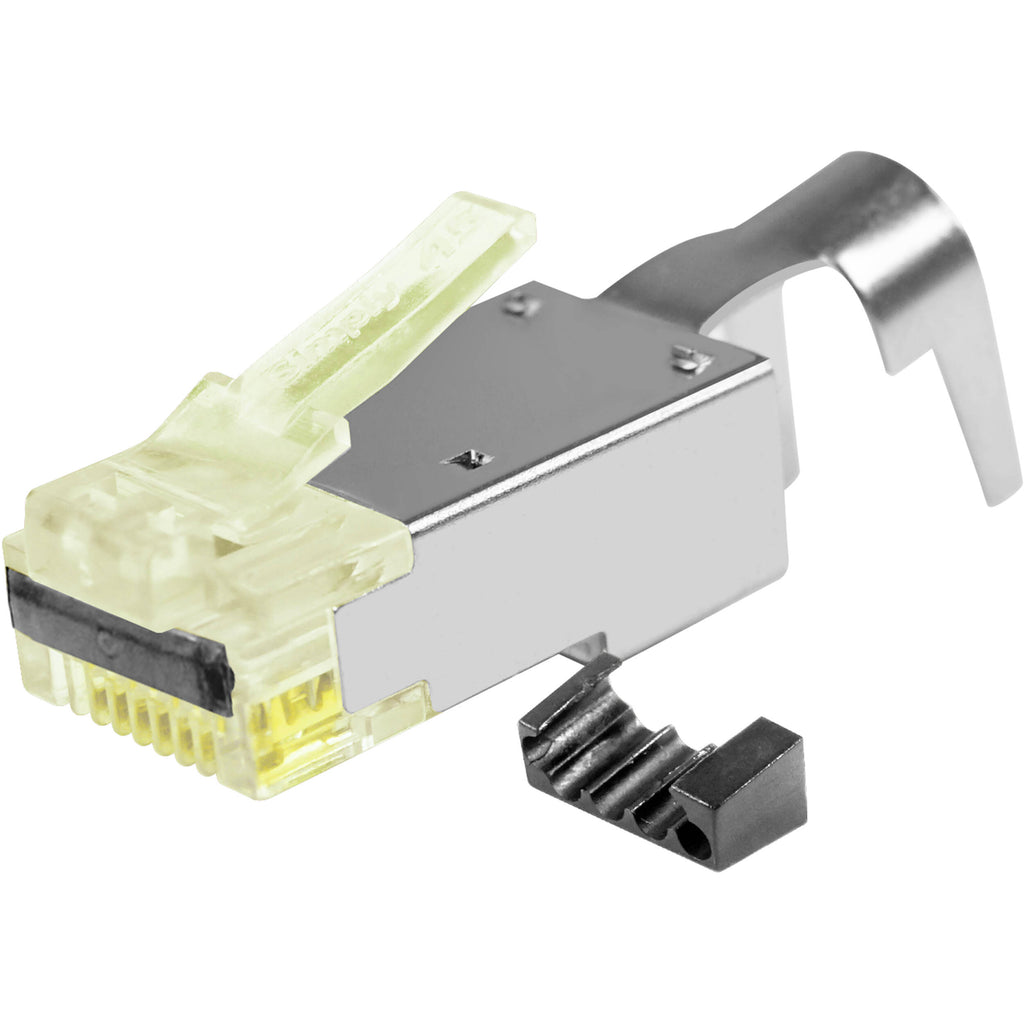

Cat 6 Shielded RJ45 Modular PlugExternal GroundSupports Solid LAN CablesGold-Plated 3-Prong Pins Designed to work with shielded twisted pair (STP) LAN cables, the Simply45 Cat 6 STP Shielded External Ground RJ45 Standard Modular Plug with Bar45 connects onto 23 AWG solid LAN cables up to 0.3" in diameter. Fifty two-piece shielded standard modular RJ45 plugs with external ground come packed inside of a convenient plastic jar, which work with most Cat 6 STP solid and Cat 6a F/UTP solid (PE insulated) LAN cables. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light green tint for easy identification. These modular plugs are rated to work with PoE and PoH devices.

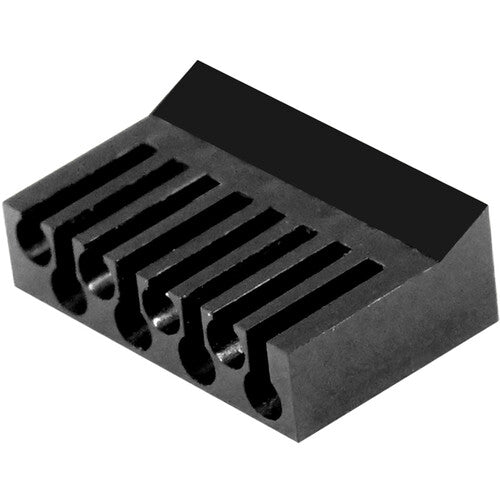

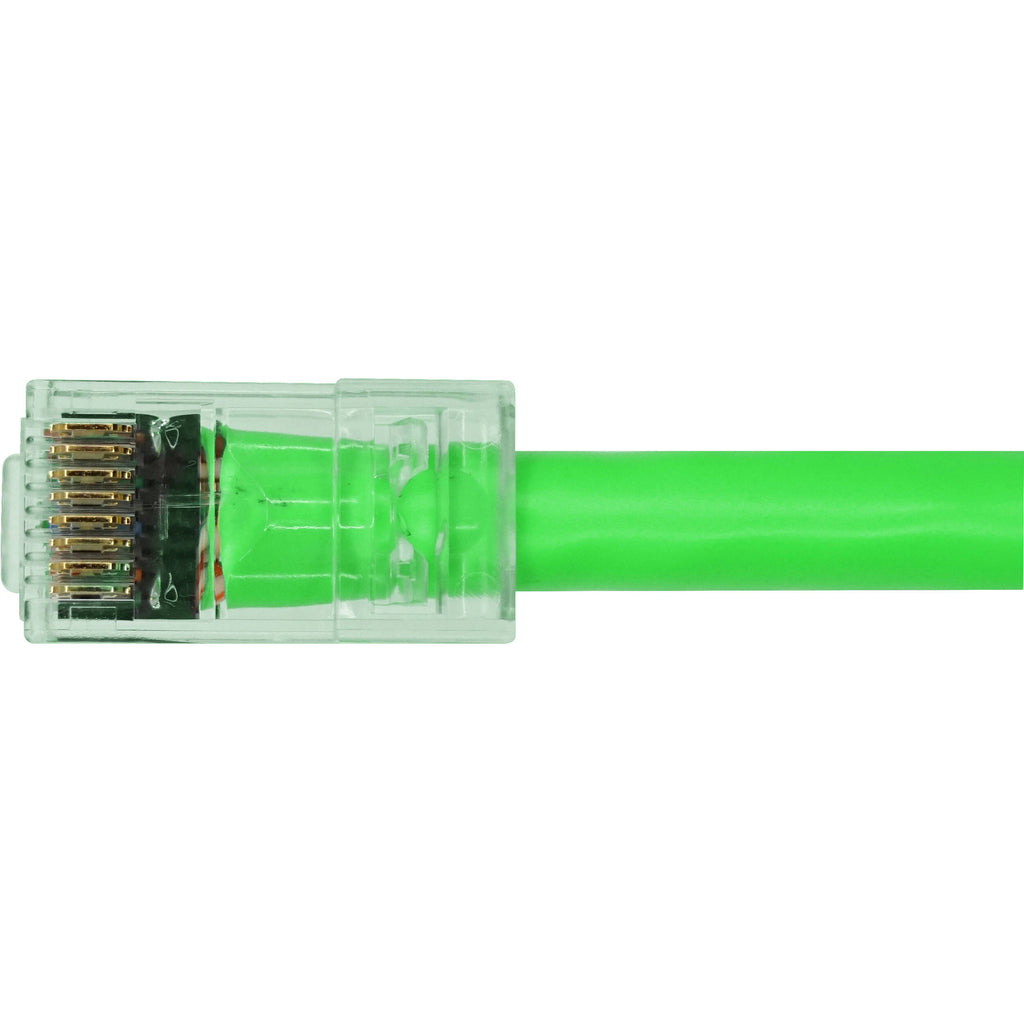

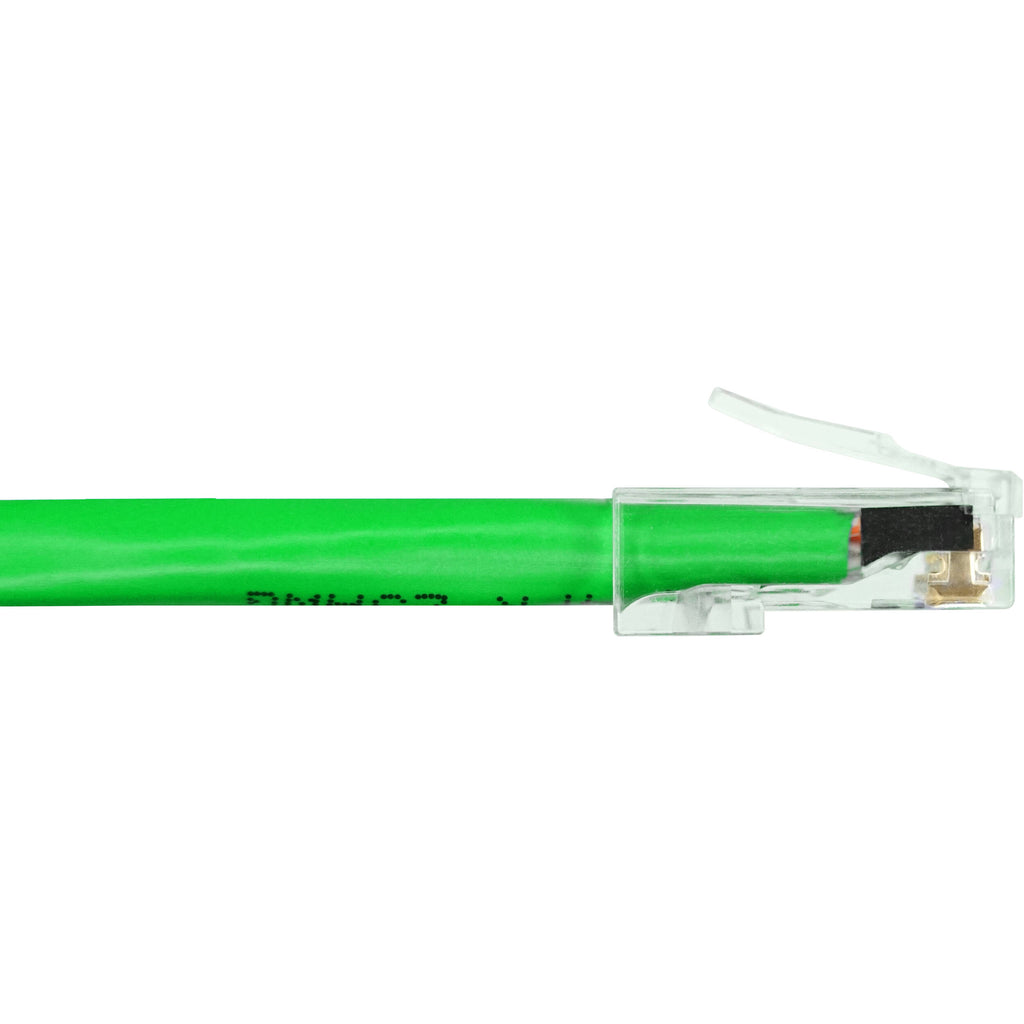

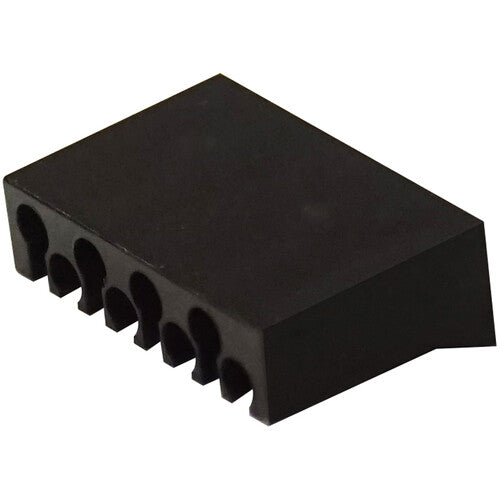

3-Prong Pin Design Simply45's 3-prong pins feature 50? of 24kt gold plating. Having a 3-prong pin provides three points of contact with the copper wire conductor, which provides a strong connection for high electrical performance and improved signal integrity with less heat build-up compared to a 2-prong connection. Bar45 Load Bar The Simply45 Bar45 load bars are designed with high quality materials to improve termination performance while simplifying the termination process. It offers better signal isolation for reduced crosstalk and maximized performance by reducing the length of untwisted wires inside the plug, which helps maintain signal integrity for larger diameter shielded cables with PE insulated wires. The Bar45 also uses a Hi/Lo stagger design that slides down to the LAN cable jacket to significantly reduce the amount of untwisted wires inside the RJ45 plug. UPC: 817777017762
| Type | RJ45 Male |
| Quantity | 50 |
| Contact Plating | 50 µ Gold
100 µ Nickel |
| Contact Material | Bronze |
| Shielded | Yes |
| Conductor Diameter | 0" / 1.2 mm |
| Contact Resistance | 20 milliohms |
| Supported Cable Diameter | 0.3" / 8 mm |
| Wire Gauge Supported | 23 to 23 AWG |
| Cable Types Supported | Solid, Stranded |
| Networking Type | Cat 6 |
| Plug Material | Polycarbonate |
| Compliance | RoHS, UL, FCC |
| Flame Resistance Rating | UL94V-0 |
| Mating Cycles | 2000 |
| Operating Temperature | -40 to 158°F / -40 to 70°C |
| Package Weight | 0.475 lb |
| Box Dimensions (LxWxH) | 3.9 x 3.7 x 3.25" |
In the Box
- Simply45 Cat 6 STP Shielded External Ground RJ45 Standard Modular Plug with Bar45 (50-Piece Jar)
- Limited Lifetime Warranty
