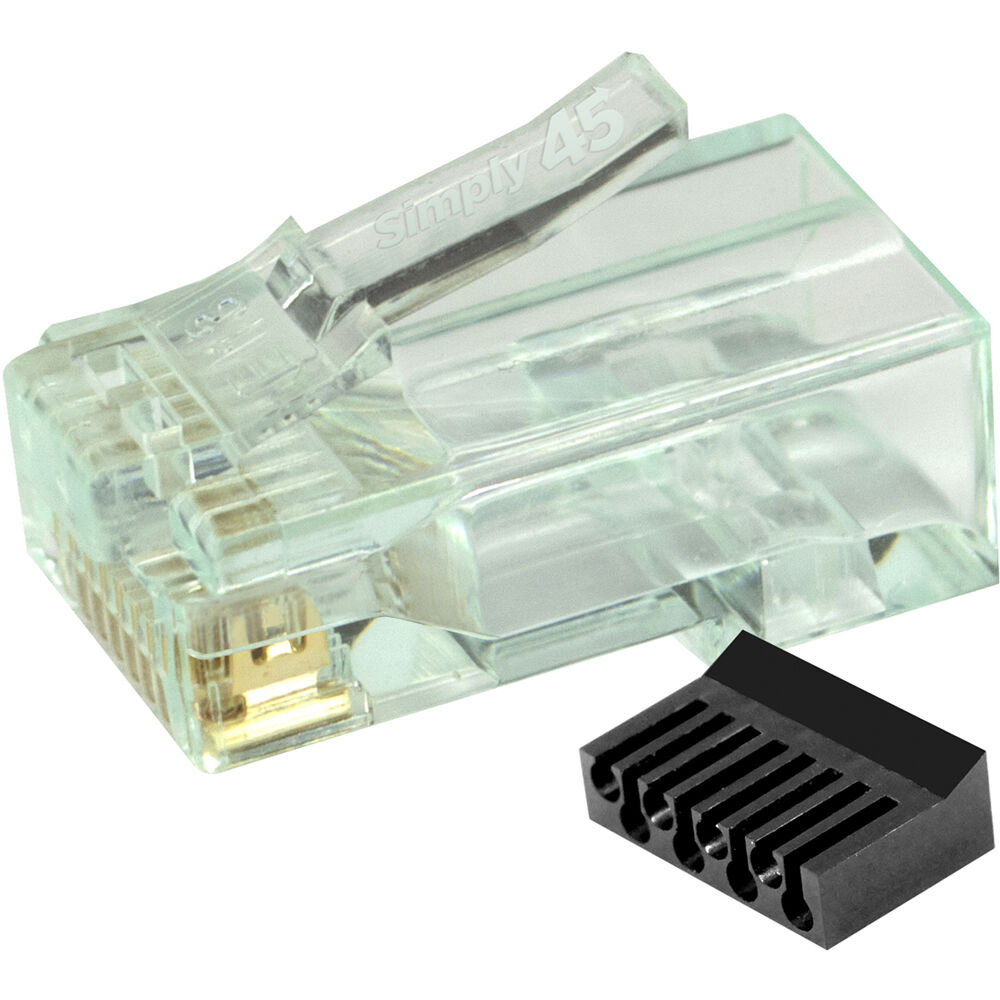

Simply45 Cat 6/6a UTP Unshielded RJ45 Standard Modular Plug with Bar45 (100-Piece Jar)

Cat 6/6a Unshielded RJ45 Modular Plug

Supports Solid and Stranded LAN Cables

Gold-Plated 3-Prong Pins

Bar45 Load Bar

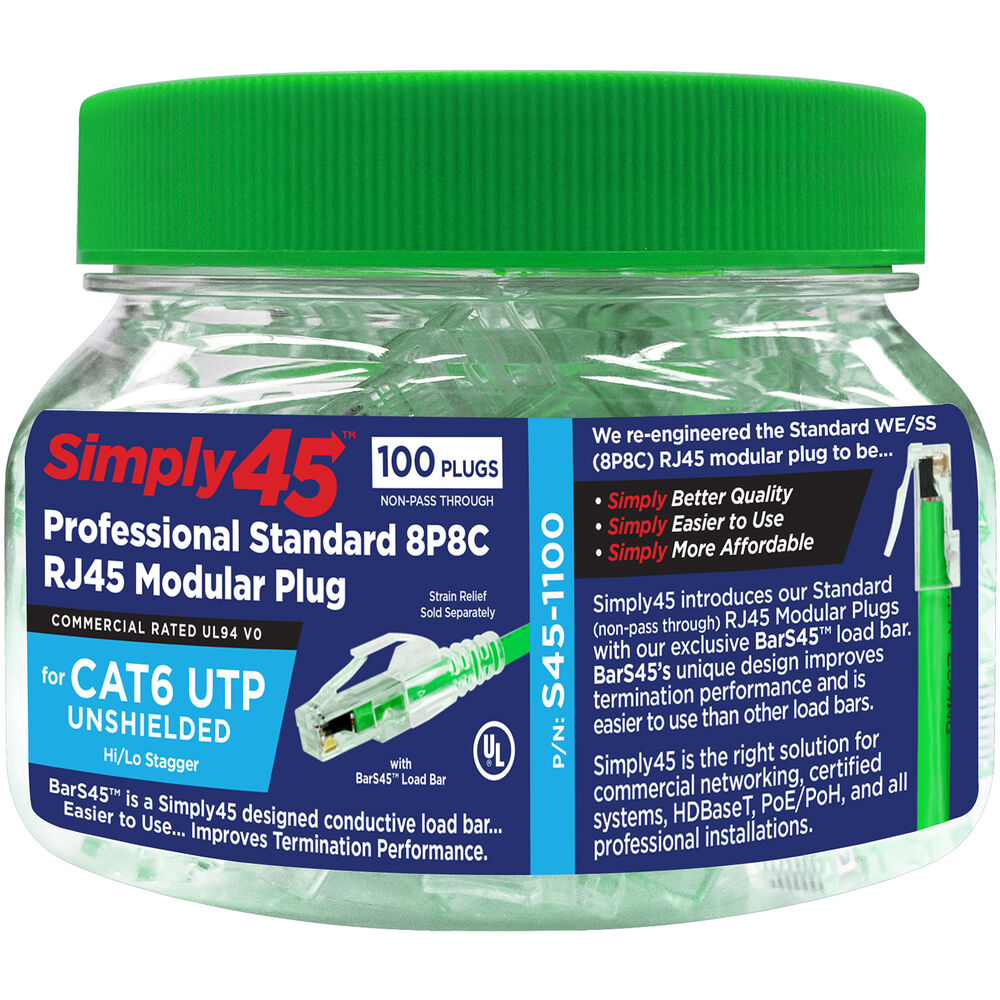

Designed to work with unshielded twisted pair (UTP) LAN cables, the Simply45 Cat 6/6a UTP Unshielded RJ45 Standard Modular Plug with Bar45 connects onto 23 AWG solid LAN cables up to 0.3" in diameter. One-hundred single piece modular RJ45 plugs come packed inside of a convenient plastic jar, which work with most Cat 6 and Cat 6a UTP solid PE insulated LAN cables in addition to larger diameter stranded unshielded LAN cables. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light green tint for easy identification. These modular plugs are rated to work with PoE and PoH devices.

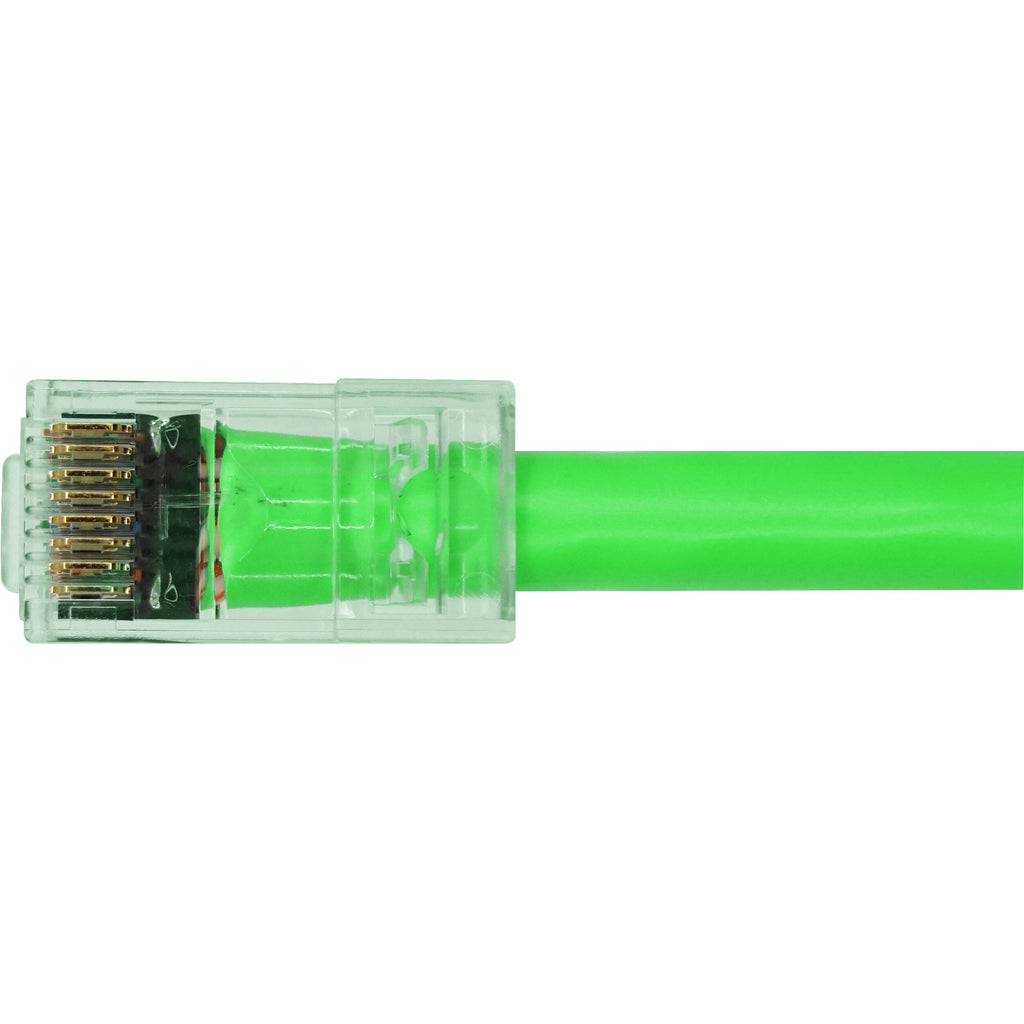

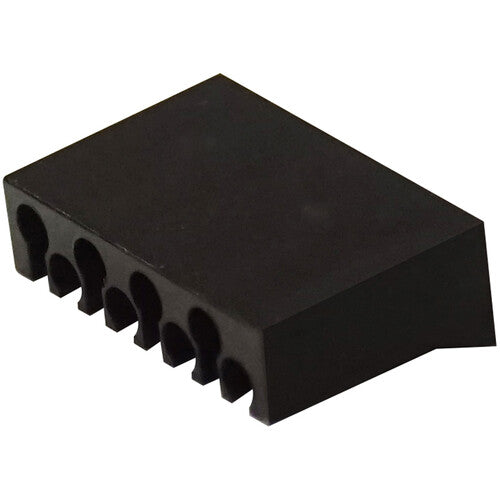

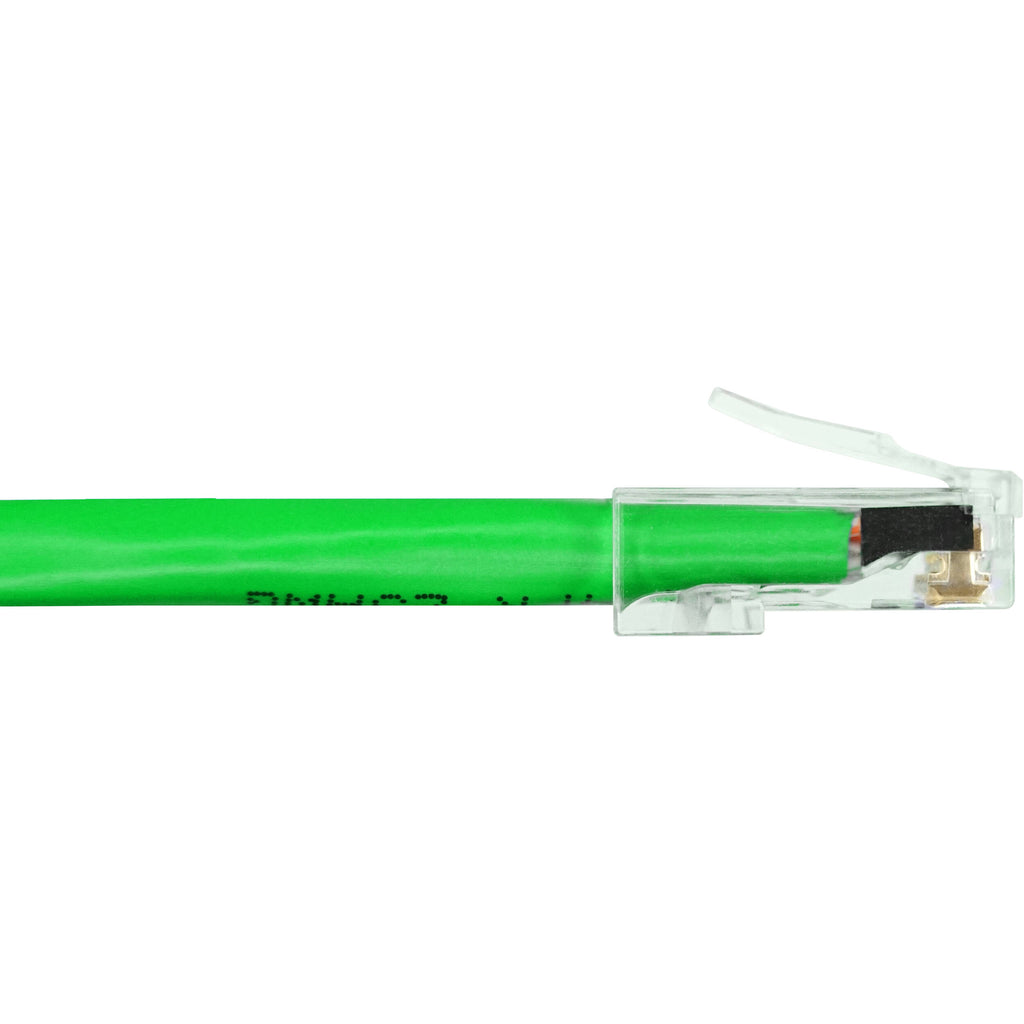

3-Prong Pin Design Simply45's 3-prong pins feature 50? of 24kt gold plating. Having a 3-prong pin provides three points of contact with the copper wire conductor, which provides a strong connection for high electrical performance and improved signal integrity with less heat build-up compared to a 2-prong connection. Bar45 Load Bar The Simply45 Bar45 load bars are designed with high quality materials to improve termination performance while simplifying the termination process. It offers better signal isolation for reduced crosstalk and maximized performance by reducing the length of untwisted wires inside the plug. It uses a Hi/Lo stagger design that inserts into the RJ45 plug until it sits directly on top of the pins to significantly reduce the amount of untwisted wires inside. UPC: 817777017748

Type	RJ45 Male
Quantity	100
Contact Plating	50 µ Gold 100 µ Nickel
Contact Material	Bronze
Shielded	No
Conductor Diameter	0.05" / 1.17 mm
Contact Resistance	20 milliohms

Supported Cable Diameter	0.3" / 7.4 mm
Wire Gauge Supported	23 to 23 AWG
Cable Types Supported	Solid, Stranded
Networking Type	Cat 6, Cat 6a

Plug Material	Polycarbonate
Compliance	RoHS, UL, FCC
Flame Resistance Rating	UL94V-0
Mating Cycles	2000
Operating Temperature	-40 to 158°F / -40 to 70°C

Package Weight	0.435 lb
Box Dimensions (LxWxH)	3.95 x 3.7 x 3.25"
