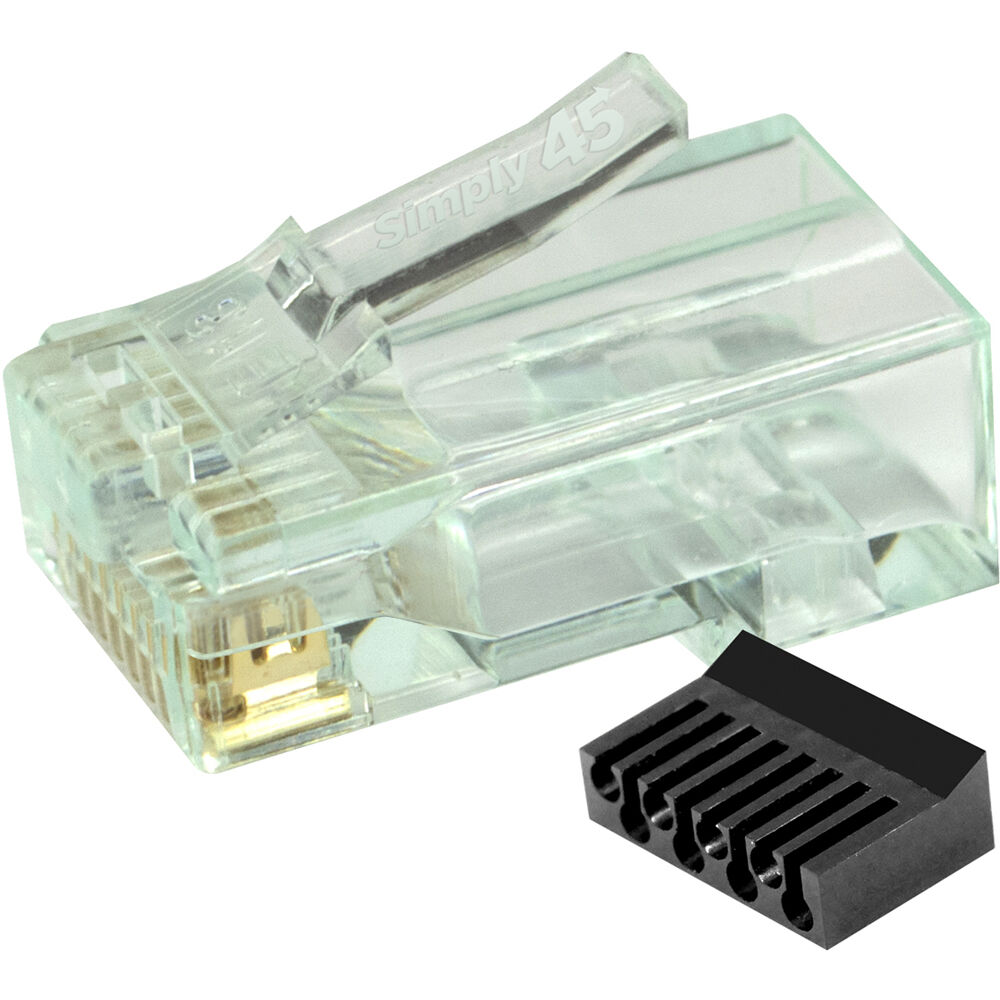

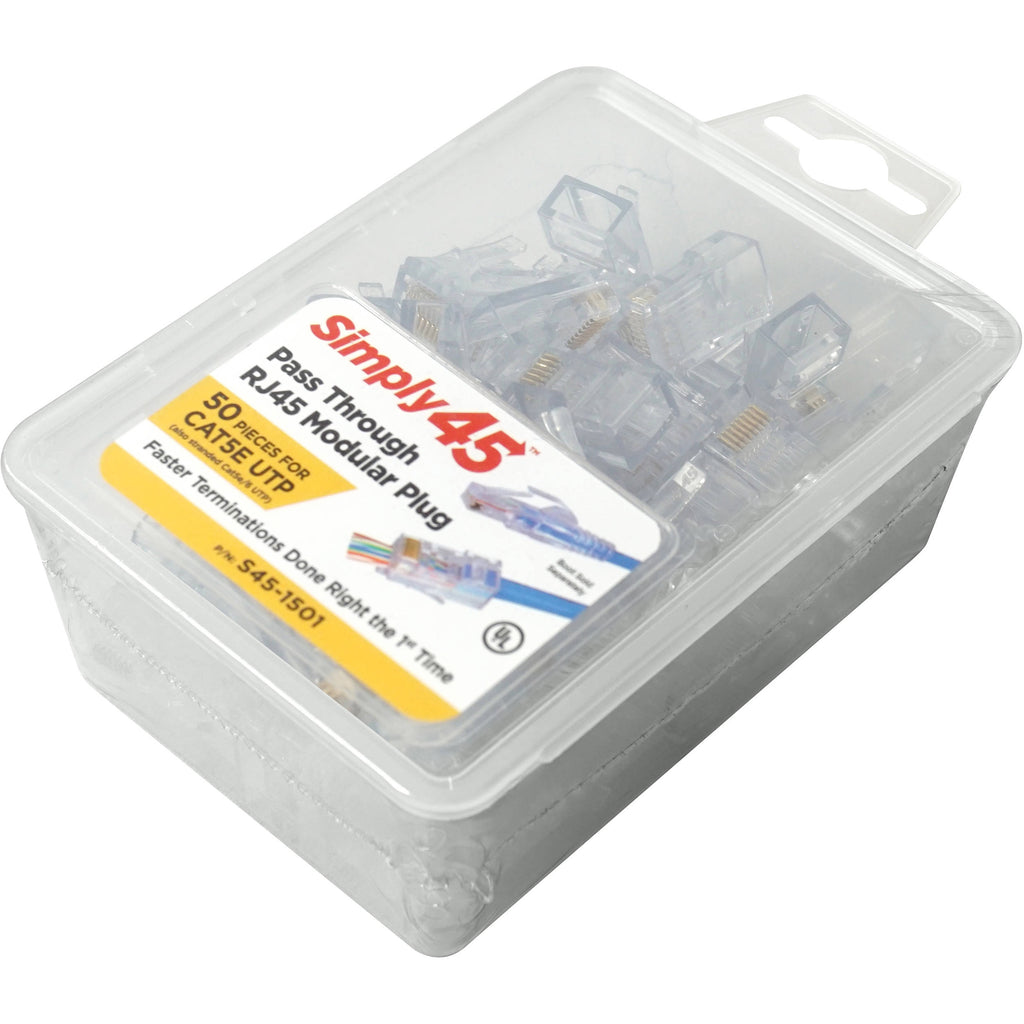

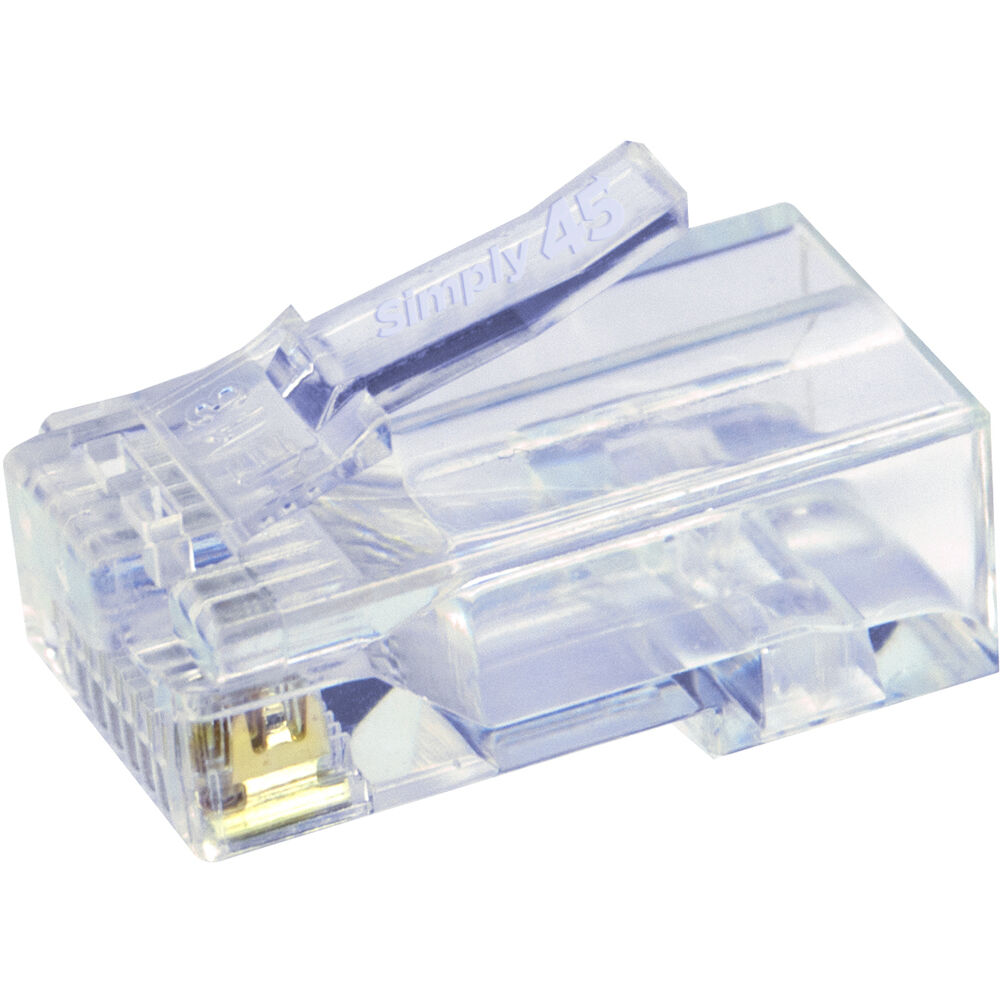

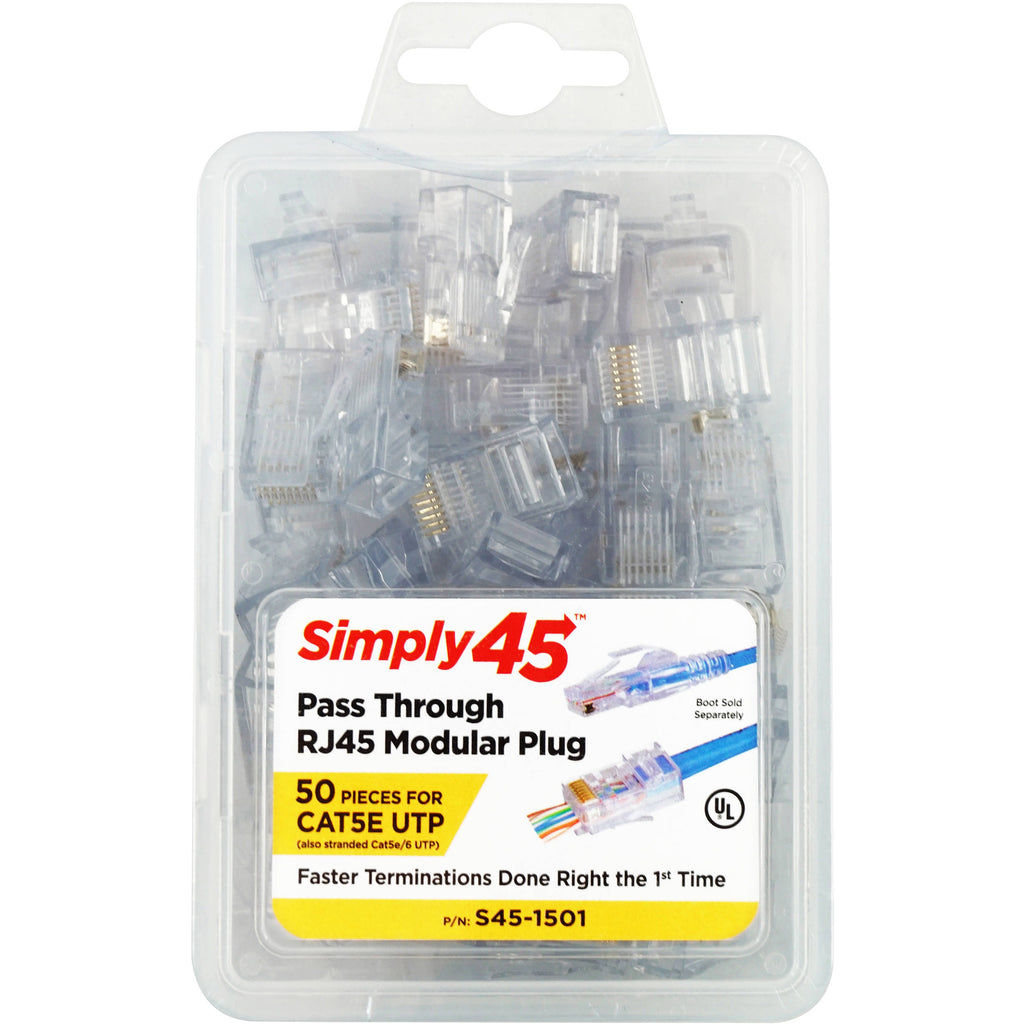

Cat 5e Unshielded RJ45 Modular PlugSupports Solid and Stranded LAN CablesGold-Plated 3-Prong PinsStraight-Line Wire Insert Designed to work with unshielded twisted pair (UTP) LAN cables, the Simply45 Cat 5e UTP Unshielded RJ45 Pass-Through Modular Plug connects onto 23 AWG solid and stranded LAN cables up to 0.26" in diameter. Fifty single piece pass-through modular RJ45 plugs are included in this pack, which work with most Cat 5e cables in a straight-line arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light blue tint for easy identification. These modular plugs are rated to work with PoE and PoH devices.
3-Prong Pin Design Simply45's 3-prong pins feature 50? of 24kt gold plating. Having a 3-prong pin provides three points of contact with the copper wire conductor, which provides a strong connection for high electrical performance and improved signal integrity with less heat build-up compared to a 2-prong connection. UPC: 817777017656
| Type | RJ45 Male |
| Quantity | 50 |
| Contact Plating | 50 µ Gold
100 µ Nickel |
| Contact Material | Bronze |
| Shielded | No |
| Conductor Diameter | 0.041" / 1.05 mm |
| Contact Resistance | 20 milliohms |
| Supported Cable Diameter | 0.26" / 6.5 mm |
| Wire Gauge Supported | 24 to 28 AWG |
| Cable Types Supported | Solid, Stranded |
| Networking Type | Cat 5e |
| Plug Material | Polycarbonate |
| Compliance | RoHS, TAA, UL, FCC |
| Flame Resistance Rating | UL94V-0 |
| Mating Cycles | 2000 |
| Operating Temperature | -40 to 158°F / -40 to 70°C |
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 4.8 x 3 x 1.6" |
In the Box
- Simply45 Cat 5e UTP Unshielded RJ45 Pass-Through Modular Plug (50-Pack)
- Limited Lifetime Warranty
