Simply45 Cat 5e UTP Unshielded RJ45 Pass-Through Modular Plug (100-Piece Jar)

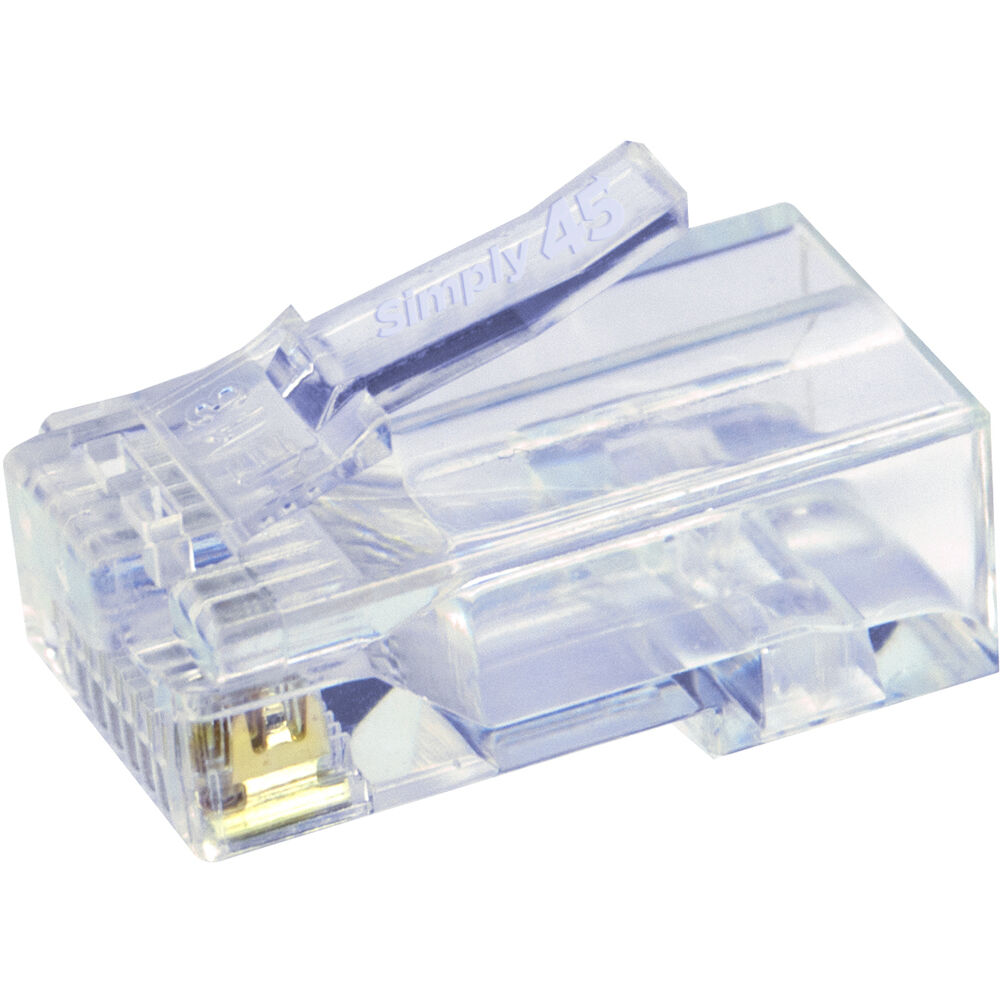

Cat 5e Unshielded RJ45 Modular Plug

Supports Solid and Stranded LAN Cables

Gold-Plated 3-Prong Pins

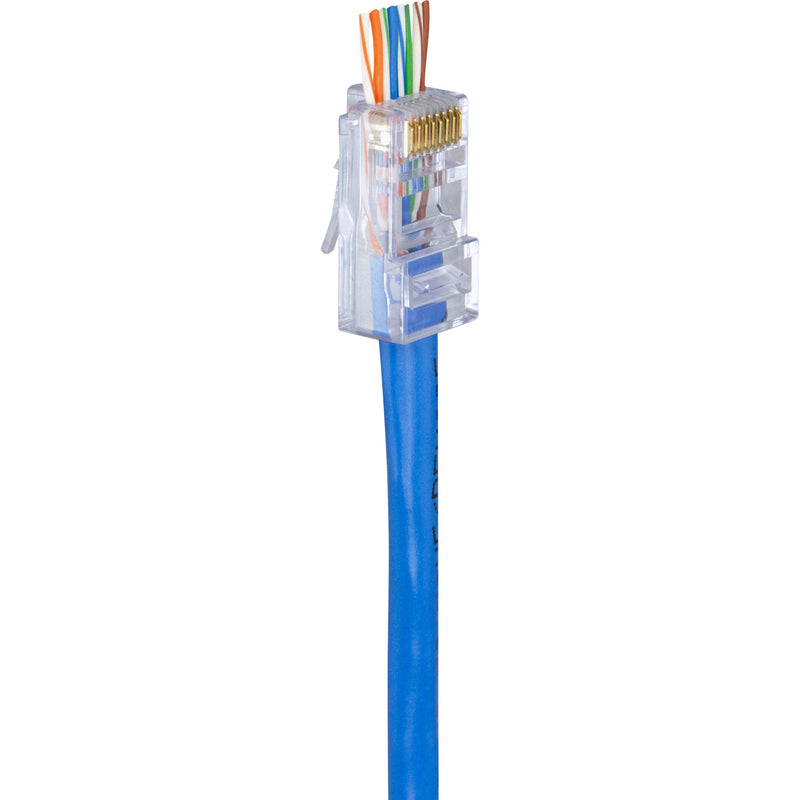

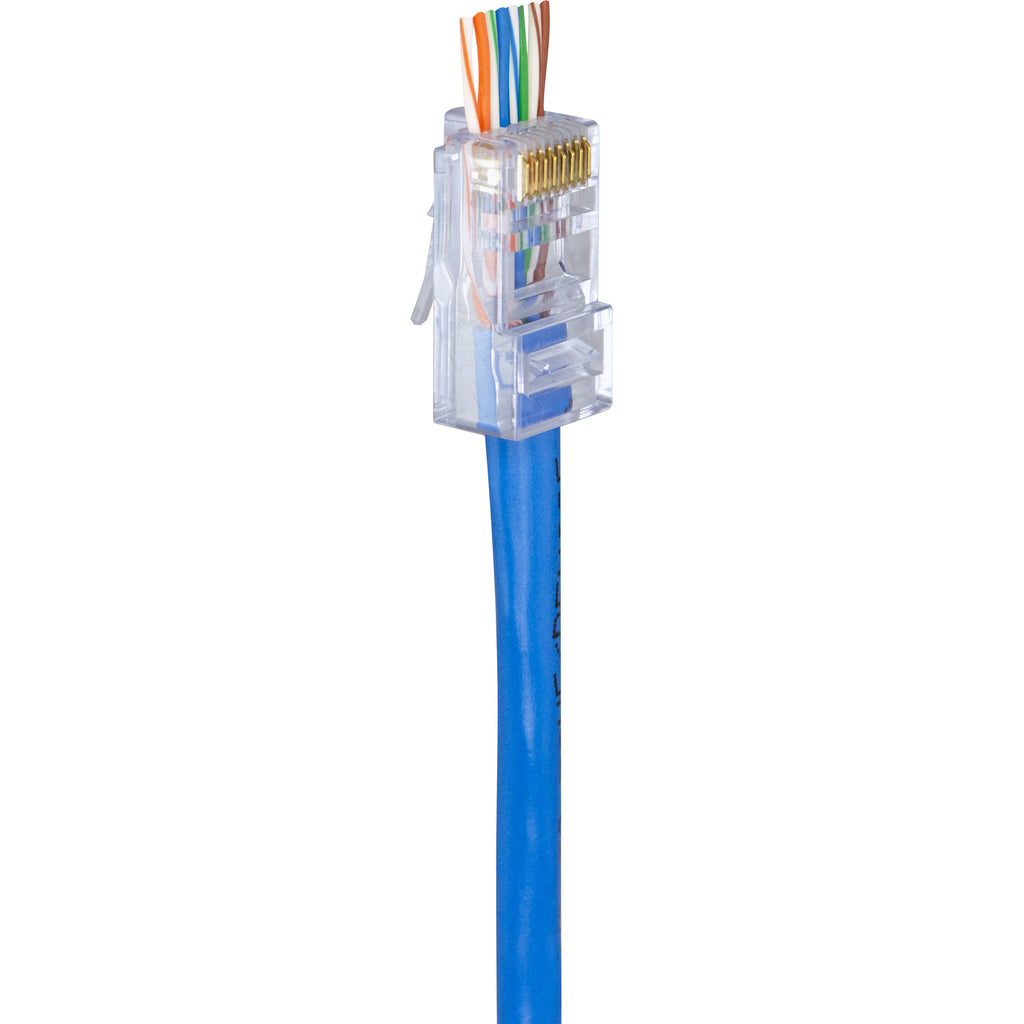

Straight-Line Wire Insert

Simply45 Cat5e Sheilded Termination

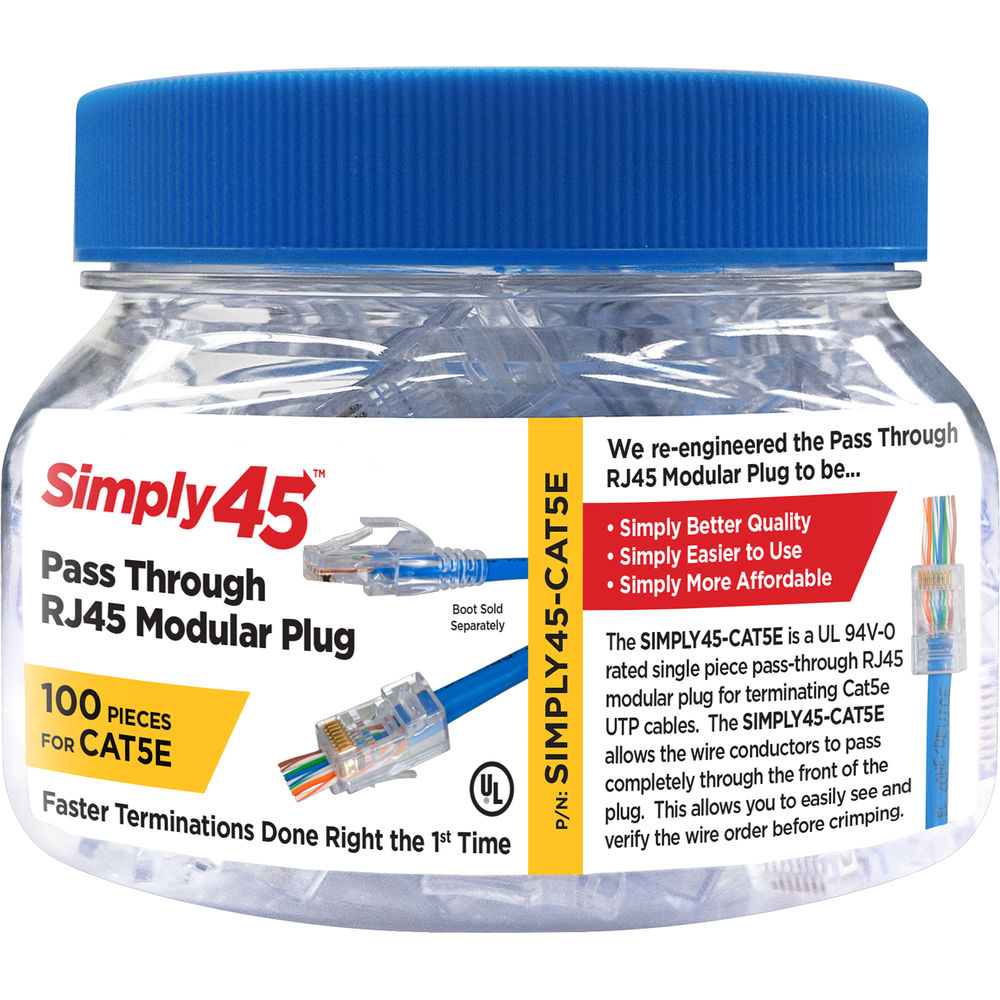

Designed to work with unshielded twisted pair (UTP) LAN cables, the Simply45 Cat 5e UTP Unshielded RJ45 Pass-Through Modular Plug connects onto 23 AWG solid and stranded LAN cables up to 0.26" in diameter. One-hundred single piece pass-through modular RJ45 plugs come packed inside of a convenient plastic jar, which work with most Cat 5e cables in a straight-line arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light blue tint for easy identification. These modular plugs are rated to work with PoE and PoH devices.

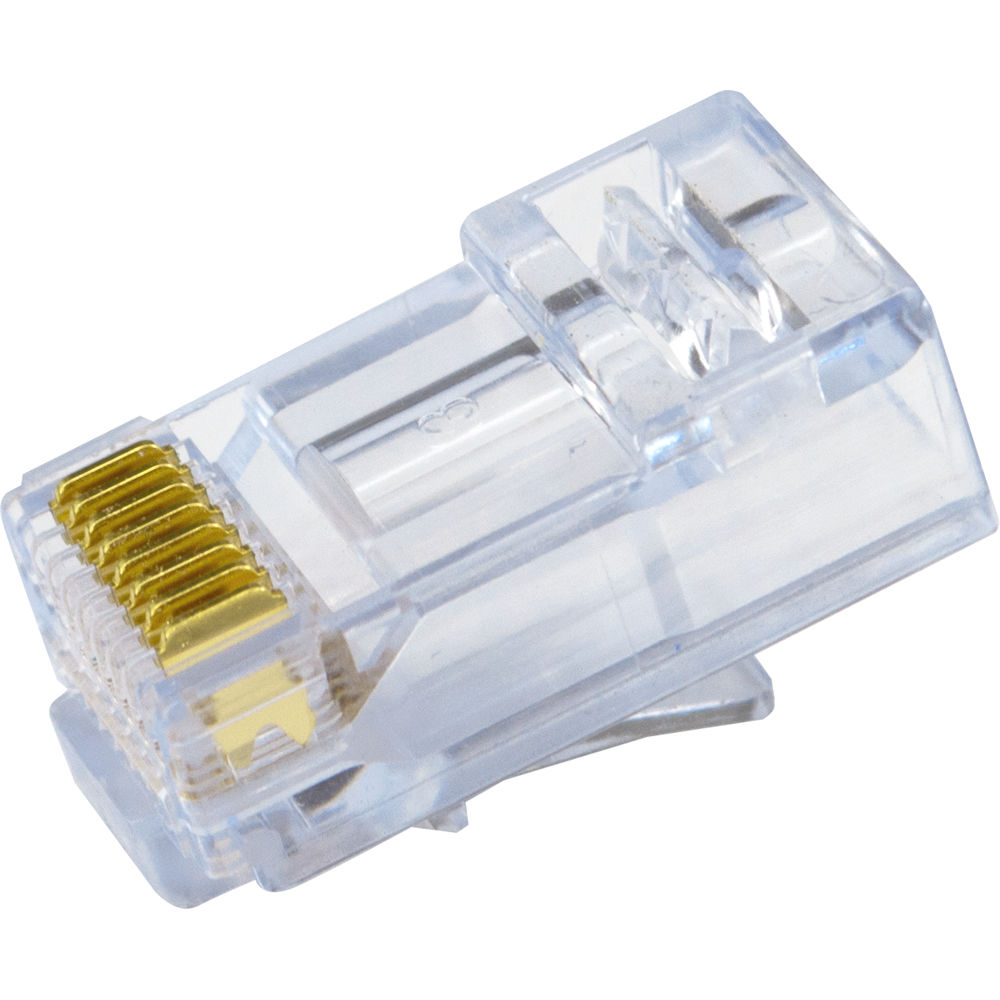

3-Prong Pin Design Simply45's 3-prong pins feature 50? of 24kt gold plating. Having a 3-prong pin provides three points of contact with the copper wire conductor, which provides a strong connection for high electrical performance and improved signal integrity with less heat build-up compared to a 2-prong connection. UPC: 817777016802

Type	RJ45 Male
Quantity	100
Contact Plating	50 µ Gold 100 µ Nickel
Contact Material	Bronze
Shielded	No
Conductor Diameter	0.041" / 1.05 mm
Contact Resistance	20 milliohms

Supported Cable Diameter	0.26" / 6.5 mm
Wire Gauge Supported	24 to 28 AWG
Cable Types Supported	Solid, Stranded
Networking Type	Cat 5e

Plug Material	Polycarbonate
Compliance	RoHS, TAA, UL, FCC
Flame Resistance Rating	UL94V-0
Mating Cycles	2000
Operating Temperature	-40 to 158°F / -40 to 70°C

Package Weight	0.48 lb
Box Dimensions (LxWxH)	3.95 x 3.7 x 3.25"
