Description
Simply45 S45-1501P Overview

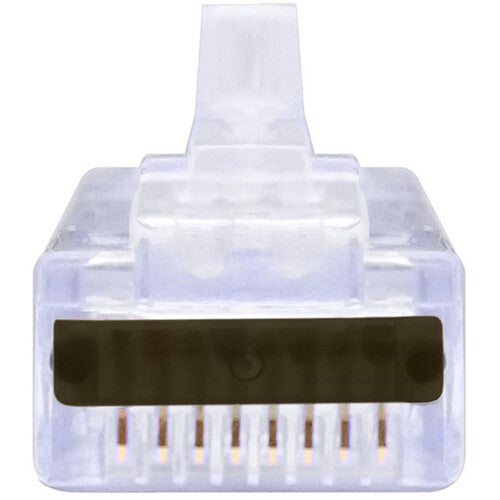

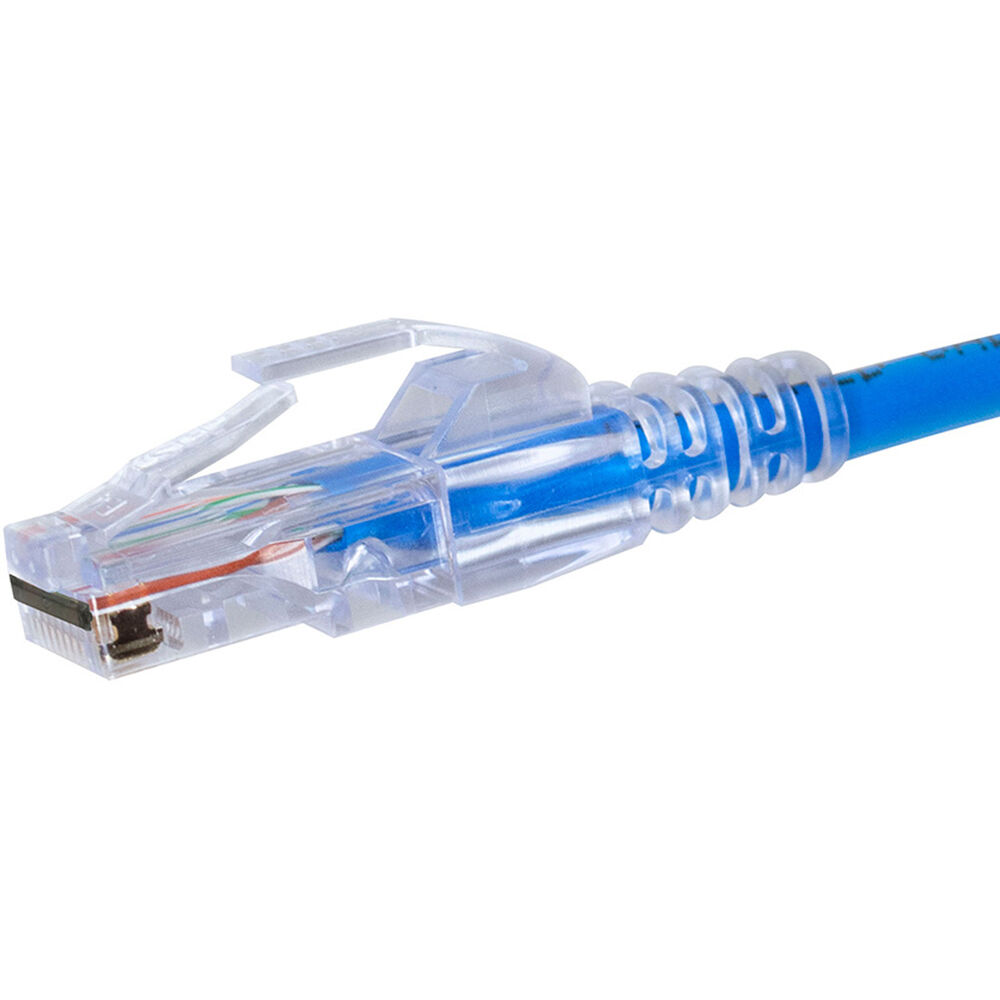

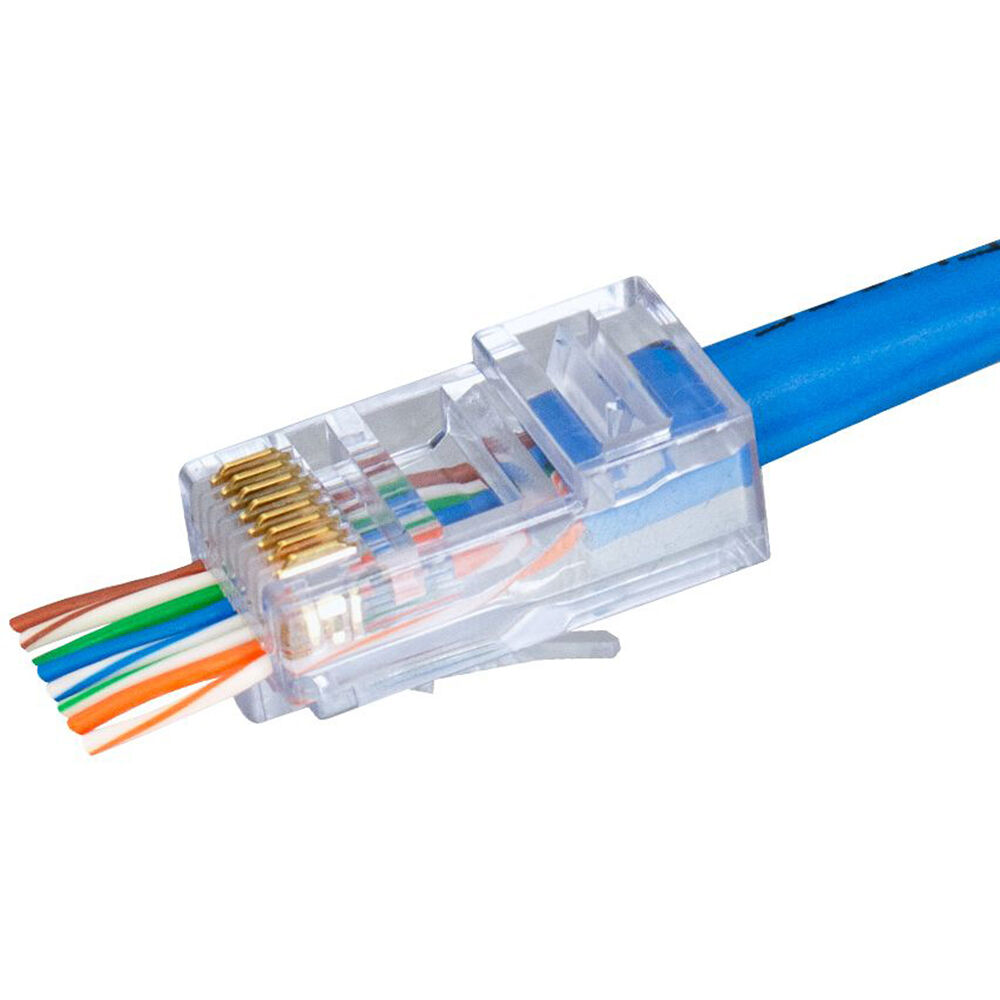

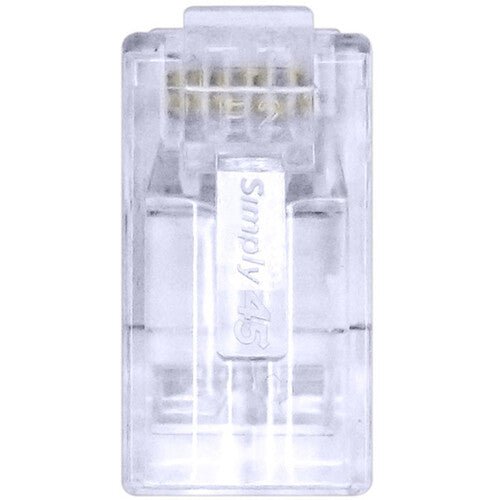

Achieve reliable performance from your unshielded twisted pair (UTP) LAN cables by finishing them with the Simply45 Cat 5e Unshielded RJ45 Modular Plug. Fifty single-piece pass-through modular RJ45 plugs are included in this pack. The plugs are designed to fit 24 AWG solid Cat 5e and 28 to 26 AWG stranded Cat 6/5e cables up to 6.5mm in diameter in a straight-line arrangement. Each plug features a 3-prong pin design with 50? 24kt gold plating to help deliver high electrical conductivity and a stronger connection to wire conductors and has a light blue tint for easy identification. The Cap45 isolation cap/bar covers exposed wire ends to reduce the risk of electrical shorting. These modular plugs are rated to work with PoE and PoH devices.
In the Box

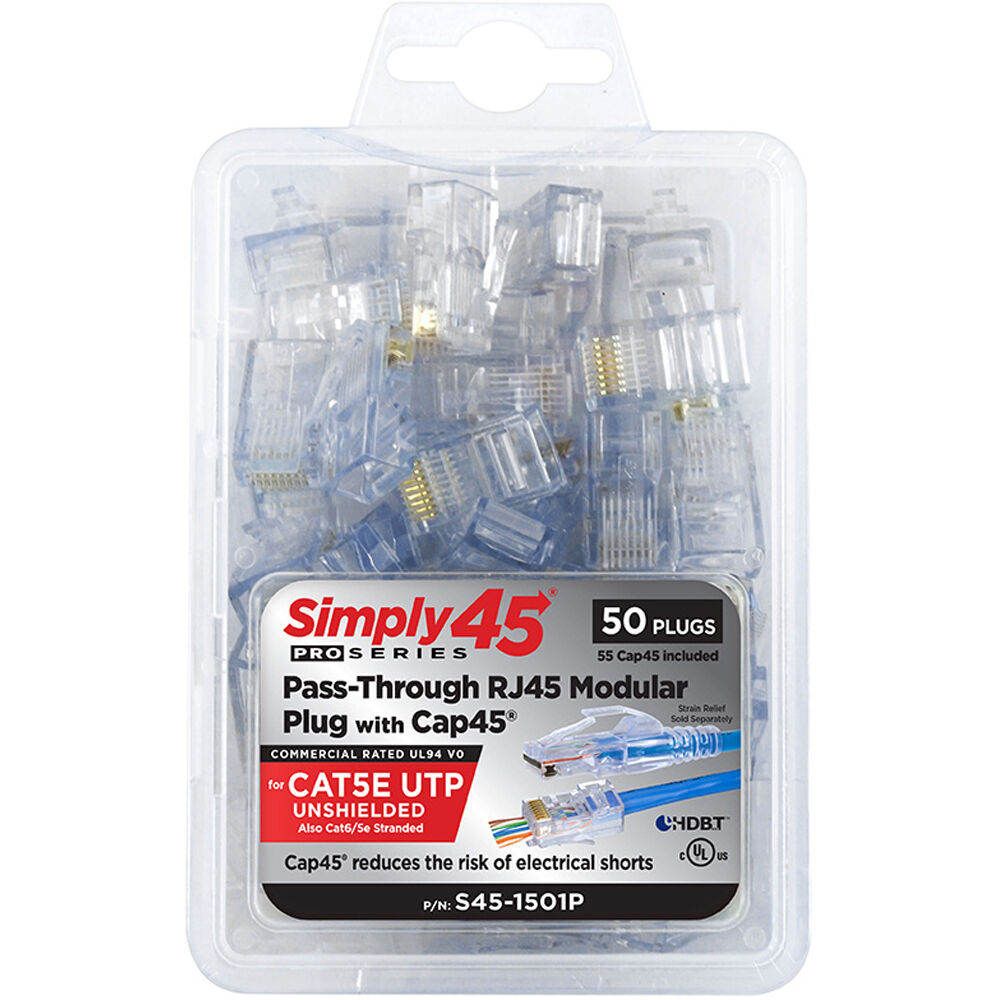

- Simply45 Cat 5e Unshielded RJ45 Pass-Through Modular Plug (50-Piece Clamshell Package)
- Limited Lifetime Warranty
Simply45 S45-1501P Specs
| Type |
RJ45
|
| Shielded |
No
|
| Networking Type |
Cat 5e/6
|
| Type |
RJ45
|
| Quantity |
50
|
| Contact Plating |
50 µ Gold
Nickel |
| Contact Material |
Bronze
|
| Shielded |
No
|
| Conductor Diameter |
0.04" / 1.05 mm
|
| Contact Resistance |
20 milliohms
|
| Supported Cable Diameter |
0.3" / 6.5 mm
|
| Wire Gauge Supported |
28 to 24 AWG
|
| Cable Types Supported |
Solid, Stranded
|
| Networking Type |
Cat 5e/6
|
| Plug Material |
Polycarbonate
|
| Flame Resistance Rating |
UL94V-0
|
| Mating Cycles |
2000
|
| Operating Temperature |
-40 to 158°F / -40 to 70°C
|
| Package Weight |
0.255 lb
|
| Box Dimensions (LxWxH) |
4.5 x 2.8 x 1.6"
|
