Simply45 S45-3750 Overview

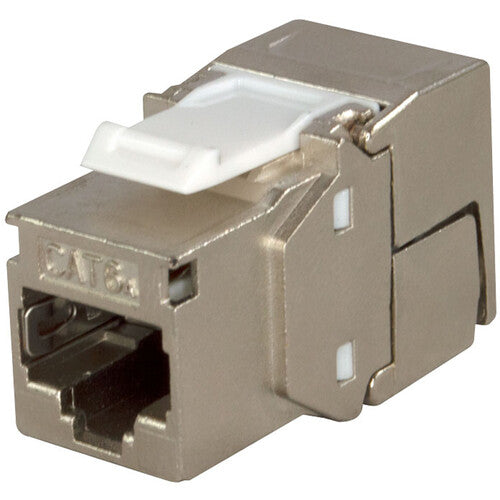

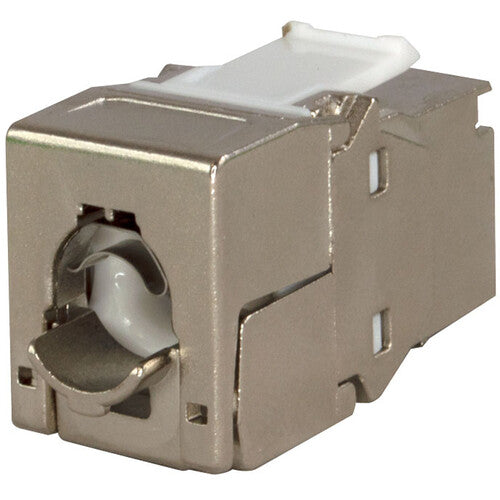

Quickly and easily terminate cabling with the 10GBaseT STP 180° Shielded RJ45 Keystone Jack from Simply45. Designed for use with high-bandwidth networks using Cat7a, 6a, and 6 shielded cabling, this jack fits 23 AWG cables and boasts a fully shielded sink alloy shell and 50µ gold-plated contacts. A toolless design allows for easy deployment and eliminates the need for special tooling; the narrow 180° design ensures hassle-free side-by-side installation in patch panels. Additionally, this jack provides enhanced crosstalk cancellation and is compatible with Keystone Snap-On ID bars, available separately.
This jack meets the following standards: ISO/IEC 11801 Class Ea and E, ANSI/TIA 568.2-D, 1096-A, and 606-C, EN 50173, IEC 60603-7-51, and PoE/PoH IEEE 802.3bt Type 4. It is also UL 1863 and cULus listed.
- Fully shielded sink alloy shell
- Narrow design supports side-by-side installation in patch panels
- Enhanced crosstalk (AXT) cancellation

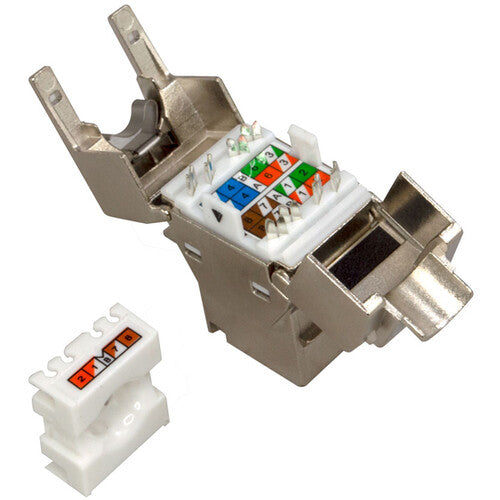

- Wire layout diagram simplifies termination and reduces untwisting of cable wires (Wire Pattern Label Type A/B)
- Supports 23 AWG Cat7a, Cat6a, and Cat6 shielded cabling

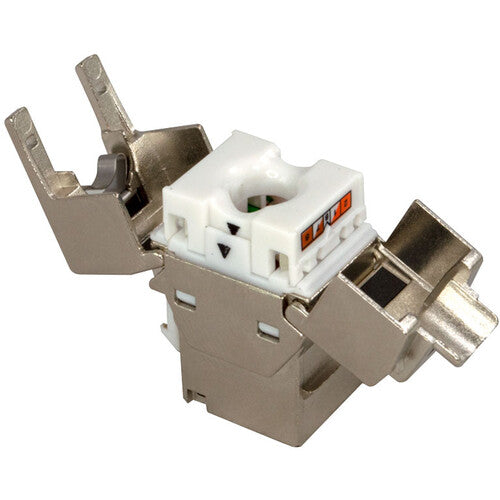

- Toolless design requires no punchdown or specialty tooling
- 180° design for patch panel applications
- UL listed
- Compatible with Simply45 Keystone snap-on ID bar S45-3790, available separately
In the Box
- Simply45 10GBaseT STP 180° Shielded Keystone RJ45 Jack
- Limited 2-Year Manufacturer Warranty
Simply45 S45-3750 Specs
General
| Type |
RJ45 Female |
| Quantity |
1 |
| Contact Plating |
50 µ Gold |
| Shielded |
Yes |
| Contact Resistance |
20 milliohms |
Compatibility
| Wire Gauge Supported |
23 to 23 AWG |
| Networking Type |
Cat 6, Cat 6a, Cat 7a |
Physical
| Compliance |
cUL, IEC, UL |
| Operating Temperature |
14 to 140°F / -10 to 60°C |
Packaging Info
| Package Weight |
0.08 lb |
| Box Dimensions (LxWxH) |
4.55 x 3.85 x 0.8" |
