Description
Product Overview

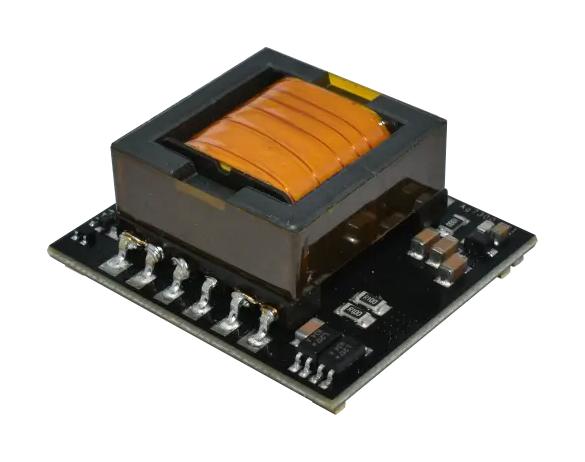

AG7300 is a high power DC/DC boost converter module. It designed to generate the higher voltages while providing the isolation required for an IEEE802.3 compliant PSE application. For use in single IEEE802.3bt (PoE++) applications, multiple IEEE802.3af/at (PoE/PoE+) applications or power distribution applications. It accepts a wide DC voltage input range from 18V to 36V and provides a regulated adjustable output 48V to 57V, while achieving greater efficiency. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection.
- >91% efficient DC/DC converter at 15Vin, 120W output power
- 1500V isolation for IEEE802.3 PoE applications
- 470µF typ input capacitance, 47µF output capacitance
- Overload & short-circuit, thermal protection
- Industrial temperature range, minimal external components required
- Silvertel �design-in� assistance
- Operating temperature range from -40 to +65°C
- Low profile SMT package size � 40mm (L) x 35mm (H)
Product details
Other details
| Brand | SILVERTEL |
| Part Number | AG7300 |
| Quantity | Each |
| Technical Data Sheet EN |  |
