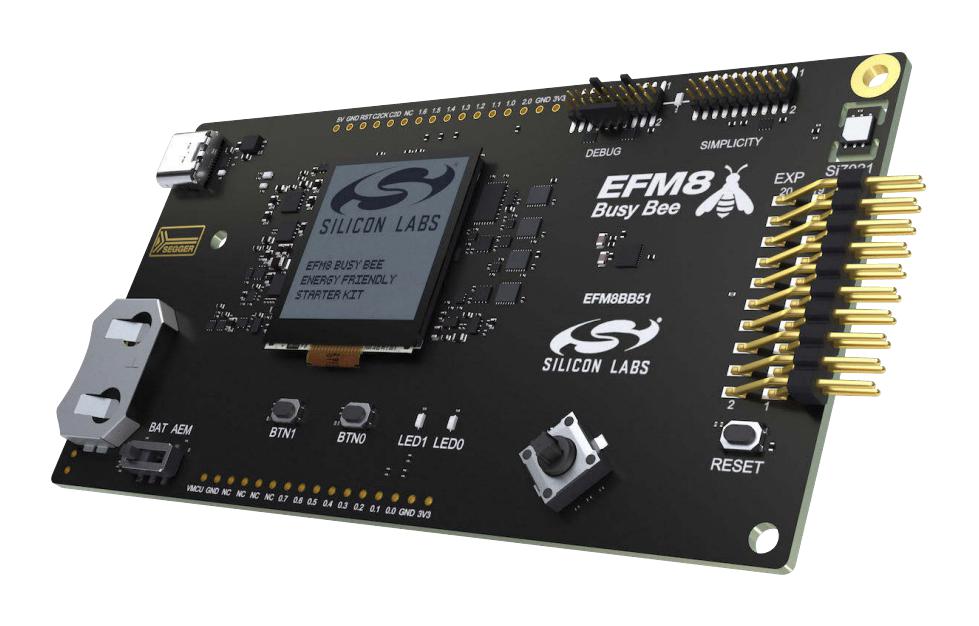

EFM8 BB51 8bit MCU Pro kit is an ideal starting point for application development on the EFM8BB51 8bit microcontroller family. The board features sensors and peripherals, demonstrating some of the many capabilities of the EFM8BB51 Microcontroller. Additionally, the board is a fully featured debugger and energy monitoring tool that can be used with external applications.
- USB connectivity
- Advanced Energy Monitor (AEM) and SEGGER J-Link on-board debugger
- Debug Multiplexer supporting external hardware as well as on-board MCU
- User push buttons and LEDs
- Silicon Labs' Si7021 relative humidity and temperature sensor
- Ultra-low power 128x128 pixel memory LCD
- 8-direction analogue joystick
- 20-pin 2.54mm header for expansion boards
- Breakout pads for direct access to I/O pins
- Power sources include USB and CR2032 coin cell battery
Contents
1 x BB5x Pro board, Getting started card.
Product details
Silicon Manufacturer |
Silicon Laboratories |
No. of Bits |
8bit |
Silicon Family Name |
- |
Core Architecture |
8051 |
Core Sub-Architecture |
8051 |
Silicon Core Number |
EFM8BB51 |
Kit Contents |
Pro Board EFM8BB51, Getting Started Card |
Product Range |
- |
Other details
Brand |
SILICON LABS |
Part Number |
BB51-PK5207B |
Quantity |
Each |
Technical Data Sheet EN |
|
