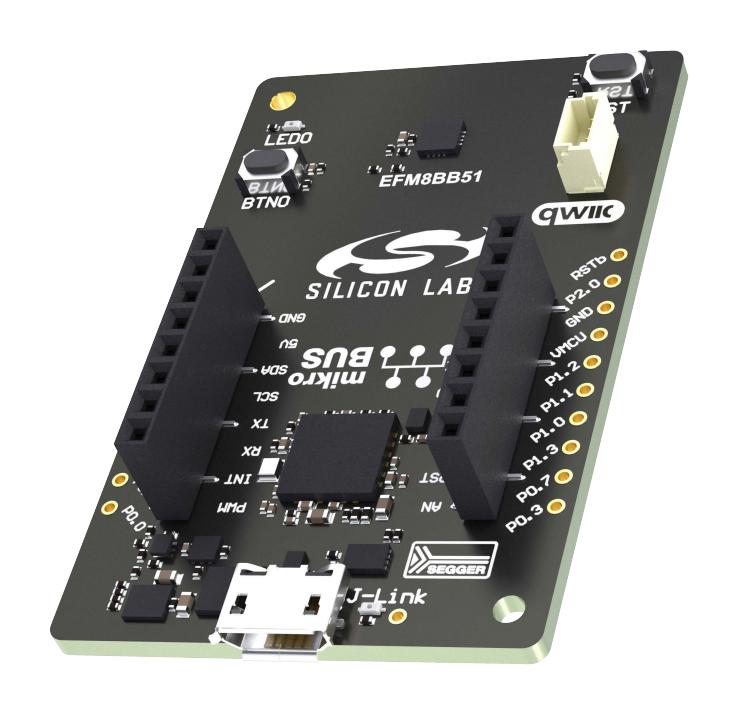

EFM8 BB51 8bit MCU explorer kit, is an ideal, obstacle-free evaluation starting point for the EFM8BB51 8bit microcontroller family. It offers Qwicc and click connectors for rapid prototyping as well as an on board debugger. All pins are brought out with minimal conflicts to enable quick development.
- Small form factor kit: aligned with breadboard dimensions
- On-board board controller: J-Link debugger, virtual COM with hardware flow control
- USB micro-B connector for debug connection
- User interface features: 1 x button (with EM2 wake-up), 1 x LED
- Mini simplicity debug connector (SLSDA001A compatible) with access to AEM, PTI, VCOM, SWD
- Third-party add on connectors: mikroBus socket, Qwiic connector
- Energy profiler, configurator
- Software examples for every peripheral
- Software demos using LED, button and UART
- Setting breakpoints with register and variable values available to view
Contents
BB5x explorer board, Getting started card.
Product details
| Silicon Manufacturer |
Silicon Laboratories |
| No. of Bits |
8bit |
| Silicon Family Name |
- |
| Core Architecture |
8051 |
| Core Sub-Architecture |
8051 |
| Silicon Core Number |
EFM8BB51 |
| Kit Contents |
Explorer Board EFM8BB51, Getting Started Card |
| Product Range |
- |
Other details
| Brand |
SILICON LABS |
| Part Number |
BB51-EK2700A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
