Provided by third party: Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer. Industry Recognized Display Technology from DisplayLink - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort. Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor. Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound. USB-C PD Charging - Supports up to 60W power output to charge your laptop. Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology. Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously. Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port. Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively. Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status. OS Compatibility - Supports various Windows and Mac computers. Note: The adapter does not work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier.
- Key Features
-

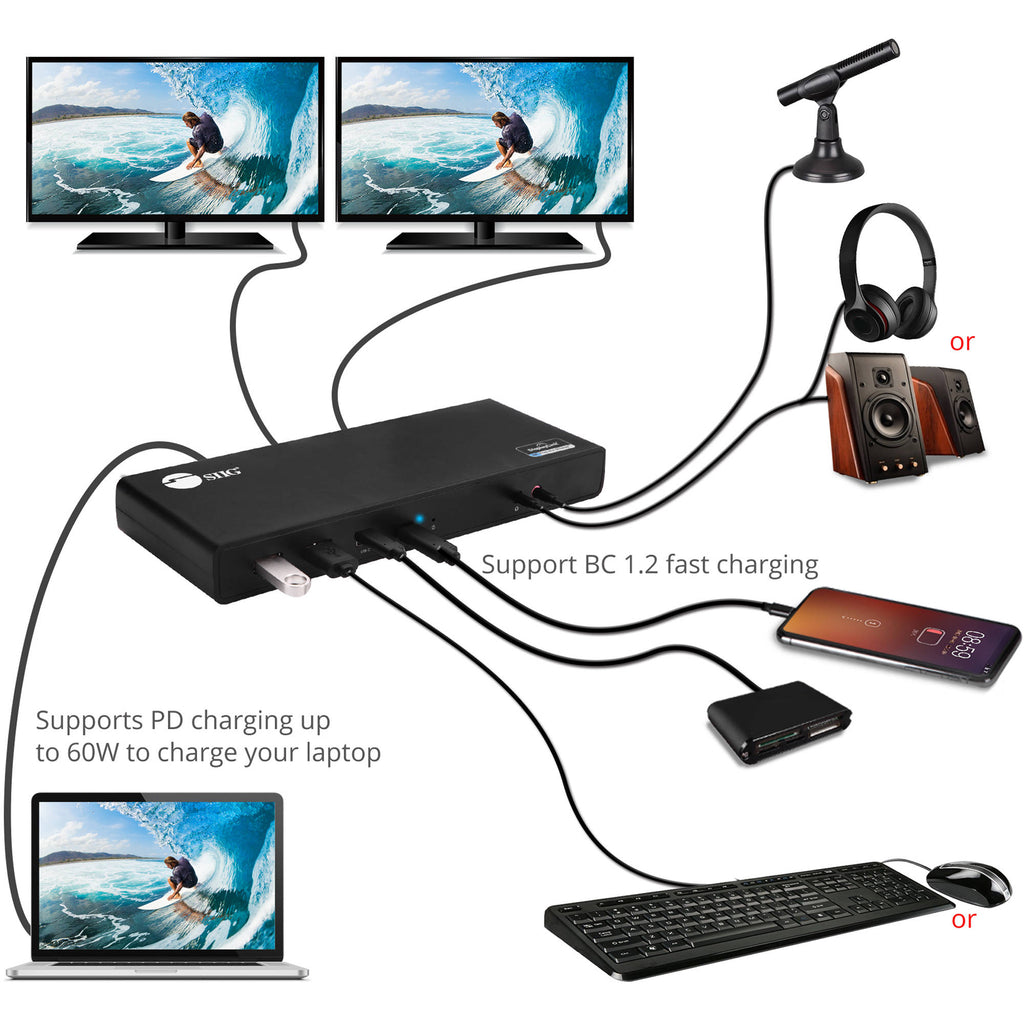

- Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer

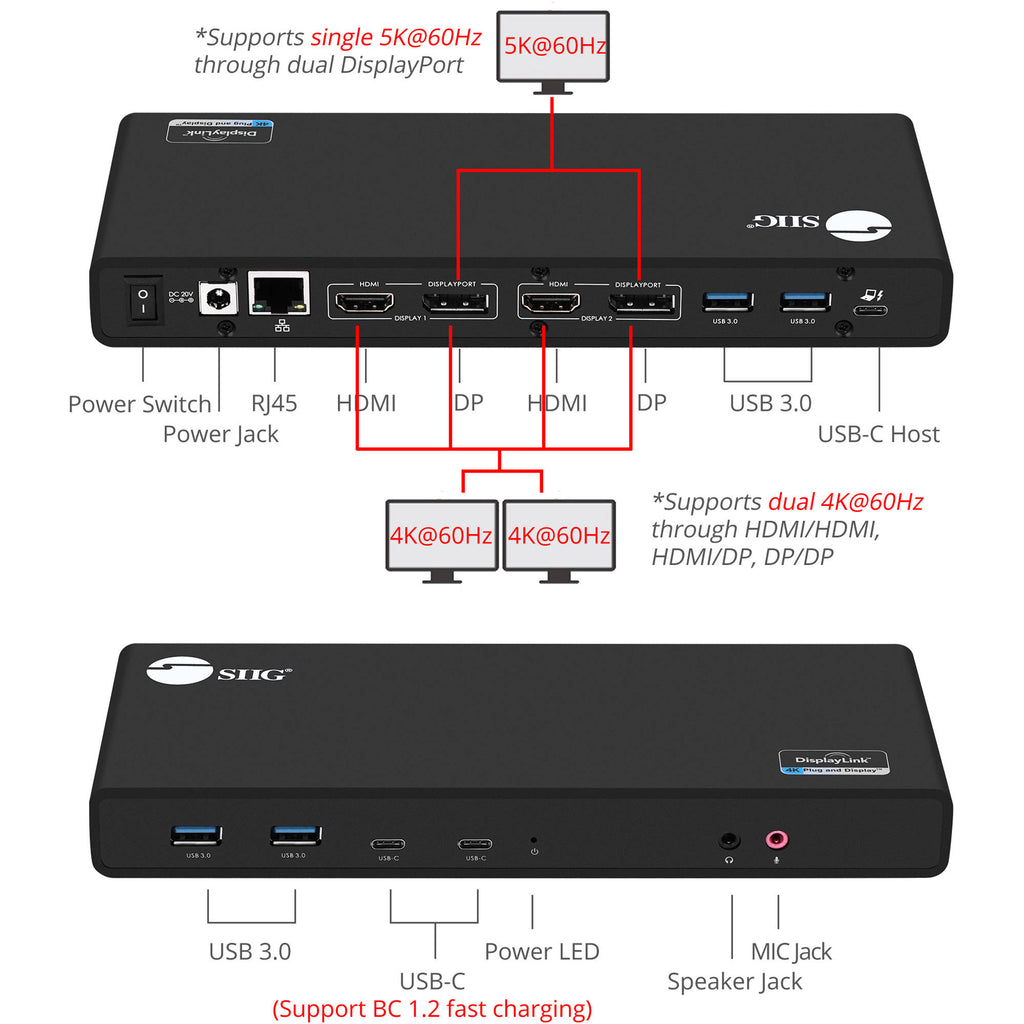

- Industry Recognized Display Technology from DisplayLink - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
- Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor
- Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
- USB-C PD Charging - Supports up to 60W power output to charge your laptop
- Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology
- Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
- Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
- Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
- OS Compatibility - Supports various Windows and Mac* computers
- Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier
UPC: 662774041254

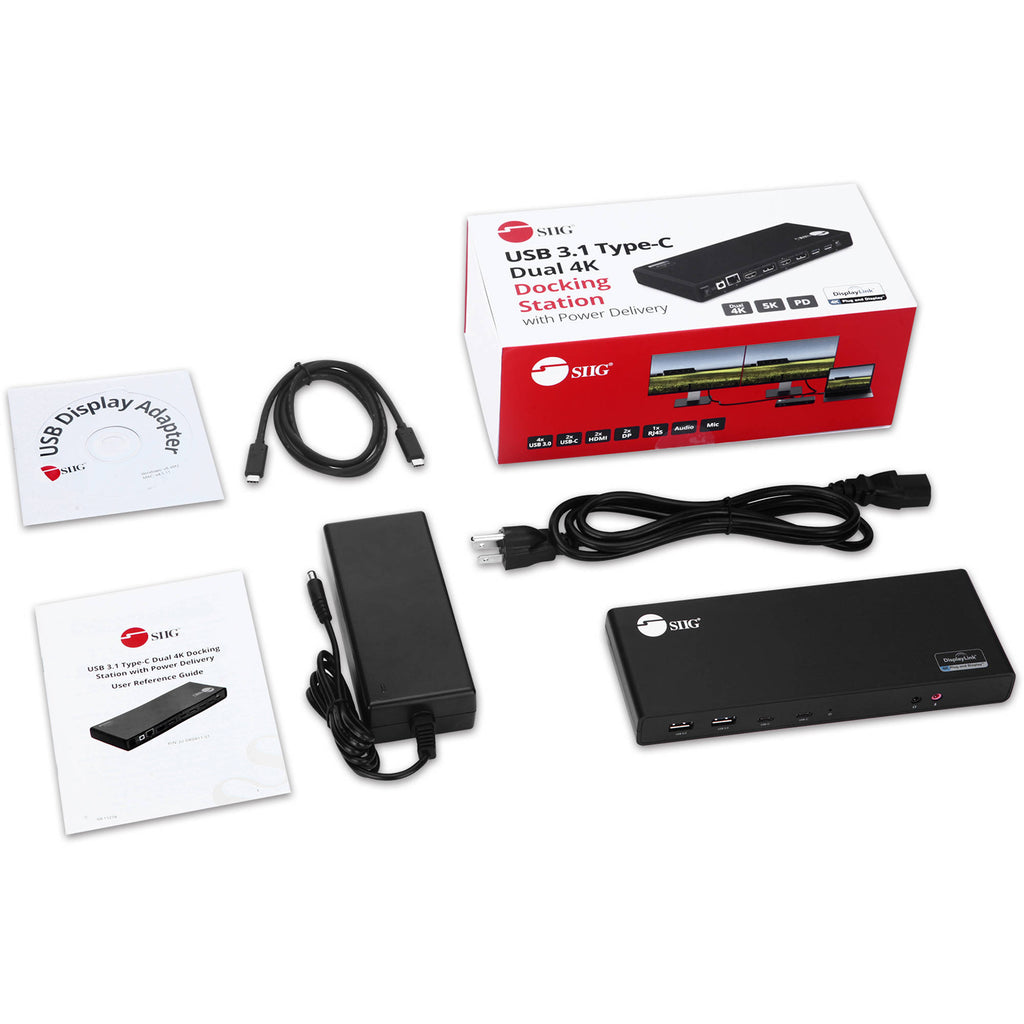

In the Box
SIIG USB 3.1 USB Type-C Dual 4K Docking Station with Power Delivery (60W)
USB 3.1 Type-C Dual 4K Docking Station with Power Delivery Power Adapter (DC 20V/5A) USB-C (M) to USB-C (M) cable Driver CD User Reference Guide
SIIG JU-DK0811-S1 Specs
| General |
| Product Type | Docking station |
| Width | 3.1 in |
| Depth | 8.8 in |
| Height | 1 in |
| Weight | 12.31 oz |
| Enclosure Color | Black |
| Expansion / Connectivity |
| Interfaces | 4 x USB-C - 24 pin USB-C
4 x USB 3.1 Gen 1 - 9 pin USB Type A
2 x display / video - DisplayPort output - 20 pin DisplayPort
1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45
2 x audio / video - HDMI output - 19 pin HDMI Type A
1 x audio - mini-phone stereo 3.5 mm
1 x microphone - mini-phone 3.5 mm |
| Miscellaneous |
| Cables Included | 1 x USB-C cable - external |
| Features | 60W power delivery |
| Compliant Standards | RoHS |
| Power |
| Power Device | Power adapter |
| Voltage Required | AC 100/240 V / DC 20 V (50 - 60 Hz) |
| System Requirements |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Apple MacOS X 10.7 - 10.13.3 |
