Description

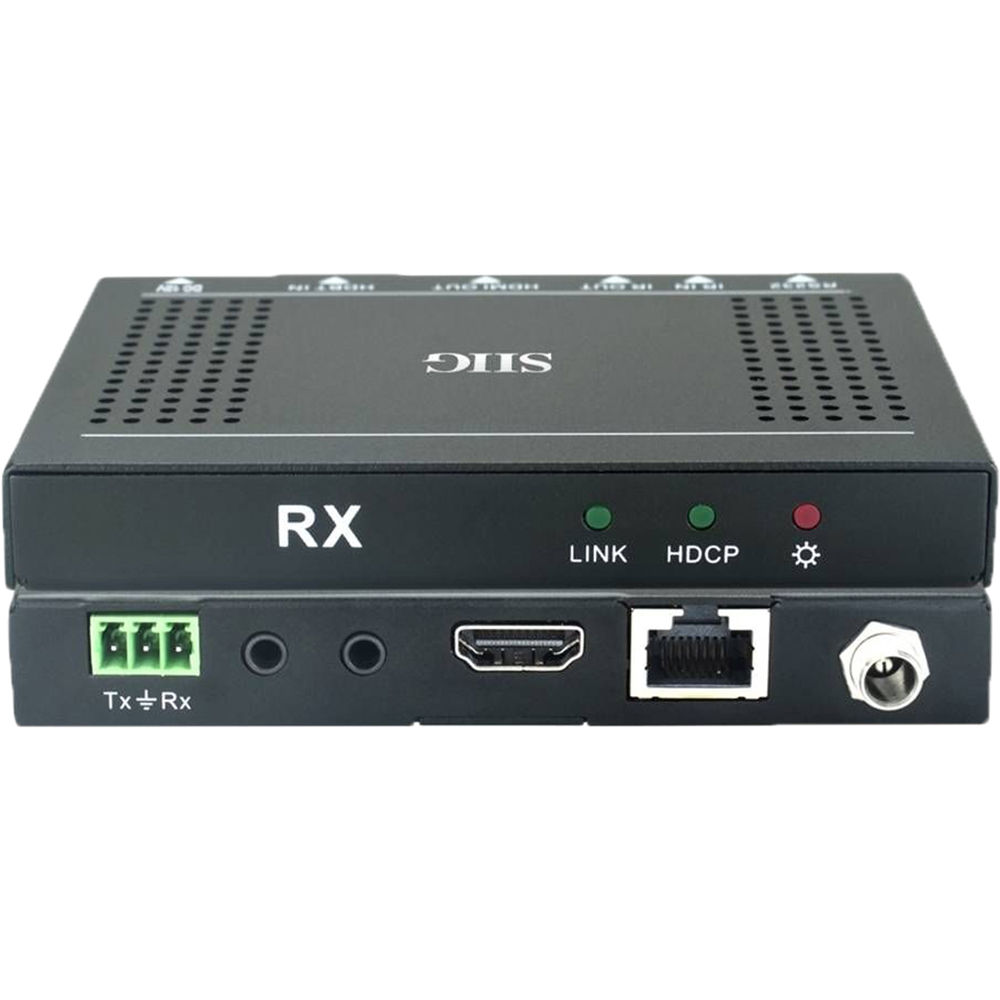

SIIG H24511-S1 Overview
Convert an HDBaseT signal to HDMI with the SIIG HDMI HDBaseT 4K Receiver. This receiver allows you to convert the HDBaseT signal from your transmitter to an HDMI signal. The HDBaseT signal, which can carry both data (video) and power, travels over category cable up to 230' for an 1080p60 signal. A 4K DCI can be transmitted up to 131' over Cat 5e/6a cable. The receiver is compatible with other SIIG components such as the HDMI HDBaseT 4K transmitter (not included).
The receiver supports bidirectional RS-232, IR, and CEC pass-through, and the PoH compliance allows you to power both a receiver and transmitter using only a single power input at either end (a power supply is included with the transmitter). The receiver supports HDMI 1.4 data rates and HDCP 2.2, and it is compact enough to fit behind a monitor, directly on a camera rig, or you can mount it with the included mounting hardware. The receiver features a locking power connector.
- Supports HDBaseT for up to Full HD, 1080p60 transmission up to 230' over Cat 5e/6a
- Supports 4K x 2K 30 transmission up to 130' over Cat 5e/6a
- 10.2Gps bandwidth
- HDBaseT supports video and power over Ethernet, which allows you to power both a transmitter and and receiver using a single power input
- HDMI 1.4 and HDCP2.2 compliant
- Support CEC/IR/RS232 pass-through
- Support bidirectional PoH function
- Bidirectional RS232/IR control
- LED indicators show work status
- Locking power connector
- Mounting ears included
In the Box
- SIIG HDMI HDBaseT 4K Receiver (RX)
- 2 x Mounting Ears
- 4 x Mounting Screw
- 4 x Plastic Cushions
- RS-232 Cable
- Limited 3-Year Manufacturer Warranty
Not in the Box
- Essential Transmitters & Receivers (Not Included)
SIIG H24511-S1 Specs
| Inputs | 1 x RJ45 (HDBaseT) Female |
| Outputs | 1 x HDMI (HDMI 1.4) Female |
| Other I/O | 1 x Block 3-Pin RS-232 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
| HDCP Support | Version 2.2 |
| EDID Support | Yes |
| Max Transmission Distance | DCI 4K at 30 Hz: 131.2' / 40 m (via Cat 5e/6a) 1080p at 60 Hz: 229.7' / 70 m (via Cat 5e/6a) |
| Video Format | HDMI DCI 4K: 30 fps 1080p: 60 fps 480p: 60 fps |
| Supported Cable Types | Cat 5e/6a |
| Power Connector | 1 x Barrel (24 VDC at 1.2 A) Output |
| PoE Support | PoH 802.3at |
| Power Consumption | Device: 24 VDC at 1.25 A (14 W) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 10 to 90% |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Dimensions | 4.53 x 4.29 x 0.64" / 11.5 x 10.9 x 1.62 cm |
| Weight | 0.67 lb / 304 g |
| Package Weight | 0.88 lb |
| Box Dimensions (LxWxH) | 7.2 x 6.3 x 5.9" |
