Description
SIIG JU-P40811-S1 Overview

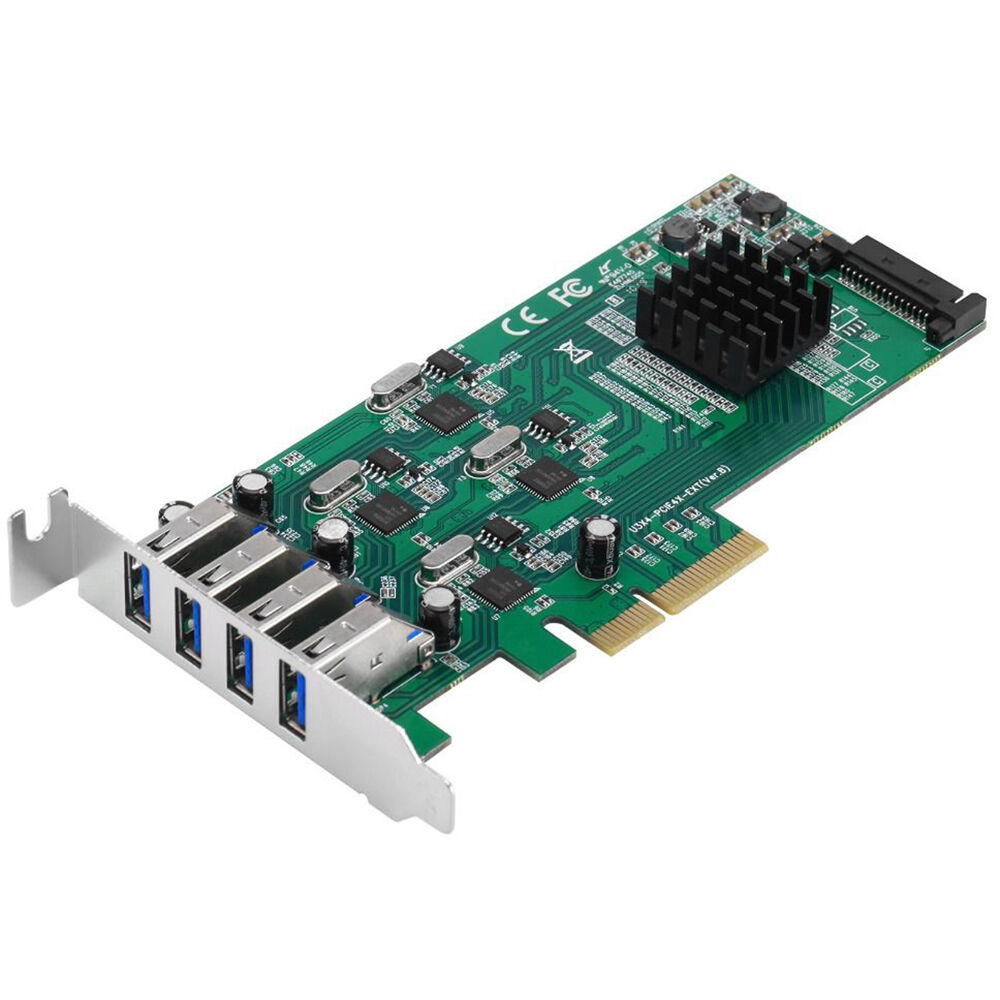

Add four 5 Gb/s USB 3.0 Type-A ports to your compatible Windows system using the 4-Port USB 3.0 Type-A PCIe Card from SIIG. Built with a PCIe 2.0 x4 interface and a 15-pin SATA power connector, this card features 20 Gb/s of total bandwidth, which is split to deliver 5 Gb/s to each port. Each port supports up to 0.9A of charging power with over-current protection and a low-profile design.
General Features

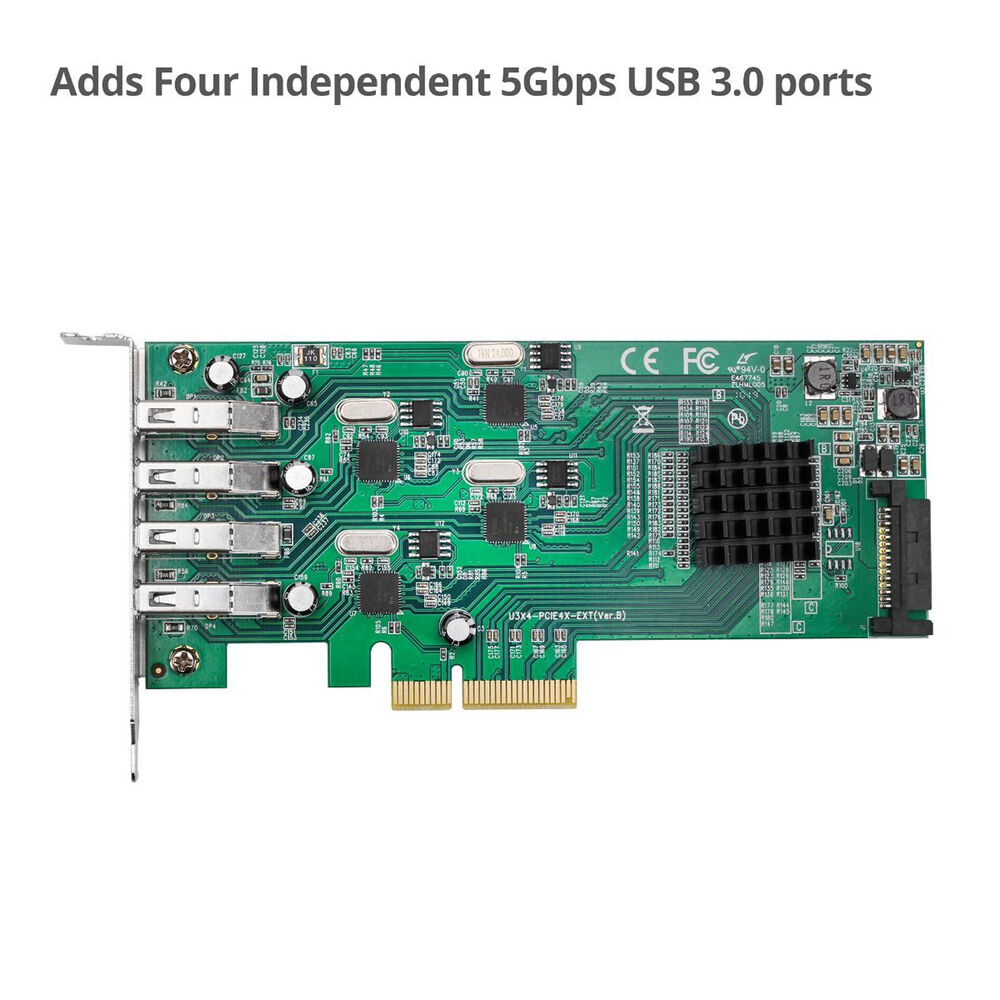

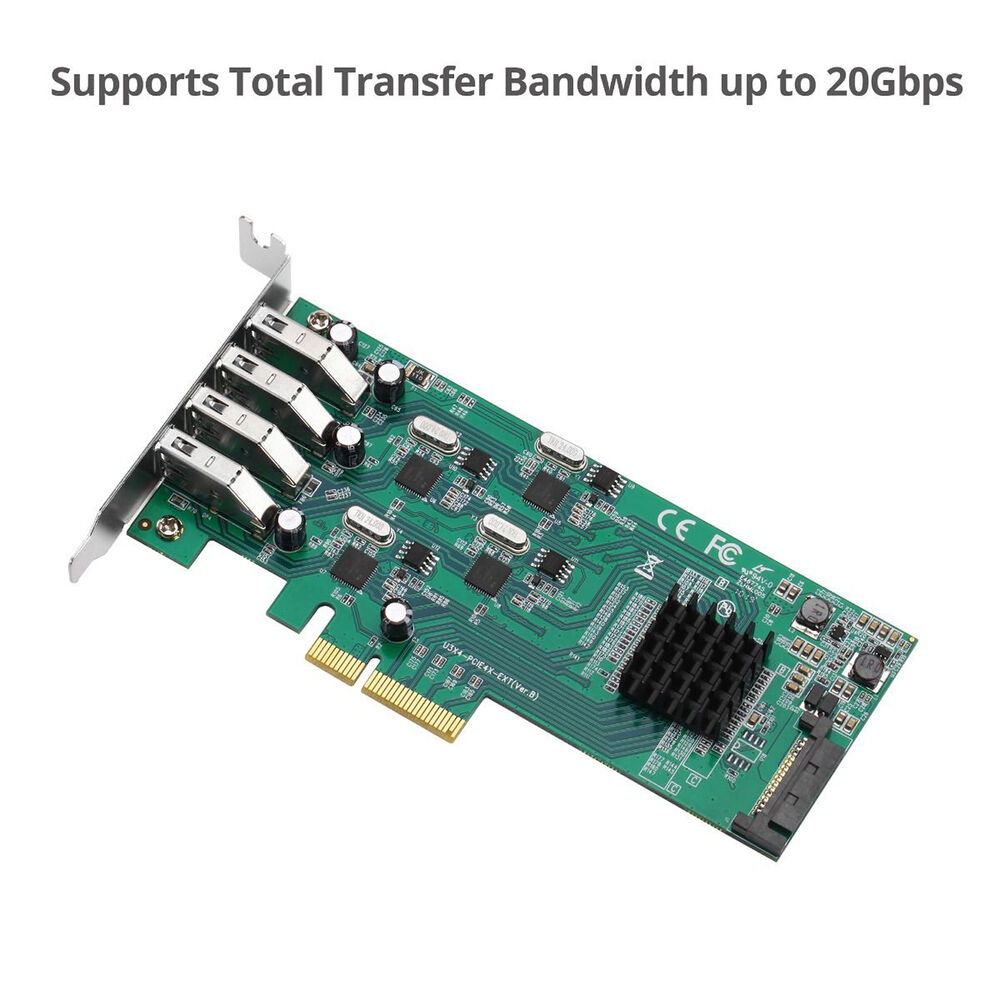

Features four independent USB 3.0 Type-A ports delivering data transfers of up 5 Gb/s per port for a total USB bandwidth of up to 20 Gb/s
Renesas uPD720202 chipset
Supports USB standards of 5 Gb/s, 480 Mb/s, 12 Mb/s, and 1.5 Mb/s
Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Compliant with the PCIe 2.0 x4 standard

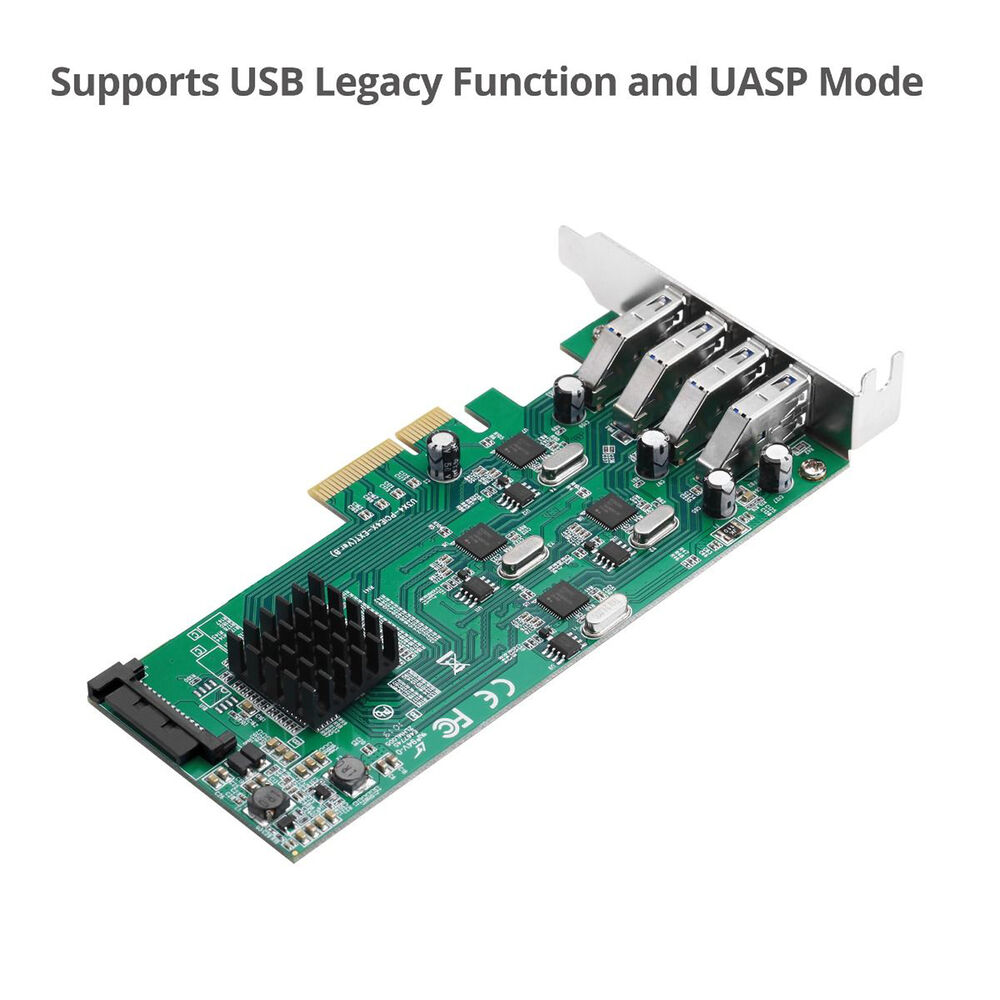

Supports USB legacy functions and UASP mode (UASP requires Windows 10 and 8 embedded drivers only)
Supports PCI Bus Power Management Interface Specification Revision 1.2

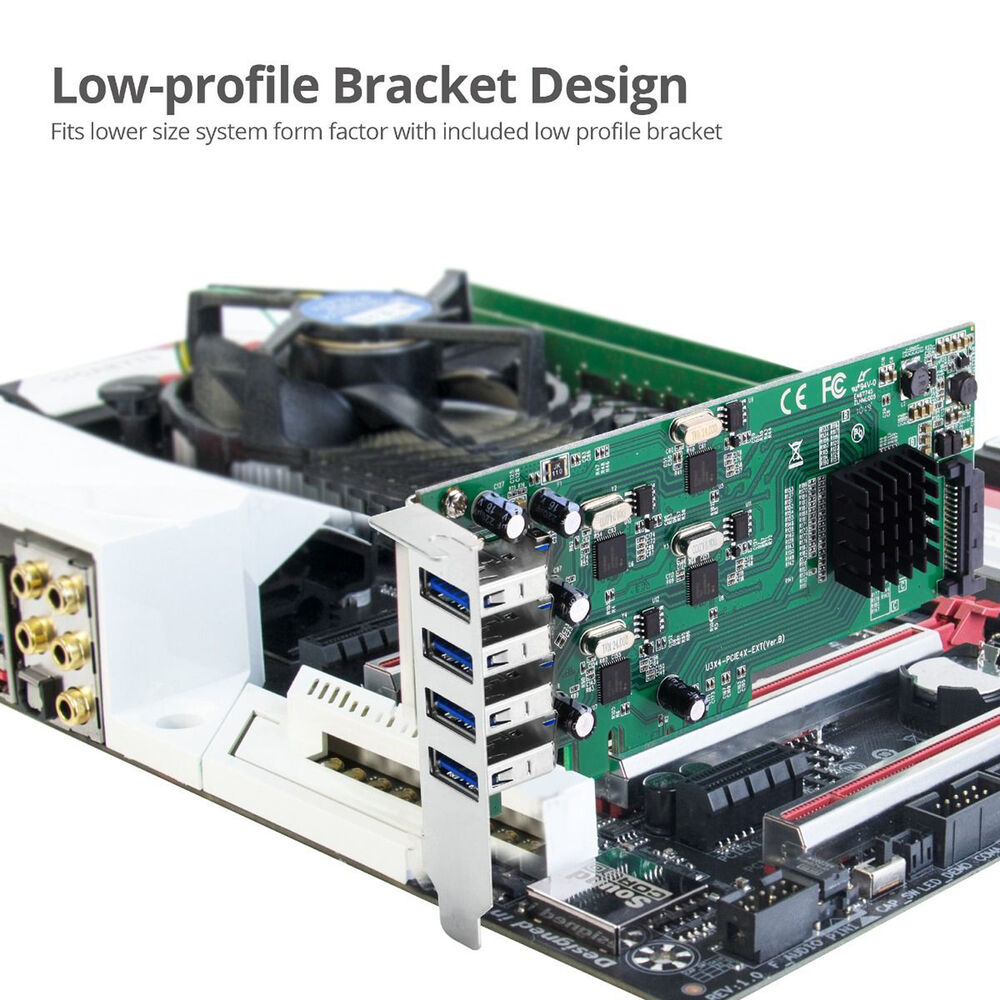

A low-profile bracket design fits lower size system form factor with included low-profile bracket
Each USB port features independent over-current protection to further protect your devices and the board itself from unforeseen power spikes
UPC: 662774042640

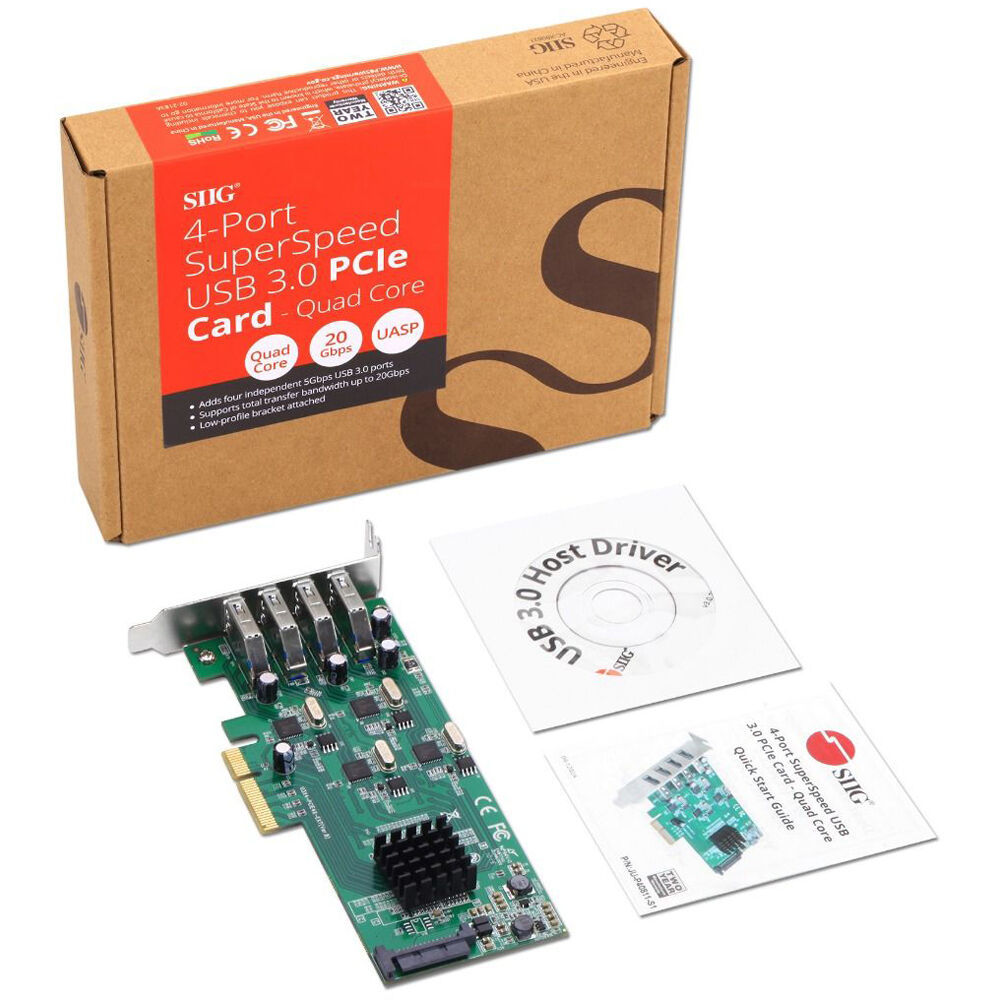

In the Box
- SIIG 4-Port USB 3.0 Type-A PCIe Card
- Limited 2-Year Warranty
SIIG JU-P40811-S1 Specs
Key Specs
| Inputs/Outputs |
4 x USB-A 3.0 / 3.1/3.2 Gen 1
|
| Expansion Slot Compatibility |
PCIe 2.0 x4
|
| Slot Compatibility |
Low-Profile
|
| OS Compatibility |
Windows 7 or Later
Windows Server 2019 Windows Server 2016 Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 R2 Windows Server 2008 *As of August, 2020: Check with manufacturer for the most up-to-date compatibility |
General
| Inputs/Outputs |
4 x USB-A 3.0 / 3.1/3.2 Gen 1
|
| Internal Connection Requirements |
SATA
|
| Expansion Slot Compatibility |
PCIe 2.0 x4
|
| Slot Compatibility |
Low-Profile
|
Software System Requirements
| OS Compatibility |
Windows 7 or Later
Windows Server 2019 Windows Server 2016 Windows Server 2012 R2 Windows Server 2012 Windows Server 2008 R2 Windows Server 2008 *As of August, 2020: Check with manufacturer for the most up-to-date compatibility |
Environmental
| Operating Temperature |
32 to 140°F / 0 to 60°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
14 to 158°F / -10 to 70°C
|
Physical
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
5.91 x 3.15 x 0.79" / 15.01 x 8 x 2.01 cm
|
| Weight |
0.15 lb / 0.07 kg
|
Packaging Info
| Package Weight |
0.3 lb
|
| Box Dimensions (LxWxH) |
7.2 x 5.4 x 1.2"
|
