Description
Product Overview

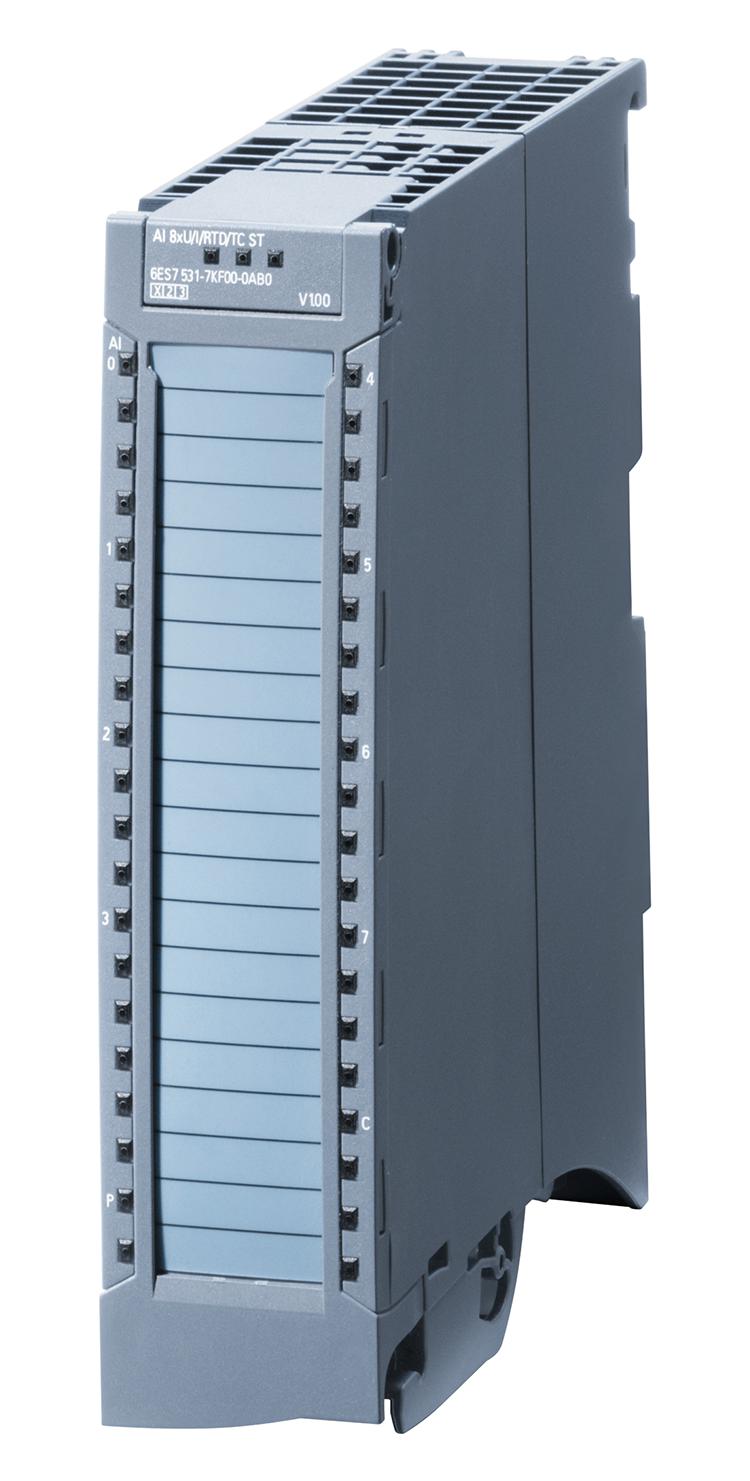

6ES7531-7KF00-0AB0 is a SIMATIC S7-1500 analogue input module. Device compositions are infeed element, shield bracket, shield terminal.
- Supply voltage: 24VDC rated value, reverse polarity protection and short-circuit protection(Encoder)
- 19.2VDC permissible range, lower limit, 28.8VDC permissible range, upper limit
- 240mA max with 24VDC supply current consumption
- 0.7W power available from the backplane bus, 2.7W typ power loss
- 8 analogue input, 40mA max permissible input current for current input (destruction limit)
- 0.02% linearity error (relative to input range), (+/-)
- Crosstalk between the inputs is -80dB, ±6°C temperature error of internal compensation
- 0.02% repeat accuracy in steady state at 25°C (relative to input range), (+/-)
- Dimension is 35 x 147 x 129mm (W x H x D)
- Ambient temperature range from -25 to +60°C (horizontal installation)
Notes
Front connector (screw terminals or push-in) to be ordered separately.
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6ES7531-7KF00-0AB0. |
| Quantity | Each |
| Technical Data Sheet EN |  |
