| ₹ 67665.58 includes GST and import duties. | |
| B2B customers can avail ₹ 10319.0 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

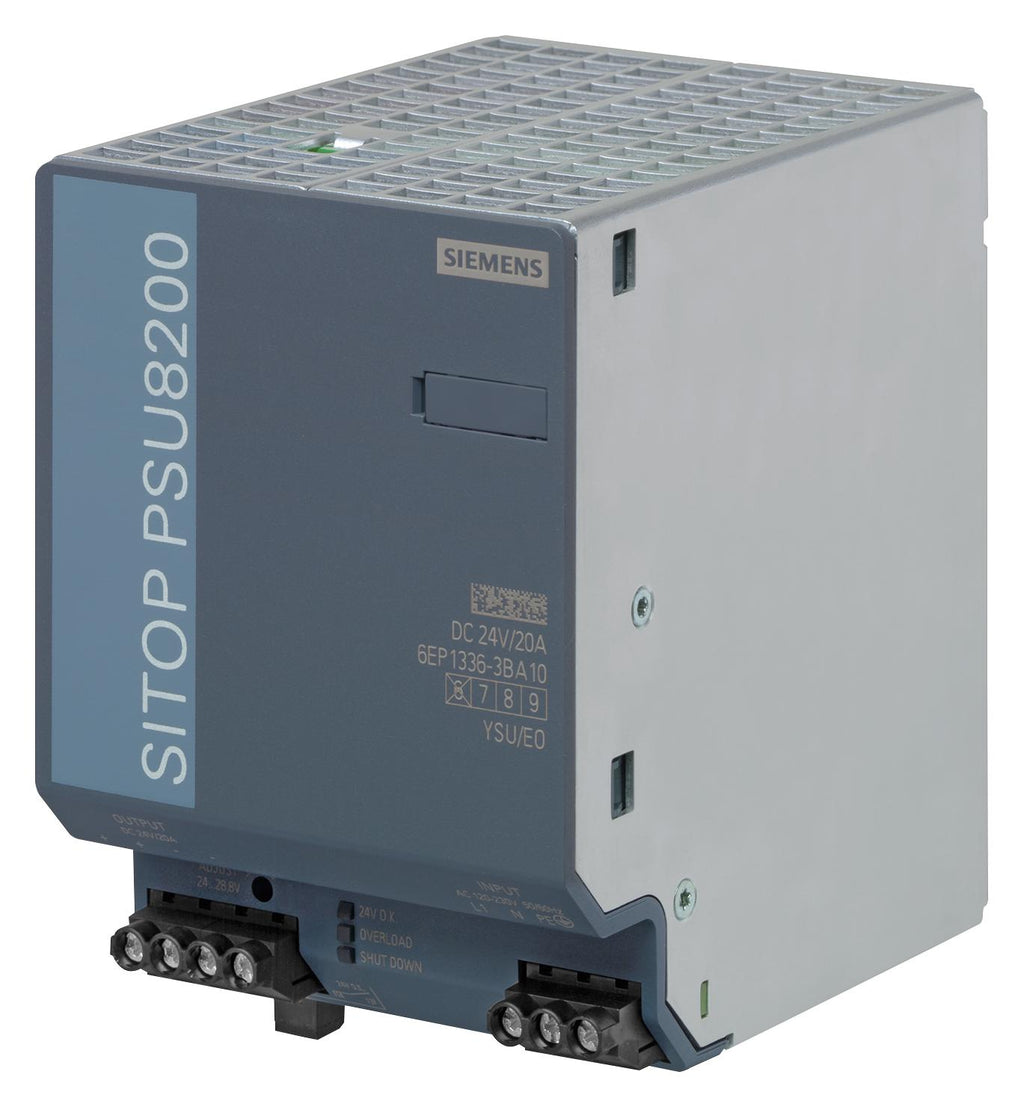

6EP1336-3BA10 is a SITOP PSU8200 stabilized power supply.
- 120V to 230VAC supply voltage, 110V to 220VDC supply voltage
- 20ms min buffering time for rated value of the output current in the event of power failure
- Operating condition of the mains buffering at Vin = 230V
- 47 to 63Hz line frequency, 4.6A input current at rated input voltage 120V
- 20A max current limitation of inrush current at 25°C
- Fuse protection, 24VDC output voltage
- 3% relative overall tolerance of the voltage, 100mV max residual ripple
- 1.5s max response delay, 20A output current a rated value
- 31W typ power loss at rated output voltage for rated value of the output current
- Ambient temperature range from -25 to +70°C; with natural convection
Product details
Other details
| Brand | SIEMENS |
| Part Number | 6EP1336-3BA10 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 66312.27 |
| 3-5 | ₹ 65635.61 |
| 5-10 | ₹ 64282.3 |
| 10+ | ₹ 62928.99 |
Bulk discount will be automatically applied during checkout based on quantity.
