Description

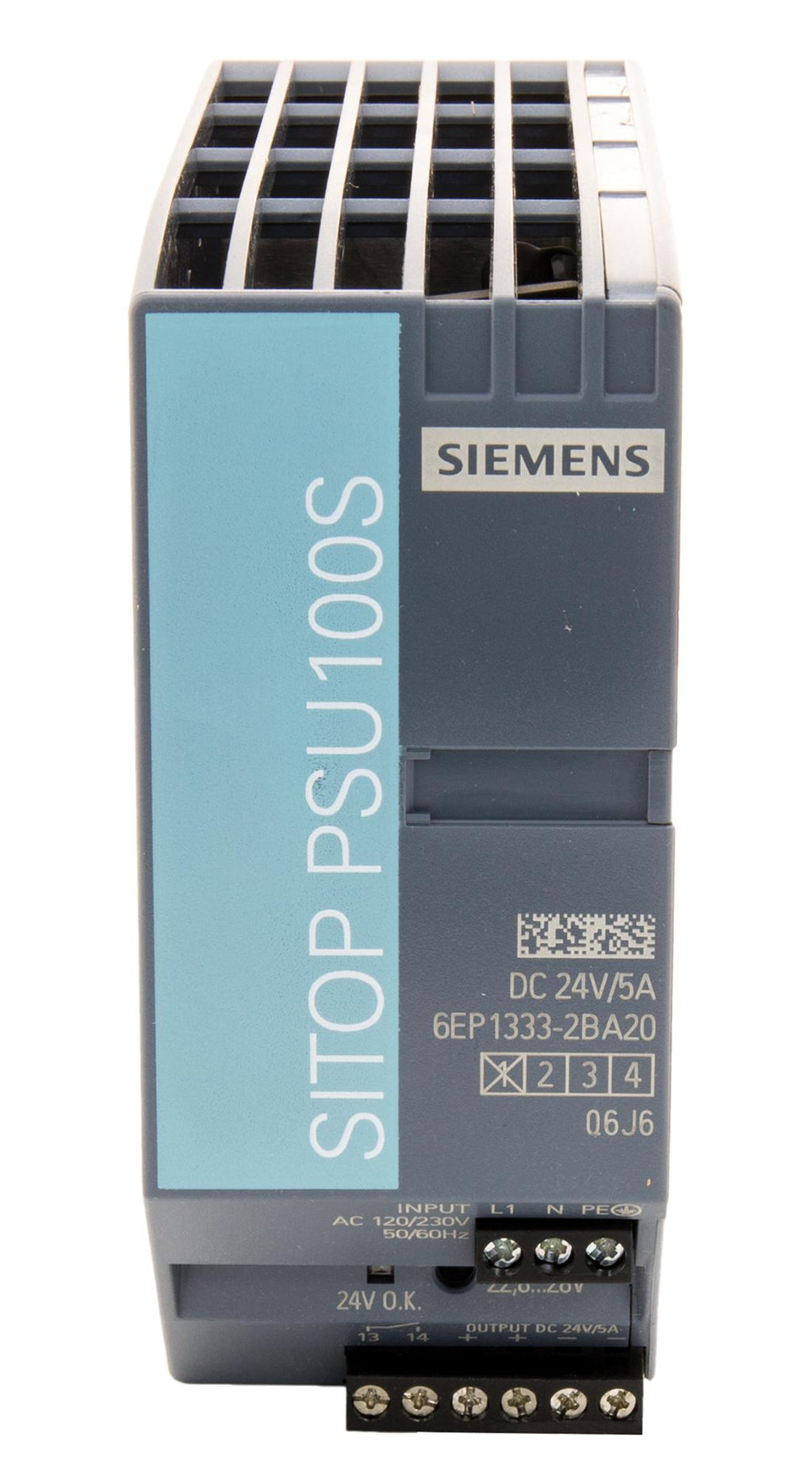

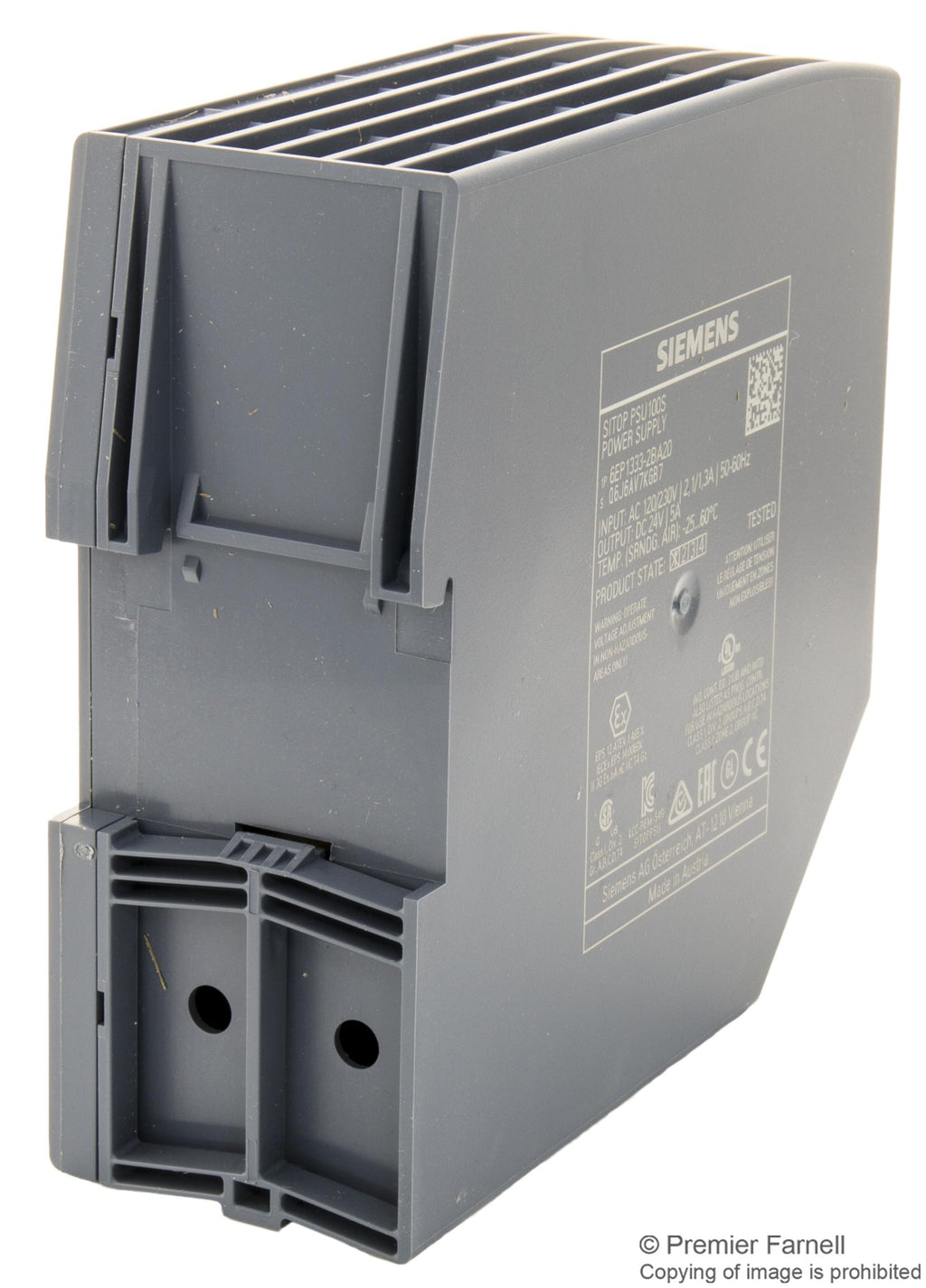

The 6EP1333-2BA20 from Siemens is a SITOP PSU100S stabilized power supply. It is a high performance, single phase, AC input SITOP smart unit with 24V/ 5A output. It is a high performance, single phase, AC input SITOP smart unit with 24V/ 2.5A output. This power supplies can continuously manage 120% of the rated power with high degree of efficiency ensuring low energy consumption and minimal heat loss in the control cabinet.
- Input supply range is 120VAC/230VAC
- Input current is 2.34A at 120V
- Short circuit protection
- Efficiency is 88%
- Temperature range from -25°C to 70°C
- Dimension is 50mm x 125mm x 120mm(W x H x D)
- CE, cULus, ATEX standards
- Minimum mounting space required due to slim design, no lateral installation clearances required
- Signalling contact for "output voltage OK" for easy integration in the plant monitoring system
- Adjustable output voltage for compensating voltage drops
Power Management, Industrial
Other details
| Brand | SIEMENS |
| Part Number | 6EP1333-2BA20 |
| Quantity | Each |
| Technical Data Sheet EN |  |
