Description

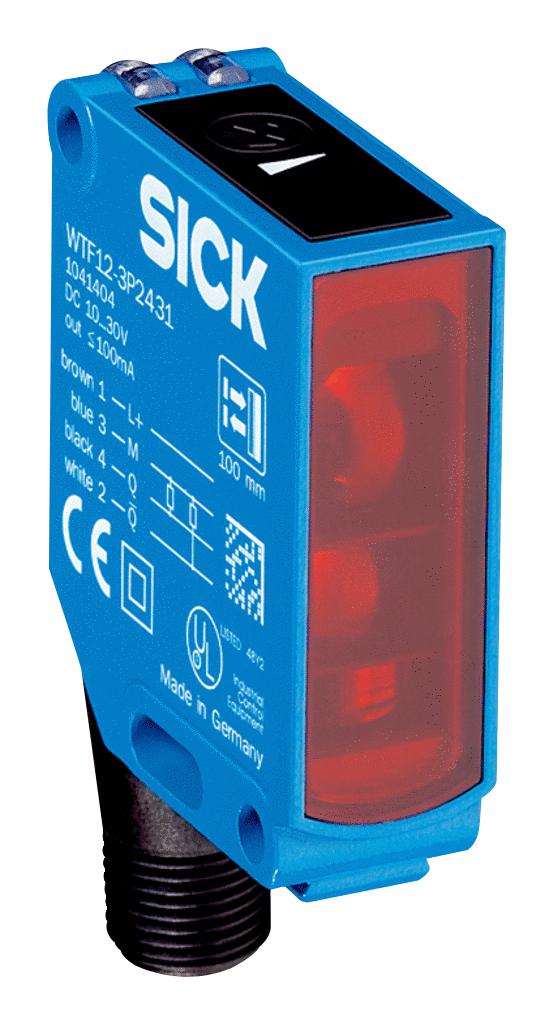

- W12-3 series small photoelectric sensor
- Photoelectric proximity sensor functional principle, visible red type of light
- UL file No. NRKH.E181493 & NRKH7.E181493, LED light source
- 30mm to 175mm sensing range, � 2mm (60mm) light spot size (distance)
- 640nm wave length, potentiometer, 5 turns adjustment, detecting flat objects
- 10VDC to 30VDC supply voltage, 45mA current consumption, IP66/IP67/IP69K enclosure rating
- PNP switching output, â�¤100mA maximum output current, â�¤330µs response time
- 1,500Hz switching frequency, light/dark switching mode, complementary output function
- Rectangular housing, male connector M12, 4-pin connection, metal housing
- Dimension (W x H x D) is 15.6 x 48.5 x 42mm, ambient operating temperature range from -40 to +60°C
Contents
W12-3 series small photoelectric sensor, 2 x clamps BEF-KH-W12 including screws.
Product details
Other details
| Brand | SICK |
| Part Number | WTF12-3P2431 |
| Quantity | Each |
| Technical Data Sheet EN |  |
