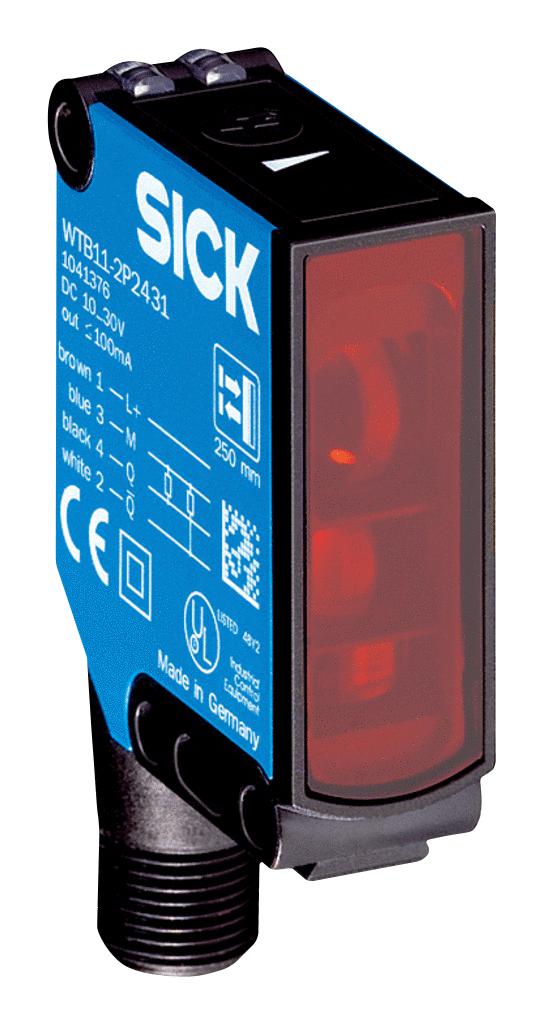

- W11-2 series small photoelectric sensor
- Photoelectric proximity sensor functional principle, UL file No. NRKH.E181493 & NRKH7.E181493
- Rectangular housing design (light emission), visible red type of light
- 20mm to 350mm sensing range, LED light source, IP66/IP67/IP69K rating
- � 6mm (200mm) light spot size (distance), 640nm wave length, potentiometer 5 turns adjustment
- 10VDC to 30VDC supply voltage range, 30mA current consumption (without load)
- PNP switching output, complementary output function, light/dark switching mode
- � 100mA max output current, 200Hz switching frequency
- Male connector M12, 4-pin connection type, plastic, ABS housing material
- Dimension (W x H x D) is 15.6 x 48.5 x 42mm, ambient operating temperature range from -30°C to +60°C
Product details
Other details
| Brand |
SICK |
| Part Number |
WTB11-2P2431 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
