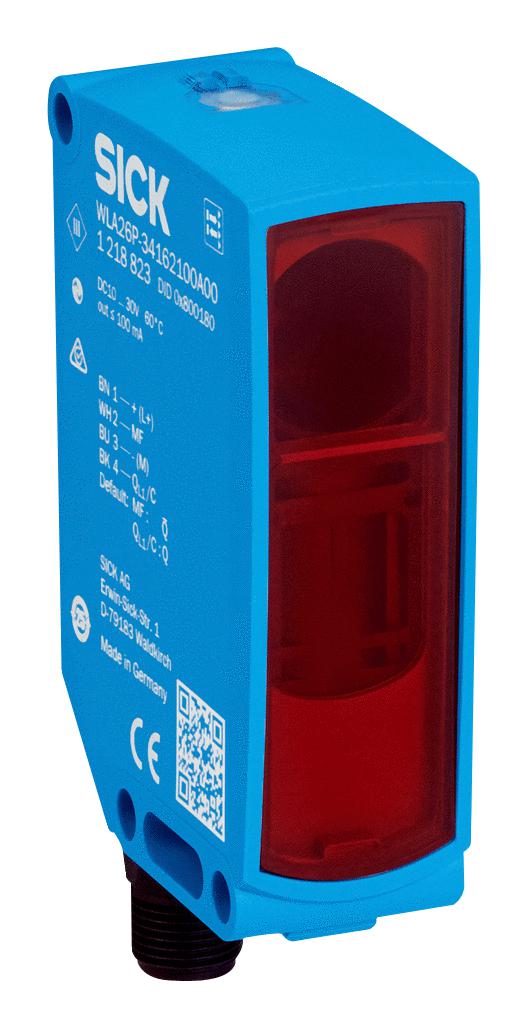

- W26 series compact photoelectric sensor
- Photoelectric retro-reflective sensor functional principle, autocollimation function
- 0m to 18m sensing range, polarisation filters, UL file No. NRKH.E181493 & NRKH7.E181493
- PinPoint LED light source, visible red type of light, point-shaped light spot
- � 100mm (10m) light spot size (distance)
- 10VDC to 30VDC supply voltage, � 30mA, without load. At UB = 24V current consumption
- PNP/NPN push-pull type, � 100mA max output current
- 1000Hz switching frequency, IP66 (EN 60529)/IP67 (EN 60529)/IP69 (EN 60529) rating
- Plastic, VISTAL® housing material, male connector M12, 4-pin connection type, rectangular housing
- Dimension (W x H x D) is 24.6 x 82.5 x 53.3mm, ambient operating temperature range from -40 to +60°C
Product details
Other details
| Brand |
SICK |
| Part Number |
WLA26P-24162100A00 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
