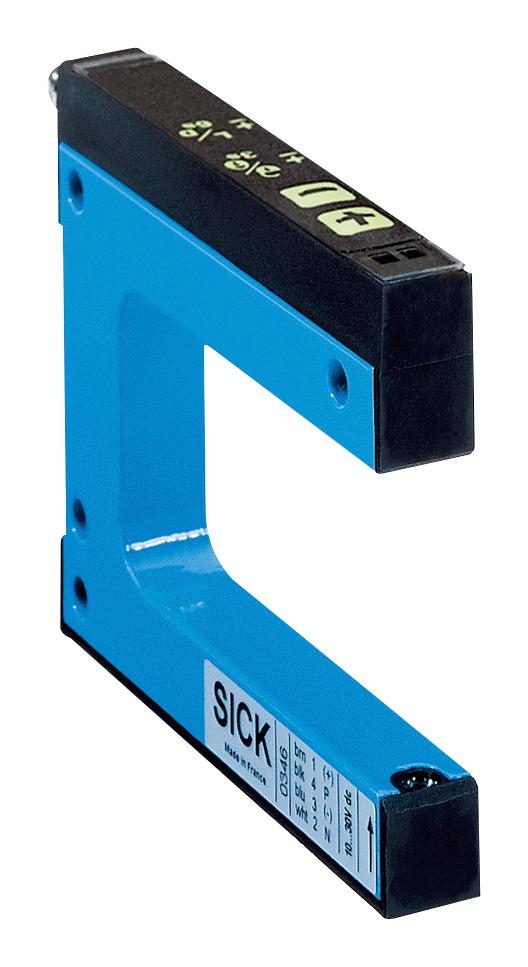

- WF series fork sensor
- Optical detection principle functional principle, fork shaped housing design
- 2mm fork width, 42mm fork depth, 0.2mm minimum detectable object (MDO)
- Label detection, LED/ infrared/infrared light source, 850nm wave length
- Plus/minus button (sensitivity, light/dark switching, key lock) adjustment
- Light/dark switching, selectable via button output function, IP65 enclosure rating
- 10VDC to 30VDC supply voltage range, 40mA current consumption
- 10KHz switching frequency, PNP/NPN switching output
- 100mA max output current, male connector M8, 4-pin connection type
- Dimension (W x H x D) is 10 x 32 x 57mm, ambient operating temperature range from -20°C to +60°C
Product details
| Sensor Output:
NPN / PNP
|
| Sensing Range Max:
2mm
|
| Supply Voltage DC Min:
10V
|
| Supply Voltage DC Max:
30V
|
| Output Current:
40mA
|
| Product Range:
WF Series
|
Other details
| Brand |
SICK |
| Part Number |
WF2-40B410 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
