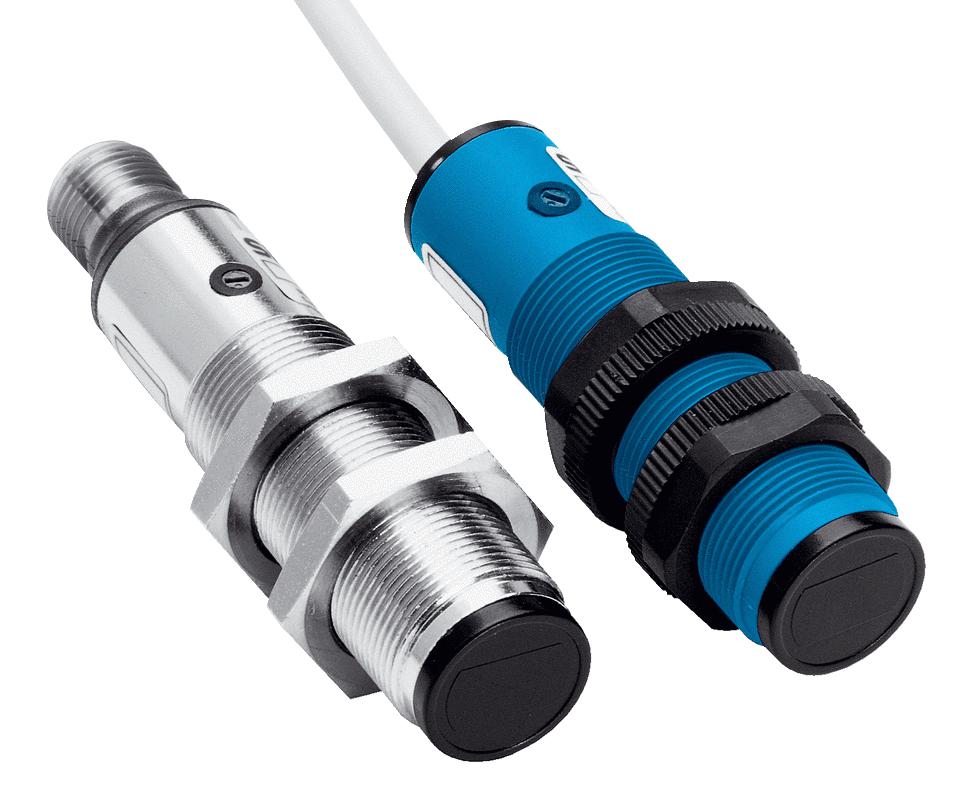

- V18 series cylindrical photoelectric sensor
- Photoelectric proximity sensor functional principle (energetic functional principle detail)
- Cylindrical housing design (light emission), 78mm housing length, M18 x 1 thread diameter (housing)
- Axial optical axis, 5mm to 400mm max sensing range, 5mm to 350mm sensing range
- Approx. 2.8° focus, infrared type of light, plastic, LED light source, IP67 enclosure rating
- Ã� 20mm (400mm) light spot size (distance), Approx. 2.8° angle of dispersion, PNP switching output
- Potentiometer 270° (Sensing range) adjustment, 10VDC to 30VDC supply voltage range
- 30mA current consumption, light switching mode, plastic, PBT/PC housing material
- <= 100mA max output current, 250Hz switching frequency, male connector M12, 4-pin connection type
- Dimension (W x H x D) is 18 x 18 x 78mm, ambient operating temperature range from -25°C to +70°C
Product details
| Sensing Range Max:
400mm
|
| Sensing Method:
Proximity Diffuse
|
| Sensor Output:
PNP
|
| Product Range:
V18 Series
|
| Connection Method:
M12 Connector
|
| Supply Voltage DC Min:
10V
|
| Supply Voltage DC Max:
30V
|
Other details
| Brand |
SICK |
| Part Number |
VTE18-3F4740 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
