Description
Product Overview

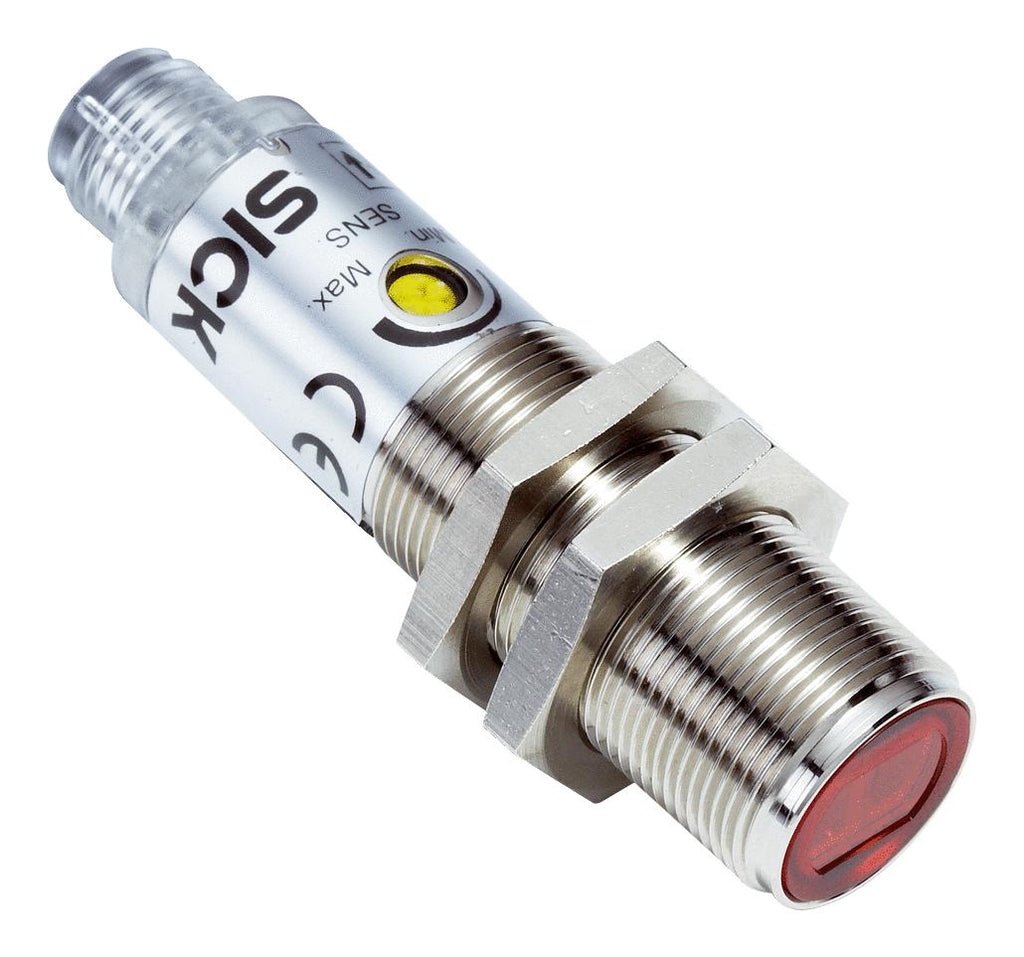

- V180-2 series cylindrical photoelectric sensor
- Photoelectric retro-reflective sensor functional principle (dual lens functional principle detail)
- Cylindrical housing design, 70.2mm housing length, M18 x 1 thread diameter (housing)
- Axial optical axis, 0.05m to 7m max sensing range, 0.05m to 6m sensing range
- Approx. 4.5° focus, visible red type of light, LED light source, Ø 400mm light spot size (distance)
- Approx. 4.5° angle of dispersion, 645nm wave length, potentiometer, 270° (sensitivity) adjustment
- 10VDC to 30VDC supply voltage range, 30mA current consumption, IP67 enclosure rating
- PNP switching output, light/dark switching mode, ? 100mA max output current
- Metal, nickel-plated brass and PC housing material, male connector M12, 4-pin connection type
- Dimension (W x H x D) is 18 x 18 x 70.2mm, ambient operating temperature range from -25°C to +55°C
Contents
Cylindrical photoelectric sensor, Reflector P250, Fastening nuts (2 x).
Product details
Other details
| Brand | SICK |
| Part Number | VL180-2P42431 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 16936.29 |
| 3-5 | ₹ 16763.47 |
| 5-10 | ₹ 16417.83 |
| 10+ | ₹ 16072.19 |
Bulk discount will be automatically applied during checkout based on quantity.
