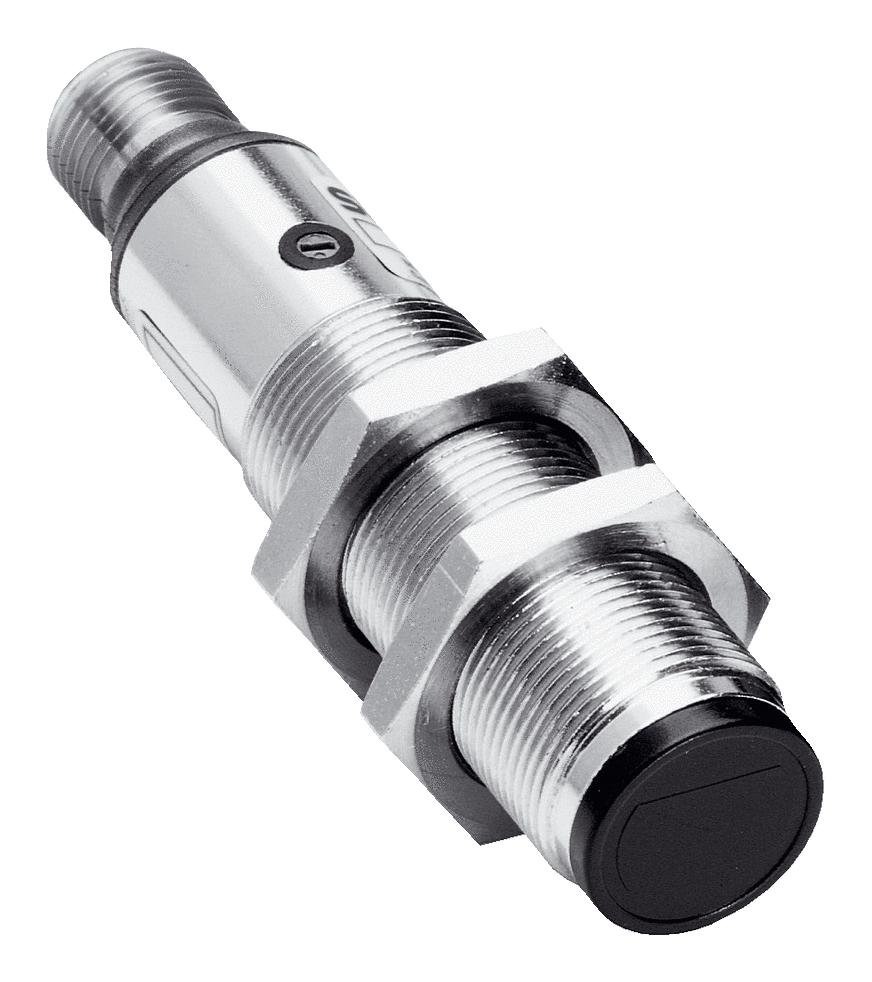

- V18 series cylindrical photoelectric sensor
- Photoelectric retro-reflective sensor functional principle, cylindrical housing design
- 78mm housing length, M18 x 1 thread diameter (housing), IP67 enclosure rating
- Axial optical axis, 0.05m to 3.7m max sensing range, 0.05m to 3m sensing range
- Approx. 2.8° focus, visible red type of light, LED light source, Ã� 150mm light spot size (distance)
- Approx. 2.8° angle of dispersion, potentiometer, 270° (sensitivity) adjustment
- 10VDC to 30VDC supply voltage range, 30mA current consumption
- PNP switching output, light/dark switching mode, <= 100mA max output current
- Metal, nickel-plated brass housing material, male connector M12, 4-pin connection type
- Dimension (W x H x D) is 18 x 18 x 78mm, ambient operating temperature range from -25°C to +70°C
Product details
| Sensing Range Max:
3.7m
|
| Sensing Method:
Retroreflective
|
| Sensor Output:
PNP
|
| Product Range:
V18 Series
|
| Connection Method:
M12 Connector
|
| Supply Voltage DC Min:
10V
|
| Supply Voltage DC Max:
30V
|
Other details
| Brand |
SICK |
| Part Number |
VL18-4P3240 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
