Description
Product Overview

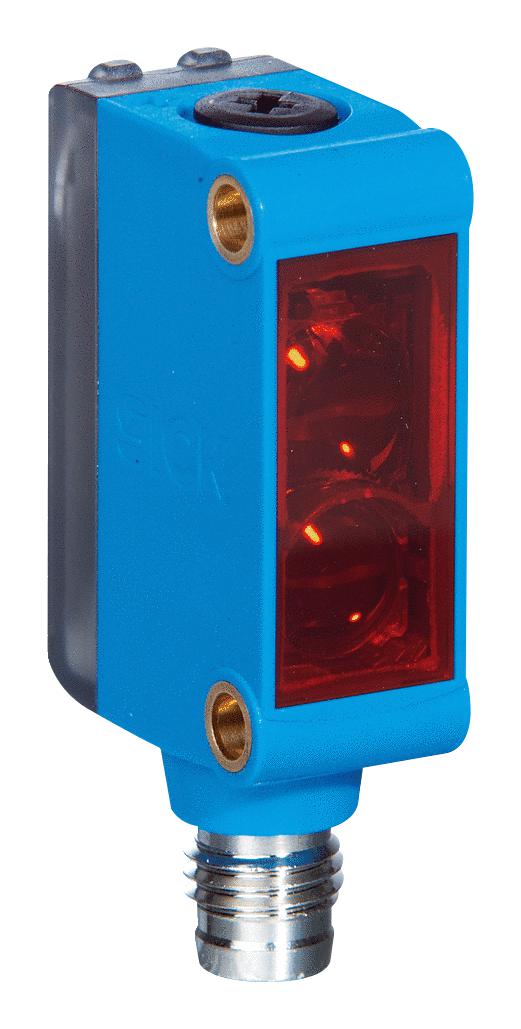

GTE6-P4211 is a G6 series miniature photoelectric sensor. It includes circuit protection (VS connections reverse-polarity protected, inputs and output reverse-polarity protected, outputs overcurrent and short-circuit protected).
- Photoelectric proximity sensor functional principle (energetic functional principle detail)
- ? 300mm max sensing, ? 250mm sensing
- PinPoint LED light source, visible red type of light, Ø 7mm (90mm) light spot size (distance)
- 650nm wave length, mechanical spindle, 5 turns adjustment
- 10VDC to 30VDC supply voltage range, 30mA current consumption
- III protection class, PNP type, ? 100mA max output current, plastic, ABS/PC housing
- <lt/>1,250ms response time, 500Hz switching frequency, light/dark switching mode
- Rectangular housing, male connector M8, 4-pin connection, IP67 enclosure rating
- Dimension (W x H x D) is 12mm x 31.5mm x 21mm
- Ambient operating temperature range from -25°C to +55°C
Product details
Other details
| Brand | SICK |
| Part Number | GTE6-P4211 |
| Quantity | Each |
| Technical Data Sheet EN |  |
