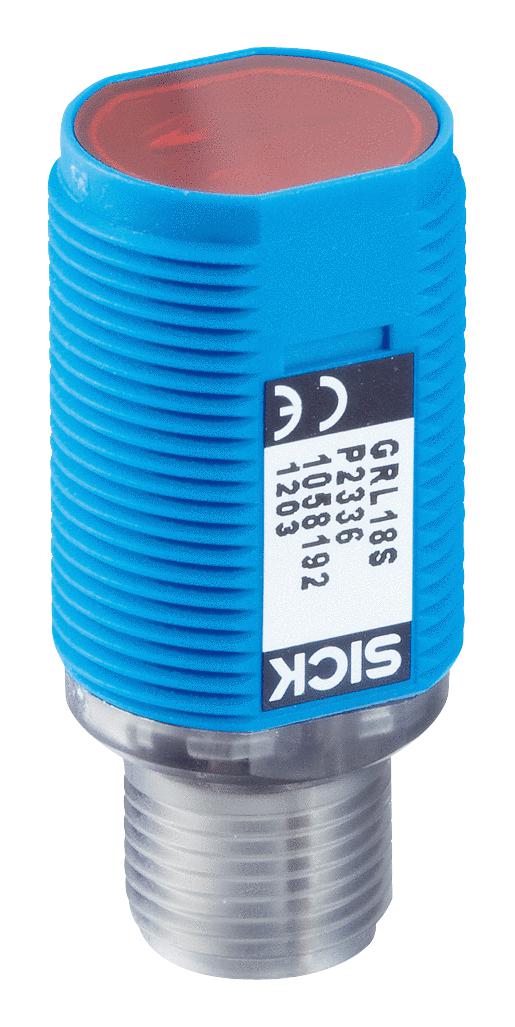

- GR18 series cylindrical photoelectric sensor
- Photoelectric proximity sensor functional principle (energetic functional principle detail)
- Cylindrical housing design (light emission), M18 x 1 thread diameter (housing), axial optical
- 5mm to 550mm max sensing range, 10mm to 400mm sensing range, visible red type of light
- PinPoint LED light source, � 9mm (400mm) light spot size (distance), PNP switching output
- Potentiometer, 270° adjustment, 650nm wave length, male connector M12, 4-pin connection type
- Supply voltage range from 10VDC to 30VDC, 30mA current consumption, plastic, PMMA optics material
- IP67 enclosure rating, light/dark switching mode
- <=100mA max output current, <1,000µs response time, 500Hz switching frequency
- Dimension (W x H x D) is 18 x 18 x 38.1mm, ambient operating temperature range from -25°C to +55°C
Contents
Cylindrical photoelectric sensor, Fastening nuts (2 x).
Product details
| Sensing Range Max:
550mm
|
| Sensing Method:
Proximity Diffuse
|
| Sensor Output:
PNP
|
| Product Range:
GR18S Series
|
| Connection Method:
M12 Connector
|
| Supply Voltage DC Min:
10V
|
| Supply Voltage DC Max:
30V
|
Other details
| Brand |
SICK |
| Part Number |
GRTE18S-P2447 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
