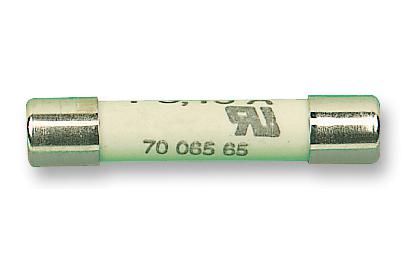

The 70-065-65 2A is a 2A 415VAC slow blow time-delay anti-surge Miniature Fuse with ceramic tube body, it has high fuse ratings for semiconductor protection. Meets IEC 60127, DIN VDE 0820, CEE4, UL 248-14, UL 512, CSA-C22.2 #248.14 standards.
- 300mV Maximum Voltage drop
Applications
Safety
Product details
| Blow Characteristic |
Time Delay |
| Fuse Current |
2A |
| Voltage Rating VAC |
500V |
| Fuse Size Metric |
6.3mm x 32mm |
| Fuse Size Imperial |
1/4" x 1-1/4" |
| Product Range |
- |
| Breaking Capacity Current AC |
1.5kA |
Other details
| Brand |
SIBA |
| Part Number |
70-065-65/2A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Miscellaneous EN |
|
