Description

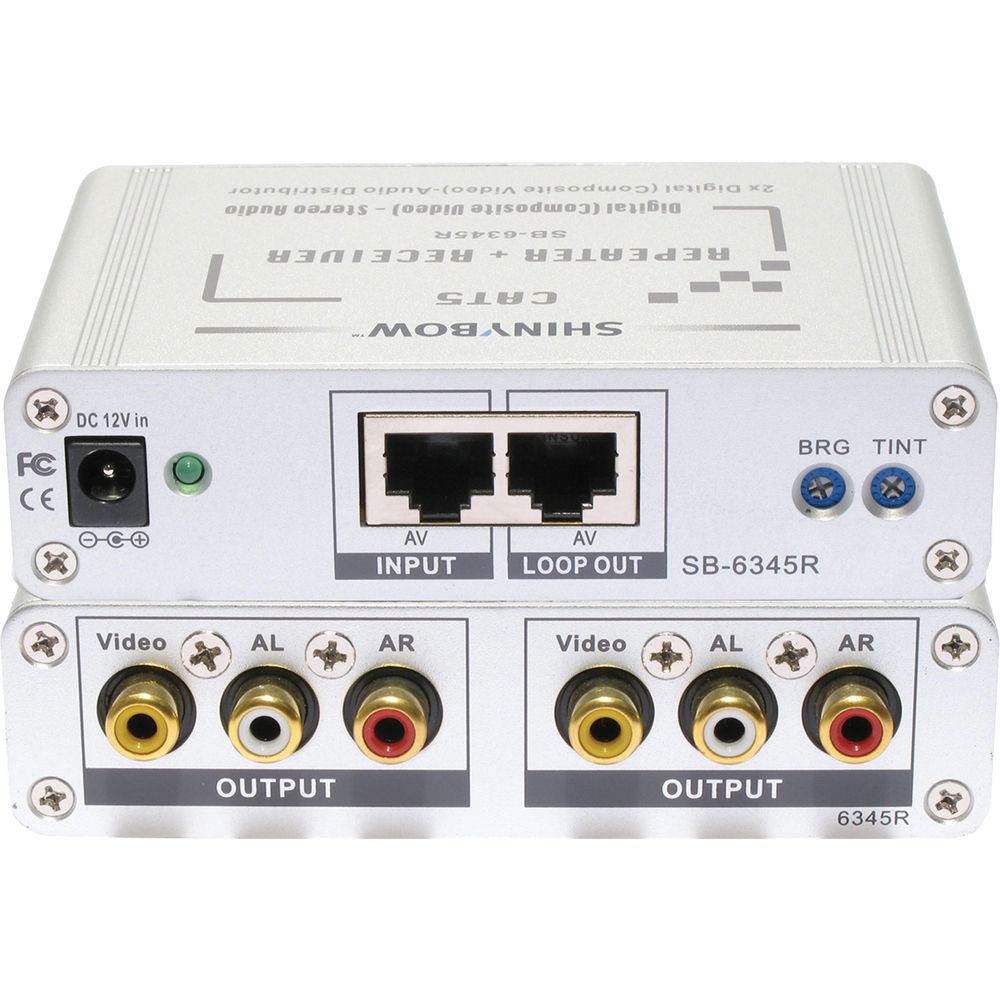

Shinybow SB-6345R Overview
The Shinybow SB-6345R CAT5 Composite Video Digital/Stereo Audio Receiver & Repeater extends video signals up to 1,000� (300 m) using inexpensive CAT5/CAT6 UTP cables. The transmitter (sold separately) connects to a local video source and allows you to extend to the receiver. This device is commonly used at restaurants, bars, clubs, and other HDTV environments for video broadcasting such as remote monitoring, presentations, and advertising.

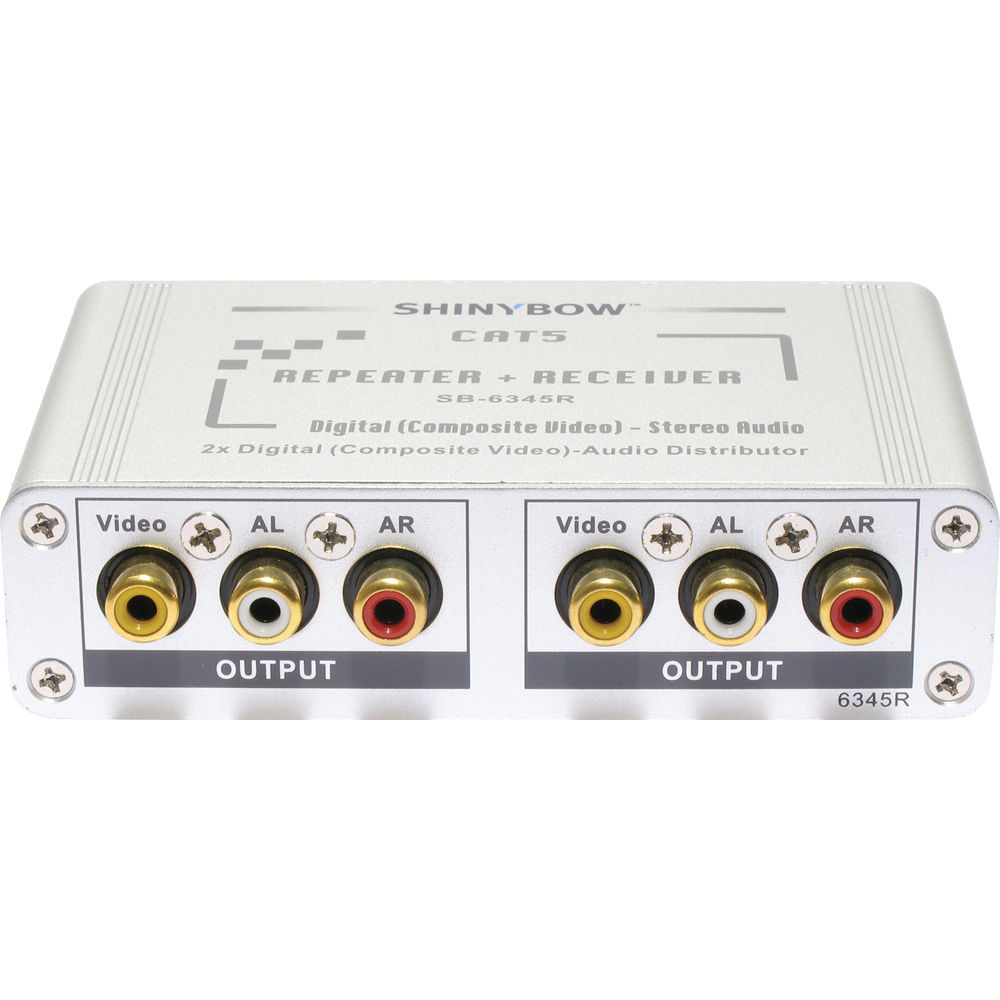

Output via gold plated, color coded RCA phono sockets
Category UTP cable maximum length to 1,000' (300 m)
Easy to install and highly reliable

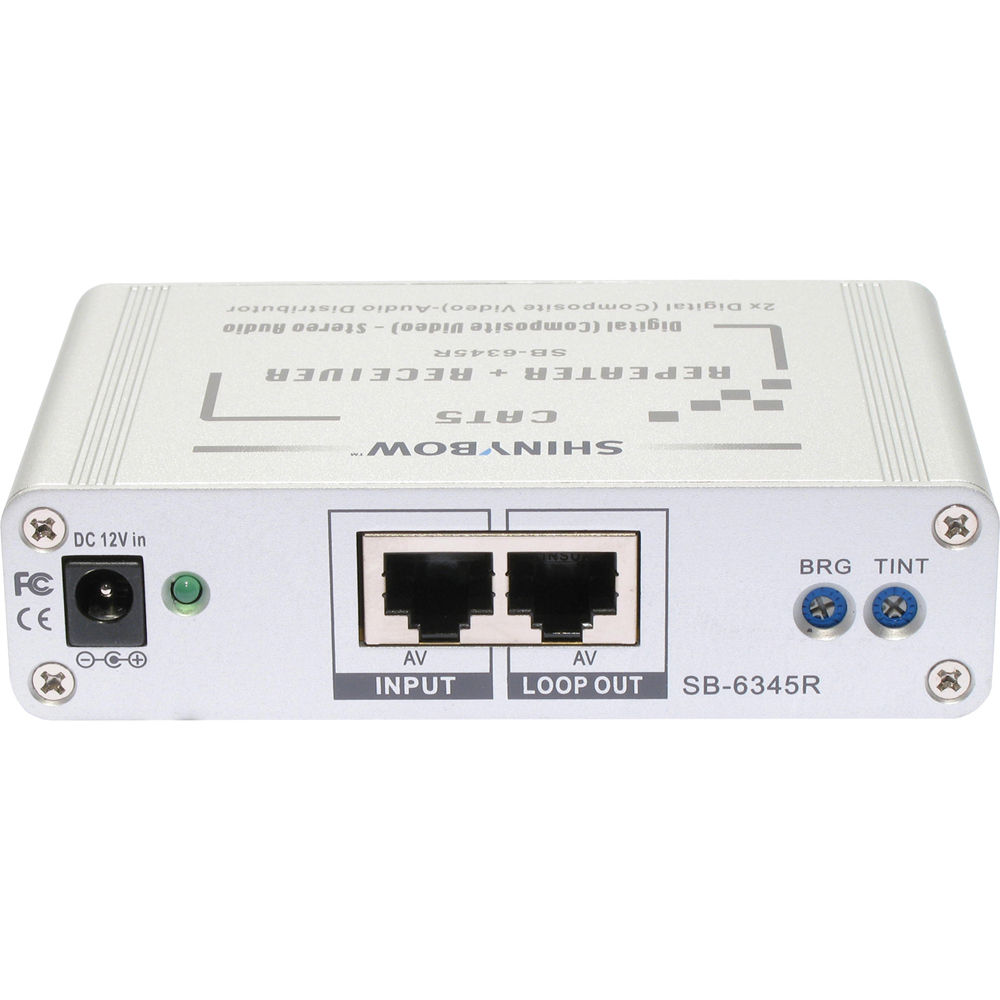

1x RJ-45 input
Brushed aluminum case with mounting brackets
LED power on indicator
Includes power supply
Supports HDTV resolution 480p, 720p, 1080i
For use in conjunction with the CAT5 component transmitters
Tint and brightness control
In the Box
- Shinybow SB-6345R CAT5 Composite Video Digital/Stereo Audio Receiver & Repeater
- Surface Mount Bracket
- Users Guide
- AC/DC Adapter (12 VDC, 300 mA)
- 3-Year Limited Warranty
Shinybow SB-6345R Specs
| Video Input Level | 1.45 Vpp maximum |
| Distortion | -80 dB total harmonic @ 1 MHz: Rl = 100 ? |
| Video Bandwidth | 450 MHz, -3 dB |
| Slew Rate | 1600 V/Zµs |
| Housing | Aluminum |
| Size | Switcher Size (L x W x H): 3 x 2.75 x 1" (76.2 x 69.85 25.4 mm) |
| Power Supply | 12 VDC, 300 mA |
Packaging Info
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 9.4 x 7.2 x 1.5" |
